How was this Twin 049 made?

Page 1 of 2 1, 2  Next

View previous topic View next topic Go down

Re: How was this Twin 049 made?

Post  fit90 on Thu Mar 22, 2012 7:42 pm

FADEC, it's being used on GA reciprocating engines now. Why not just take it a step smaller? (FADEC-full authority digital engine control)

fit90
Platinum Member
Platinum Member

Posts : 994
Join date : 2011-08-11
Location : Naples, Florida

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  ahrma_581 on Thu Mar 22, 2012 8:10 pm

PV Pilot wrote:There is a teaser video on youtube of a Gmark .12 twin and a few sad second of a dissasembled one. No real close up's of the crank pin setup and tiny bits, just a drunken flyby with the camera.

The google is your friend: http://modelenginenews.org/cardfile/gm12.html

Shows parts diagram and some photos of crank details. Could be duplicated with Cox cylinder/piston assy's, but I wouldn't want to build the bottom end with just a bastard file and a bench vise.

ahrma_581
Gold Member
Gold Member

Posts : 290
Join date : 2012-03-21
Location : Sonoran desert

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  dckrsn on Thu Mar 22, 2012 9:51 pm

......."but I wouldn't want to build the bottom end with just a bastard file and a bench vise."

Ha! Made my night. lol!
Bob

dckrsn
Diamond Member
Diamond Member

Posts : 1628
Join date : 2010-10-21
Age : 63
Location : Long Island, NY

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  RknRusty on Thu Mar 22, 2012 10:48 pm

Ahrma_581, welcome to the forums. That guy in your avie looks like Reverend Jim Ignatowski.

_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist

RknRusty
Moderator

Posts : 9708
Join date : 2011-08-10
Age : 60
Location : South Carolina, USA

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  Big Al on Fri Mar 23, 2012 4:17 am

WingingIt74 wrote:More precisely the crank. I can see how the case was made. I assume it just has a longer crank pin to accommodate both pistons? Ideally you would want them something like 90º from each other?

It's sprouted my imagination on trying to figure out and maybe building one.


http://www.ebay.com/itm/260982078736?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649#ht_500wt_1156
Several years ago that same engine (or one identical to it) was on eBay. At the time I also wondered if it could be a runner. I did a layout using stock Cox parts with thoughts of duplicating it and at first glance it looked like it might be possible by using a silver soldered crank assy. But alas, (see sketch) there was a serious fly in that ointment. Sad

Big Al
Gold Member
Gold Member

Posts : 116
Join date : 2011-08-17
Age : 83
Location : Louisiana

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  WingingIt74 on Fri Mar 23, 2012 6:29 am

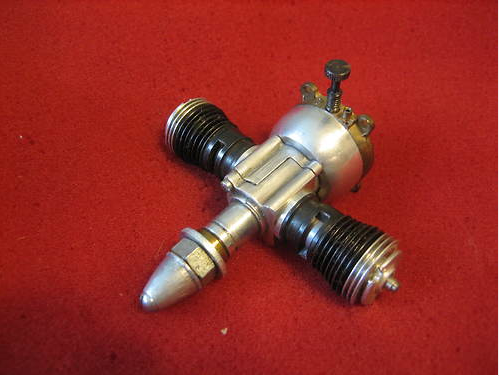

hmmm, nothing is impossible. You just need a crank assembly that comes apart or a piston rod that has a cap.



image from here:

_________________
-Travis

Winging It! with Travis & Jeremy
On FaceBook & YouTube

WingingIt74
Moderator

Trusted Seller
Posts : 3184
Join date : 2011-08-11
Age : 42
Location : Waterloo, IL

View user profile Http://www.HorizonRcFlyers.com

Back to top Go down

Re: How was this Twin 049 made?

Post  WingingIt74 on Fri Mar 23, 2012 9:35 am

This guy said he isn't taking the tank off either... What's wrong with these people???

_________________
-Travis

Winging It! with Travis & Jeremy
On FaceBook & YouTube

WingingIt74
Moderator

Trusted Seller
Posts : 3184
Join date : 2011-08-11
Age : 42
Location : Waterloo, IL

View user profile Http://www.HorizonRcFlyers.com

Back to top Go down

Re: How was this Twin 049 made?

Post  WingingIt74 on Fri Mar 23, 2012 10:13 am

RknRusty wrote:Ahrma_581, welcome to the forums. That guy in your avie looks like Reverend Jim Ignatowski.
http://www.cbs8.com/Global/story.asp?S=13209288

_________________
-Travis

Winging It! with Travis & Jeremy
On FaceBook & YouTube

WingingIt74
Moderator

Trusted Seller
Posts : 3184
Join date : 2011-08-11
Age : 42
Location : Waterloo, IL

View user profile Http://www.HorizonRcFlyers.com

Back to top Go down

Re: How was this Twin 049 made?

Post  RknRusty on Fri Mar 23, 2012 10:51 am

RknRusty wrote:I sent him this question:
In the picture, one piston looks to be up while the other is down. How can it pull an intake vacuum or compress the fuel/air charge in the crankcase with the pistons working against each other? Am I missing something? Any chance you could take off the tank and show a picture of the rotating assembly? And the venturi too.
Interesting engine. Thanks,
Rusty
His answer, as we know was:
Dear rknrusty,

sorry, i am not going to take the engine apart. i do not know auything else about it. what you see is what you are purchasing.
- widow315

_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist

RknRusty
Moderator

Posts : 9708
Join date : 2011-08-10
Age : 60
Location : South Carolina, USA

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  RknRusty on Fri Mar 23, 2012 10:52 am

WingingIt74 wrote:
RknRusty wrote:Ahrma_581, welcome to the forums. That guy in your avie looks like Reverend Jim Ignatowski.
http://www.cbs8.com/Global/story.asp?S=13209288
I liked it better when I thought it was Reverend Jim. Laughing

_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist

RknRusty
Moderator

Posts : 9708
Join date : 2011-08-10
Age : 60
Location : South Carolina, USA

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  ahrma_581 on Fri Mar 23, 2012 12:37 pm

WingingIt74 wrote:
RknRusty wrote:Ahrma_581, welcome to the forums. That guy in your avie looks like Reverend Jim Ignatowski.
http://www.cbs8.com/Global/story.asp?S=13209288

That's funny, I'd forgotten where it came from. Just so we're clear, I'm neither the father nor the son in that article!!!

ahrma_581
Gold Member
Gold Member

Posts : 290
Join date : 2012-03-21
Location : Sonoran desert

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  WingingIt74 on Fri Mar 23, 2012 1:29 pm

ahrma_581 wrote:
WingingIt74 wrote:
RknRusty wrote:Ahrma_581, welcome to the forums. That guy in your avie looks like Reverend Jim Ignatowski.
http://www.cbs8.com/Global/story.asp?S=13209288

That's funny, I'd forgotten where it came from. Just so we're clear, I'm neither the father nor the son in that article!!!

lol!

_________________
-Travis

Winging It! with Travis & Jeremy
On FaceBook & YouTube

WingingIt74
Moderator

Trusted Seller
Posts : 3184
Join date : 2011-08-11
Age : 42
Location : Waterloo, IL

View user profile Http://www.HorizonRcFlyers.com

Back to top Go down

Re: How was this Twin 049 made?

Post  microflitedude on Fri Mar 23, 2012 1:40 pm

That's a car crankcase on the twin...

microflitedude
Top Poster
Top Poster

Trusted Seller
I Support My Forum

Posts : 3417
Join date : 2011-08-17
Age : 18
Location : Columbia, SC

View user profile https://www.facebook.com/MiniCub?fref=ts

Back to top Go down

Re: How was this Twin 049 made?

Post  nitroairplane on Fri Mar 23, 2012 1:45 pm

Big Al wrote:
WingingIt74 wrote:More precisely the crank. I can see how the case was made. I assume it just has a longer crank pin to accommodate both pistons? Ideally you would want them something like 90º from each other?

It's sprouted my imagination on trying to figure out and maybe building one.


http://www.ebay.com/itm/260982078736?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649#ht_500wt_1156
Several years ago that same engine (or one identical to it) was on eBay. At the time I also wondered if it could be a runner. I did a layout using stock Cox parts with thoughts of duplicating it and at first glance it looked like it might be possible by using a silver soldered crank assy. But alas, (see sketch) there was a serious fly in that ointment. Sad
Possible if you could do the second part as a screw on.

nitroairplane
Top Poster
Top Poster

Posts : 6956
Join date : 2011-04-11
Location : London

View user profile http://modeldieselengines.forumstopic.com/

Back to top Go down

Re: How was this Twin 049 made?

Post  andrew on Fri Mar 23, 2012 4:38 pm

Many times the second web is pressed on --- this is fairly common on multi-cylinder 2 stroke engines with needle bearings on the lower end of the rod.

But, in any case, I agree that the piston postions are problematic. To get the necessary crankcase vacuum and compression, the pistons should be mounted on the crank 180 degrees apart. Induction could be either reed or rotary disk. The picture clearly shows one exhaust port open and the second port covered by the piston. It may be that one of the rods or the rear web has snapped and only one piston functions.

Rotary disk induction may be more appropriate since a reed valve would require that the second throw be fully floating and unsupported. A rotary valve would add some rotational drag, but would support the rear rod journal.

andrew

andrew
Platinum Member
Platinum Member

Posts : 1187
Join date : 2011-08-11
Age : 68
Location : Western Kentucky

View user profile http://web2.murraystate.edu/andy.batts/ps/POWERSUPPLY.HTM

Back to top Go down

Re: How was this Twin 049 made?

Post  WingingIt74 on Mon Mar 26, 2012 8:47 am

Twins coming out of the woodwork lol! At least this seller is truthful in that they said it doesn't run.

http://www.ebay.com/itm/UNIQUE-COX-TWIN-CYLINDER-049-MODEL-AIRPLANE-ENGINE-/230767275537?pt=Radio_Control_Parts_Accessories&hash=item35bacd2e11#ht_4157wt_1224

_________________
-Travis

Winging It! with Travis & Jeremy
On FaceBook & YouTube

WingingIt74
Moderator

Trusted Seller
Posts : 3184
Join date : 2011-08-11
Age : 42
Location : Waterloo, IL

View user profile Http://www.HorizonRcFlyers.com

Back to top Go down

Re: How was this Twin 049 made?

Post  Cribbs74 on Mon Mar 26, 2012 9:02 am

The crankcase on that one was done well.

Cribbs74
Moderator

Trusted Seller
Posts : 8934
Join date : 2011-10-24
Age : 42
Location : Tuttle, OK

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  WingingIt74 on Mon Mar 26, 2012 9:22 am

cribbs74 wrote:The crankcase on that one was done well.

Not sure if it's any better or not...


I guess you could do a threaded insert, can't tell with this one.

_________________
-Travis

Winging It! with Travis & Jeremy
On FaceBook & YouTube

WingingIt74
Moderator

Trusted Seller
Posts : 3184
Join date : 2011-08-11
Age : 42
Location : Waterloo, IL

View user profile Http://www.HorizonRcFlyers.com

Back to top Go down

Re: How was this Twin 049 made?

Post  Godsey3.0 on Mon Mar 26, 2012 12:27 pm

http://community-2.webtv.net/injunnut/UniqueSMALLModel/

_________________
Peace cannot be kept by force. It can only be achieved by understanding.
We can't solve problems by using the same kind of thinking we used when we created them

Godsey3.0
Moderator

Posts : 970
Join date : 2011-09-21
Age : 21
Location : Metamora, Indiana

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  altidsulten on Mon Mar 26, 2012 2:14 pm

Nice engines in that link, but unfortunately the link in the article is dead. I would really like to see how he had made the crank.
Regards
Thomas

altidsulten
Gold Member
Gold Member

Trusted Seller
Posts : 179
Join date : 2011-12-03
Location : Hjørring, Denmark

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  robot797 on Wed Jul 31, 2013 1:16 pm

does anyone know were one does get a working engine like that

i need one for a boat i am building

robot797
Gold Member
Gold Member

Posts : 284
Join date : 2013-07-28
Age : 26

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  WingingIt74 on Wed Jul 31, 2013 1:19 pm

They are all custom engines. Opposing cylinders in such a small crank case do not work.

_________________
-Travis

Winging It! with Travis & Jeremy
On FaceBook & YouTube

WingingIt74
Moderator

Trusted Seller
Posts : 3184
Join date : 2011-08-11
Age : 42
Location : Waterloo, IL

View user profile Http://www.HorizonRcFlyers.com

Back to top Go down

Re: How was this Twin 049 made?

Post  robot797 on Wed Jul 31, 2013 1:25 pm

to bad

robot797
Gold Member
Gold Member

Posts : 284
Join date : 2013-07-28
Age : 26

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  Jason_WI on Wed Jul 31, 2013 6:15 pm

If you want a twin that runs look for a geared twin such as the Selena products geared twin. They pop up on ebay from time to time.


Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 1907
Join date : 2011-10-09
Age : 41
Location : Neenah, WI

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  anm2 on Wed Jul 31, 2013 6:52 pm

Jason_WI wrote:If you want a twin that runs look for a geared twin such as the Selena products geared twin. They pop up on ebay from time to time.


I do not understand the point of this engine. It looks really heavy, and if I wanted something with twice the power of an .049 I would buy a .09 engine. In fact, I would probably buy a .15 engine. The medallion .15 I have is probably the best engine I have used. This seems like a lot of work, for something that is nothing more than a curio. Is there some competition that uses this engine, that I am not aware of? Thanks, Andy

anm2
Gold Member
Gold Member

Posts : 283
Join date : 2013-03-30

View user profile

Back to top Go down

Re: How was this Twin 049 made?

Post  Sponsored content Today at 3:53 am


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
