Wild Hair JOE (Ken Willard) Pee wee powered

Page 1 of 2 1, 2  Next

Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Mon Dec 12, 2016 4:42 pm

Hi friends, this winter Cold I´m a little lazy Sad but I need built some model. Huh...

Free flight 1/4 A model airplane will be good option Airplane

And I think that spanish Wild Man affraid must built the Wild Hair Joe. Flying

Wild Hair JOE (Ken Willard) Pee wee powered  Wild-h11

Has anyone built it? Not seem very dificult ... How many days will it take to do this? Paranoid

Wild Hair JOE (Ken Willard) Pee wee powered  Wild-h10

Nevertheless the master designer Ken Willard is the best guarantee. lol!

II´m sure that I will not forget to turn on the receiver No! ..... I hope not to lose the Pee wee Babe Bee .049 Devil

Regards Beer Cheers sleep

JMCalata sunny
jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  ian1954 on Wed Dec 14, 2016 2:26 am

Jose,

It doesn't need a receiver - it's a free flighter!

Is it finished yet? A slabby sided, slabby winged plane like this could be finished in an hour lol!

RCing this could add a little too much weight.

Please post the build.
ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2554
Join date : 2011-11-16
Age : 65
Location : England

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Wed Dec 14, 2016 3:02 am

Hi Ian, I imagine that when you say "slabby" you can say boards .. ok? or woody plane? ... well.

Wild Hair JOE (Ken Willard) Pee wee powered  Descar10

Yes ... I can build faster but don´t be impatient Ian, I prefer build slow to enjoy more time.

I´m thinking to ing one channel RC, I fligh over railways, trees, river, road, there are many dangers for free flying.

jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Wed Dec 14, 2016 3:49 am

The Wild Hair Joe plan appears at sixties in Flaps magazine, the most popular aeronautic and model press.

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2019

Here explain how build.

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2020

Here shown wing platform detail.

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2018
jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  getback on Wed Dec 14, 2016 6:55 am

HI Jose , i looked over the plans and it doesn't say how many ribs to cut and install ? I read the english version couldn't get the translator to do the spanish version so i could read . Looks like a fun little build , you going with the .035 K&B to pull the extra weight ? I Love This Forum!
getback
getback
Top Poster
Top Poster

2019 Supporter

Posts : 6405
Join date : 2013-01-18
Age : 62
Location : julian

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  OVERLORD on Wed Dec 14, 2016 7:04 am

Eric, I think it's as simple as on the drawings: 1 rib at wing root and 1 more at 2/3 of the wing.

José, Good luck with the build. Looking forward to see it flying!!


Last edited by OVERLORD on Thu Dec 15, 2016 1:46 am; edited 1 time in total
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1353
Join date : 2013-03-19
Age : 53
Location : Normandy, France

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Wed Dec 14, 2016 1:44 pm

Hi, yes there is a simple construction system like jedelsky profiles.

One rib at root and other a 2/3 span, but I add one more at 1/3 span and I will make the root rib extra thick.

About engines I have three vintage K&B size but I think COX Pee wee has eneogh thrust for small Joe.

Wild Hair JOE (Ken Willard) Pee wee powered  P1011410

However I scale up plans 10 % because I don´t like fly bullets.

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2021

See the bigger Skyrida Pee wee powered.



By the WAY anybody want to follow me building another vintage slabby or ebenezer 1952 ( 65 years old)
jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  batjac on Wed Dec 14, 2016 5:37 pm

getback wrote:HI Jose , i looked over the plans and it doesn't say how many ribs to cut and install ? I read the english version couldn't get the translator to do the spanish version so i could read . Looks like a fun little build , you going with the .035 K&B to pull the extra weight ? I Love This Forum!

Eric, you might check out the plans from Outerzone.  In English and will print out full size:

http://www.outerzone.co.uk/plan_details.asp?ID=2031

The Referent Mark
batjac
batjac
Diamond Member
Diamond Member

2019 Supporter

Posts : 1744
Join date : 2013-05-22
Age : 56
Location : Portland, OR, USA

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  batjac on Wed Dec 14, 2016 5:50 pm

jmcalata wrote:
See the bigger Skyrida Pee wee powered.



By the WAY anybody want to follow me building another vintage slabby or ebenezer 1952 ( 65 years old)

That's a lovely plane you have there.  Great job with the doped colors.  Nice and bright.  It flies nice and docile with the PeeWee and oversized prop.  What size prop is that?  I've admired the Skyrida, but couldn't see when I'd get to building one.  Well done!

And, Yes! We always want to see another vintage build thread!

The Envious Mark
batjac
batjac
Diamond Member
Diamond Member

2019 Supporter

Posts : 1744
Join date : 2013-05-22
Age : 56
Location : Portland, OR, USA

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  roddie on Wed Dec 14, 2016 6:06 pm

Flying over railway, trees and river.. Where do you land Joe? tongue Maybe add one more RC channel.. Popcorn Nice Winter project! I love to build.. I understand you're wanting to take your time with the model. Relaxing with it is good. I'm relaxing a little too much lately.. silent
roddie
roddie
Top Poster
Top Poster

Posts : 6636
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  getback on Wed Dec 14, 2016 7:28 pm

The  Skyrida Pee Wee flies great , Overloard i just now seen the last pic it dint' pick up earlier and see now where the ribs are , Thanks though. The Pee Wee will do it i am sure Jose , just wondering if you would go with the original in the pic. Small Cox Logo   I may take you up on the winter build i have alot on my plate right now but need some FUN!!!! bounce   Copy paste Thumbs Up Let me ck out Outterzone thanks Mark! I Love This Forum!
getback
getback
Top Poster
Top Poster

2019 Supporter

Posts : 6405
Join date : 2013-01-18
Age : 62
Location : julian

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Thu Dec 15, 2016 3:12 am

Hi guys, I have started project Snowman Christmas Tree  ... anybody follow me? I Love This Forum!

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2022

The motor plate mount is a wood circle rest that drills bigs holes

Is a lot oo fun build small models ... you can relax so much and enjoy with them  lol!

A 1952 model neede vintage colours painting ... maybe varnish and some black details.

About Skyrida I use normally 5x3" prop at Pee wee but I use 6x3" also as you can see here.

jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  MauricioB on Thu Dec 15, 2016 5:33 am

jmcalata wrote:Hi guys, I have started project Snowman Christmas Tree  ... anybody follow me? I Love This Forum!

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2022

The motor plate mount is a wood circle rest that drills bigs holes

Is a lot oo fun build small models ... you can relax so much and enjoy with them  lol!

A 1952 model neede vintage colours painting ... maybe varnish and some black details.

About Skyrida I use normally 5x3" prop at Pee wee but I use 6x3" also as you can see here.


Hola José como estas?, veo que tienes un nuevo proyecto en curso!, sigo tus avances! Very Happy .....(a propósito, pudiste hacer el aro acelerador del acelerador del Pee Wee? Saludos!!!!

Hi Jose, how are you? I see you have a new project underway! I follow your progress! Very Happy ..... (by the way, could you make the accelerator ring of the Pee Wee accelerator? Regards!!!!

MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2198
Join date : 2016-02-16
Age : 48

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  OVERLORD on Thu Dec 15, 2016 6:32 am

You're getting along well. What a good idea to use a hole saw for making the motor mount. That shape goes well with a Pee Wee or Babe Bee tank. I use children's puzzle parts for motor mounts. The plywood has very fine layers.

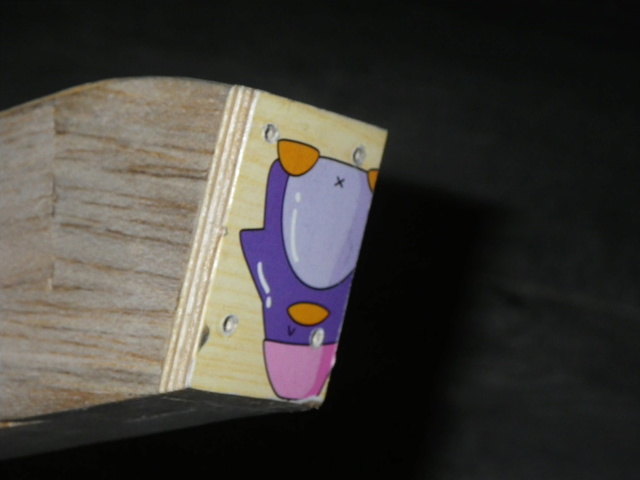

Wild Hair JOE (Ken Willard) Pee wee powered  Imgp1910

I always protect the surface with a piece of Oracover against fuel ingress. Oracover when sanded can be painted in any colour you want!

Keep up the good work

Lieven
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1353
Join date : 2013-03-19
Age : 53
Location : Normandy, France

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Thu Dec 15, 2016 7:02 am

No Mauricio, I dont made ring ... maybe later ... next year

At hole saw wood mount se add two slots V for landing gear wire

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2023

And a big groove rear for fue assembly

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2024


Last edited by jmcalata on Thu Dec 15, 2016 7:28 am; edited 1 time in total
jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  getback on Thu Dec 15, 2016 7:27 am

Looking Good Jose , you are getting on with the project , How much did you scale up the plans ? If i can get to one it will have to bee early this coming year !
getback
getback
Top Poster
Top Poster

2019 Supporter

Posts : 6405
Join date : 2013-01-18
Age : 62
Location : julian

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Thu Dec 15, 2016 7:30 am

I scaled about 110% for Pee wee .020

Win span is 440 mm
jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  KariFS on Thu Dec 15, 2016 8:14 am

Looking good Jose, I am following this Smile I am curious to see how you are going to protect the radio stuff from castor goo, as I am also interested in a simple "radio assisted" free flight model.

I also like your engine mount idea. strong, simple, and acts as ballast too.
KariFS
KariFS
Diamond Member
Diamond Member

Posts : 1576
Join date : 2014-10-10
Age : 48

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Thu Dec 15, 2016 8:22 am

Oh is true the center hole can be put ballast ... but I check cdg 50 % and need ballast rear at  tail
jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Thu Dec 15, 2016 3:55 pm

1/16" (1,58 mm) balsa is very thin for stab and wing sheet, I use 2 mm

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2025

I have made the rudder down because is more easy mount the wire servo for control.

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2026

Two small papel tissue hinges inserted
jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  NEW222 on Thu Dec 15, 2016 6:57 pm

Looks very nice. The hole saw idea is awesome. Never thought of that.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2429
Join date : 2011-08-13
Age : 41
Location : oakbank, mb

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  NEW222 on Thu Dec 15, 2016 6:59 pm

OVERLORD wrote:You're getting along well. What a good idea to use a hole saw for making the motor mount. That shape goes well with a Pee Wee or Babe Bee tank. I use children's puzzle parts for motor mounts. The plywood has very fine layers.

Wild Hair JOE (Ken Willard) Pee wee powered  Imgp1910

I always protect the surface with a piece of Oracover against fuel ingress. Oracover when sanded can be painted in any colour you want!

Keep up the good work

Lieven

Another great idea. Would be good to post this in the 'Cheapskates' topic in the other forum. I like it! Laughing
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2429
Join date : 2011-08-13
Age : 41
Location : oakbank, mb

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  NEW222 on Thu Dec 15, 2016 7:03 pm

The 'Cheapskates' topic I was referring to is actually called 'repurposing/recycling items for hobby-use'. My bad, but I do like the sound 'cheapskate'! Very Happy Anyways, I think it would be a great share on that topic, but did not want to take your work and discovery away from you, so if you were interested in sharing it there, here is the link. Thanks again for sharing.
https://www.coxengineforum.com/t10328-repurposing-recycling-items-for-hobby-use
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2429
Join date : 2011-08-13
Age : 41
Location : oakbank, mb

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Fri Dec 16, 2016 3:40 pm

Kari the best way to insulate the equipment from the oil is to put it inside the fuselage 3/16" wide but for that you have to be a good surgeon Very Happy
jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  jmcalata on Fri Dec 16, 2016 5:26 pm

Insert a micro tiny servo for rudder RC Plane

Wild Hair JOE (Ken Willard) Pee wee powered  Img_2027
jmcalata
jmcalata
Gold Member
Gold Member

Posts : 439
Join date : 2012-01-30
Age : 51
Location : Guadalajara (Spain)

http://aeroguada.com

Back to top Go down

Wild Hair JOE (Ken Willard) Pee wee powered  Empty Re: Wild Hair JOE (Ken Willard) Pee wee powered

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top



Permissions in this forum:
You cannot reply to topics in this forum
