Pee Wee .020 - What years?

Post  wha-tah-hey on Mon Aug 28, 2017 6:45 pm

Hey guys -

I dug out my Pee Wees today for a bench session. Lotsa fun.
One has the single-fill backplate/plain tank, two have dual-fill/engraved engraved tanks, one with "Made in USA" backplate the other not.
Just curiosity but what years were the different variants produced?
avatar
wha-tah-hey
Gold Member
Gold Member

I Support My Forum

Posts : 260
Join date : 2013-12-04
Location : Elgin, Al

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  Cribbs74 on Mon Aug 28, 2017 6:52 pm

wha-tah-hey wrote:Hey guys -

I dug out my Pee Wees today for a bench session. Lotsa fun.
One has the single-fill backplate/plain tank, two have dual-fill/engraved engraved tanks, one with "Made in USA" backplate the other not.
Just curiosity but what years were the different variants produced?

It would be easier with pictures, but going off the backplates

Oldest- no markings
Middle- Made in USA
Newest- single fill backplate.

If you had a pic you could narrow it down with cylinder type and crankcase shape.
avatar
Cribbs74
Moderator

Trusted Seller
Posts : 9487
Join date : 2011-10-24
Age : 43
Location : Tuttle, OK

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  wha-tah-hey on Mon Aug 28, 2017 7:25 pm

Hi Ron -
I uz mistook - no "Made in USA" on either older engine ("Thimble Drome" tanks), just the newest one, along with "Cox" on the backplate.
Screen may just be missing from one of the older two.


avatar
wha-tah-hey
Gold Member
Gold Member

I Support My Forum

Posts : 260
Join date : 2013-12-04
Location : Elgin, Al

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  Marleysky on Mon Aug 28, 2017 7:35 pm

Here's a linc to Martin's web pages on Pee Wees

http://www.mh-aerotools.de/airfoils/cox_frameset.htm

Linc does not take you directly to page I was on. Click on "BEEs" on left hand menu, then select "pee Wees" on upper portion of screen.
avatar
Marleysky
Diamond Member
Diamond Member

I Support My Forum

Posts : 1300
Join date : 2014-09-28
Age : 64
Location : Grand Rapids, MI

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  wha-tah-hey on Mon Aug 28, 2017 7:59 pm

Marleysky wrote:Here's a linc to Martin's web pages on Pee Wees

http://www.mh-aerotools.de/airfoils/cox_frameset.htm

Linc does not take you directly to page I was on.  Click on "BEEs" on left hand menu, then select "pee Wees" on upper portion of screen.

Thanks - good info!
I found this thread, with Mark B. explaining all things Pee wee ( Very Happy ):
https://www.coxengineforum.com/t9250-how-many-kind-of-pee-wee-cylinders-were-produced
avatar
wha-tah-hey
Gold Member
Gold Member

I Support My Forum

Posts : 260
Join date : 2013-12-04
Location : Elgin, Al

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  roddie on Mon Aug 28, 2017 9:39 pm

Hi Terry, Good to know that you're having some fun running your engines! How'd they "start" for you? I see that the one with the needle-extension has a starter-spring. What are you running in them for fuel? Prop-size?

Any thoughts on models for any of them? You'd only need a 50' circle for a nice little C/L profile airplane.. (hint hint..) maybe a little sheet-wing Ringmaster for the upcoming fly-a-thon....

Something like "this".. only scaled-down a bit to around 18" span.. like the Carl Goldberg "Swordsman".

avatar
roddie
Top Poster
Top Poster

Posts : 5145
Join date : 2013-07-17
Age : 57
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Re: Pee Wee .020 - What years?

Post  wha-tah-hey on Mon Aug 28, 2017 9:59 pm

roddie wrote:Hi Terry, Good to know that you're having some fun running your engines! How'd they "start" for you? I see that the one with the needle-extension has a starter-spring. What are you running in them for fuel? Prop-size?

Any thoughts on models for any of them? You'd only need a 50' circle for a nice little C/L profile airplane.. (hint hint..) maybe a little sheet-wing Ringmaster for the upcoming fly-a-thon....

Hi roddie -

I was very surprised that they hand-started fairly easily, 'though slapping the prop rather than flipping.
Cox 4.5x2 on my 23.5 N/22 O homebrew, the 2 older (well-used) turned ~16k, other ~17.5K.
Need to get a tool to reset the piston on that last one.
Biggest problem is loose, sloppy needles, but tank capacity doesn't allow for much fiddling.
While they do well for F/F, I had in mind to post separately about whether it was worth the trouble to try 'em on C/L, model suggestions, etc.
avatar
wha-tah-hey
Gold Member
Gold Member

I Support My Forum

Posts : 260
Join date : 2013-12-04
Location : Elgin, Al

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  roddie on Mon Aug 28, 2017 10:34 pm

Terry, regarding the engines with loose/sloppy needles... try omitting the spring and "sleeving" the exposed needle-threads with small-size silicone fuel-line.. with a flat-washer above. You'll need to find a flat-washer that's the right size.. and you have to cut the fuel-line sleeve to a length that seals within the range of operation. This can take a couple of tries.. but you'll know when it's right.

Paul Gibeault shows this adaptation to the center-backplate in this photo.



avatar
roddie
Top Poster
Top Poster

Posts : 5145
Join date : 2013-07-17
Age : 57
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Re: Pee Wee .020 - What years?

Post  wha-tah-hey on Mon Aug 28, 2017 10:45 pm

Yes, I've done that to my .049s.
Had so much fun just running 'em I didn't have time this evening to do the Pee Wees.
Tomorrow I'll do that and rebuild kits.
avatar
wha-tah-hey
Gold Member
Gold Member

I Support My Forum

Posts : 260
Join date : 2013-12-04
Location : Elgin, Al

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  Surfer_kris on Tue Aug 29, 2017 12:54 am

Another inherent thing (some may call it an issue) with the pee wee engines is the conrod length, or deck height of the piston. This really varies a lot, I wrote about that in another thread somewhere...

These differences in deck height means that one cannot simply use the same fuel and number of head shims, and expect a similar performance. Instead each engine has to be set-up for the length of the conrod it has been given. If the SPI is too large one can shim under the liner, while of the piston sits too low, one can remove a bit of material from the head in order to have a proper compression ratio.

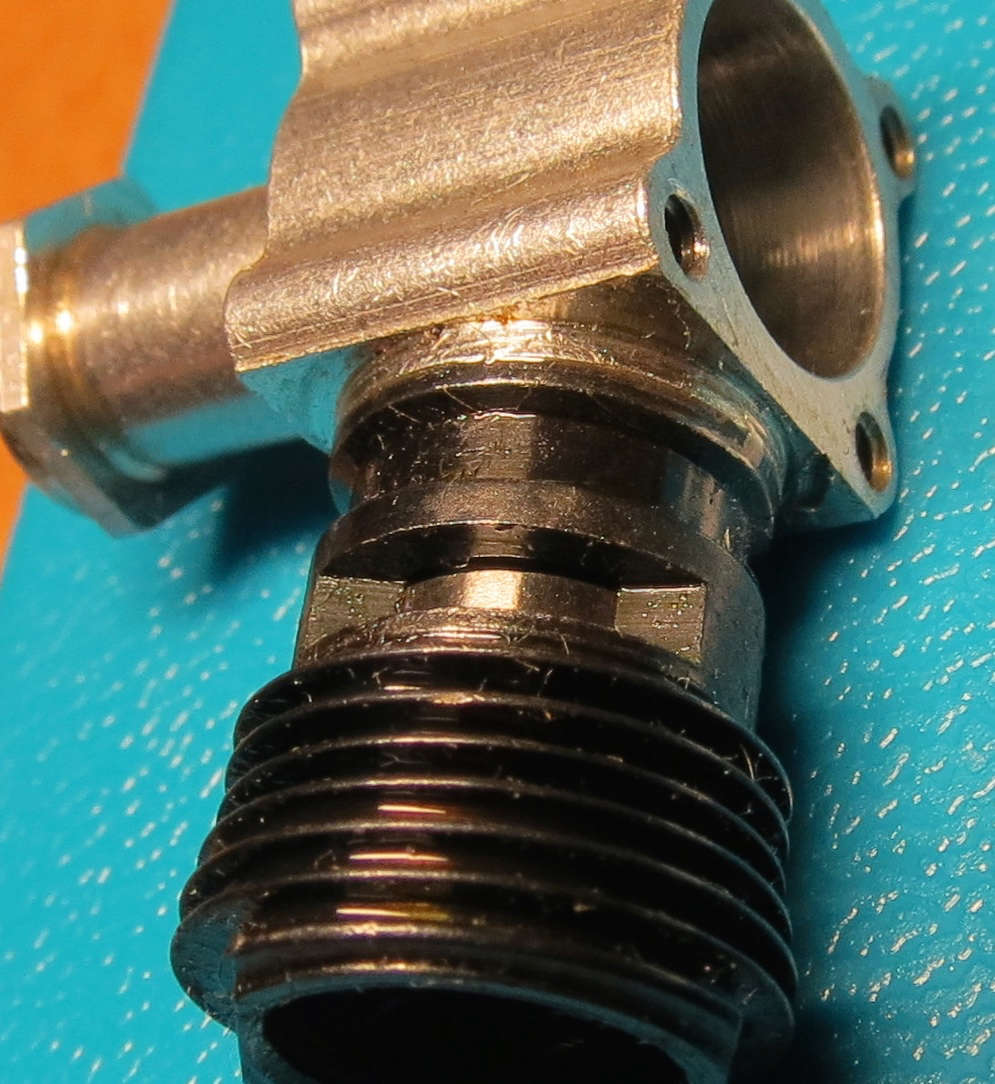

Below are two pictures of two different pistons in the same engine:





Here is also one head where I have removed about one head-shims worth of material from the sealing surface (and some from the lowest cooling fin to avoid it hitting the cylinder top). This also helps on lower nitro fuels, I'm currently playing around with 10% nitro and it seems quite okey actually.


avatar
Surfer_kris
Diamond Member
Diamond Member

Posts : 1309
Join date : 2010-11-20
Location : Sweden

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  wha-tah-hey on Tue Aug 29, 2017 4:35 pm

Not sure I want to attempt adjusting SPI/deck height, Kris, but the newest one turns the Cox 4.5x2 (23.5 nitro/22 oil) @ 17.5K and I discovered it has no head gasket, so I tried the 2 older ones without and they both now turn 16.5K.
Good enough for now. Very Happy
avatar
wha-tah-hey
Gold Member
Gold Member

I Support My Forum

Posts : 260
Join date : 2013-12-04
Location : Elgin, Al

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  Surfer_kris on Wed Aug 30, 2017 5:52 am

Those are good numbers. Smile

Do you see any difference in the amount of SPI between the different engines?
That is perhaps the easiest way to spot any deck-height differences...
avatar
Surfer_kris
Diamond Member
Diamond Member

Posts : 1309
Join date : 2010-11-20
Location : Sweden

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  wha-tah-hey on Wed Aug 30, 2017 11:53 am

I measure .012", .014" and.018" SPI, Kris, but also have loose rods in the two larger.
It may mean nothing but greater SPI corresponds to higher rpm in these bench runs.
avatar
wha-tah-hey
Gold Member
Gold Member

I Support My Forum

Posts : 260
Join date : 2013-12-04
Location : Elgin, Al

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  Surfer_kris on Wed Aug 30, 2017 12:20 pm

With greater SPI you have a higher compression ratio, unless it is a measuring error from a sloppy balljoint, as the length of the very piston is identical. So I'm guessing the older engines have a worn piston balljoint, and these could then benefit from a smaller head volume. If you have access to a lathe it is really only a 5 minute job. Smile

Another way to do it would be to grind on the crankcase top in order to lower the whole cylinder, but I think it is better to rework the head. If you overdo it on the head you simply add head shims to get back, while the crankcase mod is irreversible.

When I checked a few of my brand new spare piston I also saw a great variation, so it is no only wear but possibly a fabrication problem. It seems they where not very accurate when they made the assembly. This could be a machining problem, it is not that easy to make two matching spherical surfaces in a lathe.
avatar
Surfer_kris
Diamond Member
Diamond Member

Posts : 1309
Join date : 2010-11-20
Location : Sweden

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  wha-tah-hey on Wed Aug 30, 2017 1:15 pm

Since there is looseness in the rod sockets, I need to tighten those before considering any surgery.
Maybe the dole elf can bring a reset tool soon. Very Happy
avatar
wha-tah-hey
Gold Member
Gold Member

I Support My Forum

Posts : 260
Join date : 2013-12-04
Location : Elgin, Al

View user profile

Back to top Go down

Re: Pee Wee .020 - What years?

Post  roddie on Wed Aug 30, 2017 7:22 pm

wha-tah-hey wrote:Since there is looseness in the rod sockets, I need to tighten those before considering any surgery.
Maybe the dole elf can bring a reset tool soon. Very Happy

Maybe someone here has a .020 socket reset-tool that they'd be willing to lend-out. Cox International does stock the tool if you don't have one.. and want to source it to always have on-hand. Where you have these three recent engine-acquisitions; I would..

https://coxengines.ca/cox-.020-piston-reset-tool.html




I have the .049 reset-tool. It's a good tool to have on hand.


avatar
roddie
Top Poster
Top Poster

Posts : 5145
Join date : 2013-07-17
Age : 57
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Re: Pee Wee .020 - What years?

Post  wha-tah-hey on Wed Aug 30, 2017 7:42 pm

I have the .049 tool also, roddie.
I bought these Pee Wees about 30 years ago when I was working.
I'll get an .020 tool but "available hobby bucks" don't always immediately coincide with the need/desire for a new goody. Very Happy
avatar
wha-tah-hey
Gold Member
Gold Member

I Support My Forum

Posts : 260
Join date : 2013-12-04
Location : Elgin, Al

View user profile

Back to top Go down
