Mad 3-line control...Cox style!

Post  944_Jim on Fri Apr 13, 2018 5:44 pm

I saw videos of larger models on 3-line throttles.
And I scrounged around finding only two people with a "3-line library.
Today, this arrived! I get to open it for the first time since left coast air got sealed in:

avatar
944_Jim
Gold Member
Gold Member

Posts : 251
Join date : 2017-02-08

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  NEW222 on Fri Apr 13, 2018 5:56 pm

Nice. Never knew that Cox had that available before, nor had I ever heard of talk about that.
avatar
NEW222
Diamond Member
Diamond Member

Posts : 1489
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  Kim on Sat Apr 14, 2018 6:37 am

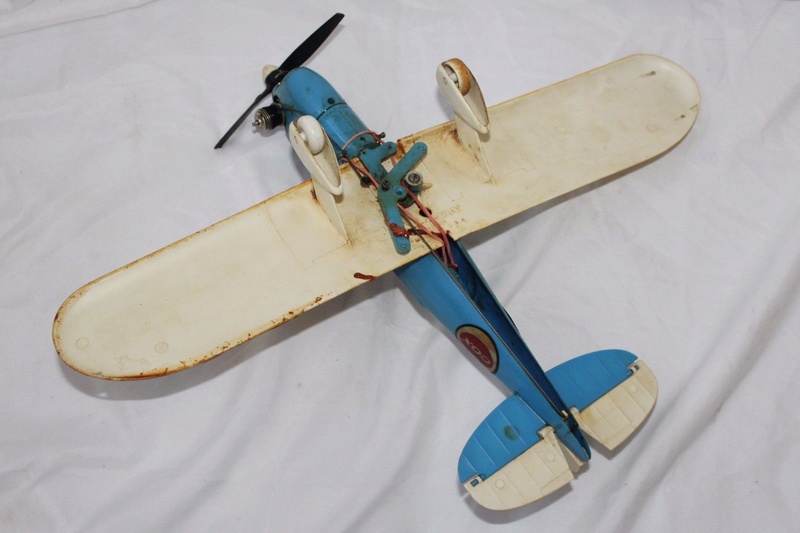

Back in the day, I had one of these wonderful little Ryan ST-3's (photos from Ebay).  Powered by an exhaust band .020, it's tiny wheels couldn't handle the dirt in our ballfield, so, I'd fly it from the smooth pavement of the main street in my home town.

It was my first experience with a throttled model airplane, and I taxied it as much as I flew it.  It was a big thrill to pull the trigger and takeoff, then back it down for some slow cruising.  The big draw-back was the peg-in-a-hole wheels.  With all the ground running, I broke the pegs on a regular basis, ordering more from our hobby shop.  Wouldn't be a problem now, but I was pretty shy of tools back then.

The plane eventually went away, but I still have that cool flying handle.

Anyway, thanks for another trip down Memory Lane!





avatar
Kim
Top Poster
Top Poster

I Support My Forum

Posts : 6246
Join date : 2011-09-06
Location : South East Missouri

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  getback on Sat Apr 14, 2018 9:32 am

I have the engine for one of these , where did you get the control handle ? would love to make a setup for throttled flight so i can slow things down if needed ! Babe Bee .049
avatar
getback
Top Poster
Top Poster

Posts : 5011
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  944_Jim on Sat Apr 14, 2018 12:43 pm

They pop up on eBay from time to time. I paid a good sum for the privilege of no longer seeking one.

I plan on disassembling and scanning the parts. I want to see if this one is a scaled-down Roberts handle.
Maybe someone here has the Roberts one?? Care to compare notes?

I also picked up a couple of Roberts 3 line bellcrank assemblies, but they will need to be in the fuselage or in an exposed wing bay.

The handle may be used to fly a few times...then maybe off to another owner.
avatar
944_Jim
Gold Member
Gold Member

Posts : 251
Join date : 2017-02-08

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  batjac on Sat Apr 14, 2018 5:39 pm

I somehow accumulated two of these handles, one NIB and one used.  I'm a little afraid of using them and having the brittle plastic break on me in-flight.

The Fearful Mark
avatar
batjac
Diamond Member
Diamond Member

Posts : 1579
Join date : 2013-05-22
Age : 55
Location : Portland, OR, USA

View user profile

Back to top Go down

Mad Have no Fear, Mark

Post  944_Jim on Sun Apr 15, 2018 8:00 pm

I took mine apart. The line lugs are pretty substantial at about 1/4" thick.
avatar
944_Jim
Gold Member
Gold Member

Posts : 251
Join date : 2017-02-08

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  roddie on Sun Apr 15, 2018 8:26 pm

Some possible inspiration Jim........



The model in the above photo was originally posted by CEF member "Duke" Johnson. It looks to be a Sig "Skyray" with a Cox .049 "Sure-Start" engine equipped with a "choke-tube" style throttle. Cox International has/had these available. Obviously an exhaust-throttle ring would also work.

There's more than one way to rig-up a 1/2A 3rd control-line to control an engine-throttle. Don't hesitate to give it a try.
avatar
roddie
Top Poster
Top Poster

Posts : 6050
Join date : 2013-07-17
Age : 58
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  944_Jim on Tue Apr 17, 2018 1:17 pm

Thanks Roddie!

I need to contact the builder regarding his handle, and the unit's critical measurements.

For reference, the J. Roberts Upright vs Cox "upgrade."it
avatar
944_Jim
Gold Member
Gold Member

Posts : 251
Join date : 2017-02-08

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  roddie on Wed Apr 18, 2018 9:45 am

roddie wrote:Some possible inspiration Jim........



The model in the above photo was originally posted by CEF member "Duke" Johnson. It looks to be a Sig "Skyray" with a Cox .049 "Sure-Start" engine equipped with a "choke-tube" style throttle. Cox International has/had these available. Obviously an exhaust-throttle ring would also work.

There's more than one way to rig-up a 1/2A 3rd control-line to control an engine-throttle. Don't hesitate to give it a try.

I found the CEF thread where I had saved the photo of Duke's model. There's some info. in his post that you might find useful. The thread-topic was for Cox International's Sure-Start style/choke-tube back-plate with throttle adaption, like the one in the photo. Different cylinder-types/#'s and the question of sub-port induction are also discussed in the thread.

The link was found in my J. Roberts 3-line handle thread.

https://www.coxengineforum.com/t3865p20-throttle-backplate?highlight=throttle


Last edited by roddie on Wed Apr 18, 2018 9:59 am; edited 3 times in total (Reason for editing : more info for 3rd-line throttling)
avatar
roddie
Top Poster
Top Poster

Posts : 6050
Join date : 2013-07-17
Age : 58
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  duke.johnson on Wed Apr 18, 2018 12:14 pm

Jim. I don’t seem to have much time anymore to get on the forum, due to that work thing. Please excuse my language, that is a four letter word. But to my surprise, I received the notification for this thread. I might still have this plane. I made the bell crank, easy to do. And if I remember right, I did use the cox handle and the biggest problem was line tension with the under powered reed engine. It would be better to use a 049 TD with a carb. The skyray was just a simple build as a test bed. Of course you could pick a better flying plane, but the skyray isn’t a bad flying plane. Feel free to ask questions. I’ve flown control line carrier off and on for a few years.
avatar
duke.johnson
Diamond Member
Diamond Member

Posts : 1734
Join date : 2012-11-05
Age : 47
Location : Rochester, Washington

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  getback on Wed Apr 18, 2018 4:54 pm

[quote="944_Jim"]Thanks Roddie!

I need to contact the builder regarding his handle, and the unit's critical measurements.

For reference, the J. Roberts Upright vs Cox "upgrade. I think it is what it is for a 1/2A RTF not expected to last to long but an adventure into something new ?!?!? i DO SEE WERE A UPGRADE IS IN NEED Sorry .. isnt that J Robert for larger model tooooo ? Hay Duke !!
avatar
getback
Top Poster
Top Poster

Posts : 5011
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  duke.johnson on Wed Apr 18, 2018 5:29 pm

Hey Eric. Good to here from you. If you want a carrier/ 3 line throttle handle , I might have an extra. PM me if you want to buy one and see what I can find. I should have a few.
avatar
duke.johnson
Diamond Member
Diamond Member

Posts : 1734
Join date : 2012-11-05
Age : 47
Location : Rochester, Washington

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!

Post  944_Jim on Wed Apr 18, 2018 11:24 pm

Hi Mr. Johnson. I appreciate your notes concerning the plane and it's controls. I'll go find the relevant thread where you showcased it before.

I'm thinking about running a Norvel Big Mig .061 on a 1960-ish Scientific Super Mustang (@25.5" WS)...profile fuselage, built-up symmetrical wing, and yes...an engine cowl!
The intent is to experiment with throttle.on 40' lines. Hopefully, this combination will pull an arm out of socket, yet slow down for tight stuff! I wanted to try sport flying with a throttle to see how it affected light stunt work.

For Getback...yes, you are right! The J. Roberts piece is for a much larger plane. The instructions show spots on the elevator bellcrank to shorten and drill for a smaller throw. There isn't a lot of detail on how much travel each piece moves. But, I do have 1/2A sized pieces now. Measurements will be taken and compared so I can built a smaller unit and handle. I've gotten to the point where I'm ready to dedicate handles and lines to respective planes.

Thanks for the input gentlemen!
avatar
944_Jim
Gold Member
Gold Member

Posts : 251
Join date : 2017-02-08

View user profile

Back to top Go down

Mad Re: 3-line control...Cox style!
