Post  Levent Suberk on Thu Jul 19, 2018 7:57 am

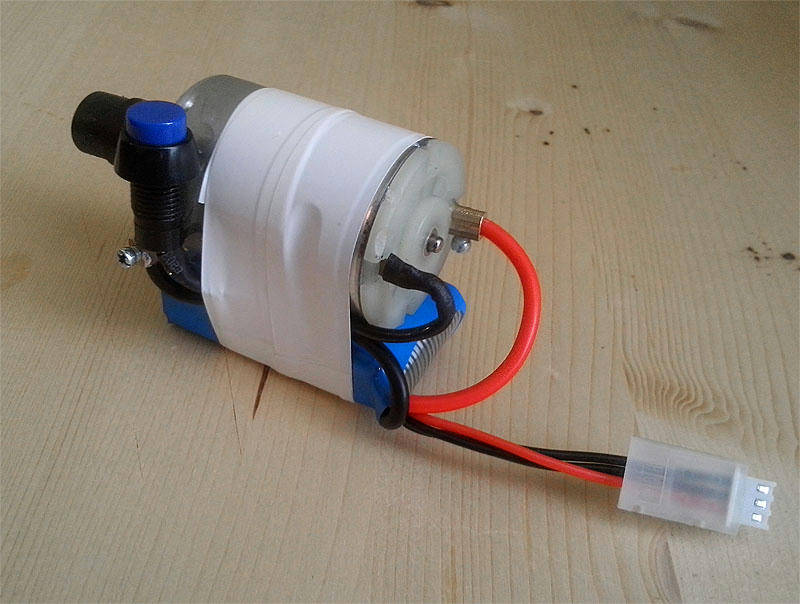

I made this simple starter for small engines. I used a Mabuchi 540 motor of an old drill. It comes with a gear on shaft. A wheel collar also works instead of the gear. I mounted a piece of 5/16 inch inner diameter hard rubber hose on gear. I tied hose with wire and twisted wire ends. A piece of heat shrink tubing encloses the wire on hose. I epoxied a push button on side of motor can, then soldered terminals on motor connector and push button to change the battery when required. 2S 1000 mAh Li-Po battery supplies power. I wrapped the motor and battery with electrical tape.

【 ! 】 Engine piston must be at BDC so momentum help to carry piston through TDC.

【 ! 】 A drop of oil between drive plate and crankcase is needed to prevent wear. Using brass drive plate is recommended.

Making a Starter for Cox Engines 5eu6ytyv4kgub2o6g

Making a Starter for Cox Engines 1wue32qbfoyfdbw6g
Levent Suberk
Levent Suberk
Gold Member
Gold Member

Posts : 403
Join date : 2017-12-24
Location : Turkey

View user profile

Back to top Go down

Making a Starter for Cox Engines Empty Re: Making a Starter for Cox Engines

Post  getback on Thu Jul 19, 2018 9:25 am

I like the way the batt. and motor are self contained but , i believe when the motor heats up the epoxy will give away ? I hope not ,, keep us up to date please . Cool
getback
getback
Top Poster
Top Poster

Posts : 6187
Join date : 2013-01-18
Age : 62
Location : julian

View user profile

Back to top Go down

Making a Starter for Cox Engines Empty Re: Making a Starter for Cox Engines

Post  Levent Suberk on Thu Jul 19, 2018 9:33 am

getback wrote:I like the way the batt. and motor are self contained but , i believe when the motor heats up the epoxy will give away ? I hope not ,, keep us up to date please . Cool

Thanks for comment. Motor don't heat too much because works several seconds. Small Cox Logo
Levent Suberk
Levent Suberk
Gold Member
Gold Member

Posts : 403
Join date : 2017-12-24
Location : Turkey

View user profile

Back to top Go down

Making a Starter for Cox Engines Empty Re: Making a Starter for Cox Engines

Post  Levent Suberk on Sun Jul 22, 2018 10:05 am

Spinner became loose and propeller, spinner and screw sprung everywhere   Shocked so I want to add:

【 ! 】 Propeller screw need to be tight to avoid loosing spinner.

Power is good enough to carry piston through TDC at full charge, so no need to position piston at BDC.

No heat on motor any. Very Happy
Levent Suberk
Levent Suberk
Gold Member
Gold Member

Posts : 403
Join date : 2017-12-24
Location : Turkey

View user profile

Back to top Go down

Making a Starter for Cox Engines Empty Re: Making a Starter for Cox Engines

Post  modelbuilder49 on Sun Jul 22, 2018 2:08 pm

Awesome!  Quite an innovative idea!  I applaud you and if you don't mind .... I'd like to "steal" your idea and make one for myself!!  lol! lol!
modelbuilder49
modelbuilder49
Gold Member
Gold Member

Posts : 187
Join date : 2013-09-12
Age : 70
Location : Titusville Florida

View user profile

Back to top Go down

Making a Starter for Cox Engines Empty Re: Making a Starter for Cox Engines

Post  fredvon4 on Sun Jul 22, 2018 2:26 pm

The DC 540 motors are easy to source from old power tools of brand new from e-bay rather cheap

A single 8.4DC 3000mAhr NIMH RC car battery is more than enough and can be found well under $10 bucks these days

hint#1-- with a DC motor one can reverse the +/- leads and start a left hand crank engine
hint#2 ----make damned sure the engine is NOT flooded... bent crank for sure


Levent Suberk....good job I like it
fredvon4
fredvon4
Diamond Member
Diamond Member

Trusted Seller
Posts : 2878
Join date : 2011-08-26
Age : 64
Location : Lampasas Texas

View user profile

Back to top Go down

Making a Starter for Cox Engines Empty Re: Making a Starter for Cox Engines

Post  Levent Suberk on Sun Jul 22, 2018 4:05 pm

Levent Suberk
Levent Suberk
Gold Member
Gold Member

Posts : 403
Join date : 2017-12-24
Location : Turkey

View user profile

Back to top Go down

Making a Starter for Cox Engines Empty Re: Making a Starter for Cox Engines

Post  balogh on Mon Jul 23, 2018 12:29 am

="fredvon4".....
hint#2 ----make damned sure the engine is NOT flooded... bent crank ....

For smaller engines I only bump up the starter speed a little then release the starter button before pressing the starter cone to the engine spinner so it is only the starter rotor inertia that will drive the engine crankshaft, with no electric power...thus chances of a bent conrod are reduced. I have a relatively small starter though..
balogh
balogh
Diamond Member
Diamond Member

Posts : 2413
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Making a Starter for Cox Engines Empty Re: Making a Starter for Cox Engines
