Post  roddie Fri Aug 03, 2018 8:46 pm

literally.. I have various (vintage) handles for U-control flying models.. but I need a couple of good 1/2A handles. It would be great if someone had a drawing for a handle that I could build.

I've recently had a tough time tying equal-length lines for that type of handle. Is that referred to as a "hard-point" handle? I tied a pair of 42 foot synthetic-braid lines for the first CEF Reed Speed Contest in 2013.. for a "Sagan" (brand) handle that my dad had given me in recent years..

gotta get a handle on it.. Handle10

What I'm looking for, is a "full-grip".. yet thin handle.. which allows the control-line to pass-through.. with a locking neutral-adjustment.

I'd like to have a couple handles like this.. with different-length/spec. lines installed.

I have a couple of "SIG" plastic 1/2A handles. They might work.. for now..
roddie
roddie
Top Poster
Top Poster

Posts : 7457
Join date : 2013-07-17
Age : 62
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  dckrsn Fri Aug 03, 2018 10:26 pm

Bro, Can I send you a Carl Goldberg.
Has the locking adjustment.
gotta get a handle on it.. Downlo10
Lemee know, I have the address.
Bob
dckrsn
dckrsn
Diamond Member
Diamond Member

2020 Supporter

2021 Supporter

Posts : 2750
Join date : 2010-10-21
Age : 69
Location : Long Island, New York

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  roddie Sat Aug 04, 2018 11:29 am

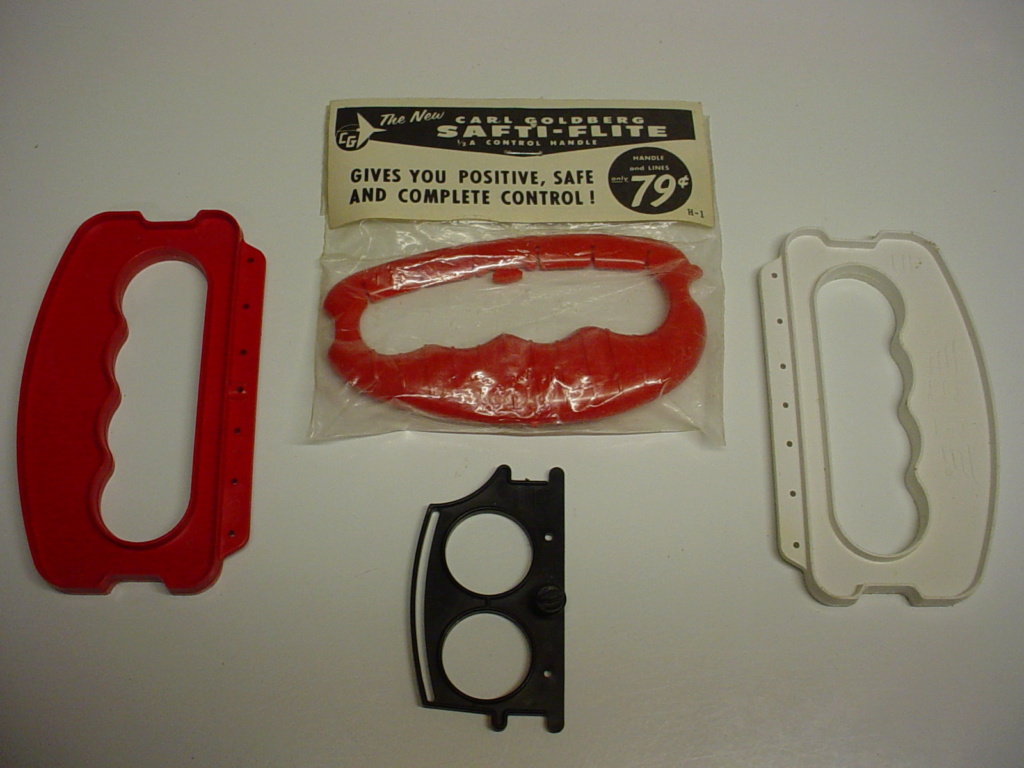

Hi Bob, I actually have one of those that I'd forgotten about.. so you hang onto yours. Thanks anyway for the offer!!

gotta get a handle on it.. Handle11

I'd like to make a wooden grip handle, fitted with metal hardware. I have some Baltic Birch plywood that would be nice.
roddie
roddie
Top Poster
Top Poster

Posts : 7457
Join date : 2013-07-17
Age : 62
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  Ken Cook Sun Aug 05, 2018 7:43 am

I make these handles. I use 1/4" ply and then glue additional laminations onto it until it fits my channel. Internally, I have a small piece of steel with a groove in it for the cable to pass through which is pinched when I tighten the plastic knob. It works ok, it doesn't work as well as the bucket handle I use made of nylon. The spacing is correct, it just seems as though a lot of wasted leverage and wrist movement takes place. I think leverage functionality is far superior with the nylon vs the wood. I have redrilled the holes on my nylon version closer to the handles centerline reducing the spacing to 1 7/8". I 've yet to find a handle that works better than this does for 1/2A and .15's. The brickies at work have dozens of containers of muriatic acid which these handles are from. I just pop them off and take them as needed. I just made a pick with the crane using the choker strap through one of these handles attached to a skid. That skid was close to 1000 lbs and the handle didn't break, it distorted but it actually surprised me that it didn't fail.


gotta get a handle on it.. Dscn2730 nylon chemical container handle with .015" leadouts.

gotta get a handle on it.. Dscn2731 Top view of handle

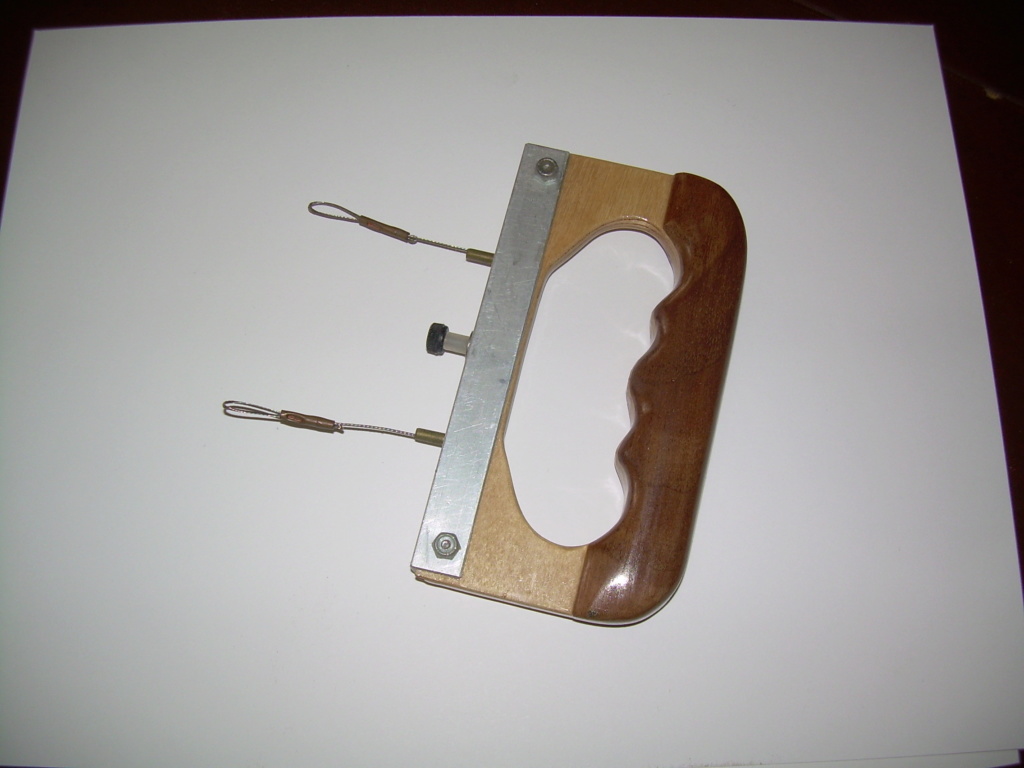

gotta get a handle on it.. Dscn2732 Side view. Black walnut handles.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 4944
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  roddie Sun Aug 05, 2018 9:23 am

Those are NICE Ken! I actually forgot that I saved some photos of your handles a while back...

gotta get a handle on it.. Dscn2310
gotta get a handle on it.. Dscn2311

Thanks for posting more.. and some input on the construction. Thumbs Up
roddie
roddie
Top Poster
Top Poster

Posts : 7457
Join date : 2013-07-17
Age : 62
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  Ken Cook Sun Aug 05, 2018 5:37 pm

I have made 3 more since then. They all look identical. I did obtain some acorn nuts for the aluminum extrusion.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 4944
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  944_Jim Sun Aug 05, 2018 8:41 pm

Ken,
Where did you source the alum channel?
I like the drum handles...I can't seem to locate a source for 3 or 4. I guess I haven't.tried hard enough!


I had an old Cox handle break recently. I won't use my old ones any more, and will toss them the next time I do a major work-space cleanup.
I was given a NOS Carl Goldberg red one like shown above. It feels somewhat flexible, when it should be pretty stiff. I won't use it with anything I care about, especially if said planes are as heavy as my Mossie. However, I do like the adjustable wedge. The adjustability lead me to look at other handles, and how they are made. Which lead me to look into the RSM Renger handle...Oh, My! I even copied his pattern and scaled it up to fit my hand. A quick cardboard template showed me this was my next handle. But I didn't make the first yet. I discovered it would take me more than $10 worth of time and materials just to get to the point of assembling a Larry Renger home-job clone.

No Financial Interest-
Then I bought an RSM handle..
Frankly, even as cheap as I am (and that is REALLY cheap), I will buy more so that I can have one each for my favorite planes, and one or two for all the others. The lasercut parts and hardware just make it too easy to buy "the kit," and then do the assemble/finish thing. My only change to the kit is to open the area around the adjustment screw and use fiber washers to grip the wire (this minimizes crushing the wire, and allows for multiple adjustment cycles). I especially like the mild exponential feedback, and appreciate that the handle comes with spacers to change throws and feedback instantly by removing just two screws.

Shamefully, I didn't paint the first one beyond sand and polyurethane finish (I left it behind one evening, never to be found again). Handle number two got a PU finish, and then safety orange enamel to make it easy to find during tear down/pack-up. These work so well, that I'm going to place another order, but will get two of RSM smalls, and one RSM large. Mr. Rule messaged me that the bigger one is similarly designed, and scaled up:gotta get a handle on it.. Img_2020
944_Jim
944_Jim
Diamond Member
Diamond Member

2020 Supporter

2021 Supporter

2022 Supporter

Posts : 1611
Join date : 2017-02-08
Age : 57
Location : NE MS

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  Ken Cook Mon Aug 06, 2018 4:16 am

Jim, the channel came from Mcmaster Carr. I believe the size I used was discontinued but the next size up wasn't much larger. I can double check because I have a small piece left, I think it was 5/16" U-channel. Your handle though looks very nice. Nicely done and I bet it's a joy to use.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 4944
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  NEW222 Mon Aug 06, 2018 4:22 pm

These were all made by me here and were easy to make. If any of them interest you, I can scan them in and send it your way.

gotta get a handle on it.. Clh_210
NEW222
NEW222
Top Poster
Top Poster

Posts : 3732
Join date : 2011-08-13
Age : 44
Location : oakbank, mb

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  NEW222 Mon Aug 06, 2018 4:33 pm

Just took a better photo of the two I felt would be more geared towards what you are looking for. As in the previous post, I can scan them in no problems if needed. They are both 1/2a handles. The red one is the same as in the drawing pictured made from 1/8" ply, and the other was traced from a plastic one, but it has a 1/8" ply core with 1/4" balsa shaped sides.
gotta get a handle on it.. Clh1_210
NEW222
NEW222
Top Poster
Top Poster

Posts : 3732
Join date : 2011-08-13
Age : 44
Location : oakbank, mb

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  Mark Diedrichs Tue Aug 07, 2018 4:13 pm

Hope this helps!gotta get a handle on it.. 20180810
Mark Diedrichs
Mark Diedrichs
Gold Member
Gold Member

Posts : 434
Join date : 2017-11-11
Age : 70
Location : fairfield ohio

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  roddie Tue Aug 07, 2018 6:38 pm

Hey fella's, Thanks sOoOo much for the interest and ideas! I really like the RSM kit-handle (944jim) and I really enjoy hearing how you guys make your own handles.. or make modifications to handles produced by others.

I like the idea of a "quick-change" line-spacing option within a handle. Some designs that I've seen; look like they would fill that requirement.
roddie
roddie
Top Poster
Top Poster

Posts : 7457
Join date : 2013-07-17
Age : 62
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  944_Jim Tue Aug 07, 2018 9:09 pm

Roddie,
I sent you a PM. Now I don't see it in my sent/out box.
PM your email Addy.
Jim in MS
944_Jim
944_Jim
Diamond Member
Diamond Member

2020 Supporter

2021 Supporter

2022 Supporter

Posts : 1611
Join date : 2017-02-08
Age : 57
Location : NE MS

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  944_Jim Wed Aug 08, 2018 5:53 pm

Ok. Some more detail. In one shot is the adjustment screw for centering the control line. In the other are the various adjustment plates. A bit of exponential feedback is felt by leaving the right angle corners on the adjustment plates.
Rounding off the corners minimizes their effects.gotta get a handle on it.. Img_2022
gotta get a handle on it.. Img_2021
944_Jim
944_Jim
Diamond Member
Diamond Member

2020 Supporter

2021 Supporter

2022 Supporter

Posts : 1611
Join date : 2017-02-08
Age : 57
Location : NE MS

Back to top Go down

gotta get a handle on it.. Empty Re: gotta get a handle on it..

Post  roddie Wed Aug 08, 2018 8:00 pm

Hi Jim, I got your PM and replied. "Thank You". These latest images showing the adjustment plates, are very interesting.
