Out of ideas - Help :( Empty Out of ideas - Help :(

Post  rsv1cox on Fri Nov 16, 2018 7:10 am

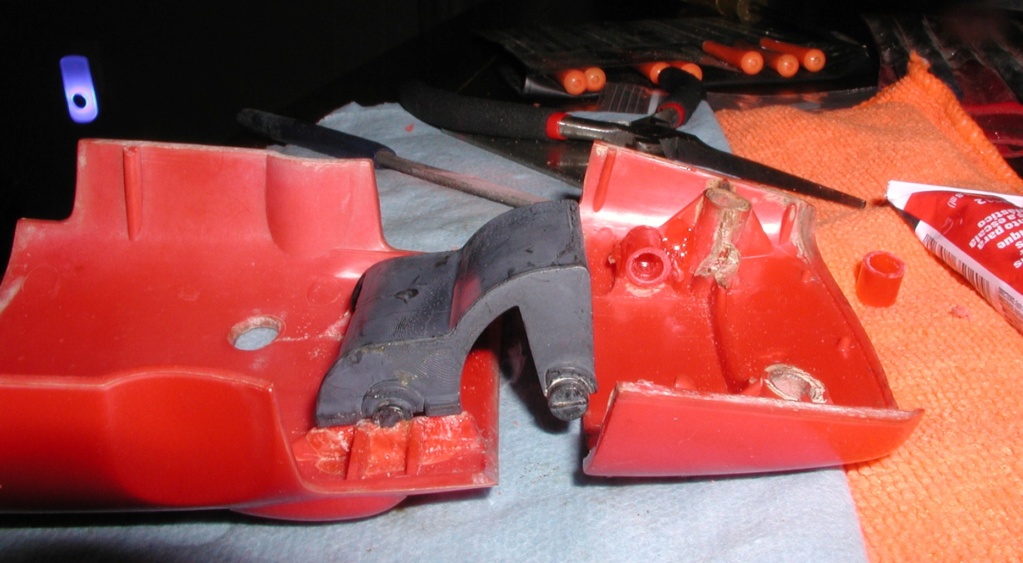

I have repaired broken posts/pylons/standoff's mostly on plastic devices but by using the broken piece and simply cementing it back into place. But the posts on the Cox Mercedes are either missing or broken to badly to reuse.

The simple repair is to use a wooden dowel drilled out to accept a #2 self tapping screw, but wood and plastic do not cement well together and the mating parts will be under some stress.

The obvious choice is plastic to plastic cemented with red tube Testors that has worked very well for me in the past. Finding suitable plastic has been a challenge. I have searched pages of Hobby Lobby's on-line catalog looking for plastic tubing or something workable to no success. Thought about a BIC pen and other like items. Nope.

Only choice so far is a clothes hangar cut to length, turned down, and drilled out. Anything better. Anybody?

Out of ideas - Help :( Files_10

Out of ideas - Help :( Cox_me42
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4406
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  Cribbs74 on Fri Nov 16, 2018 7:20 am

How about small wire nuts?
Cribbs74
Cribbs74
Moderator

Trusted Seller
Posts : 10490
Join date : 2011-10-24
Age : 45
Location : Tuttle, OK

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  KariFS on Fri Nov 16, 2018 7:49 am

Have you tried hot glue? Not sure how well it will stick on the plastic in question, but it fills gaps really well and after cooling it is somewhat workable. You can also "build up" structures with it, just apply some, let it cool, apply some more, let cool and so on.

KariFS
KariFS
Diamond Member
Diamond Member

Posts : 1540
Join date : 2014-10-10
Age : 47
Location : Finland

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  rsv1cox on Fri Nov 16, 2018 8:06 am

Cribbs74 wrote:How about small wire nuts?

I had thought about that Ron, plastic cement used on metal to plastic works quite well as opposed to plastic wood.

The attaching screws come up through the bottom and hold the top piece in place, but the top piece is curved so the wire nut would have to be shimmed so not to distort. Top and bottom pylons must meet exactly in the middle so not to compress the two parts.

I hadn't thought about using a glue gun kari, a possibility but I will still need pylons.

Out of ideas - Help :( Cox_me43

Out of ideas - Help :( Cox_me44

Out of ideas - Help :( Cox_me45

The PO just drilled a hole in the top piece and passed a machine screw down through. I will patch that hole and use the original Cox self tappers.

Out of ideas - Help :( Cox_me46
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4406
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  getback on Fri Nov 16, 2018 9:14 am

Snow !? already ... anyway what a mess it is , this is some interesting looking stuff https://www.jbweld.com/products/plastic-bonder-syringe If it were me i would get it back as good as possible and run the crap out of it till your or its tired !! Did u get the trans-axle repaired ? Huh...
getback
getback
Top Poster
Top Poster

Posts : 6105
Join date : 2013-01-18
Age : 62
Location : julian

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  Jason_WI on Fri Nov 16, 2018 9:19 am

I have had good luck with the Loctite plastic binding epoxy. It does chemically fuse to the plastic.

https://www.amazon.com/Loctite-Plastic-0-85-Fluid-Syringe-1363118/dp/B0044FBB8C

What about using a brass insert nut? They are knurled on the outside and are meant to be either molded into plastic or using a soldering iron to melt down into a plastic boss. This is what I used in the knobs for the reproduction Cox battery boxes.


https://www.amazon.com/gp/aw/d/B01IZ1RN0A?psc=1&ref=yo_pop_mb_pd_title

Or a shorter version.

https://www.amazon.com/gp/aw/d/B01IYWTCWW?psc=1&ref=yo_pop_mb_pd_title

I have both sizes so if you need a few of each let me know.
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2654
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  rsv1cox on Fri Nov 16, 2018 9:53 am

Thanks Eric and Jason.

Plastic bonder, I must have been living under a rock, haven't heard of it before. Will try it. The brass inserts might work, a variation of Ron's blind nuts suggestion. I could cement into top part cut a wood dowel standoff and come up from the bottom with the machine screws. Head has to be small to fit in the opening.

Out of ideas - Help :( Cox_me47

Out of ideas - Help :( Snow_010

Ya, snow/sleet. About 7 inches.

rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4406
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  getback on Fri Nov 16, 2018 10:07 am

WOW 7" Cold Damn! To early for that here , been cold and wet!!! 53f today 58f sat and sun. Eyebrows
getback
getback
Top Poster
Top Poster

Posts : 6105
Join date : 2013-01-18
Age : 62
Location : julian

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  Jason_WI on Fri Nov 16, 2018 3:00 pm

Do you know the height and diameter of the boss? I could 3D print one out of red ABS and it could be fitted then glued in. Would look better than wood.
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2654
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  rsv1cox on Fri Nov 16, 2018 3:21 pm

Jason_WI wrote:Do you know the height and diameter of the boss? I could 3D print one out of red ABS and it could be fitted then glued in. Would look better than wood.

Thanks for the offer Jason.

This is what I have.  It wouldn't have to be exact as I would have to trim to fit vertically anyway.  I would need four.  Can you print a #2 hole in the post? or I could drill one.

Out of ideas - Help :( Cox_me51

My intention is to partially drill out each damaged base with a 1/4" drill bit, then insert the posts.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4406
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  Jason_WI on Fri Nov 16, 2018 4:42 pm

1/4” diameter x 5/8” tall with a .068” hole in the center to a depth of 1/2”.

Out of ideas - Help :( 5899ce10
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2654
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  rsv1cox on Fri Nov 16, 2018 4:56 pm

Jason_WI wrote:1/4” diameter x 5/8” tall with a .068” hole in the center to a depth of 1/2”.

Out of ideas - Help :( 5899ce10

The magic fix Jason.  That would work great and solve my main problem with this restoration.  Length should about right as some will fit down into the drilled out hole.  I can always trim to fit.

Two of the four would need a larger hole for the screw to fit through intact, but I can drill those out. Only the top two holes would be screwed into.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4406
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  Jason_WI on Fri Nov 16, 2018 5:28 pm

Ok I added one with a .090" clearance hole for #2 all the way through. No need to drill and keep center when its only a few mouse clicks to make a new part.

Out of ideas - Help :( Boss_210
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2654
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  roddie on Fri Nov 16, 2018 8:08 pm

Hey Robert! Congrats. on the new W-196. I didn't read all the comments.. but your need for plastic screw-bosses.. and the correlation with the round-stock/plastic clothes-hangers for a possible fix, piqued my interest.

I'm almost certain that you or Mark have a machinist's drill-index containing fractional/letter/number drill-bits. If so; you should be able to make stand-offs from the clothes-hanger stock.

Using a vernier/caliper; take some random-measurements of the diameters of a few of the different round-stock/plastic clothes-hangers. If the stock is of consistent-diameter, you can then cut pieces to the required length.

Using your drill-press; clamp a wood-block for drilling a "pilot-hole" of the stock's diameter.. deep enough to support it for center-drilling a hole to accept your fastener. Put the cut-off piece into this bore.. and check for tightness. If loose; wrap tape around the O.D. and re-insert until snug/tight. You don't want the plastic-piece to "spin".. when drilling-out the center. Once you achieve this fit; you can then accurately center-drill holes with the correct drill-diameter for tapping the screw-threads.

Some thread-sizes to consider are; 4-40/5-40/6-32 machine-screw threads. 4-40 and 6-32 are common.. and readily available at most well-stocked hardware stores.
roddie
roddie
Top Poster
Top Poster

Posts : 6594
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  944_Jim on Sat Nov 17, 2018 9:47 am

Since it appears you are having posts reproduced, I suggest.they be made with a boss that slips into the holes in the body. Make the shoulder back far enough to allow the new post to bottom out plus a bit. You can fine tune the male end to have the shoulder make good contact with the remained in the body.

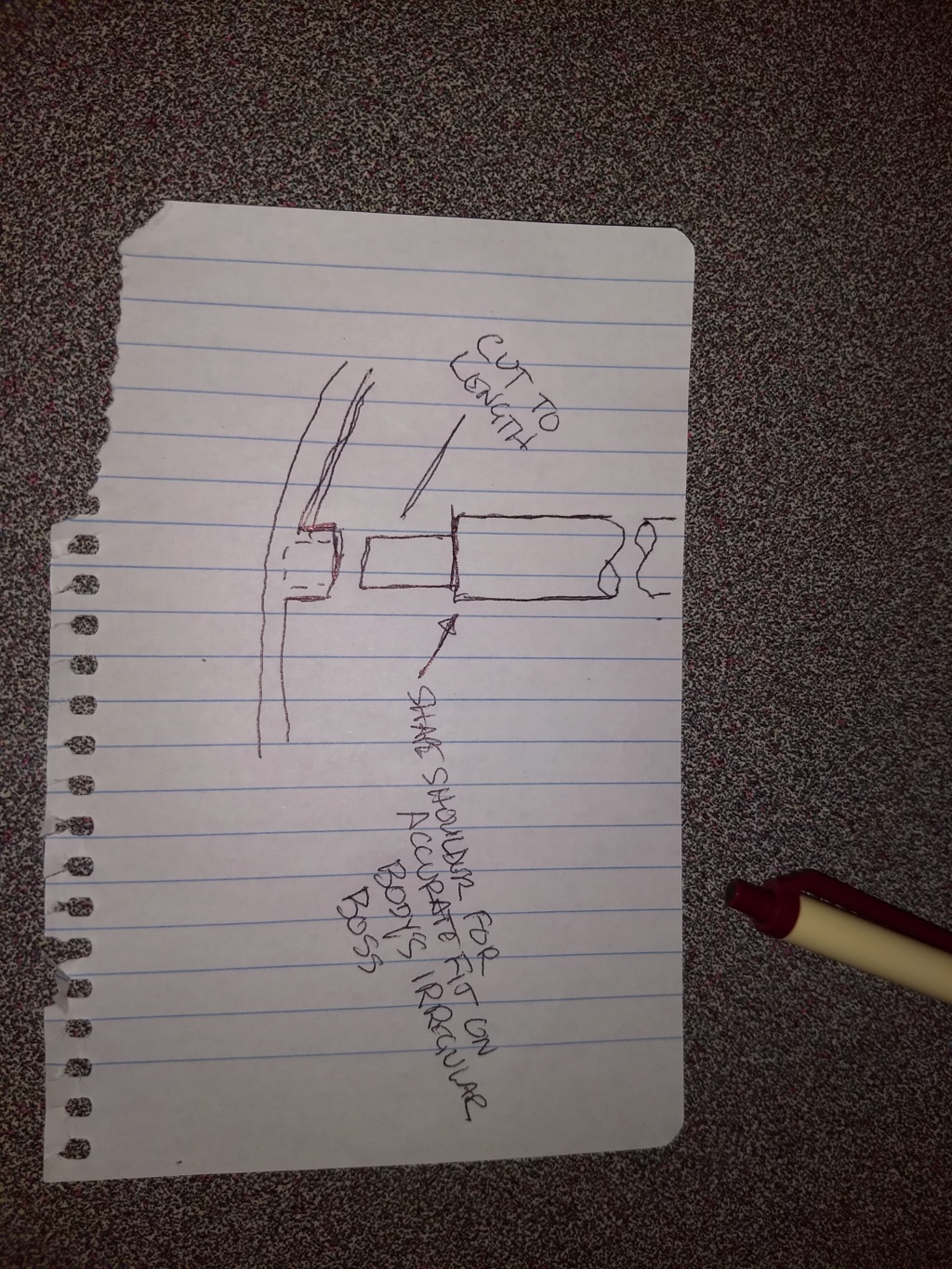

Just a suggestion...hopefully not too late.Out of ideas - Help :( Img_2083
944_Jim
944_Jim
Platinum Member
Platinum Member

Posts : 515
Join date : 2017-02-08

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  rsv1cox on Sat Nov 17, 2018 10:10 am

944_Jim wrote:Since it appears you are having posts reproduced, I suggest.they be made with a boss that slips into the holes in the body. Make the shoulder back far enough to allow the new post to bottom out plus a bit. You can fine tune the male end to have the shoulder make good contact with the remained in the body.
Just a suggestion...hopefully not too late.

Exactly my plan Jim. I will know more when Jason's posts arrive.

But, I do not have much material in the car to work with as those areas are rather thin. Your idea of trimming the bottom of the post is a good idea as it will provide a greater contact area, but that is something I must do here as it will have to be custom fit.

And roddie, it's Jason to the rescue with his 3D posts. If I'm careful with the vertical alignment it should work.
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4406
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  rsv1cox on Sat Nov 17, 2018 10:11 am

Jason_WI wrote:Ok I added one with a .090" clearance hole for #2 all the way through. No need to drill and keep center when its only a few mouse clicks to make a new part.

Out of ideas - Help :( Boss_210

Thanks Jason, that will save me the trouble.

I sincerely appreciate your help.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4406
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  roddie on Sat Nov 17, 2018 12:11 pm

rsv1cox wrote:

And roddie, it's Jason to the rescue with his 3D posts.  If I'm careful with the vertical alignment it should work.

That seems like your best option Robert. Kudos to Jason for stepping-up. I marvel at the capability of those 3D printers.. and the people who have and use them.

I liked 944jim's comments on getting a snug fit on the posts too! Good stuff! Best of luck with the surgery on the model. Thumbs Up
roddie
roddie
Top Poster
Top Poster

Posts : 6594
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  944_Jim on Sat Nov 17, 2018 2:16 pm

Jason,
What are you modelling in?

TIA!
944_Jim
944_Jim
Platinum Member
Platinum Member

Posts : 515
Join date : 2017-02-08

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  Jason_WI on Sat Nov 17, 2018 3:12 pm

www.tinkercad.com

It’s free and online based so nothing to download or install.
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2654
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  rsv1cox on Sat Nov 17, 2018 3:24 pm

Turns out my "new" Cox Mercedes needs help too.

I removed the back end to replace the windshield and found the driveshaft slumped on the floor. The tab on the differential's side suspension arm had broken off. Simple fix, just swap suspension sides as they are mirror images. But I elected to substitute one from my other car.

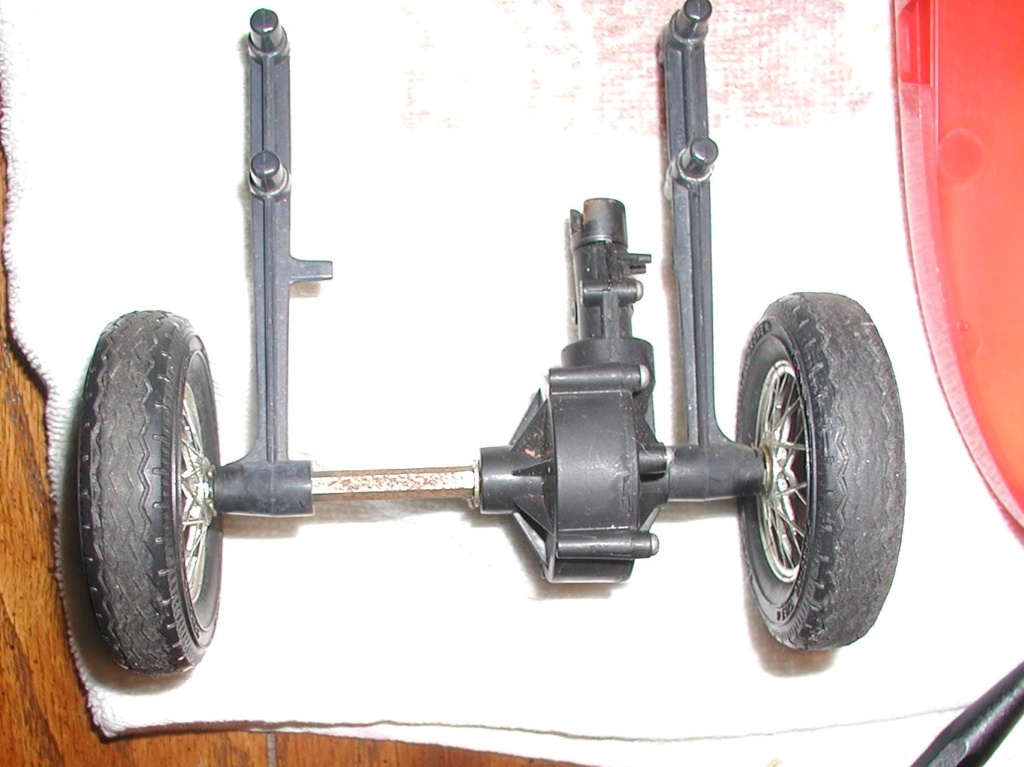

Out of ideas - Help :( Cox_me54

Out of ideas - Help :( Cox_me52

Out of ideas - Help :( Cox_me53

Out of ideas - Help :( Cox_me56

Complete now with windshield.

Out of ideas - Help :( Cox_me55
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4406
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  Jason_WI on Sun Nov 18, 2018 12:47 am

Ok so I added an 1/8” x 1/8” step on two of them. One with the hole all the way through and one solid. These are printed out of PETG which is similar to water bottle plastic.

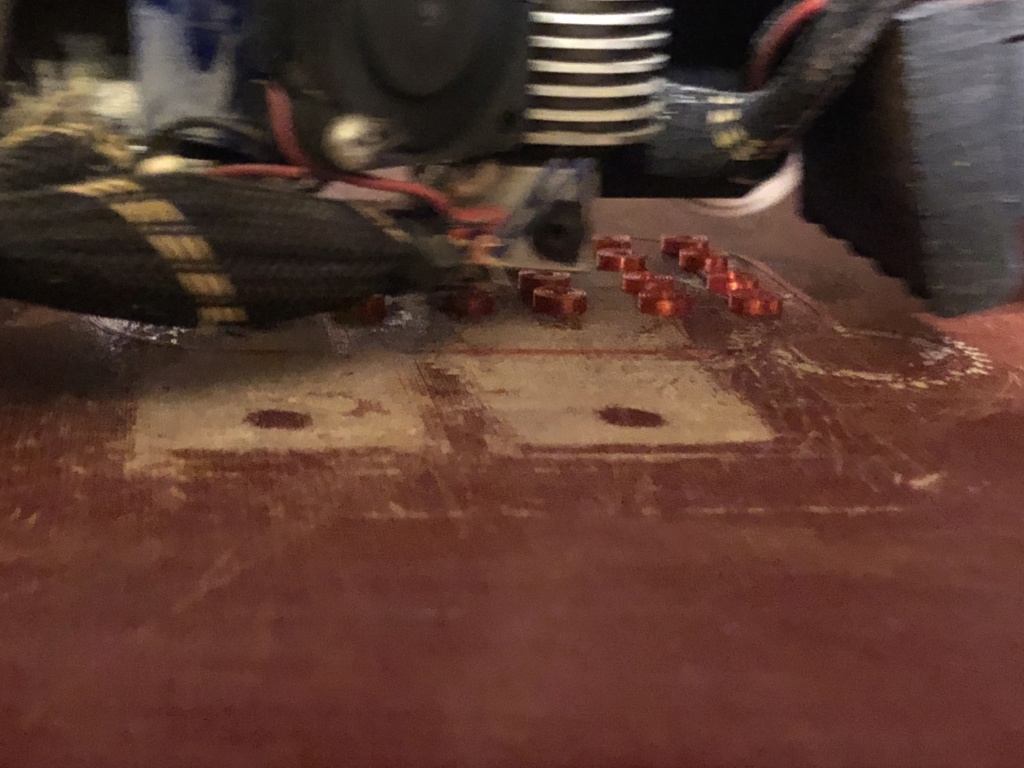

The reason for so many is cooling between layers. If I just printed 4 they would be a molten blob.

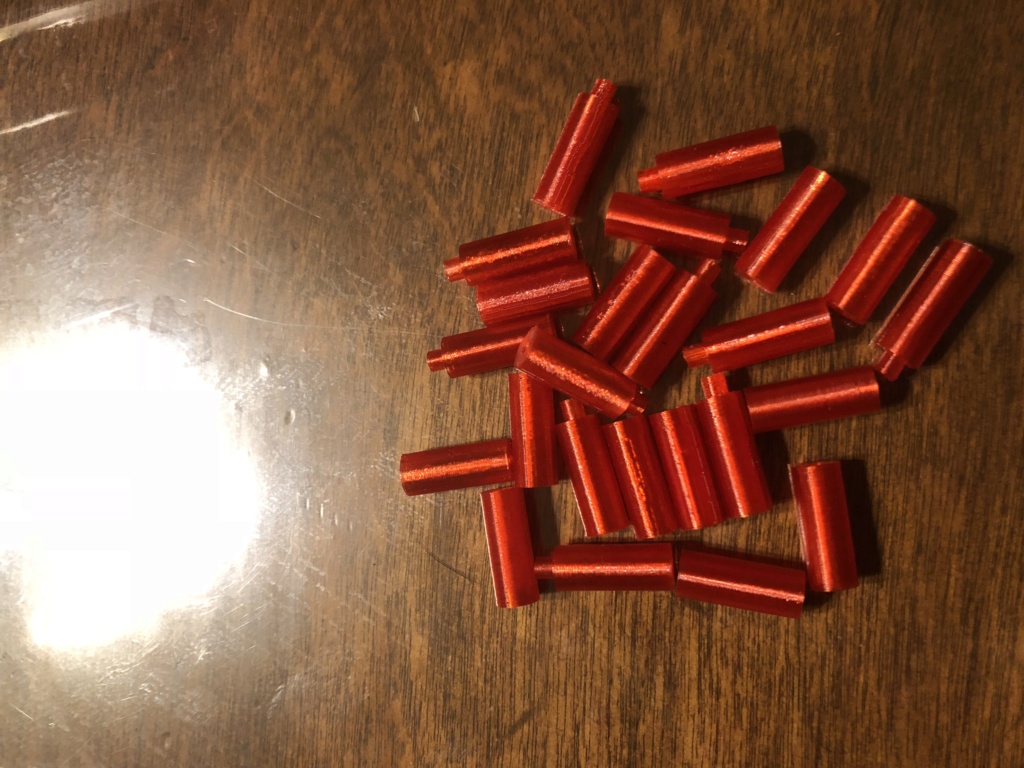

I will print a set out of red PLA which is harder than PETG. I don’t have red ABS. I have black and white I can print out of. Out of ideas - Help :( 0d23b810
Out of ideas - Help :( C0c6dc10
Out of ideas - Help :( 26330e10
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2654
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  getback on Sun Nov 18, 2018 7:38 am

That is so cool , Jason to the rescue !! That will make it much easier and look good to . cheers
getback
getback
Top Poster
Top Poster

Posts : 6105
Join date : 2013-01-18
Age : 62
Location : julian

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  ticomareado on Sun Nov 18, 2018 8:12 am

Wow. That's some serious purty restoration work. Have you ever thought about working in the Smithsonian?
ticomareado
ticomareado
Platinum Member
Platinum Member

Posts : 728
Join date : 2013-10-03
Location : NC

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  ticomareado on Sun Nov 18, 2018 8:16 am

Or the Federal Prison Bureau? I have a neighbor friend whose son is a warden in a Texas unit.
ticomareado
ticomareado
Platinum Member
Platinum Member

Posts : 728
Join date : 2013-10-03
Location : NC

View user profile

Back to top Go down

Out of ideas - Help :( Empty Re: Out of ideas - Help :(

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
