Thinking sanding.........

Post  roddie on Sat Mar 09, 2019 6:43 pm

I did some sanding this morning. The "DAP" brand wood-filler is very similar to the "Elmer's" that I had been using. I used 220 grit "garnet" paper to knock-down the high-spots.. and then 600 grit to smooth-out.

Another proposed design by Roddie - Page 5 Dap_pl11
Another proposed design by Roddie - Page 5 Dap_pl12

I still need to work-out a couple of hardware issues though.. A hard-tank mount and lead-out guides.. Huh...
roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking configuring an engine..

Post  roddie on Sat Mar 09, 2019 6:58 pm

This afternoon, I decided to put together an engine using a "product" (horseshoe) backplate for use with an external fuel delivery. I had sourced some Cox reed-valve engines last year on "consignment" at a hobby shop (Hog Heaven Hobbies) in Fiskdale, MA. It was time to put one of them to use.

Another proposed design by Roddie - Page 5 20190320

A 190/290 postage-stamp product-engine with a #1 (dual-bypass ported) cylinder was chosen. I removed the backplate and put it into storage. Its' fine-thread NVA will be used, down the road at some point. I had ordered some complete "Sure-Start" horseshoe backplate assemblies from EXModel engines. This is the backplate/carb that will be used on this engine.

roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking engine-work

Post  roddie on Sun Mar 10, 2019 12:59 pm

Another proposed design by Roddie - Page 5 20190321

Removing the crankshaft from the case; I've only recently learned how to do it, but I'm much more "at-ease" now after doing a few engines. I've been using a 5-40 stub-shaft screwed-into the crank with a spinner-nut installed. This provides a "flat-face" to bear on. With all other engine parts previously removed, I place a small thin wood-block against the back of the crankcase and use a bench-vise to press the crank backward and out of the drive-plate.

Another proposed design by Roddie - Page 5 C_201910
Another proposed design by Roddie - Page 5 20190322

The crank-journal/oil-slot was fairly clean.. so I ran a small round brush through a few times, lubed and reassembled.

Another proposed design by Roddie - Page 5 E_201910

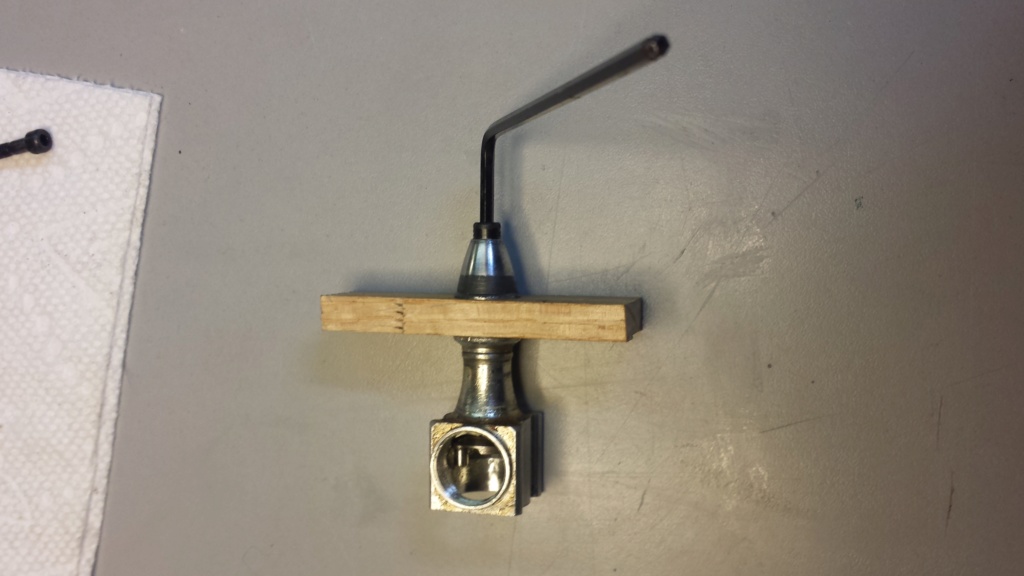

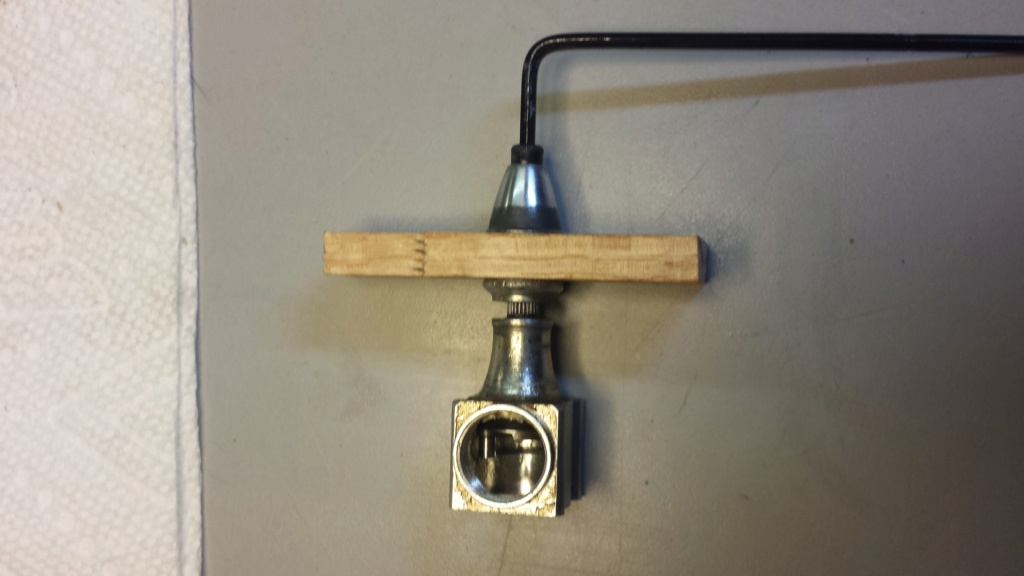

I made a tool for reinstalling the drive-washer back onto the spline on the crankshaft. It's just a scrap piece of 5/16" hardwood drilled-through for a prop-screw. I sourced some 5-40 x 1" long cap-screws which take a 3/32" hex-key. They're "black-oxide" and much better than the softer/slotted 5-40 screws. A 1" long screw seemed to work well with a Tee Dee style aluminum spinner and the wood-block.. for pressing the drive-washer back on.

Another proposed design by Roddie - Page 5 20190323
Another proposed design by Roddie - Page 5 20190324

There was considerable "play" (slop) in the piston/rods' ball-socket joint.. so I got my reset-tool out and reset the fit. (Note; shown in the photo below is a small hammer with rubber/plastic heads. I ended up needing a heavier standard "nail-hammer" to do the job.) Light but firm "taps" with the hammer is all it takes.. checking the fit between each tap. A vises' anvil provides a good/solid "base" to perform this operation.

Another proposed design by Roddie - Page 5 H_201910

Before installing the new "Sure-Start" style horseshoe backplate assy., I made four plastic washers for under the case-screw heads because I won't be using the "choke-tube" that came with the carb.. and wanted to be sure that the case-screws wouldn't "bottom-out".

Another proposed design by Roddie - Page 5 I_201910
Another proposed design by Roddie - Page 5 J_201910

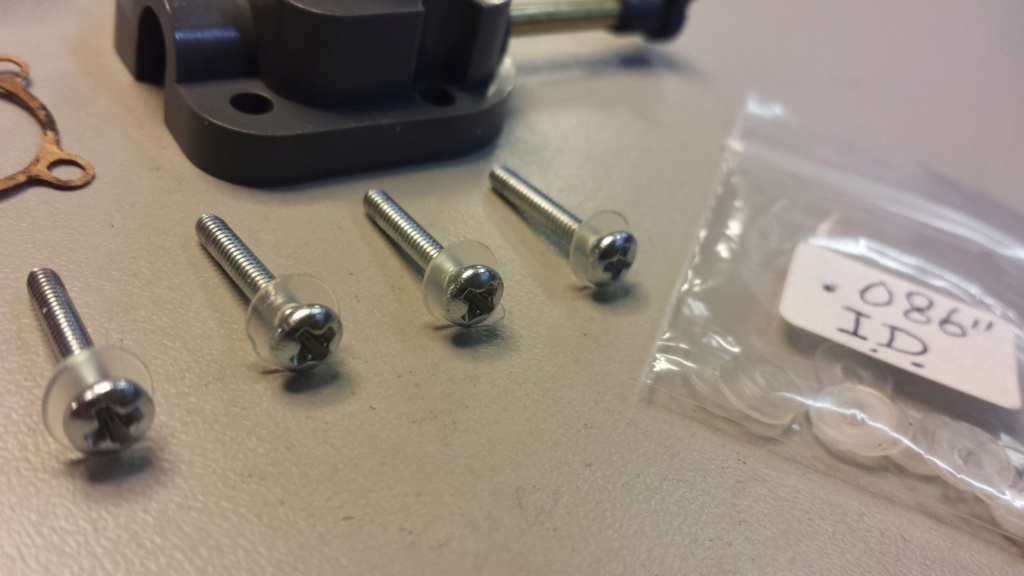

The screws seemed to tighten-up fine.. although the plastic-washers I made are from .020" thick stock. The flange on the choke-tube is .050" thick.. and the case-screws may be of a length to compensate for that. I have a tap to thread the four 2-56 case-holes deeper if need be.

I had also ordered/received "left-hand" starter-springs from ExModel engines, in the two different configurations x4 ea. This engine will use the early (zero-drag) style. The test-propeller will be a "DAL" 5040R two blade. This is a 5 X 4 reverse-pitch (left-hand) drone-propeller. Alternate propellers are Cox 6 x 2 L/H two-blade and 5 x 3 L/H three-blade.

Another proposed design by Roddie - Page 5 K_201910
Another proposed design by Roddie - Page 5 L_201910
Another proposed design by Roddie - Page 5 M_201910

I don't want to use the longer-style needle that's furnished with the Cox Sure-Start carb assy. It's ok for use with the choke-tube because it's somewhat supported near the top, just below the knob.. but I'm not using the choke-tube. The extra length of the longer unsupported-needle lends-itself to vibration and possible wandering of the mixture-setting. I'll probably trim its' length approx. 3/8" shorter.
roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  rsv1cox on Sun Mar 10, 2019 1:42 pm

Nice job roddie, I like your attention to detail.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4033
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  roddie on Sun Mar 10, 2019 2:39 pm

rsv1cox wrote:Nice job roddie, I like your attention to detail.

Bob

Thank You Robert. I enjoy the building part very much.

roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking lead-out guides and outboard tip-weight

Post  roddie on Sun Mar 10, 2019 3:26 pm

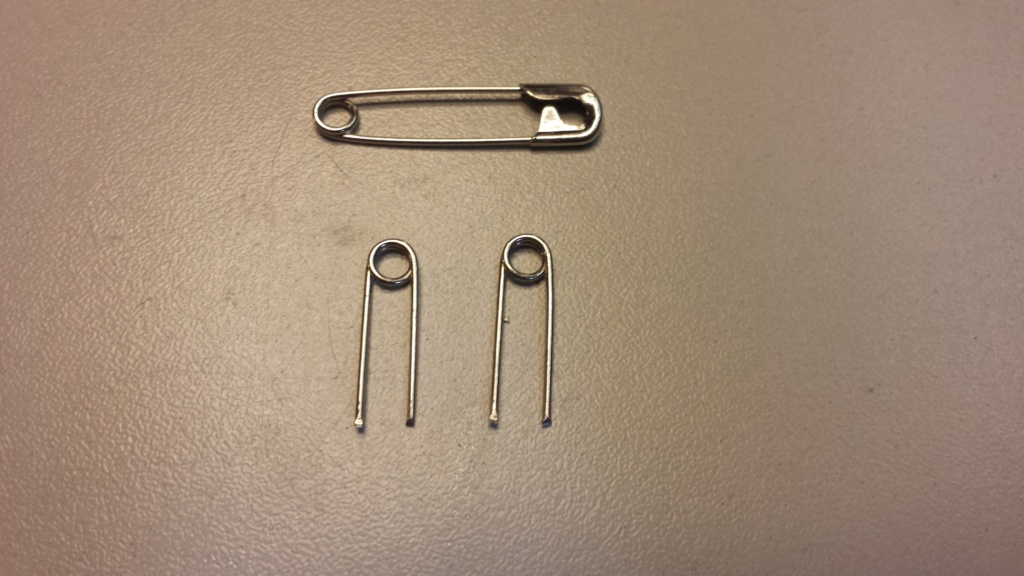

I made-up a pair of lead-out guides using safety-pins.. exactly the same way that I made the pushrod-guide.

Another proposed design by Roddie - Page 5 Lead-o10
Another proposed design by Roddie - Page 5 Lead-o11

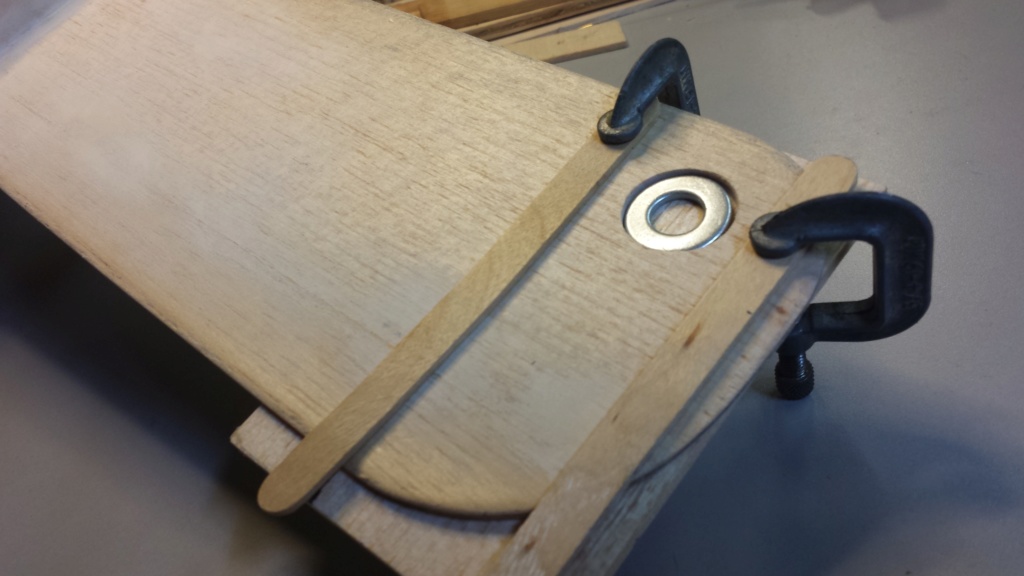

Regarding their "placement"; I carried my bellcranks' 1.625" line-spacing straight-out to the wingtip and then rearward by 1/8". It's a "S.W.A.G." method.. What?  but I'm going with it. I'm applying that same SWAG method to the outboard wingtip weight.

Another proposed design by Roddie - Page 5 Outboa10
Another proposed design by Roddie - Page 5 Outboa11

The steel flat-washer shown weighs 2-3gr. I'm not sure how I will anchor it inside the wing.. but probably similar to the way I did it for the P-38.

I wasn't sure whether I wanted/needed any tip-weight. Although this airplane is set-up to run a left-hand propeller, I still felt that there should be some tip-weight to counter the line-weight off-power/engine-out.. if that makes sense. I didn't want to add any unnecessary weight.. which is why I picked a spot closer to the wings' leading-edge. There is little-to-no rudder-offset. I can and may apply some thrust-offset for the shake-down flight.

I'm getting the last few hardware details buttoned-up so I can start to seal the wood for painting.. but there's a few more things I need to figure out. An external fuel-tank mount is one of them..
roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking outboard tip-weight (cont.)

Post  roddie on Sun Mar 10, 2019 4:27 pm

So... I needed and found materials to "shim-up" the flat-washer for applying filler evenly on the top/bottom.

Another proposed design by Roddie - Page 5 Outboa12

The 1/64" plywood shim is .015". The wax-paper disc is an anti-stick barrier.. so I can remove the plywood disc for filling the bottom-side afterward.

Another proposed design by Roddie - Page 5 Outboa13
Another proposed design by Roddie - Page 5 Outboa14
Another proposed design by Roddie - Page 5 Outboa15
Another proposed design by Roddie - Page 5 Outboa16

roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking fuel system

Post  roddie on Sun Mar 10, 2019 8:38 pm

I have a few options for hard (wedge) tanks.. which I have the most experience with. Dan McEntee sold me a bunch of N.O.S. 1/2A size Perfect-brand tanks a few years ago.. and I've installed many of them in models that are waiting to fly; either "again".. or for the first time. I haven't managed to get a model in the air since becoming a member here.. but it will happen.

For this airplane I chose a #18 short/standard wedge of 1/3 oz. capacity.. which equates to 9.85cc's.

Another proposed design by Roddie - Page 5 Perfec11
Another proposed design by Roddie - Page 5 Perfec12

Smile.. I like N.O.S. model-airplane stuff. It got us to where we are now.

Any-who... I elected for the short-standard configuration to concentrate the fuel-payload nearer the leading-edge of the wing. I have a feeling that this airplane.. equipped with an external fuel-delivery will balance on the "ragged-edge" of the CG once finished.

I'm still grappling with a method of attachment for the tank. I want it to be removable.. in case it doesn't work-out. I'm hoping that the #18 tank works-out. The 9.8cc's should offer plenty of run-time; almost two more cc's than a Golden Bee or Black Widow.

The tank sits atop the sheet-wing.. so I sleeved an overflow/vent-hole with a piece of brass tubing.

Another proposed design by Roddie - Page 5 Brass_10
Another proposed design by Roddie - Page 5 Perfec13


Last edited by roddie on Mon Mar 11, 2019 6:26 pm; edited 1 time in total
roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  rsv1cox on Mon Mar 11, 2019 7:47 am

Thinking alike roddie.  While there are a few wedge skeptics here I also like the wedgies.

I just laid this one this morning on a bed of epoxy knowing how I dislike rubber bands holding these things.  Will it hold.. we will see but I'm betting that it will.

Another proposed design by Roddie - Page 5 Fireba37

Another proposed design by Roddie - Page 5 Fireba38

Meant to be easily and quickly built, cheap, and expendable. I see Mark and I flying combat in the Spring.  Smile
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4033
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  getback on Mon Mar 11, 2019 9:37 am

Coming right along Roddie i am still hanging in here to see what ur up to. I have also struggled with the tank mount thing! Rolling Eyes
getback
getback
Top Poster
Top Poster

Posts : 5785
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  roddie on Mon Mar 11, 2019 7:10 pm

rsv1cox wrote:Thinking alike roddie.  While there are a few wedge skeptics here I also like the wedgies.

I just laid this one this morning on a bed of epoxy knowing how I dislike rubber bands holding these things.  Will it hold.. we will see but I'm betting that it will.

Another proposed design by Roddie - Page 5 Fireba37

Another proposed design by Roddie - Page 5 Fireba38

Meant to be easily and quickly built, cheap, and expendable. I see Mark and I flying combat in the Spring.  Smile

Hi Robert! I thought about using epoxy to secure my wedge tank.. but I've almost always provided some type of vibration-damping material to help avoid fuel-foaming. The latest material I've found is a product for lining kitchen shelves. It's a perforated "spongy" rubber/foam type of material. I've also used polyurethane filter-material made for air-conditioners. Both of these products are thin-sheet goods that can be easily cut with scissors.

I do advocate the rubber-band method of securing.. but to each his own.

If I were to use epoxy to secure a Tin-tank, I would probably "rough-up" the Tin-panel and corresponding mounting-surface with 60-80 grit paper for better adhesion. I'm guessing that you probably did that. Even if you didn't.. the bond should still hold.

I'll keep my eye out for the "VCA" reports.. (Vining Combat Adventures) coming this Spring!! Thumbs Up  Popcorn
roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  roddie on Mon Mar 11, 2019 7:42 pm

getback wrote:Coming right along Roddie i am still hanging in here to see what ur up to. I have also struggled with the tank mount thing! Rolling Eyes

Hey Bro! Yea.. I'm getting some time in on this model.. and I appreciate the support! I had an idea tonight.. but I'm not sure how or "if" I can apply it..

Another proposed design by Roddie - Page 5 Zip-ti10

That's a zip-tie mount that I trimmed smaller. It has two holes for "screw-attachment" and also has a "self-stick" foam-tape backing.

These mounts were with my zip-tie "stock".. and I didn't plan on using one.. but we'll see. The zip-tie(s) "alone"... were just something that I thought I could make work somehow. Huh...
roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  NEW222 on Mon Mar 11, 2019 7:55 pm

She's coming right along there. I myself, am personally on the fence with wedge tanks. This is only because I have only ever used one on a Platter and it just seemed to siphon out all of the fuel from teh tank, regardless of what I did. However, with that said, I have a few here that I have made and have not yet tried out or installed in a plane. I personally like a balloon tank. But that may change when I start to try using my own tanks. Keep up the good work.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2148
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  Ken Cook on Mon Mar 11, 2019 9:05 pm

If you cap the top after filling, it can't siphon out. Leave the cap on during flight as it's not going to hamper inverted flight or maneuvering. The shape of the tank isn't responsible for siphoning.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 3487
Join date : 2012-03-27
Location : pennsylvania

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  NEW222 on Mon Mar 11, 2019 9:31 pm

Thanks Ken, I will give it a try. I thought I had done that as I had tried something before, but am unsure of what. I am just assuming a piece of fuel line plugged on the top/fill line, correct?

NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2148
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  rsv1cox on Tue Mar 12, 2019 7:24 am

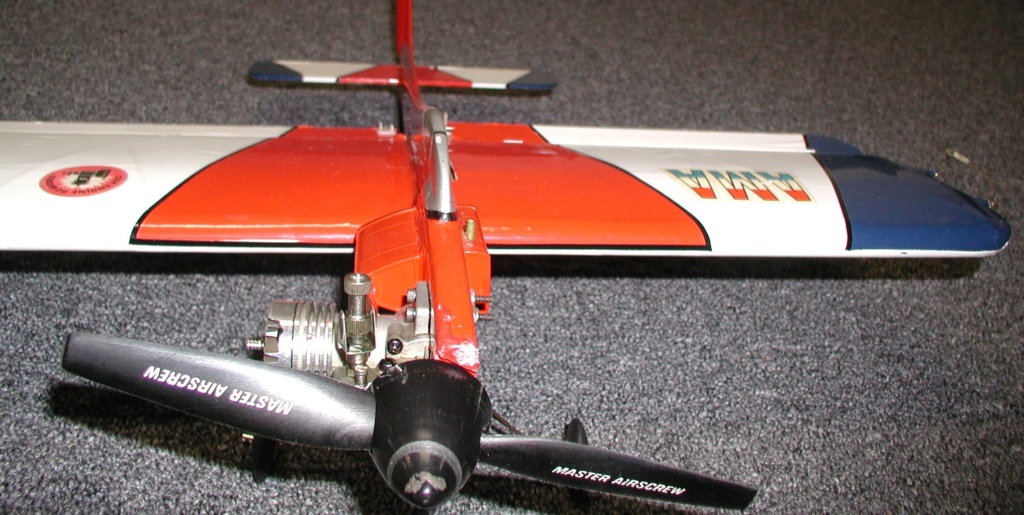

I'm sure that you have seen this model before roddie, but it is my preferred way to mount a tank in a profile fuselage. I would have done it in the throw-away clone Firebaby but I wasn't sure if the foam core would handle it.

Another proposed design by Roddie - Page 5 Nieupo12

It is secure in it's mount with no padding and over many years of flying, fuel foaming was never an issue if that is measured by engine performance. Mark flew it last fall.

But yes, I agree, a little foam padding can't hurt. In fact I used it in my profile tanked yet to be flown Mosquito build.

Yup, combat time this spring with the FB's. Smile

Bob

rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4033
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  getback on Tue Mar 12, 2019 9:07 am

Yup, combat time this spring with the FB's. Smile wrote:
That's what i am thinking with my son may not bee all combat models But have some Fun See if i can show him what the ole mans still got or not LOL
getback
getback
Top Poster
Top Poster

Posts : 5785
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  NEW222 on Tue Mar 12, 2019 9:09 am

Hey Bob. Do you not find or feel that mounting the tank in the fuselage hat way to weaken the overall structure? Just to note, not from fuel soaked wood, as I am positive you would have taken very good care of that detail, but rather just the big old hole in the fuse.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2148
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  Mike1484 on Tue Mar 12, 2019 10:46 am

Just mounted my # 18 wedge tank on my new 1/2 plane . Made some L-shaped brackets and soldered them to the tank . Just drilled and screwed them on to the plane . Will probably put a thin piece of foam rubber under the tank just for a bit of vibration dampening . I hope to post a picture of the complete plane sooner or later . It has a Medallion .049 on it for power . Hope the tank is big enough for a couple minutes of flying .

Mike1484
Mike1484
Mike1484
Gold Member
Gold Member

Posts : 114
Join date : 2011-10-28
Location : Northern Ohio

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  rsv1cox on Tue Mar 12, 2019 10:51 am

NEW222 wrote:Hey Bob. Do you not find or feel that mounting the tank in the fuselage hat way to weaken the overall structure? Just to note, not from fuel soaked wood, as I am positive you would have taken very good care of that detail, but rather just the big old hole in the fuse.

That was a concern expressed in a thread here long ago that maybe the fuselage would lose some structural integrity or fuel intrusion would be a problem. Fuel intrusion just can't happen as the tank is epoxied in then painted over with two part Hobby Poxie. Maybe some time in the next forty years but so far even after several hard landings (ask Mark) it's still as new.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4033
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  NEW222 on Tue Mar 12, 2019 11:19 am

Thanks.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2148
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  KariFS on Tue Mar 12, 2019 2:30 pm

That’s a clean-looking tank installation Bob. I suppose the tank works as a reinforcement for the fuselage since it is epoxied in. And there probably are some plywood doublers on both sides so the 1/4” balsa does not have to carry all the stress.

A similar construction is used in Dale Kirn’s ”290 Special”, and in the instructions it was emphasized that the tank must be glued in to provide support for the nose area.

KariFS
KariFS
Diamond Member
Diamond Member

Posts : 1488
Join date : 2014-10-10
Age : 47
Location : Finland

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  roddie on Tue Mar 12, 2019 6:45 pm

I could fasten/anchor the #18 wedge-tank a few different ways.. but I don't really like any of the methods that I've come up with.. so I won't be using that tank.

I should have known that an external fuel tank could present a challenge; whereas I took design cues from the Goldberg Swordsman 18 and Stuntman 23 models which were "both" designed to use integrally-tanked Cox 1/2A reed-valve engines. There's virtually no "nose-moment" to either model. Their firewalls for the radially-mounted engines are on the wings' leading edge.

Maybe I should forego the product-engine configuration.. and work on getting an integrally-tanked "Golden Bee" configured for this model.. Huh... I was hoping for more than 8cc's of fuel payload though..

I've done some research.. and built a few prototype "balloon-tanks".., and this model just might make a good platform for testing one.

I'll concentrate on "both" aspects.. because this model is a new design.. and the "CG" has yet to be established. We shall see how the methods weigh-out..
roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking outboard tip-weight (cont.)

Post  roddie on Tue Mar 12, 2019 7:44 pm

A little more work was done tonight on the outboard wing-tip weight. The previous work on filling the "topside" of the 1/8" balsa sheet-wing was satisfactory.

Another proposed design by Roddie - Page 5 Outboa17

The underside was filled tonight.. and will be sanded tomorrow.

Another proposed design by Roddie - Page 5 Outboa18
Another proposed design by Roddie - Page 5 Outboa19

Both top and bottom areas will require a finish-filler application.. but that will be a minor detail.
roddie
roddie
Top Poster
Top Poster

Posts : 6435
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  NEW222 on Tue Mar 12, 2019 7:53 pm

I like that idead of putting the weight in teh wing. I do similar, but instead use 5 minute epoxy. I didn't think that filler would be strng enough and did not want it to fall out. Now after seeing yours, I am now going to change my ways.....
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2148
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Thinking Re: Another proposed design by Roddie

Post  Sponsored content


Sponsored content


Back to top Go down

Page 5 of 7 Previous  1, 2, 3, 4, 5, 6, 7  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
