Post  Canso07 on Mon Dec 10, 2018 8:54 pm

Hello everyone,

I got a QRC today and was wondering if the QRC style muffler like pictured fits tight without moving when the cylinder is tightened down? The QRC I have I can move the muffler up and down a little.

Thanks Canso07.

QRC Style Muffler Screen10
Canso07
Canso07
Silver Member
Silver Member

Posts : 80
Join date : 2016-12-12
Age : 38
Location : Calgary, Canada

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  Ken Cook on Mon Dec 10, 2018 9:18 pm

There was a aluminum shim that went under the muffler first. In addition, the hex portion on some of those mufflers are not always equal. I have had some a few thousands wider than others. Bernie sold or used to sell a exhaust timing shim that fit the base of the cylinder, this would work for your application not only to make the muffler tight but it would also eliminate any SPI if present.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 3508
Join date : 2012-03-27
Location : pennsylvania

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  GallopingGhostler on Mon Dec 10, 2018 10:36 pm

Ken Cook wrote:There was a aluminum shim that went under the muffler first. In addition, the hex portion on some of those mufflers are not always equal. I have had some a few thousands wider than others. Bernie sold or used to sell a exhaust timing shim that fit the base of the cylinder, this would work for your application not only to make the muffler tight but it would also eliminate any SPI if present.

Ken, thanks for sharing that. I didn't know there was such a feature that would eliminate or minimize SPI to make the muffling more effective for the earlier engines. Mufflers I have are for the later non-SPI Cox engines. I can say that back in the early 1970's, I bought a Tatone muffler for my Babe Bee. I thought that it lost power because of the exhaust gas restrictions through its exhaust pipe. Little did I know that through muffling the SPI caused recirculation of the inert exhaust gases, which diluted the air-fuel mixture charge.

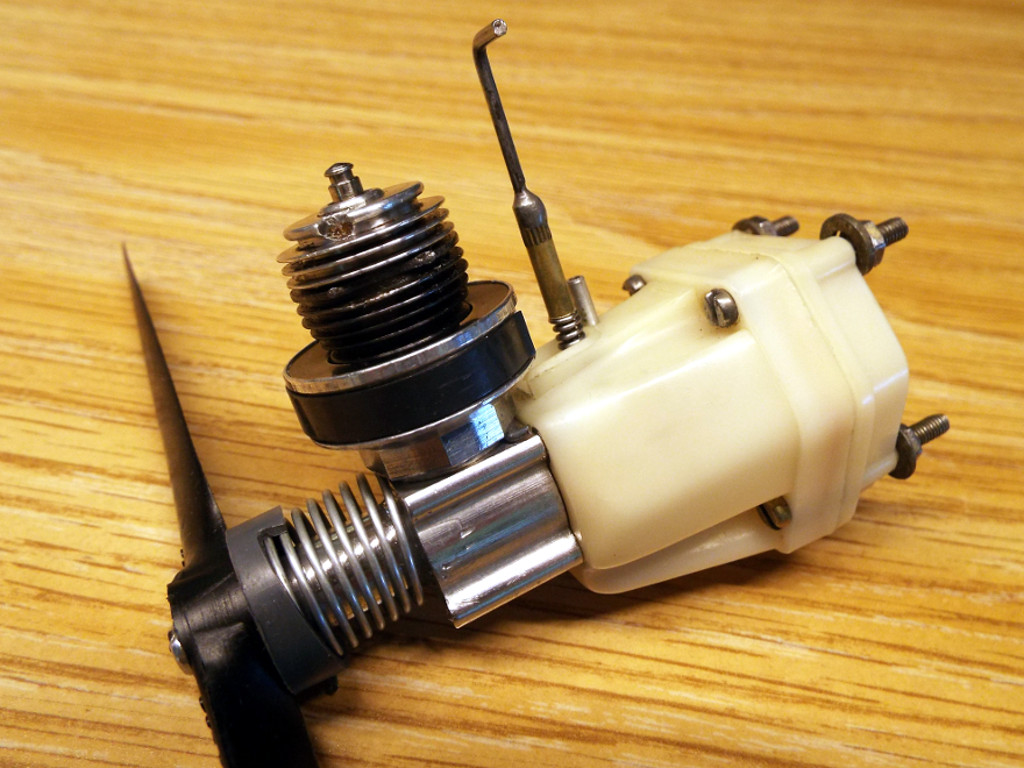

At least in the later mufflers for the non-SPI engines, I've found that if you have a spring starter, then the ring shim may not be needed. My Ranger engine that I picked up recently had a loose muffler. (This is the engine with a plain white Dragonfly tank and non-throttling muffler - used on Cox RC RTF's.) That slack was taken up when I restored the spring starter it once had. You'll notice on my Ranger that the muffler is now lifted up by the thickness of the spring starter with its wire loop around the base of the cylinder area.

QRC Style Muffler Cox_0419
GallopingGhostler
GallopingGhostler
Diamond Member
Diamond Member

Posts : 2119
Join date : 2013-07-13
Age : 65
Location : Clovis, New Mexico

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  944_Jim on Mon Dec 10, 2018 11:10 pm

And the card that the muffler was packed in shows to use the spacer ring when a starter spring isn't used. In fact, there was also a spacer ring in the kit muffler for spacing a Tee Dee venturi/spray bar up and forward to clear the same muffler.
This is also carried over to the Medallion/Tee Dee .09. I can acan the back of the one I just got if anyone wants to see it.
944_Jim
944_Jim
Gold Member
Gold Member

Posts : 464
Join date : 2017-02-08

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  Dave P. on Mon Dec 10, 2018 11:24 pm

My QRC muffler also rotates.  I thought that it came stock from Cox with a throttle muffler like the Dragonfly.  It doesn't have the hex on the base.  I thought that was what the RC part of QRC meant, and that was the main difference with the QZ.
Dave P.
Dave P.
Gold Member
Gold Member

Posts : 210
Join date : 2017-07-31
Age : 61
Location : Durham, NC

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  GallopingGhostler on Mon Dec 10, 2018 11:36 pm

I'm less familiar with the QRC as I never bought one. The Ranger's muffler has an octal shaped base. As shown in my photo, the engine's orientation to the tank is incorrect, because I can rotate this particular muffler. If the engine is mounted to the side, sidewinder fashion, the tank ridge bumps out enough to lock the muffler into position.

If your muffler doesn't have such an octal base but has a machined aluminum sleeve with a round base that fits around the muffler with two smaller slits, one on each side exposing the cylinder exhaust between 1/3rd and 1/2 the width of the exhaust port, then it may be a rotating ring throttle muffler that someone replaced its original muffler with, especially noticeable by it freely rotating. There will be a "C" ring around a groove in the aluminum, which allows an RC pushrod to be connected to it. If there is a groove but no "C" ring, then it is missing.
GallopingGhostler
GallopingGhostler
Diamond Member
Diamond Member

Posts : 2119
Join date : 2013-07-13
Age : 65
Location : Clovis, New Mexico

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  Canso07 on Tue Dec 11, 2018 1:16 pm

Thanks for sharing everyone, I don't have a spacer but the QRC should have the starter spring anyway so that will fix it.

Thanks again Canso07.
Canso07
Canso07
Silver Member
Silver Member

Posts : 80
Join date : 2016-12-12
Age : 38
Location : Calgary, Canada

View user profile

Back to top Go down

QRC Style Muffler Empty RE: QRC Style Muffler

Post  66 Malibu on Tue Dec 11, 2018 2:55 pm

Just checking my QRC that's NIB and it has the octagon base muffler and spacer ring because it has the Snap Starter Spring and Cam.
I have another QRC that may be older that has the low drag starter spring and of course no spacer under the octagon muffler.
FYI...………….
66 Malibu
66 Malibu
Gold Member
Gold Member

Posts : 359
Join date : 2012-02-28
Location : Georgia

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  balogh on Tue Dec 11, 2018 3:35 pm

If this muffler is mounted on engines without the spring starter, the top black ring is to be placed with its lip on its internal diameter pointing upwards. Thus the mounting dimension is increased and the muffler will sit fixed between the crankcase and the lowermost fin on the cylinder. This was also explained in the product manual as far as I remember.
balogh
balogh
Diamond Member
Diamond Member

Posts : 2264
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  NEW222 on Tue Dec 11, 2018 4:35 pm

Good read so far. I like the comment that balogh made with flipping the 'ring' around for engines without a spring. After looking at the picture again, it makes sense, and I can see it.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2166
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  944_Jim on Tue Dec 11, 2018 7:26 pm

+1 for Balough. That beats rolling my own spacer ring.
Here is the back of the NOS .09 muffler I just got from theBay.

QRC Style Muffler Img_2087
944_Jim
944_Jim
Gold Member
Gold Member

Posts : 464
Join date : 2017-02-08

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  GallopingGhostler on Tue Dec 11, 2018 7:46 pm

I think if lacking the spacer ring, one can do as Balough pointed out and flip the washer like black muffler top cover upside down, which will help to take up the gap that the spacer or spring starter wire fills. However, I don't think that part was the intented to be flipped over.

All the RTF's that came with a muffled reed valve engine also came with a snap or cam starter. If one is picking up these engines used, no telling what situation may come up. I picked up a used Testors McCoy .35 Red Head, which one of the previous owners installed the piston and head backwards. The little fence dam or baffle was forward toward the exhaust port instead of closer to the intake bypass port. It was also missing the nylon crank throw spacer that prevents the crankshaft connecting rod pin from digging into the engine's backplate.

And, deviating a little off topic, 30 years ago I picked up 2 brand new Fuji .099S-II RC engines in the box over the counter from Hobby Shack in Fountain Valley, CA with aluminum millings inside the crankcase. Apparently someone got in a hurry and didn't bother to wash or blow the crankcases out before assembly at the Fuji factory. I cleaned those and averted a disaster. From that point whether new or used, I refrain from turning over the crank until I get a good look inside by partial disassembly. You never know what you may find.
GallopingGhostler
GallopingGhostler
Diamond Member
Diamond Member

Posts : 2119
Join date : 2013-07-13
Age : 65
Location : Clovis, New Mexico

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler

Post  KariFS on Wed Dec 12, 2018 3:44 am

One option is, if you don't want to install a starter spring, to just cut the necessary portion off a "junk" spring and snap that around the groove on cylinder base on the crankcase. Many of us have a few springs that are either corroded or wound up too tight, or both. It would be the correct material in the correct size and shape Two Cents
KariFS
KariFS
Diamond Member
Diamond Member

Posts : 1498
Join date : 2014-10-10
Age : 47
Location : Finland

View user profile

Back to top Go down

QRC Style Muffler Empty Re: QRC Style Muffler
