TeeDee 051 carb sleeve replacement

Post  rszanti on Sun Dec 16, 2018 4:15 pm

I have a replacement sleeve for the cracked one on my TeeDee 51 but don't know how to get the prop driver washer off the front of the crank. I have disassembled the engine completely but am now stymied. Is there a procedure for doing this ?

Richard
avatar
rszanti
Beginner Poster
Beginner Poster

Posts : 6
Join date : 2012-11-10
Location : Cincinnati, Ohio

View user profile

Back to top Go down

Re: TeeDee 051 carb sleeve replacement

Post  rsv1cox on Sun Dec 16, 2018 4:35 pm

rszanti wrote:I have a replacement sleeve for the cracked one on my TeeDee 51 but don't know how to get the prop driver washer off the front of the crank. I have disassembled the engine completely but am now stymied. Is there a procedure for doing this ?

Richard

There are tools for this.  Just see Bernie here or check ebay.  Or, make your own.



BTW, remove the piston first. Smile
avatar
rsv1cox
Top Poster
Top Poster

Posts : 3483
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Re: TeeDee 051 carb sleeve replacement

Post  Dave P. on Sun Dec 16, 2018 4:38 pm

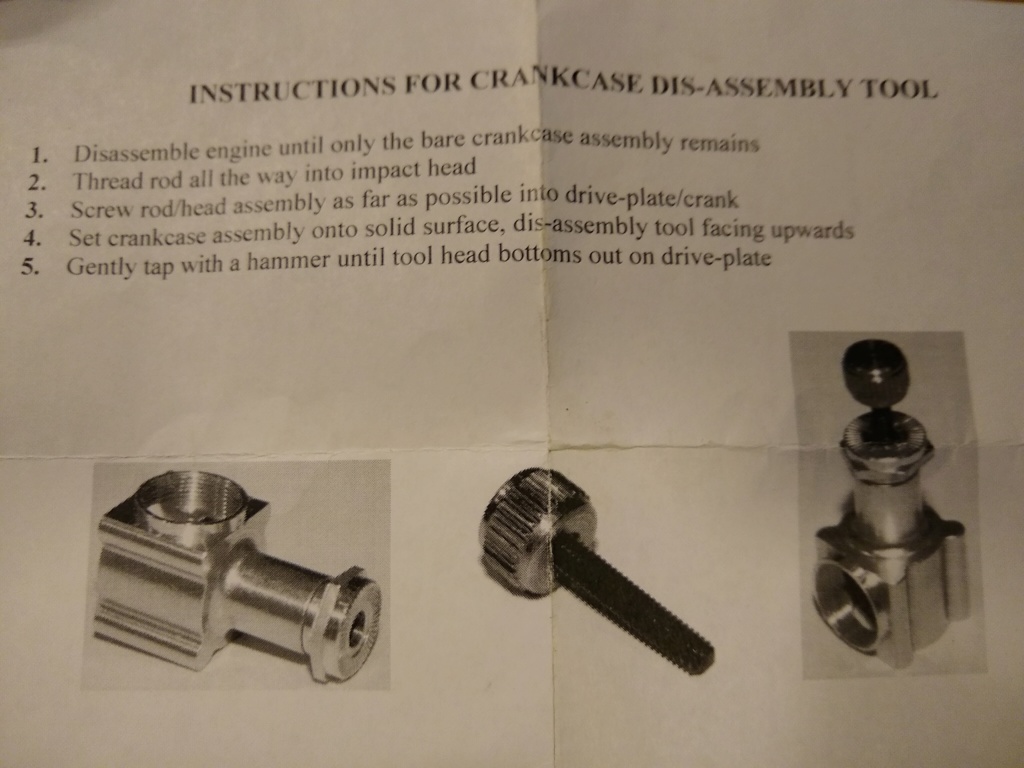

This disassembly tool is available from Cox International.  You can do the same thing with the spinner bolt.  If it's never been disassembled before, it can take a pretty good several taps to knock it loose, so be careful to tap it straight so you don't bend the bolt.

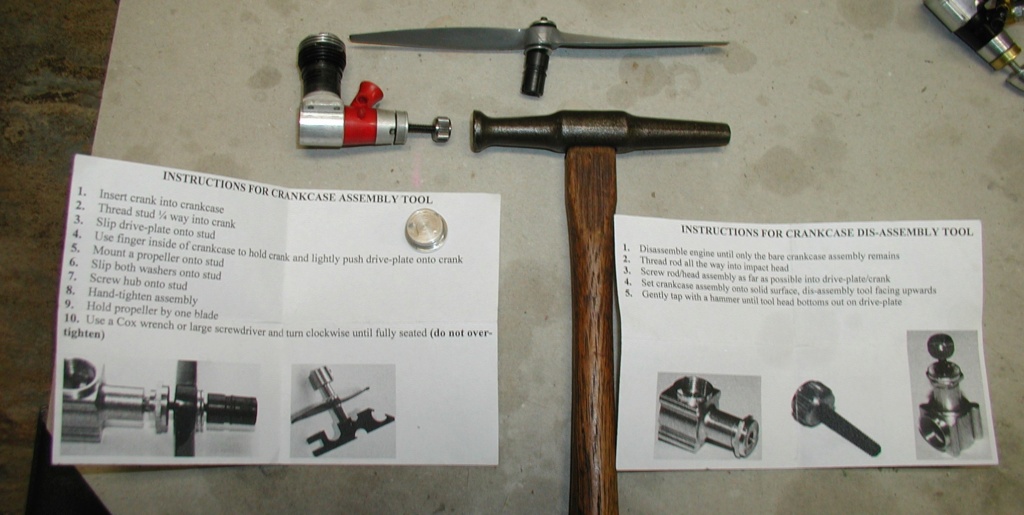

Bob beat me to it, he also shows the reassembly tool. You can get by without these tools, but they really are a better option.
