Post  Jason_WI Mon Feb 11, 2019 1:20 am

I was sent a Cox Mercedes driver to attempt to 3D scan and 3D print replacements.

It took a while to get the correct settings and then finally dusting the model in talc powder to cut the refection down.

For best results 2 scans are needed. One 90 degrees off from the previous scanned axis.

3D scanning and printing replacement parts 75c75310

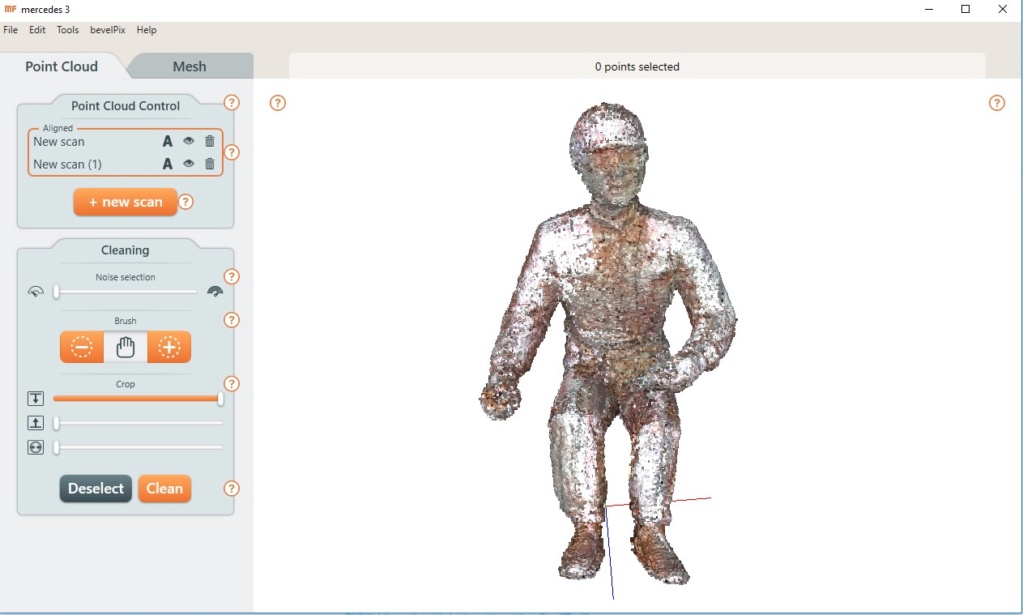

After the print cloud is captured both scans are merged and any artifacts are removed manually. Each scan took 2 hours so a total of about 4 hours of scan time.

3D scanning and printing replacement parts Merced10


After the print cloud is cleaned up the mesh is then created. There are different levels of texture that can be used and this was the best looking as far as features and smoothness of the model.

3D scanning and printing replacement parts Merced11

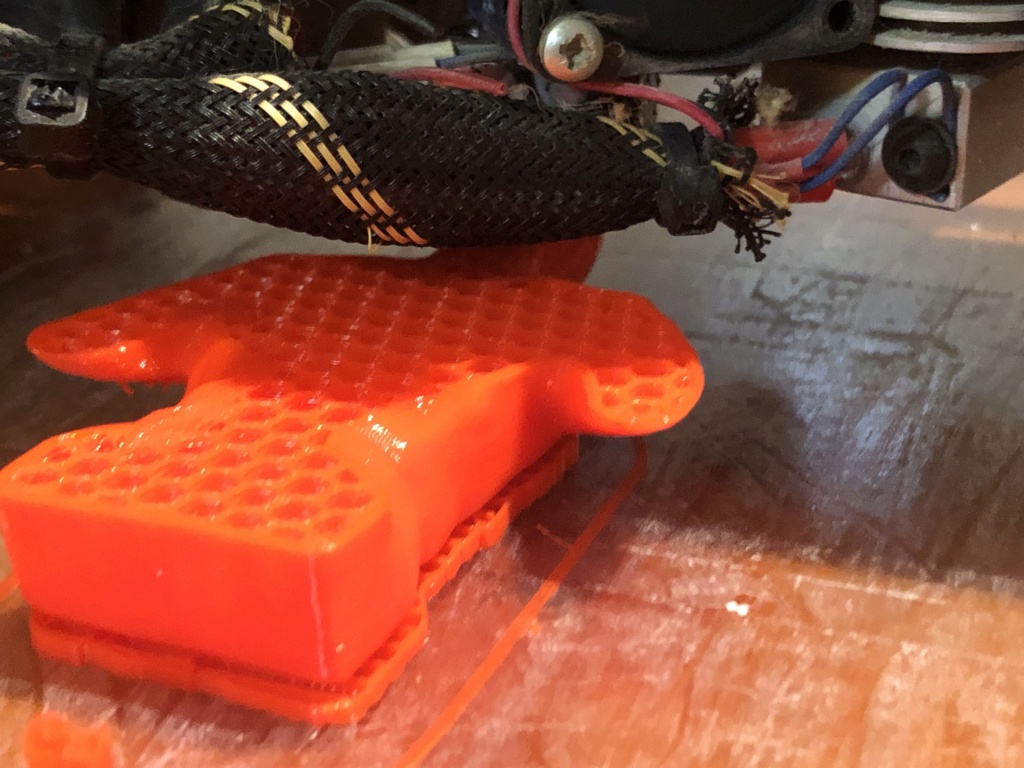

The mesh is then exported as a STL file then imported to Slic3r to generate the G code for the printer.

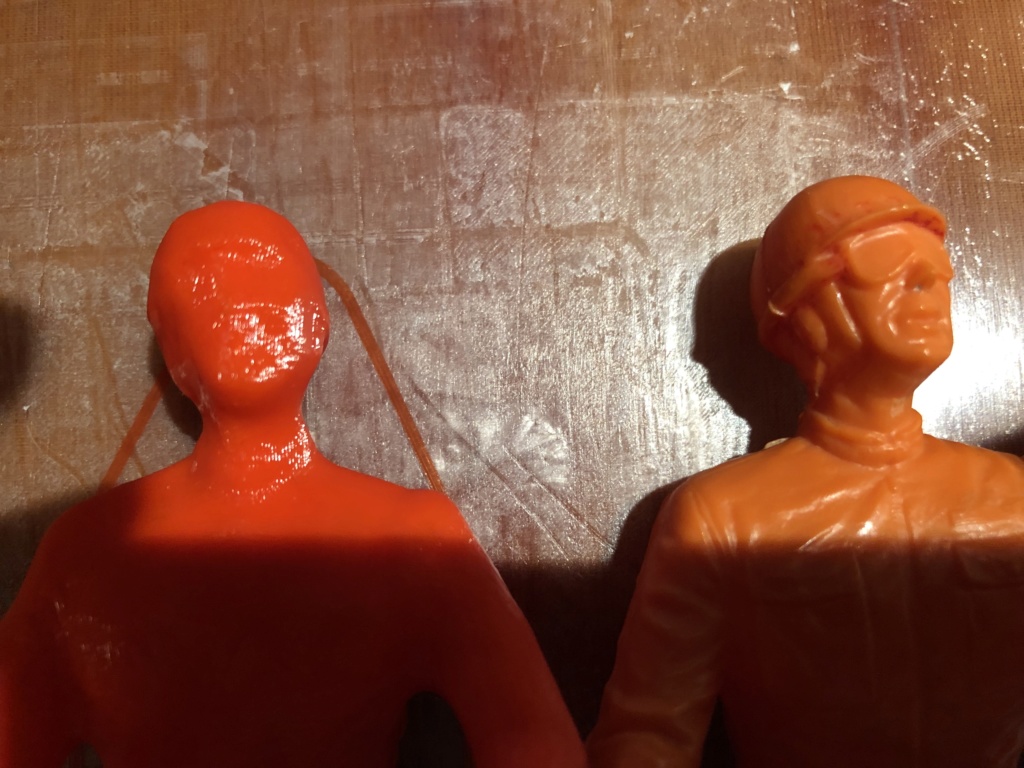

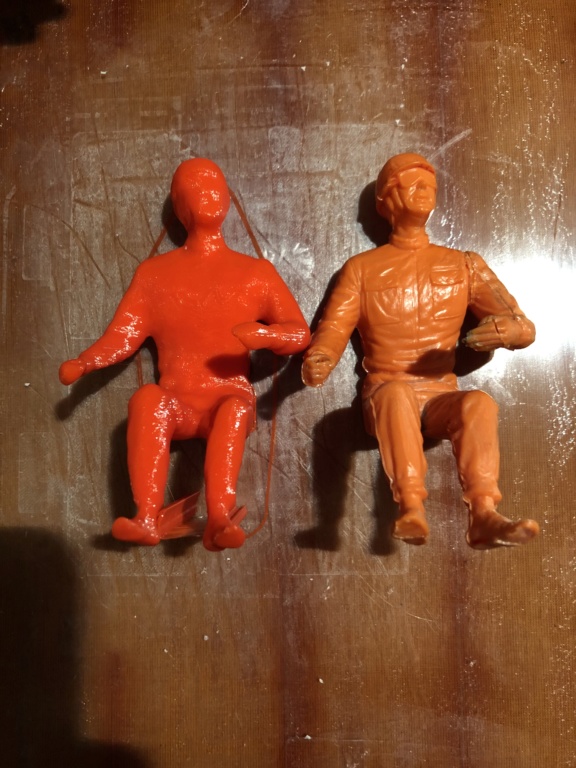

Here is the result. Most of the small features are lost in the scanning and slicing processes. Fine details of the fingers,  the goggles, and helmet are lost n the mesh. it did create a basic shape of the model and could pass off as something that looks good at 10 feet away.

3D scanning and printing replacement parts 86d8a010
3D scanning and printing replacement parts E68ada10
3D scanning and printing replacement parts Ee0a2f10
3D scanning and printing replacement parts F75b2710
Jason_WI
Jason_WI
Top Poster
Top Poster

2022 Supporter

Posts : 3123
Join date : 2011-10-09
Age : 49
Location : Neenah, WI

Back to top Go down

3D scanning and printing replacement parts Empty Re: 3D scanning and printing replacement parts

Post  NEW222 Mon Feb 11, 2019 6:52 am

That is amazing. For something that is almost unobtanium, I am sure some people would be more than happy. I know I would. Thanks for sharing this. It is nice to see.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3895
Join date : 2011-08-13
Age : 45
Location : oakbank, mb

Back to top Go down

3D scanning and printing replacement parts Empty Re: 3D scanning and printing replacement parts

Post  Marleysky Mon Feb 11, 2019 9:14 am

Yes, this is amazing! As a youngster my Dad grew up with Flash Gordon and Dick Tracey as comic characters with abilities that were “out of this world” as space flight and wrist radios. In my life they’ve become reality!  I can only wonder what parts of our current science fiction will become reality in the near future.  The ability to scan and print in 3 dimensions is incredibly awesome. Especially considering it is being done at home, rather than a scientific laboratory.  As I look as the resulting copy of the original driver i am reminded of Jeff Goldblum as Brundlefly, just a little fly  mixed up in the DNA during transformation! .....yeah, we still have time to work on the fine details!!

3D scanning and printing replacement parts 2f04fb10
Marleysky
Marleysky
Top Poster
Top Poster

2022 Supporter

Posts : 3618
Join date : 2014-09-28
Age : 71
Location : Grand Rapids, MI

Back to top Go down

3D scanning and printing replacement parts Empty Re: 3D scanning and printing replacement parts

Post  getback Mon Feb 11, 2019 9:44 am

I don't understand why the printer can't do better detail when it can print teeth on a gear as the ones you sent me ? As said i do think it is amazing that can bee done in your home .
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10273
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

3D scanning and printing replacement parts Empty Re: 3D scanning and printing replacement parts

Post  KariFS Mon Feb 11, 2019 10:22 am

The details are probably lost mostly in scanning, but it could be that the slicing program loses some too. But the details can still be beyond the capabilities of any printer. If the resolution is, say 0.1mm, which is pretty good, it is still not small enough for the tiny details like goggles, pockets etc.

Looks like a job for the traditional silicone mold and resin method Two Cents

But I do appreciate the effort and all the help you provide for fellow members Jason Thumbs Up
KariFS
KariFS
Diamond Member
Diamond Member

Posts : 2019
Join date : 2014-10-10
Age : 52

Back to top Go down

3D scanning and printing replacement parts Empty Re: 3D scanning and printing replacement parts

Post  batjac Mon Feb 11, 2019 8:36 pm

Marleysky wrote: i am reminded of Jeff Goldblum as Brundlefly, just a little fly  mixed up in the DNA during transformation!

Obviously, the driver in the open cockpit swallowed too many flies while rally racing...

Bzzzzzz Bzzzzzz Mark
batjac
batjac
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

Posts : 2356
Join date : 2013-05-22
Age : 61
Location : Broken Arrow, OK, USA

Back to top Go down

3D scanning and printing replacement parts Empty Re: 3D scanning and printing replacement parts

Post  Jason_WI Tue Feb 12, 2019 1:00 am

Lol. I kinda printed a mummy. No fingers. Facial features gone. Mummy Benz driver.
Jason_WI
Jason_WI
Top Poster
Top Poster

2022 Supporter

Posts : 3123
Join date : 2011-10-09
Age : 49
Location : Neenah, WI

Back to top Go down

3D scanning and printing replacement parts Empty Re: 3D scanning and printing replacement parts

Post  KariFS Tue Feb 12, 2019 4:16 am

lol!

How about wrapping the figure in some beige textile band-aid tape? The Benz is already shaped like a sarcofago, just need some ornaments and gold paint Very Happy
KariFS
KariFS
Diamond Member
Diamond Member

Posts : 2019
Join date : 2014-10-10
Age : 52

Back to top Go down

3D scanning and printing replacement parts Empty Re: 3D scanning and printing replacement parts

Post  Jason_WI Fri Feb 15, 2019 11:53 pm

2nd scan with natural lighting. Better but not quite there on the face yet.

3D scanning and printing replacement parts Merced12
Jason_WI
Jason_WI
Top Poster
Top Poster

2022 Supporter

Posts : 3123
Join date : 2011-10-09
Age : 49
Location : Neenah, WI

Back to top Go down

3D scanning and printing replacement parts Empty Re: 3D scanning and printing replacement parts

Post  Levent Suberk Sat Feb 16, 2019 3:44 am

Jason, painting the figure in white can be a problem solver? Orange color surface affects laser scan?
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 2228
Join date : 2017-12-24
Location : Türkiye
