Acceleration ring Cox Tee Dee .010

Page 3 of 4 Previous  1, 2, 3, 4  Next

Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  balogh on Sun Mar 10, 2019 7:11 pm

Here is my vid from today but without the tachometer that did not work under the poor light conditions. The PET throttle allows a low idle and quick engine response, at least these features are visible in the vid...Maybe I will audiotach it tomorrow but it is 1:08 am here so I go to bed..

balogh
balogh
Diamond Member
Diamond Member

Posts : 2233
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  1/2A Nut on Sun Mar 10, 2019 8:06 pm

Thank you for sharing engine weight and video Gents.  Thumbs Up

Direct Current lighting from a flash light will allow you to use your tach.

Brief best readings from low to high with "RPM Gauge":

12,746 rpm to 26,485 rpm

Values used 5000 rpm to 30,000 rpm

Small Cox Logo
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Sun Mar 10, 2019 9:46 pm

Excellent Andras! ... works very well ...
Thanks for taking the time to make the video! Flying
MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Mon Mar 11, 2019 1:07 am

So ... seeing that it works, I want to gain some rpm and always get a good idle, so I started to modify the original opening of the acceleration ring ... in theory, because of the way it should have better acceleration transition, more soft ... tomorrow I make a video .... now I would like it, but again I win early in the morning and it's 3am.
Acceleration ring Cox Tee Dee .010 - Page 3 20190333
Acceleration ring Cox Tee Dee .010 - Page 3 20190334
Acceleration ring Cox Tee Dee .010 - Page 3 20190335
Acceleration ring Cox Tee Dee .010 - Page 3 20190336
MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Mon Mar 11, 2019 1:09 pm

Cox Tee Dee .010 Self-made acceleration ring (MODIFIED) Very Happy .

MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Tue Mar 12, 2019 1:27 am

I am happy with my Tee Dee .010 r / c! ... so to complete the usefulness of the throttle ring, what is needed is to be able to handle the cylinder adjustment without risks, therefore I decided to make the typical Cox anchors in the cylinder itself and add a mouth in an original Tee Dee .010 key ...
Acceleration ring Cox Tee Dee .010 - Page 3 20190337
Acceleration ring Cox Tee Dee .010 - Page 3 20190338
Acceleration ring Cox Tee Dee .010 - Page 3 20190339
Acceleration ring Cox Tee Dee .010 - Page 3 20190340
Acceleration ring Cox Tee Dee .010 - Page 3 20190341

and then I put everything together and I started to play for a while before going to sleep ... Very Happy
Acceleration ring Cox Tee Dee .010 - Page 3 20190342
MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  1/2A Nut on Tue Mar 12, 2019 3:13 pm

Your all set what project are you going to use the engine with?
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Tue Mar 12, 2019 11:36 pm

1/2A Nut wrote:Your all set what project are you going to use the engine with?

Hello Brad ... I have not thought about a particular model, but I have in mind to do something with vintage lines ... I have some ideas in mind but I have not yet started to draw ...
I remember an electric model of Kim and also a UC with .020 ... I do not decide yet but something I will ... Very Happy Huh... Huh... Acceleration ring Cox Tee Dee .010 - Page 3 2_11910
Acceleration ring Cox Tee Dee .010 - Page 3 3_3410
Acceleration ring Cox Tee Dee .010 - Page 3 Badbil10

MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  1/2A Nut on Wed Mar 13, 2019 12:54 am

Yes could replicate vintage toy gliders or rubber band power to RC too.

Acceleration ring Cox Tee Dee .010 - Page 3 510udr10
Acceleration ring Cox Tee Dee .010 - Page 3 Americ10
Acceleration ring Cox Tee Dee .010 - Page 3 Guillo10
Acceleration ring Cox Tee Dee .010 - Page 3 P1011110
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Wed Mar 13, 2019 3:55 am

Brad, to collect data, I have some questions for you if you are so kind please:
1) In this model do you have three channels? The rudder is fixed, right?
2) What material is the wing ?, Is wood with monokote ?, You have sanding and given profile true?
3) What is the maximum thickness of the wing?
4) Length of fuselage and wingspan?
5) total weight of the model in flight order?
Thank you!! Thumbs Up
Acceleration ring Cox Tee Dee .010 - Page 3 Lil_0110
MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  balogh on Wed Mar 13, 2019 4:47 am

MauricioB wrote:I am happy with my Tee Dee .010 r / c! ... so to complete the usefulness of the throttle ring, what is needed is to be able to handle the cylinder adjustment without risks, therefore I decided to make the typical Cox anchors in the cylinder itself and add a mouth in an original Tee Dee .010 key ...
Acceleration ring Cox Tee Dee .010 - Page 3 20190337
Acceleration ring Cox Tee Dee .010 - Page 3 20190338
....

Hi Mauricio,

do you have the photo showing how you have made the cuts into the top fin of the cylinder to receive the wrench? Did you use a Dremel cutter or different tool? I also plan to apply these flats on the top fins of some older cylinders.

Thank you.
balogh
balogh
Diamond Member
Diamond Member

Posts : 2233
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  1/2A Nut on Wed Mar 13, 2019 5:24 am

MauricioB wrote:Brad, to collect data, I have some questions for you if you are so kind please:
1) In this model do you have three channels? The rudder is fixed, right?
2) What material is the wing ?, Is wood with monokote ?, You have sanding and given profile true?
3) What is the maximum thickness of the wing?
4) Length of fuselage and wingspan?
5) total weight of the model in flight order?
Thank you!! Thumbs Up
Acceleration ring Cox Tee Dee .010 - Page 3 Lil_0110


Here is the link to the build when I am free after work I will have time to answer your questions. Small Cox Logo

Cox TD .010 Ply Rolled Fuselage 3Ch Lil Speedy
http://www.rcuniverse.com/forum/1-2-1-8-airplanes-70/11597545-cox-td-010-ply-rolled-fuselage-3ch-speeder.html

Small Cox Logo
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Wed Mar 13, 2019 1:49 pm

Andras:

Here are the tools to practice anchoring the cylinder with your tool.
1) Wooden block with perforation (to properly support the cylinder)
2) lime
3) handle and blade
4) large pin blade or butter spreader blade.

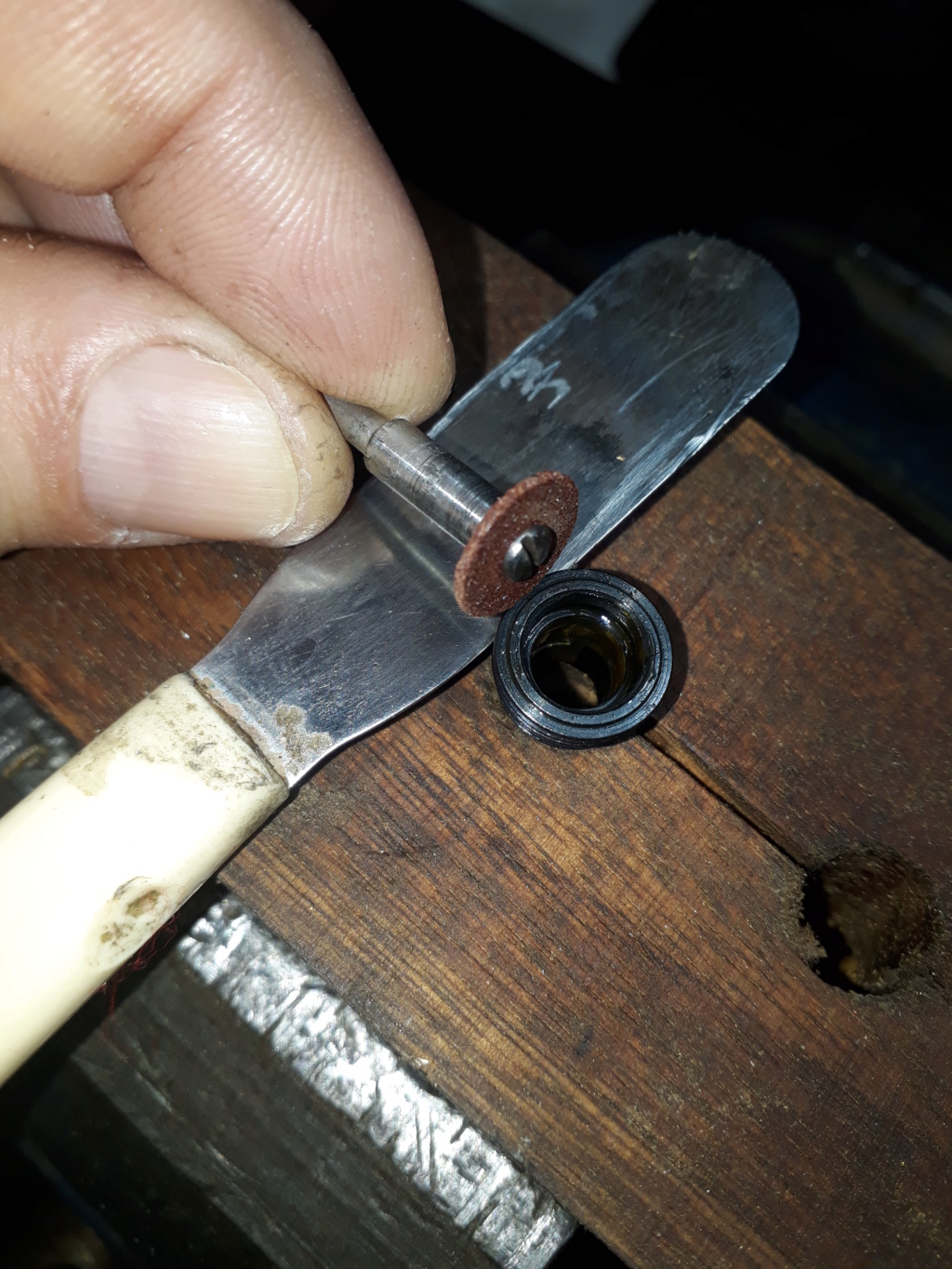

5) Dremel and disc for cutting.
6) Caliber
7) Original key if you have it.

Steps:
1) Place the cylinder firmly on the wooden block.

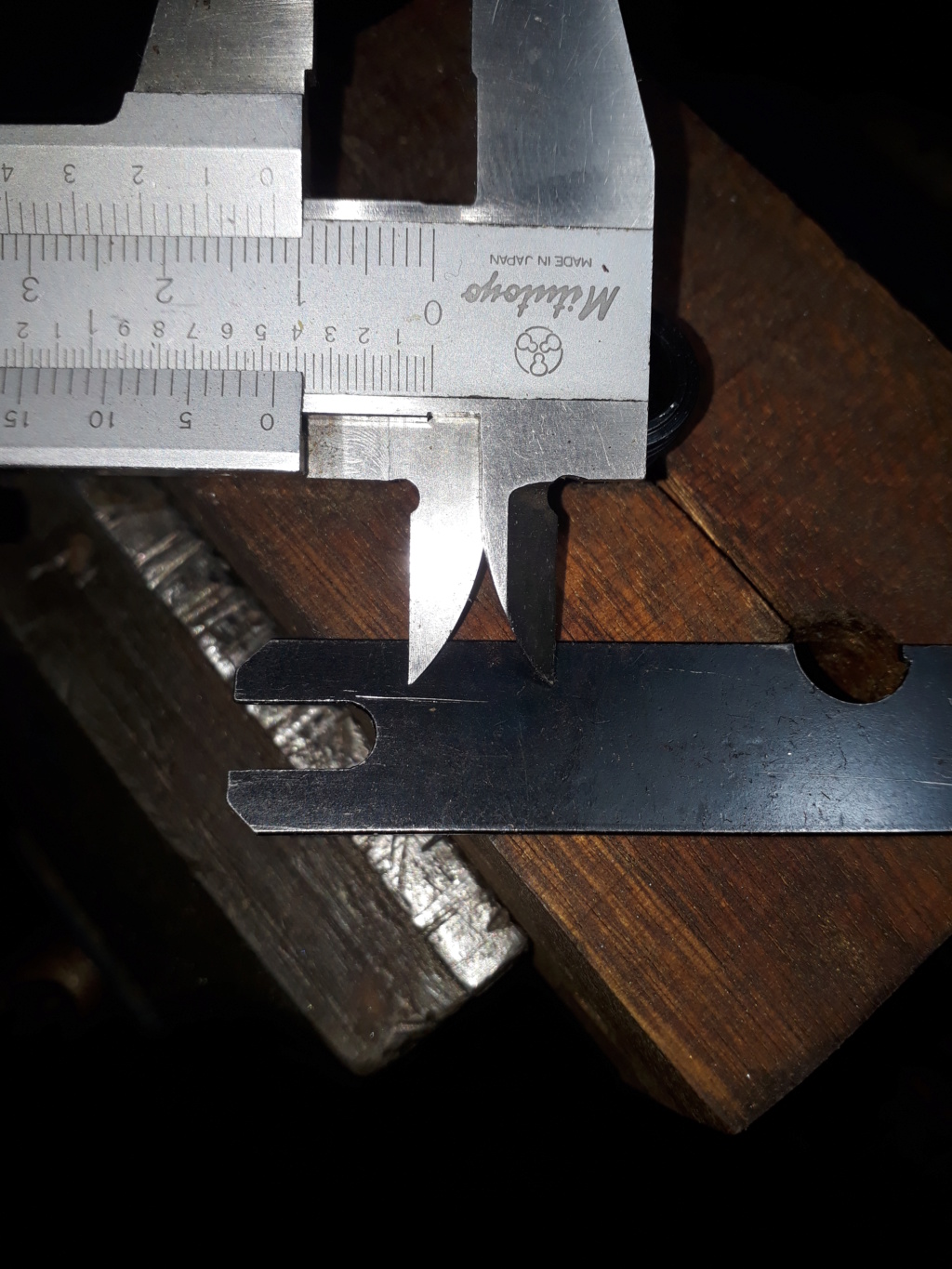

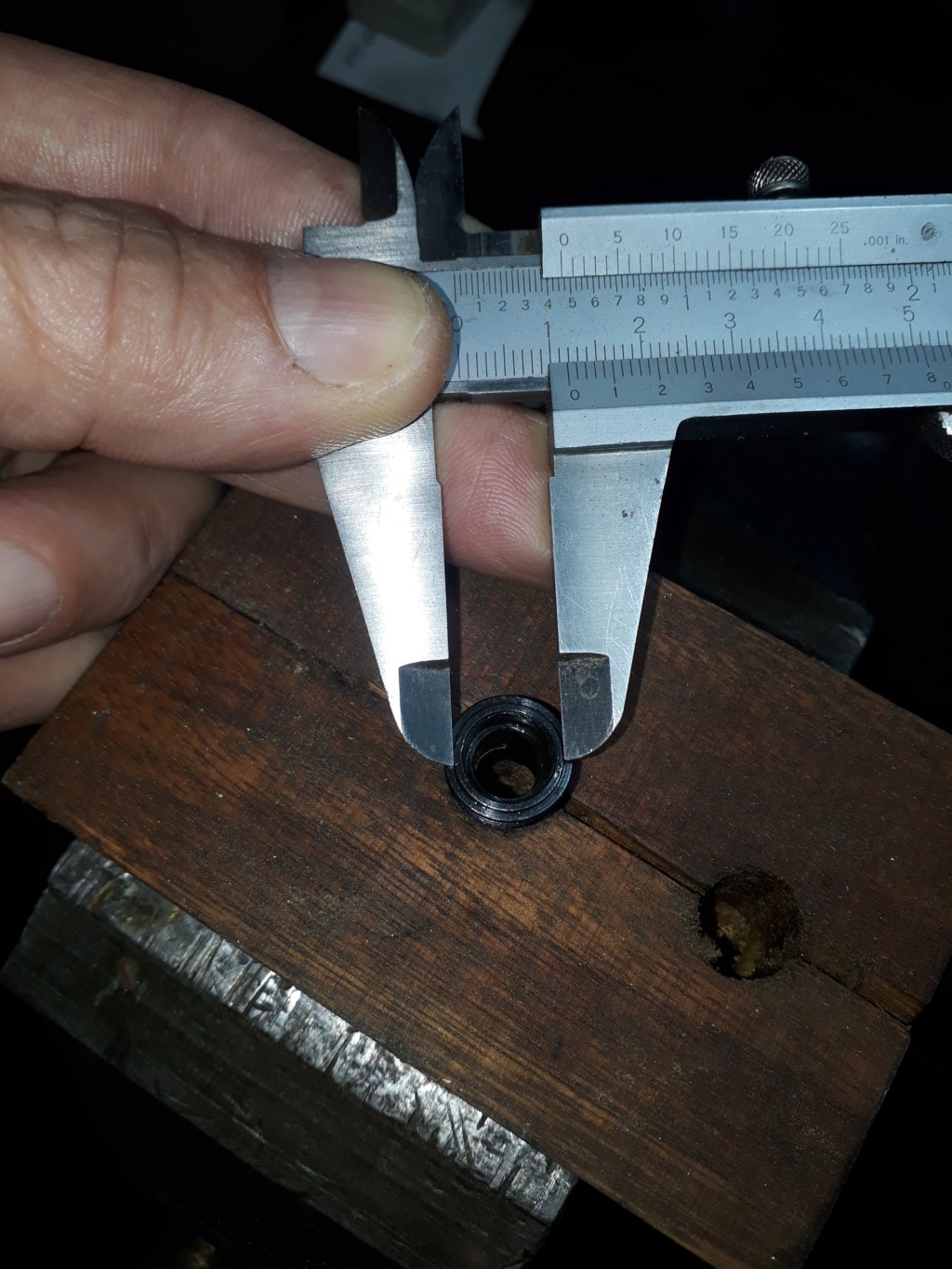

2) take the exact measurement of the upper ring.
3) transmit that measure to the key to be manufactured.
4) Once you have your mouth on the key, take the key to the cylinder.

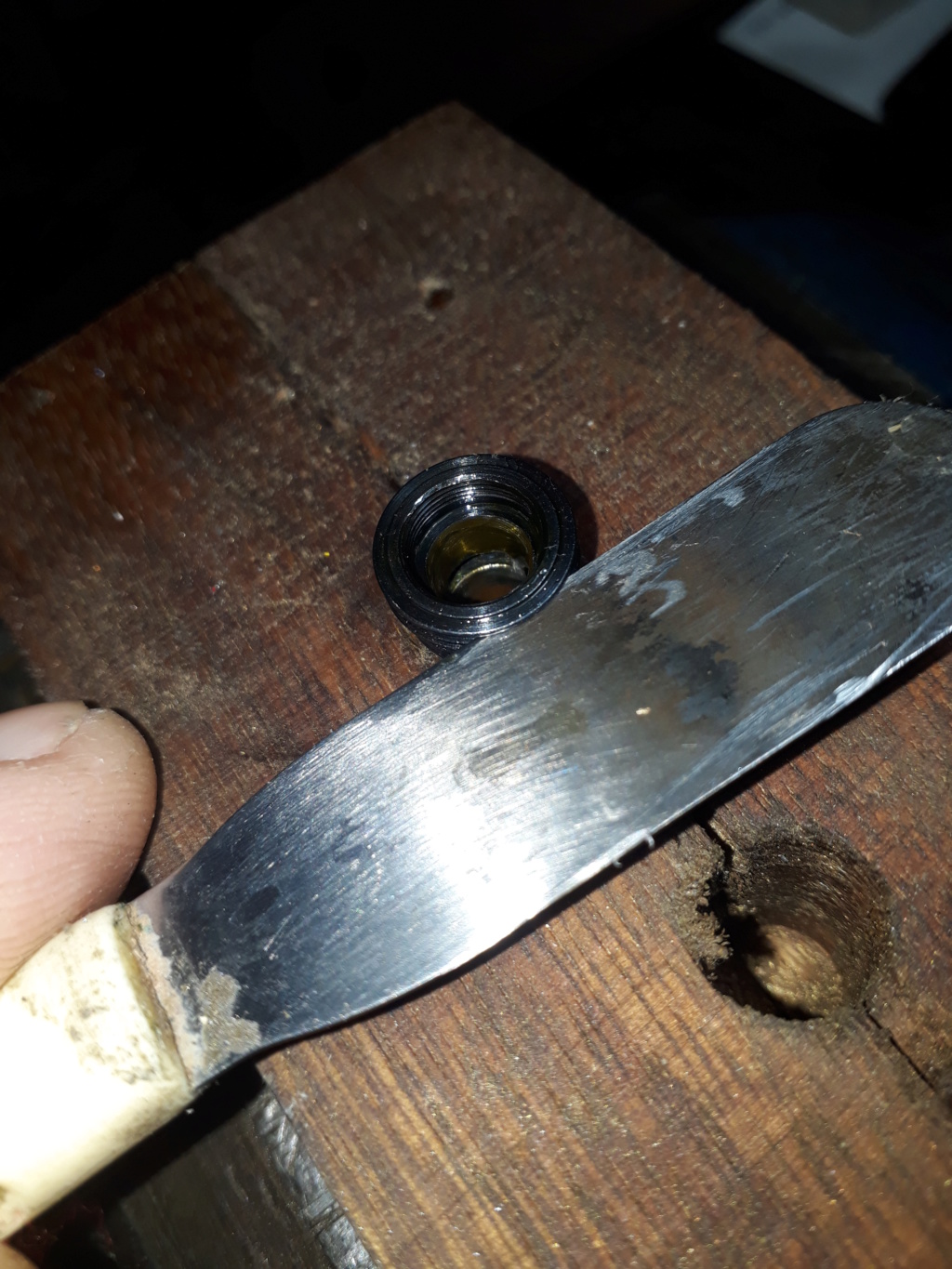

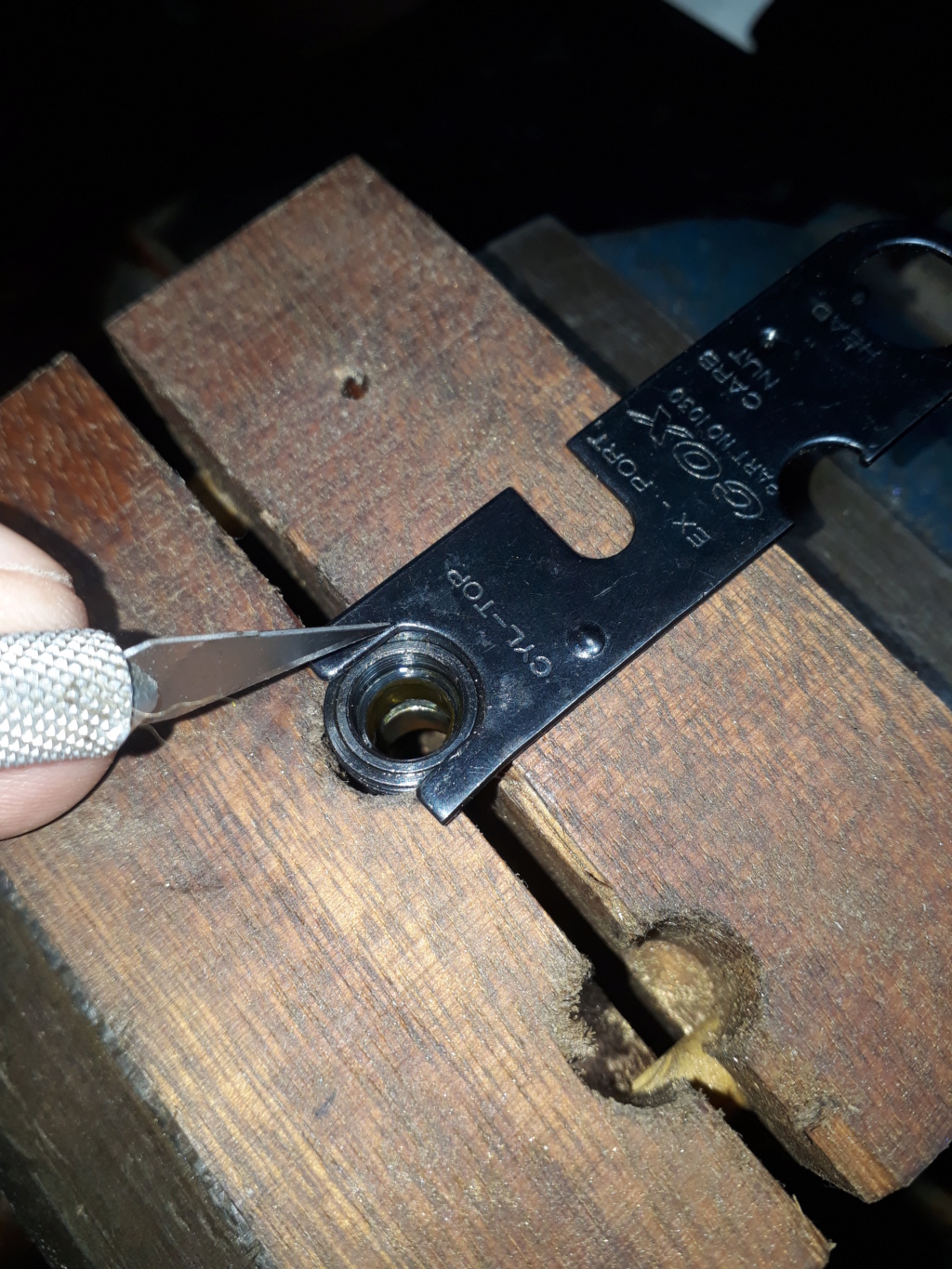

5) Mark the cylinder with a blade, (cor where you must reduce)
6) Place the big pin blade, between upper fin and lower cylinder fin, to protect the lower fin, you can also use a butter paddle.
7) If it is a cylinder of Cox Tee Dee .010, it is convenient to use a file, (since the size is very small and the material can easily be removed)
Cool If it is a cylinder of Cox .020 / .049 / .051 and more, use the Dremel cutting disc since it will have greater precision when doing the work, (remember always to protect the lower wing of the cylinder)
Good luck!!

Acceleration ring Cox Tee Dee .010 - Page 3 20190343
Acceleration ring Cox Tee Dee .010 - Page 3 20190344
Acceleration ring Cox Tee Dee .010 - Page 3 20190345
Acceleration ring Cox Tee Dee .010 - Page 3 20190346
Acceleration ring Cox Tee Dee .010 - Page 3 20190347
Acceleration ring Cox Tee Dee .010 - Page 3 20190348
Acceleration ring Cox Tee Dee .010 - Page 3 20190349
Acceleration ring Cox Tee Dee .010 - Page 3 20190350
Acceleration ring Cox Tee Dee .010 - Page 3 20190351
MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Wed Mar 13, 2019 1:55 pm

1/2A Nut wrote:
MauricioB wrote:Brad, to collect data, I have some questions for you if you are so kind please:
1) In this model do you have three channels? The rudder is fixed, right?
2) What material is the wing ?, Is wood with monokote ?, You have sanding and given profile true?
3) What is the maximum thickness of the wing?
4) Length of fuselage and wingspan?
5) total weight of the model in flight order?
Thank you!! Thumbs Up
Acceleration ring Cox Tee Dee .010 - Page 3 Lil_0110


Here is the link to the build when I am free after work I will have time to answer your questions. Small Cox Logo

Cox TD .010 Ply Rolled Fuselage 3Ch Lil Speedy
http://www.rcuniverse.com/forum/1-2-1-8-airplanes-70/11597545-cox-td-010-ply-rolled-fuselage-3ch-speeder.html

Small Cox Logo
1/2A Nut wrote:
MauricioB wrote:Brad, to collect data, I have some questions for you if you are so kind please:
1) In this model do you have three channels? The rudder is fixed, right?
2) What material is the wing ?, Is wood with monokote ?, You have sanding and given profile true?
3) What is the maximum thickness of the wing?
4) Length of fuselage and wingspan?
5) total weight of the model in flight order?
Thank you!! Thumbs Up
Acceleration ring Cox Tee Dee .010 - Page 3 Lil_0110


Here is the link to the build when I am free after work I will have time to answer your questions. Small Cox Logo

Cox TD .010 Ply Rolled Fuselage 3Ch Lil Speedy
http://www.rcuniverse.com/forum/1-2-1-8-airplanes-70/11597545-cox-td-010-ply-rolled-fuselage-3ch-speeder.html

Small Cox Logo
Very Happy Thumbs Up Thumbs Up Thanks friend!
MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  balogh on Wed Mar 13, 2019 1:57 pm

Thanks a lot Mauricio for the very good tips.
balogh
balogh
Diamond Member
Diamond Member

Posts : 2233
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  1/2A Nut on Wed Mar 13, 2019 3:35 pm

1) In this model do you have three channels? The rudder is fixed, right? (yes 3ch)
2) What material is the wing ?, Is wood with monokote ?, You have sanding and given profile true? (balsa yes yes)
3) What is the maximum thickness of the wing? (6mm)
4) Length of fuselage and wingspan? (21" wing span / 14.75" fuselage)
5) total weight of the model in flight order? (5.3oz TD .020  / 4.97oz per TD .010)

Here is the design best suited for the TD .020 when using ply for the fuselage.
I would scale it down 10% and use balsa fuselage for more performance with the TD .010
My best TD .010 plane is only 2oz Ready To Fly / RTF / 122 mph (still need to test more 3P prop)
Second best TD .010 plane is only 3oz RTF / 130.4 mph maxed out 4P prop)

Acceleration ring Cox Tee Dee .010 - Page 3 010_sp10
Acceleration ring Cox Tee Dee .010 - Page 3 2014-028
Acceleration ring Cox Tee Dee .010 - Page 3 2014-029
Acceleration ring Cox Tee Dee .010 - Page 3 2014-030

Small Cox Logo Thumbs Up
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Wed Mar 13, 2019 9:31 pm

Thanks for the Brad data, I will keep these numbers in mind when drawing my model ...
As long as I have time I will begin ...
MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  1/2A Nut on Thu Mar 14, 2019 5:15 am

Thank you happy to help,  I hope you are inspired to draw up a design you always wanted.

For a sporty plane that will perform with the TD .010:
- 36 sq. in wing
- Max 3.5oz RTF
- Thin airfoil to help keep it moving on a stock prop.

You could try lower weight gear for a whole new realm of plane.
3ch version plane could be as low as 2.2oz


2ch plane 2oz:
Acceleration ring Cox Tee Dee .010 - Page 3 Imag2810
Acceleration ring Cox Tee Dee .010 - Page 3 Imag3210
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  1/2A Nut on Fri Mar 15, 2019 3:48 pm

https://www.facebook.com/PhillyFliersCL/videos/1012082118861922/

Small Cox Logo

Check out this TD .010 doing what it was born to do ... rawk on Lil feller live your best life hehe Thumbs Up
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Fri Mar 15, 2019 9:33 pm

1/2A Nut wrote:https://www.facebook.com/PhillyFliersCL/videos/1012082118861922/

Small Cox Logo

Check out this TD .010 doing what it was born to do ... rawk on Lil feller live your best life hehe Thumbs Up

Brad, thanks for sharing that video, it's really beautiful ... I can not believe it ... I have it in my hands and that .010 is wonderful.
I wonder what were the real intentions of the creation of the Cox .010 ... maybe the challenge of doing something tiny and that works?
I wonder if for the date he was born, the sale price was the cheapest of the line because it was the smallest, or if it was always, as it is now, it is the smallest but one of the most expensive.
(I hope you can understand what I mean, I'm always subject to the web translator fulfilling my true intention)....
MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  MauricioB on Sat Mar 16, 2019 1:03 am

Well, I've started drawing ... it came out ... it's just a draft, but that's the model for me .010!
Acceleration ring Cox Tee Dee .010 - Page 3 20190362
Acceleration ring Cox Tee Dee .010 - Page 3 20190363
Acceleration ring Cox Tee Dee .010 - Page 3 20190364
MauricioB
MauricioB
Diamond Member
Diamond Member

Posts : 2035
Join date : 2016-02-16
Age : 48

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  balogh on Sat Mar 16, 2019 2:33 am

[/quote].....
I wonder if for the date he was born, the sale price was the cheapest of the line because it was the smallest, or if it was always, as it is now, it is the smallest but one of the most expensive.
(I hope you can understand what I mean, I'm always subject to the web translator fulfilling my true intention)....[/quote]


The 010 was priced the same as the 049 and 051...
Acceleration ring Cox Tee Dee .010 - Page 3 15527210
balogh
balogh
Diamond Member
Diamond Member

Posts : 2233
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  1/2A Nut on Sat Mar 16, 2019 6:56 am

fixed

Acceleration ring Cox Tee Dee .010 - Page 3 15527210
Acceleration ring Cox Tee Dee .010 - Page 3 20190311
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  balogh on Sat Mar 16, 2019 7:02 am

Thanks Brad! I attached the catalogue picture just as it appeared after I shot it with the phone on which I wrote the post too . Very Happy
balogh
balogh
Diamond Member
Diamond Member

Posts : 2233
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  balogh on Sat Mar 16, 2019 7:08 am

Deleted text because of double posting...does anyone know how to delete a post rather than just its text in editing mode?
balogh
balogh
Diamond Member
Diamond Member

Posts : 2233
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Acceleration ring Cox Tee Dee .010 - Page 3 Empty Re: Acceleration ring Cox Tee Dee .010

Post  Sponsored content


Sponsored content


Back to top Go down

Page 3 of 4 Previous  1, 2, 3, 4  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
