Cars-Stars 2019 "Rodd-E-Liminator"

Page 1 of 3 1, 2, 3  Next

Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Cars-Stars 2019 "Rodd-E-Liminator"

Post  roddie on Thu Apr 04, 2019 12:24 pm

Rather than continuing to clutter the contest thread with my build.. and every little OCD-added nuance.. Rolling Eyes I decided to start a separate thread.



roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Summary..

Post  roddie on Thu Apr 04, 2019 1:46 pm

I started this build late.. (on 3-31-19) I'd never had a IC engine-powered car; tether/RC/free-running or otherwise.. but I got sucked-in by the hype.. This Site Rocks! I Love This Forum!

I took a simple "profile-design" into consideration.. got out my "French-curves" and started drawing onto some old 3mm luan ply stock which I have a surplus of.

Cars-Stars 2019 "Rodd-E-Liminator" 20190357
Cars-Stars 2019 "Rodd-E-Liminator" 20190358

I had a direct-drive design in my head from the get-go. "What the heck".. if I can get it to hook-up.. it'll fly...... right?

roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty wheel-driven..

Post  roddie on Thu Apr 04, 2019 2:24 pm

I had made some flywheels for my Cox .049 engines when I had access to a CNC router machine. Their hubs have .125" (1/8")bores.. which is the correct size for the 5-40 machine-screw which fits the Cox .049 engine's crank-shaft.

The largest of the flywheels was made from 1/2" (.500") sheet PVC.. and cut to a diameter of 1.375". Material was removed (hogged-out) from the inside.. to a diameter of 1.125" and a depth of .400".

This size is the size for my trial drive-wheel..

Cars-Stars 2019 "Rodd-E-Liminator" Dsc04911

I obviously needed a traction-element. I am trying some bicycle-tire type "inner-tube" rubber (Butyl-rubber) 26" wheel-size which I hand-cut 1/2" sections of.. to fit the width of my wheel, for "tires".

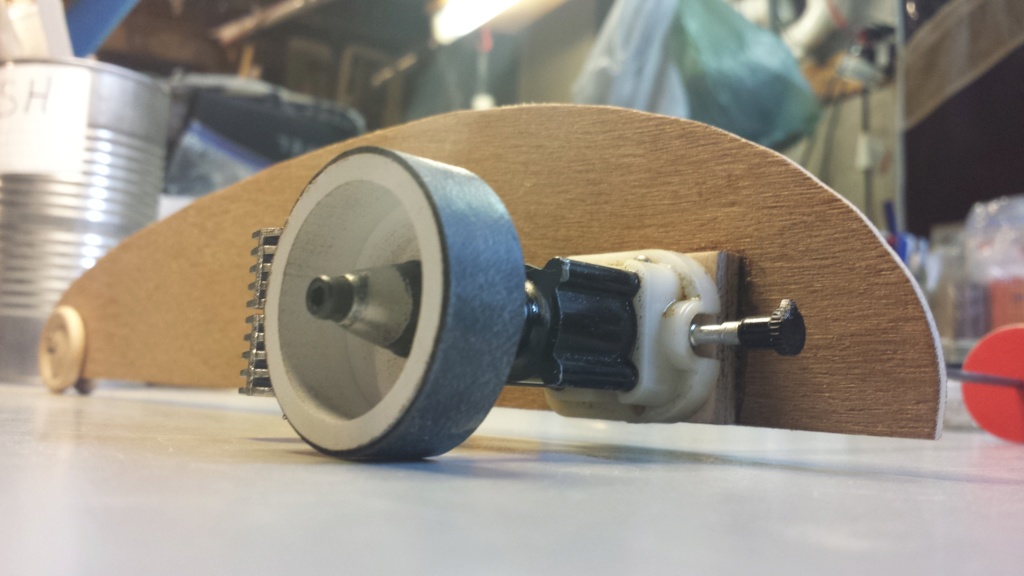

Cars-Stars 2019 "Rodd-E-Liminator" Config10

Then I cut some extra "tires" to experiment with stickier tread-compounds.. in case I had traction-issues.

Cars-Stars 2019 "Rodd-E-Liminator" Spare-13

If I still experience "wheel-spin" with the stickiest 1/2" width tread-compound.. I have the means to increase the traction-surface by 100%
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  roddie on Sat Apr 06, 2019 9:40 am

Here's a 2x width version of my wheel/tire which should have been posted here.. rather than creating the "PHATT TYRE" thread..  Embarassed

Cars-Stars 2019 "Rodd-E-Liminator" Phat-t15
Cars-Stars 2019 "Rodd-E-Liminator" Phat-t14

This is an assembly of two of my 1.437" diameter flywheels oriented with their flat-sides facing each other. Note that the engines' drive-washer fits inside the inner flywheel. I'm hoping that this will help with balancing.

Cars-Stars 2019 "Rodd-E-Liminator" Phat-t13

If the assembly spins out-of-balance.. I can try re-mounting the tire. It fits very tightly on the wheel assembly. The wheels actually have to be assembled-together (mounted to the engine) in order to mount the tire. I doubt that I'll have any issues with the tire coming off due to centrifugal-force.

I'm using a Tee Dee style aluminum spinner for a "hub".. because it works well with my elec. starter.
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Red-wheels/Phat-tire

Post  roddie on Mon Apr 15, 2019 7:17 pm

Cars-Stars 2019 "Rodd-E-Liminator" 20190432

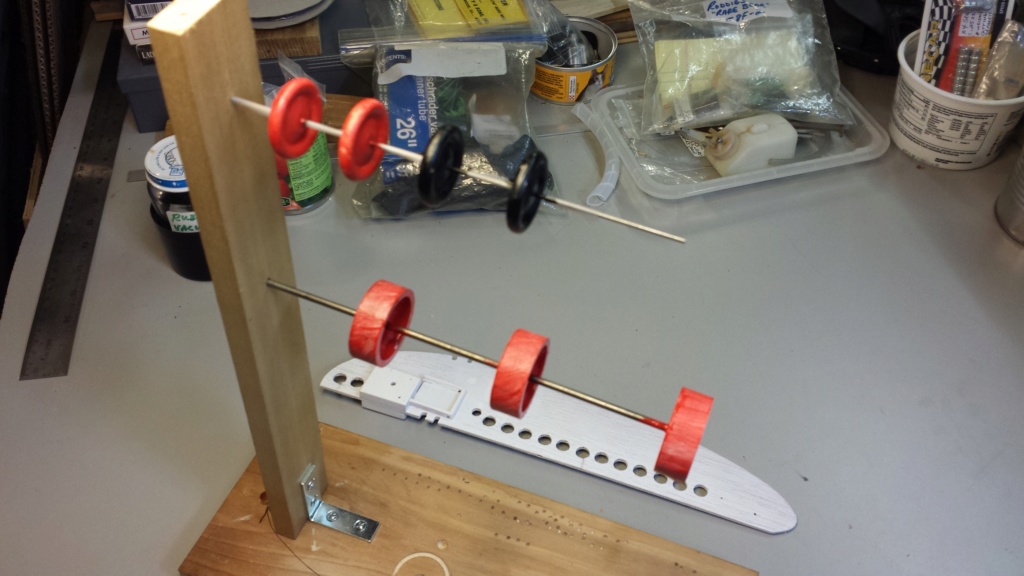

Cars-Stars 2019 "Rodd-E-Liminator" 20190433

I LIKE the idea of this double-wide (26mm) direct-drive set-up.. but it might not perform well on rough-pavement. The "tire-material" is thin/butyl-rubber.. which might run really well on a smooth-surface. A stray pebble on the circuit, could cause wheel-spin.. and subsequent model spin-out.

Cars-Stars 2019 "Rodd-E-Liminator" Phat-t16

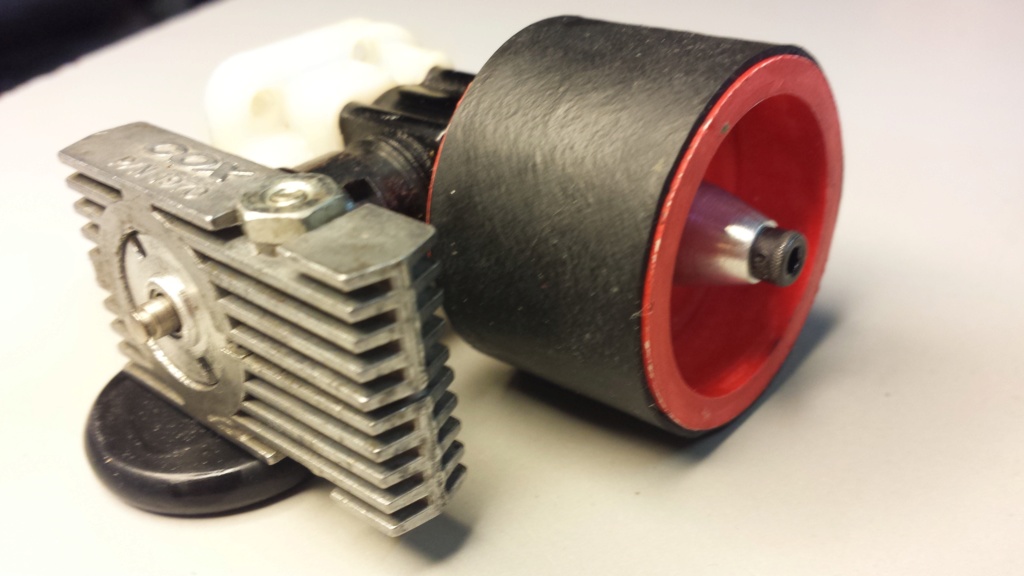

Cars-Stars 2019 "Rodd-E-Liminator" Phat-t17
Cars-Stars 2019 "Rodd-E-Liminator" Phat-t18

More paint-work/fuel-proofing needs to be done to the car-body, before I can even free-run this little gem.. but the free-run will be fun. I'll try to get a video of that.. I need to test this direct-drive configuration.. to see if the engine will continue to run after a "drop-launch".. or whether it will need a "push-start". The "latter" would require on-board ignition for a glow-engine.. but we can engineer that.. if need-be..
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  NEW222 on Mon Apr 15, 2019 7:59 pm

It's getting colored...... Can't wait to see the finished product!
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2173
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  getback on Tue Apr 16, 2019 9:52 am

Coming right along as the clock ticks!! I got to get some work on my stuff Today !!! Old Bugger
getback
getback
Top Poster
Top Poster

Posts : 5898
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty RTR.. (free-run that is..)

Post  roddie on Sat May 04, 2019 4:37 pm

This is supposed to be a tether-car.. but I haven't devised a bridle set-up for it yet.. Other than that, I could try to free-run it... Shocked

Cars-Stars 2019 "Rodd-E-Liminator" 20190510
Cars-Stars 2019 "Rodd-E-Liminator" 20190511
Cars-Stars 2019 "Rodd-E-Liminator" 20190512

I'm running oversize (ID) fuel-line using compression-fittings made from alloy tubing. It's an ongoing experiment to assess fuel-delivery from a remote "hard-tank" with only the suction from the engines' venturi.

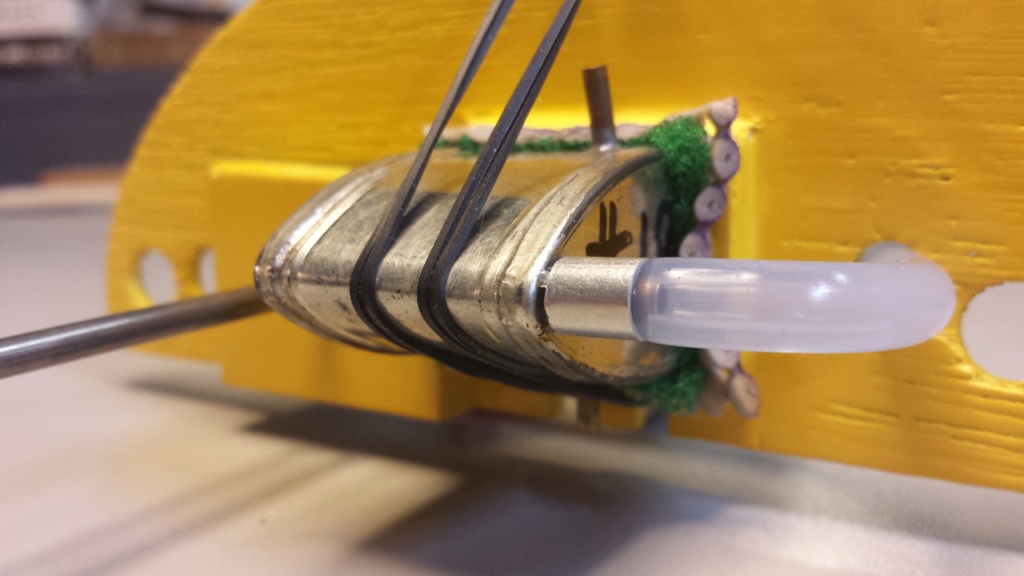

Cars-Stars 2019 "Rodd-E-Liminator" 20190515
Cars-Stars 2019 "Rodd-E-Liminator" 20190514
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  getback on Sat May 04, 2019 5:39 pm

You have got plenty of hole's there hook it up brother !! I think my pics are on my phone that i can't seem to get since my Son came home !! bounce bounce confused bounce bounce  Wait // Cars-Stars 2019 "Rodd-E-Liminator" Ptdc0142


Last edited by getback on Sat May 04, 2019 5:44 pm; edited 1 time in total (Reason for editing : forgot the pics DUH!!)
getback
getback
Top Poster
Top Poster

Posts : 5898
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  roddie on Sat May 04, 2019 8:00 pm

getback wrote:You have got plenty of hole's there hook it up brother !! I think my pics are on my phone that i can't seem to get since my Son came home !! bounce bounce confused bounce bounce  Wait // Cars-Stars 2019 "Rodd-E-Liminator" Ptdc0142

RUN THAT PUPPY BROTHER!!!! Laughing
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  getback on Sun May 05, 2019 8:40 am

I plan to and it won't bee long , need to get the other GTP Nissan repaired (parts replaced) and then it will bee off to the school about 4 miles from me Crazy Eyes Jeep Horsing Around I want you to get in there with that HM Rail !! Very Happy
getback
getback
Top Poster
Top Poster

Posts : 5898
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  Cribbs74 on Sun May 05, 2019 8:48 pm

That’s a wild design Roddie. Pretty neat!
Cribbs74
Cribbs74
Moderator

Trusted Seller
Posts : 10379
Join date : 2011-10-24
Age : 45
Location : Tuttle, OK

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  roddie on Mon May 06, 2019 11:57 am

Cribbs74 wrote:That’s a wild design Roddie. Pretty neat!

Thanks Ron. I need to put a small piece of air-filter material between the engine and firewall. The backplate/carb doesn't have a screen in it.. and it's sure to suck-in some grit if I don't.
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  akjgardner on Mon May 06, 2019 12:32 pm

Lookin Good Roddie
akjgardner
akjgardner
Platinum Member
Platinum Member

Posts : 891
Join date : 2014-12-28
Age : 59
Location : Milan Indiana

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  roddie on Tue May 07, 2019 6:05 pm

akjgardner wrote:Lookin Good Roddie

Thanks much Joe! I've done a little more work to this creation.. over the last few days. There had been two concerns that definitely needed to be addressed. One being an air-filter.. because of the backplate/carb on this engine having had its' screen removed. I had previously made-up a few air-filters which consist of small squares of polyurethane filter material sold for portable (window) air-conditioners.

Cars-Stars 2019 "Rodd-E-Liminator" Air-fi10

One square placed between the engine and firewall will help to keep grit from being sucked-in from the drive-wheel.

My second concern.. was similar. The #1 cylinder installed on this engine needed some sort of shield against grit finding its' way into that big/wide-open exhaust-port. I'd thought quite a bit on what to do.. and came up with something simple. It should definitely help. It's a strip of .008" Tin.. that fits between the case and the heatsink. It wraps around the cylinder in the critical-area where the drive-wheel is. A #2 machine-screw and nut fasten it the body above the engine.

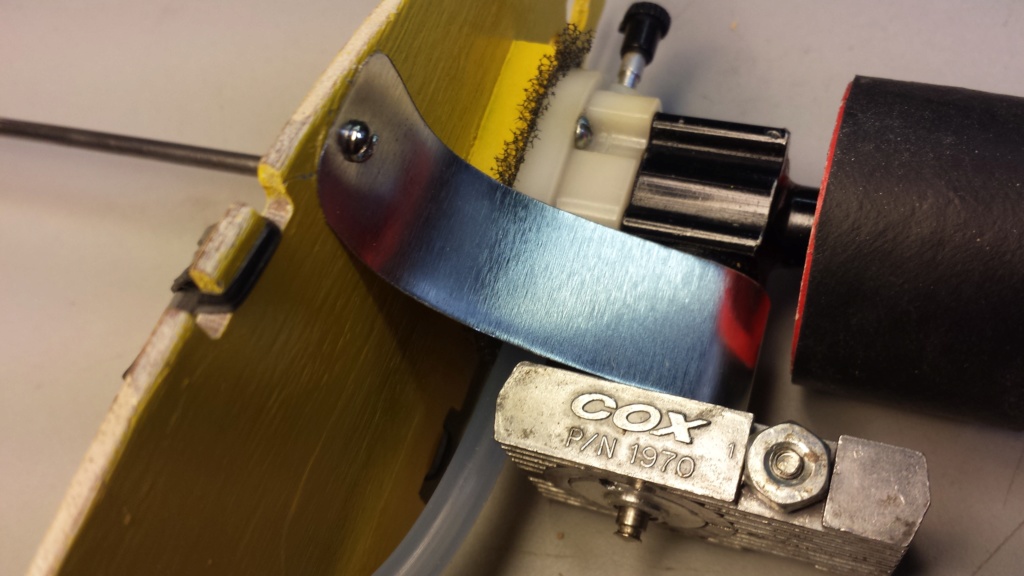

Cars-Stars 2019 "Rodd-E-Liminator" 20190516
Cars-Stars 2019 "Rodd-E-Liminator" 20190517

She still has no bridle for a tether.. but I've got some ideas. The wide-stationary rear axle is for stability.. in case I want/need to free-run it. I have no idea how this vehicle will track.. with its' direct-drive configuration.

I added a cast acrylic internal hub to the drive-wheel.. because the drive-wheel assembly was pretty lightweight.. at .4oz. Adding the acrylic-hub upped the assembled fly-weight to .6oz.

Cars-Stars 2019 "Rodd-E-Liminator" 20190518
Cars-Stars 2019 "Rodd-E-Liminator" 20190519
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty tether trial

Post  roddie on Tue May 07, 2019 8:30 pm

I had envisioned an adjustable tether, for the last few days/nights.. and came up with this...

Cars-Stars 2019 "Rodd-E-Liminator" 20190520
Cars-Stars 2019 "Rodd-E-Liminator" 20190521

I can adjust the toe-in/out on the bridle.. via the spring-collars. I'm not sure if that will be enough to trim this model though. We'll just have to see.

I'm open to suggestions for a tether-line length..
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  NEW222 on Tue May 07, 2019 9:36 pm

Woah! She is quite the low-rider! By the looks of it, it will either be a very quick car, or if it was me, I would put a wing on it cause it looks like it is ready for take-off... And great job on it!
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2173
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  roddie on Wed May 08, 2019 6:27 pm

NEW222 wrote:Woah! She is quite the low-rider! By the looks of it, it will either be a very quick car, or if it was me, I would put a wing on it cause it looks like it is ready for take-off... And great job on it!

Chancey.. you're too kind bro! I appreciate the words of praise. I've never built a model-engine-powered land-vehicle.. and this one being my own (unproven) design.. well Huh... .. it might stall-out as soon as its' direct-drive wheel hits the pavement. I don't have a back-up plan for that scenario. It's a fairly lightweight vehicle.. so I'm figuring on some "wheel-spin" when I launch it. I've made provisions to add weight to the chassis; in case the traction doesn't "hook-up" after a few laps.

I'm considering a longer tether than originally planned. It will likely be approx. 20 feet long.. for a 40 foot dia. circuit.

roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  Cribbs74 on Wed May 08, 2019 8:02 pm

Friction start it.

Grab the frame, and push it until it starts and let go. It will pull the clip.

First though, fire it off static and set the needle. Then restart by pushing.
Cribbs74
Cribbs74
Moderator

Trusted Seller
Posts : 10379
Join date : 2011-10-24
Age : 45
Location : Tuttle, OK

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  1/2A Nut on Thu May 09, 2019 1:28 am

Some vintage cars in this vid at the start then tons of engines.

https://www.facebook.com/john.sitter/videos/10155472880952505/

Small Cox Logo
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2310
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty engine/drive test

Post  roddie on Mon May 13, 2019 6:37 pm

I tried running the engine last night.. and the "tire" (a section of bicycle inner-tube..) flew-off the wheel as soon as the engine-revs came on-song.. Shocked

Cars-Stars 2019 "Rodd-E-Liminator" 20190529

I captured a video.. but am having trouble getting the file from the camera. My cam has both; "memory-stick" and disc media. The test-run inadvertently got recorded on disc. My laptops' disc-drive doesn't work.. but it doesn't really matter. It's not worth watching.

I want to use this type of tire if possible.. so I need to "bond" the rubber to the wheel. Not sure how I'm going to accomplish that yet.. Huh...
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  Marleysky on Mon May 13, 2019 6:53 pm

Roddie, I believe you need to use “rubber cement” to adhere the inner-tube to the wheel. Put the tube on the wheel, roll 1/2 back onto itself, coat both wheel and the tube with glue, wait the required time, then roll the tube back onto the wheel, the roll back the other side and  do the same thing.  Rubber cement or contact cement will stay flexible and keep the tube from flying off the wheel.   My Two Cents  worth.
Marleysky
Marleysky
Diamond Member
Diamond Member

I Support My Forum

Posts : 2197
Join date : 2014-09-28
Age : 66
Location : Grand Rapids, MI

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  getback on Tue May 14, 2019 8:29 am

O NO it would bee worth watching ! Just to see your reaction to the rubber leaving that wheel lol! Anyway i am with Rene contact or rubber cement you probably have some ? Old Bugger
getback
getback
Top Poster
Top Poster

Posts : 5898
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  rsv1cox on Tue May 14, 2019 10:24 am

Tether positioning is important roddie as I found out with my Roy Cox creation.  It has to be right to maintain a proper circle, to little toe in and it's coming toward the pivot, to much and you scuff tires.  Although much depends upon how you release it.

Probably all tied up in higher math, but I found mine through trial and error.

I would try a 15' line and work outwards.

That thing is going to need a painted on cockpit with the image of a scared to death driver.

Cars-Stars 2019 "Rodd-E-Liminator" Scared10

Smile Smile

As always you get high points for imagination.
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4176
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  roddie on Wed May 15, 2019 6:27 pm

Marleysky wrote:Roddie, I believe you need to use “rubber cement” to adhere the inner-tube to the wheel. Put the tube on the wheel, roll 1/2 back onto itself, coat both wheel and the tube with glue, wait the required time, then roll the tube back onto the wheel, the roll back the other side and  do the same thing.  Rubber cement or contact cement will stay flexible and keep the tube from flying off the wheel.   My Two Cents  worth.

Hey Rene! Thank you for this suggestion! Thumbs Up Rolling the rubber 1/2 way back on itself is something I didn't think of.. for a no-fuss method of being able to adhere the rubber to the wheel. This gives me a few options now..
roddie
roddie
Top Poster
Top Poster

Posts : 6506
Join date : 2013-07-17
Age : 59
Location : N. Smithfield, Rhode Island

View user profile http://www.stilburnin.com

Back to top Go down

Cars-Stars 2019 "Rodd-E-Liminator" Empty Re: Cars-Stars 2019 "Rodd-E-Liminator"

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 3 1, 2, 3  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
