Crash proof 1/2A Stunt plane … ???

Page 1 of 3 1, 2, 3  Next

Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Crash proof 1/2A Stunt plane … ???

Post  GPW on Wed Apr 17, 2019 10:05 am

Hi Guys … As much as we’ve had a lot of Fun with balsa and plastic CL planes , we never got to learn how to fly stunt patterns other than wingovers and loops … when we got to the inverted stuff we always crashed !!! Repeated over and over… Shocked
So did anybody ever try EPP , the stuff football helmets and car bumpers are lined with … We’ve flown many EPP RC electrics over the years , but never CL and there’s where it’s TOUGHNESS would really shine … we could have simple bounces instead of Lawn Darts … It takes a LOT to damage EPP, and it can be hot wired into wings and shapes .. It comes usually in Black or white and in several weights /density .
Something to think about … my bucket list is to learn horizontal 8’s , easy with RC , terrifying with CL affraid … hahahaha

Here’s an example of an EPP RC plane we designed , based on the tail section of the WW1 German Albatross biplane … Not for beginners …
https://www.youtube.com/watch?v=tftnHsPlQjM&list=UUpDLHIfCGXtJRdr5igfqKBA&index=14 ( excuse my buddys blabbing in the background )
GPW
GPW
Silver Member
Silver Member

Posts : 85
Join date : 2019-02-19
Location : New Orleans

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  NEW222 on Wed Apr 17, 2019 11:14 am

While a locally designed plane, might I suggest the 'Man-Win' trainer. I have 3 of them and are decent little fliers. They really take a beating and besides a broken propeller, the only other thing I have had to do is re-bend the engine and mount back into pace. Easy and cheap to make.

http://www.balsabeavers.com/information/plans/manwin.pdf

NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2230
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  GPW on Wed Apr 17, 2019 12:18 pm

Wow!!! Those look Cool !!! Thanks !!! Cool
GPW
GPW
Silver Member
Silver Member

Posts : 85
Join date : 2019-02-19
Location : New Orleans

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  Cribbs74 on Wed Apr 17, 2019 1:50 pm

What type of planes have you been flying? Poor flying planes will compound the problem when learning.

Do you have a CL club around you?
Cribbs74
Cribbs74
Moderator

Trusted Seller
Posts : 10489
Join date : 2011-10-24
Age : 45
Location : Tuttle, OK

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  GPW on Wed Apr 17, 2019 2:32 pm

Currently we’re working on the First CL we’ve flown in a long long time ( we usually fly Scratchbuilt Foamie electric RC ) … All the CL clubs are gone now , as well as most of the local hobby shops … The only HS left doesn’t even sell fuel … Shocked

Naturally after all these years we’re attracted back to CL again because of it’s Simplicity … and Fun !!! Very Happy
GPW
GPW
Silver Member
Silver Member

Posts : 85
Join date : 2019-02-19
Location : New Orleans

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  Ken Cook on Wed Apr 17, 2019 3:19 pm

I feel you can't beat a foamie combat wing. Phil Cartier Lil Hacker even with a Black Widow takes considerable punishment. No landing gear with these but easy enough to fabricate if needed. In addition, it's light enough to do the maneuvers and can be made even lighter. To learn the pattern or even parts of it, it's critical to learn inverted flight. Once you've learned it without crashing, all of the maneuvers are much easier to do. A crash proof plane isn't really necessary. A plane that's easy to repair is. Even the Sig Skyray is a simple plane that does inversion and a considerably decent amount of maneuvers. It does have some shortcomings and the nose easily breaks off. This can be fixed quite easily prior to the carnage. If the room is there to fly, learning to fly inverted and doing maneuvers is far easier on a .35 size plane. The speeds and reaction times are slower which is what many need to feel comfortable.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 3584
Join date : 2012-03-27
Location : pennsylvania

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  NEW222 on Wed Apr 17, 2019 4:00 pm

Forgot to add to my above post. The plane I linked to does fly well with a Babe Bee and 35 foot lines (just old thick string I had laying around), but really fly much better using spectra fishing lines or steel cables. Add a Black Widow, and it wakes up even more!
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2230
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  aspeed on Wed Apr 17, 2019 5:38 pm

i still have my little coroplast 1/2A that predates the Manwin probably. I also made one for a .15. They are both a bit mushy, and the wings bend a scary amount when doing loops and stuff. Certainly won't do squares. I retired the .15 size one. The carbon fibre leading edge broke, but nothing else. The horn broke on the 1/2A one, but that was because it was 20 years old. Let's say they are crash resistant. I have seen the F2D planes hit really hard, and do ok. Midairs-NO. With a normal motor in, they will not hit as hard as the Foras and still perform well. I found that the EPP foam seems a bit too flexible without some good spars.Crash proof 1/2A Stunt  plane  … ???   Coro_011
Crash proof 1/2A Stunt  plane  … ???   Coro_010
aspeed
aspeed
Gold Member
Gold Member

Posts : 268
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  aspeed on Wed Apr 17, 2019 5:45 pm

Here's the .15 one, and something like Phil Cartiers which is destined for a Fora .049Crash proof 1/2A Stunt  plane  … ???   Picco111
Crash proof 1/2A Stunt  plane  … ???   Mouse_11
. It could be copied with the EPP foam
aspeed
aspeed
Gold Member
Gold Member

Posts : 268
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  NEW222 on Wed Apr 17, 2019 5:55 pm

Hey there aspeed. Did you happen to put a dowel inside the wing a little bit back from teh leading edge. Actually, in mine, I just put a BBQ skewer in so it sits in teh middle and have had no problems myself. Heck with such minimal weight, you could even put one in the first flute as well.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2230
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  NEW222 on Wed Apr 17, 2019 5:57 pm

Also, if you do not mind, could you please give me dimensions of the .15 sized one? Is it just one layer, or is it doubled? I would like to try a bigger one, but would like something that is proven like yours. Thank you.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2230
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  aspeed on Wed Apr 17, 2019 9:33 pm

I can't find the .15 one.  I threw most of it out, and the wife used the coro part in front of the BBQ to catch the grease, and it seems to have blown away.  I made it from a tracing of an F2D combat plane but it flexed a fair bit, so I cut it down smaller to the approximate dimensions of a Junior Satan.  Maybe 24" x 9" + the tail/elevator.  I just used some carbon fibre tube and taped and PU glued it on the leading edge.  The motor mount broke once. It was the cutting board stuff.  Then I used Lexan because I have a big boxfull.  It vibrates a lot before takeoff, making lots of bubbles in the fuel line, but once in the air it is fine.  I think the 1/2A one is tougher.  A real plane flies much better. They both wallow a bit when you pull out of a loop.  I didn't use a BBQ skewer, I used piano wire. It was a bit bigger than 1/8" diameter and fits snug.  Just one layer of 4mm coro.  Maybe a real airfoil and spar with the 2mm coro would fly better if not too heavy. This pic was the first try. Crash proof 1/2A Stunt  plane  … ???   Coro_c10
aspeed
aspeed
Gold Member
Gold Member

Posts : 268
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  NEW222 on Wed Apr 17, 2019 10:23 pm

Thank you. I at least kind of have something to go on now.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2230
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  aspeed on Wed Apr 17, 2019 10:45 pm

Just try the usual 10 to 20% balance,point by getting the motor mount the right length, and the leadouts about half way back on the wing and you won't be too far off. Bring some tin snips to the field to try ECOs (engineering change orders) I put a couple nails in the right wing for tip weight. If you get them near the leading edge it will maybe toughen the tip a bit. That is where it usually crumples a bit.
aspeed
aspeed
Gold Member
Gold Member

Posts : 268
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  GPW on Thu Apr 18, 2019 5:59 am

Wow!!!  You guys really have a great “handle" on things !!!   Very Happy     Some really interesting ideas !!!   Lots to experiment with ?

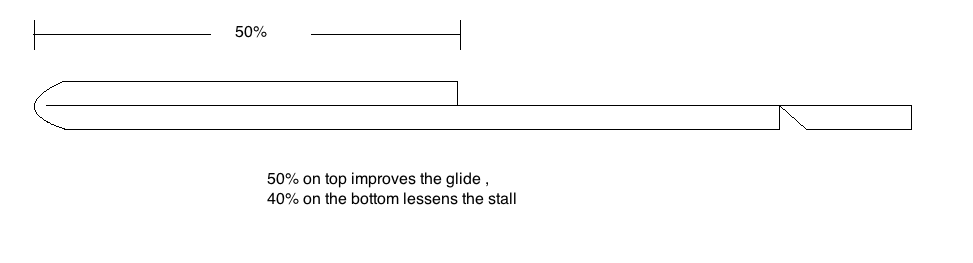

 Has anybody tried the Kline Fogleman airfoil ???  We’ve used that for years on “flat wing” Foamies with great results , and it really stiffens up a wing without wires or spars … Simple to do , just add another strip of wing material  from 0-50% of the airfoil on top ( 0- 40% on the bottom is another one to try … )  Or maybe even adding a corroplast strip on a Foam or EPP wing … ??? Huh... If you just folded over the corroplast it would form the KF wing and leading edge at the same time …

Crash proof 1/2A Stunt  plane  … ???   Kf_uc_10


  Or maybe I just need to learn inverted flight  by flying Higher ... Laughing
GPW
GPW
Silver Member
Silver Member

Posts : 85
Join date : 2019-02-19
Location : New Orleans

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  aspeed on Thu Apr 18, 2019 10:13 am

There is an RC SPAD Gnat with a similar airfoil.  I have made one but it is not quite done.  They don't really fly great from what I have seen, at least on the glide they just fall out of the air. I made up a control line combat with a KF airfoil using a spar and some EPP foam on the leading edge, but didn't even finish it as it seemed awful heavy compared to the standard built up type.
The spar was pretty heavy too. I did get it more complete than the pic here.
Crash proof 1/2A Stunt  plane  … ???   Coro_c11
Crash proof 1/2A Stunt  plane  … ???   2014pl10
aspeed
aspeed
Gold Member
Gold Member

Posts : 268
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  GPW on Thu Apr 18, 2019 11:42 am

Hey 'Speed , Cool idea a servo arm for a bellcrank … It seems CL accessories are no longer in demand or readily available at the LHS ... NICE !!! Wink I was about to go into an intense internet search for a wooden thrust button ... what we used as a bellcrank mount in the old solid wings … Then I found one from the 1940’s .. Better to use it than let it sit around …

You know If you really want “Cheap and Dirty” then there’s nothing like Fan Fold foam ( XPS floor underlayment ) , some people cover it with lightweight packing tape (Fastpack) for decoration and strength … As far as fuel proof , it may absorb some oil , but for intended purpose they’d likely get recycled before becoming fuel soaked .. ( See: “ Disposable” ) WE can bend up many airfoil shapes or none at all , a bamboo skewer on the leading edge and you have e formidable combat weapon … You’ll never get it as light as a specially built balsa and tissue one , but it will out last many Balsa planes , and the beauty of foam is , since it gas no grain , you can just cut out the damaged parts and glue on new ones with a hot glue gun , at the field ( Done it !! ) It can make the difference of going home early or a long relaxing day of flying … and sometimes a little repairing … Laughing
GPW
GPW
Silver Member
Silver Member

Posts : 85
Join date : 2019-02-19
Location : New Orleans

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  aspeed on Thu Apr 18, 2019 12:20 pm

That isn't a servo arm, I made it from 1/16" aluminum. All of it isn't shown behind the spar which was just placed there for the pic. You can get bellcrank packages with a few sets for cheap from MBS  (Model building supplies. Melvin Shuette)  http://mbsmodelsupply.com/Catalog.pdf Hobby shops are almost non existant now. Many don't carry fuel, none carry engines in stock, you are lucky to find a propeller around here.  I think I used a nut that was the thickness of the corro, and cut a hole through the top layer of the corro, and drilled and tapped the motor mount for the bolt.  Added a few more bolts with big aluminum 1/8" rectangles that were drilled and tapped to hold the wing down. I think the blue fanfold has a plastic bonded on one side, so the fuel will not soak through.   I bet I could break the fanfold easier than the corro, but it is actually pretty light, maybe lighter than balsa? I am not sure where to get the blue fanfold any more. Lowes stopped carrying it. I think some siding places may sell it, but the price is higher than it was at Lowes. I got a big piece when they discontinued it, but now it could be $50 instead of $35. It is a lifetime supply though, and what is left over will help insulate your house LOL.
aspeed
aspeed
Gold Member
Gold Member

Posts : 268
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  GPW on Thu Apr 18, 2019 12:54 pm

Thanks ‘Speed , that’s still a nice bellcrank … I was going to make my own if I couldn’t find one readily available … I‘ll check out the MBS site you mention … Wink
GPW
GPW
Silver Member
Silver Member

Posts : 85
Join date : 2019-02-19
Location : New Orleans

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  NEW222 on Thu Apr 18, 2019 5:00 pm

Thanks all. And for GPW.... I am very farmiliar with the KFM airfoils. If not mistaken, we have even talked before in the 'Foamies-Scratchbuild' topic on another RC website. I am still there as well, but kind of took a step back from RC a couple years ago and stepped back into nitro and mainly playing with little IC engines. So much to do, and such a little summer time to do it, along with other things....
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2230
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  GPW on Fri Apr 19, 2019 6:34 am

New , I understand , and it seems we’ve taken that same step … just for Fun !!! Smile
GPW
GPW
Silver Member
Silver Member

Posts : 85
Join date : 2019-02-19
Location : New Orleans

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  Forgetful John on Fri Apr 19, 2019 9:17 am

GPW wrote:Thanks ‘Speed , that’s still a nice bellcrank … I was going to make my own if I couldn’t find one readily available …  I‘ll check out the MBS site you mention … Wink


Brodak has them.
Forgetful John
Forgetful John
Bronze Member
Bronze Member

Posts : 59
Join date : 2015-03-03
Age : 64
Location : Sparkling Houston, TX

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  GPW on Fri Apr 19, 2019 11:49 am

Thanks John !!!
Which by the way , how are you guys handling leadouts ? We used thin music wire in the old days , bending loops into the ends … any new ways of doing that .. I can’t wait to try the Spiderwire flying lines … We’ve used it a lot for Fishing , with great success … Fishing
GPW
GPW
Silver Member
Silver Member

Posts : 85
Join date : 2019-02-19
Location : New Orleans

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  NEW222 on Fri Apr 19, 2019 11:56 am

Myself, sometimes I use small diameter solid music wires, but lately, I have been using small diameter fishing leader material to do mine. Mine is coated wire. Works great, and is cheap.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2230
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???

Post  Forgetful John on Fri Apr 19, 2019 11:59 am

It is hard to get the kinks out of solid music wire that occur from "hangar rash".
Forgetful John
Forgetful John
Bronze Member
Bronze Member

Posts : 59
Join date : 2015-03-03
Age : 64
Location : Sparkling Houston, TX

View user profile

Back to top Go down

Crash proof 1/2A Stunt  plane  … ???   Empty Re: Crash proof 1/2A Stunt plane … ???
