Post  Iceberg on Thu May 16, 2019 9:39 pm

I have a a number of backplates for the .049. Some from the Babe Bee others from the Golden Black widow etc. However noticed that some of the hole that goes into the venturi opening is smaller or bigger. I usually drill the horizontal backplate and venturi opening to be 2mm. That is the recommended .082" I believe, Runs good. However where the needle valve screws into the threaded inlet if you look down where the needle threads into. Some of the holes that let the fuel out are like .5 mm. However some others are 1mm + in size. Has anyone had experience drilling out the hole to allow the fuel flow into the venturi? Don't want to ruin these little guys if others know??

Tanks
Iceberg
Iceberg
Iceberg
Gold Member
Gold Member

Posts : 135
Join date : 2018-11-03
Location : Anseong Korea at the moment

View user profile

Back to top Go down

Metal Backplate For .049 Empty Re: Metal Backplate For .049

Post  NEW222 on Thu May 16, 2019 10:27 pm

Sorry I cannot be of any help, but will be watching this thread, and taking a look at my backplates when i have to clean them. I knew about the venturi size, but not that of the needle seat. While typing, I just had a thought.... Is there any possibility that where you are looking to see the small hole that there is castor buildup, making the holes smaller or larger. Thinking that if a needle was fully screwed in after running before being put away, the hole would be biggest, due to castor oil sitting there hardening up. If the needle was left in a running position or greater screwd out, the hole would be smaller, and residual castor oil would build up around it leaving a smaller hole when removed and looked down into. Just a thought.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2282
Join date : 2011-08-13
Age : 41
Location : oakbank, mb

View user profile

Back to top Go down

Metal Backplate For .049 Empty Re: Metal Backplate For .049

Post  Iceberg on Thu May 16, 2019 11:37 pm

Hi New
No it isn't from castor buildup. I'm talking of very clean backplates now. Some have a huge outlet hole 1mm or larger dumping into the venturi inlet while others have nothing much more than a pin hole size?

Thanks
Ice
Iceberg
Iceberg
Gold Member
Gold Member

Posts : 135
Join date : 2018-11-03
Location : Anseong Korea at the moment

View user profile

Back to top Go down

Metal Backplate For .049 Empty Re: Metal Backplate For .049

Post  balogh on Fri May 17, 2019 2:47 am

I do not think the size hole for the fuel really matters as long as it allows the flow of the metered fuel amount into the venturi. Smaller holes will need more NV turns to open for the best setting and larger holes the other way around.

Drilling the venturi inlet may help the engine boost its output a bit, but - especially with non-tanked engines where the fuel is drawn from a distance rather than from the integral tank sitting around the venturi - the suction capability of the engine may be compromised.
balogh
balogh
Diamond Member
Diamond Member

Posts : 2413
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Metal Backplate For .049 Empty Re: Metal Backplate For .049

Post  rsv1cox on Fri May 17, 2019 2:46 pm

I think the guys that designed and built these little marvels over many years probably experimented enough to find the right venturi combinations for best performance and reliability.  I know some here try to ring out as many RPM's as possible, many to astounding success, but at what price.  That said, there are manufacturing variances.

Lot's of holes in these little things, most can fill up quickly with castor goo if left unclean, IMO the biggest impediment to performance.

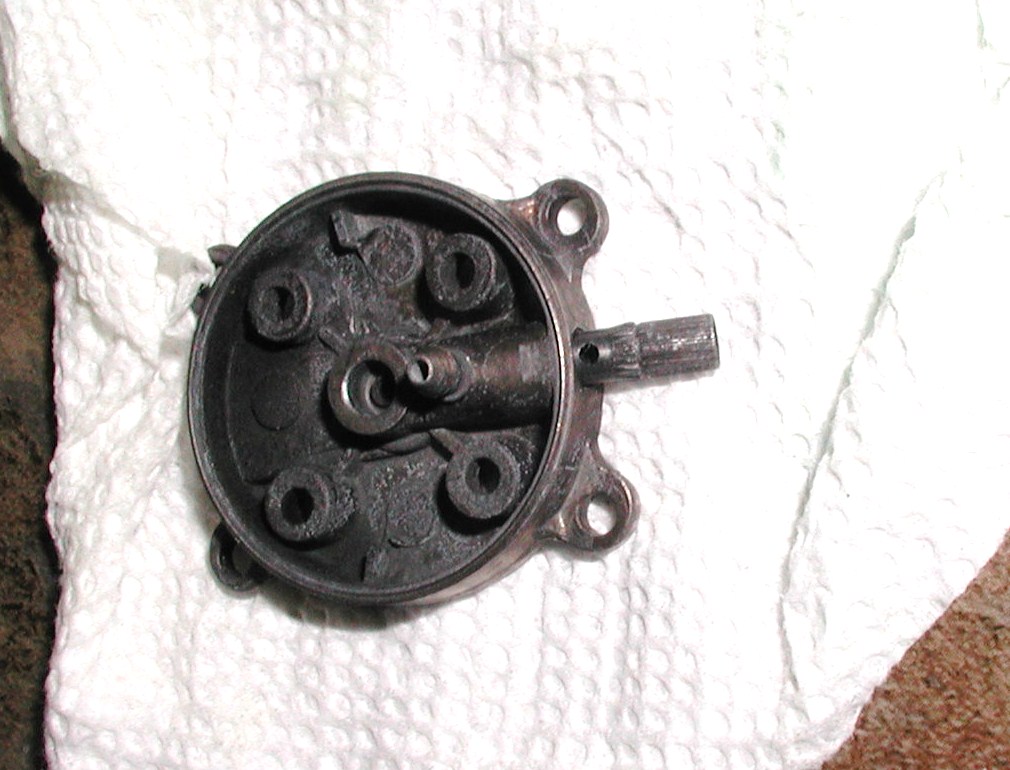

Metal Backplate For .049 Back_p15
Metal Backplate For .049 Back_p16

I tend just to clean them up and let nature take it's course.  Both vent/filler tubes were totally filled with castor.  Took Simple Green and fine wire to clean them out.

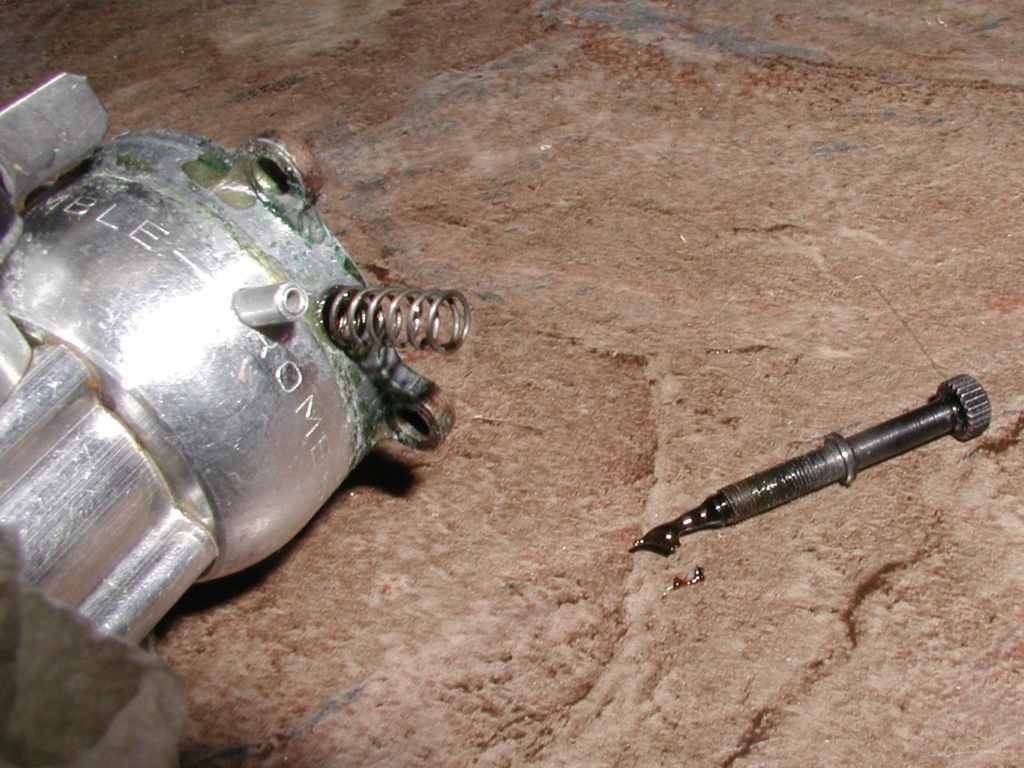

Metal Backplate For .049 13th_c10

Metal Backplate For .049 13th_c11

Anymore after running I stick a Remoil straw down the NV hole and give it a squirt after loosening the four case screws and let it drain.  Cleans it right out.

Metal Backplate For .049 Remoil11

Do it before it turns to this:

Metal Backplate For .049 13th_c13
