3D printed beam mount .049 backplate

Page 2 of 3 Previous  1, 2, 3  Next

Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  944_Jim on Thu Oct 17, 2019 8:26 pm

Jason_WI wrote:I need to find my 1/4-32 tap or order a new one.

Used to be able to buy the AP .061 carburetors pretty cheap and run a 1/4-32 die on the mounting base to put threads on for use on a TD. The source for those has dried up.

Nah, you just need to be creative!
I happen to know a jovial guy that loves to fly CL, has no interest in carbed AP .061s, has a few AP .061s that he'd like to convert to Cox TeeDee venturies, and would probably trade out these AP carbs as long as it means his APs could pull a CL plane around just fine using Cox venturies. Huh...
And he lives in the SouthEast US...and knows an adapter can be turned out to fit the AP engine with enough meat to allow internal tapping/threads for the Cox Venturi.

For that matter, start talking Norvel, and I bet he would part with Norvel carbs for venturies too!Fishing
You want me to point him to you?

PM me so I can put you onto him!

Jim in MS Eyebrows
944_Jim
944_Jim
Platinum Member
Platinum Member

2019 Supporter

Posts : 597
Join date : 2017-02-08

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Jason_WI on Fri Oct 18, 2019 1:50 pm

Still 3 left for testing yet.



I have one of each carb type for testing. I won’t need anymore for that. Thanks for the lead though.
Jason_WI
Jason_WI
Diamond Member
Diamond Member

2019 Supporter

Posts : 2724
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Jason_WI on Tue Oct 22, 2019 5:52 pm

45 degree angle rear intake for Tarno or Cox TD RC 05 carbs.

3D printed beam mount .049 backplate - Page 2 Beam_a12
3D printed beam mount .049 backplate - Page 2 Beam_a10
3D printed beam mount .049 backplate - Page 2 Beam_a11
Jason_WI
Jason_WI
Diamond Member
Diamond Member

2019 Supporter

Posts : 2724
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  dckrsn on Tue Oct 22, 2019 6:09 pm

Jason_WI wrote:45 degree angle rear intake for Tarno or Cox TD RC 05 carbs.
...or a TeeDee venturi/valve body?
Bob
dckrsn
dckrsn
Diamond Member
Diamond Member

2019 Supporter

Posts : 2000
Join date : 2010-10-21
Age : 66
Location : Long Island, New York

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Jason_WI on Tue Oct 22, 2019 7:03 pm

dckrsn wrote:
Jason_WI wrote:45 degree angle rear intake for Tarno or Cox TD RC 05 carbs.
...or a TeeDee venturi/valve body?
Bob

Yes
Jason_WI
Jason_WI
Diamond Member
Diamond Member

2019 Supporter

Posts : 2724
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  getback on Wed Oct 23, 2019 7:17 am

Jason_WI wrote:Still 3 left for testing yet.



I have one of each carb type for testing. I won’t need anymore for that.  Thanks for the lead though.
Have these been tapped ? I don't have one that size , but do have carbs. R/C for TD .049 and would bee interested in testing one of the difft. styles Small Cox Logo
getback
getback
Top Poster
Top Poster

2019 Supporter

Posts : 6329
Join date : 2013-01-18
Age : 62
Location : julian

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  1/2A Nut on Wed Oct 23, 2019 8:52 pm

Yes very suitable will allow less of a beam mount cutout on the fuselage and access to the intake for prime!

Small Cox Logo Thumbs Up
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

2019 Supporter

Posts : 2610
Join date : 2013-10-20
Age : 56
Location : Brad in Texas

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  944_Jim on Wed Oct 23, 2019 9:50 pm

Ummm, Jason,
Idea #1:
Could that manifold flange be built a little longer so just a needle valve could be across it?
Then the needle valve would be off-center from the crank, but not necessarily need a Tee Dee Venturi. Something like a Medallion venturi sticking out to the side.
Idea #2:
Any chance you could print an all-in-one venturi/adapter for my AP engines to take a reedie needle valve as if I cut a Medallion venturi off and stuck it in the AP? (Another potential commercial endeavor there)
944_Jim
944_Jim
Platinum Member
Platinum Member

2019 Supporter

Posts : 597
Join date : 2017-02-08

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Jason_WI on Wed Oct 23, 2019 11:01 pm

944_Jim wrote:Ummm, Jason,
Idea #1:
Could that manifold flange be built a little longer so just a needle valve could be across it?
Then the needle valve would be off-center from the crank, but not necessarily need a Tee Dee Venturi. Something like a Medallion venturi sticking out to the side.
Idea #2:
Any chance you could print an all-in-one  venturi/adapter for my AP engines to take a reedie needle valve as if I cut a Medallion venturi off and stuck it in the AP? (Another potential commercial endeavor there)

If I make the intake longer then it would be very difficult to print. It has to print with the reed area upright. Would need a raft then. With nylon it needs a solid footing on the bed plate otherwise it will warp like a tater chip.

Not sure on option 2. I might have an AP .061 to use for a pattern on the intake.

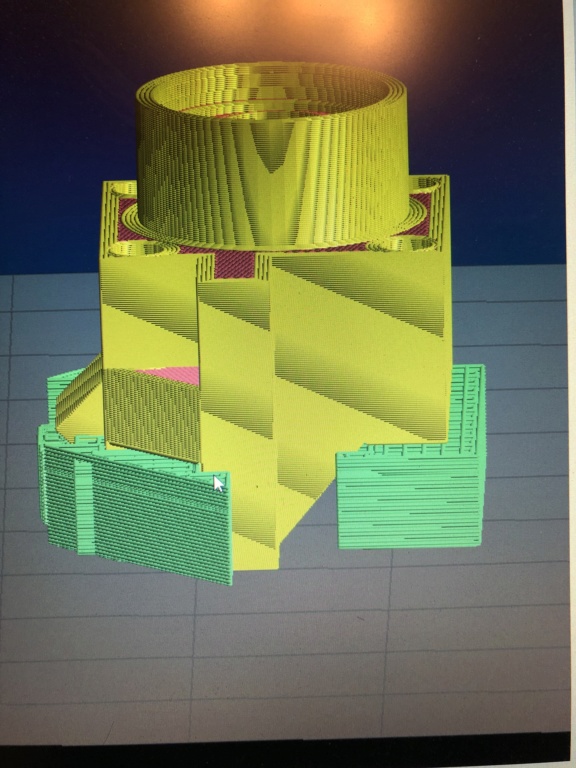

Here is how the 45 degree needs to print. Blue green is the support material.

3D printed beam mount .049 backplate - Page 2 0eee9c10
3D printed beam mount .049 backplate - Page 2 C15c9610
Jason_WI
Jason_WI
Diamond Member
Diamond Member

2019 Supporter

Posts : 2724
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  KariFS on Thu Oct 24, 2019 12:58 am

These are SO cool! And probably scaleable to .020 size too, right?

I like the idea of it being interchangeable with Medallion/Tee Dee, it opens all kinds of possibilities and options for adjusting the engine power and CG.
KariFS
KariFS
Diamond Member
Diamond Member

Posts : 1569
Join date : 2014-10-10
Age : 48

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  1/2A Nut on Thu Oct 24, 2019 3:17 am

Yes could do with the .020 and use TD Venturi / NV or ...... NV and printed air choke for throttle.

Really the air choke can just be just two parts / the barrel and the body as anyone should be able to fined a servo arm
and screw & tap the barrel for the control arm. Don't need a set screw to guide the barrel stop as the servo can be trimmed
to do that chore. So this makes it possible for .049 and .020 next a manifold / header to control the goo and you have a friendly
engine on the ears and faster clean up between flights.

Small Cox Logo Old Bugger Thumbs Up
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

2019 Supporter

Posts : 2610
Join date : 2013-10-20
Age : 56
Location : Brad in Texas

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Jason_WI on Thu Oct 24, 2019 4:41 pm

Here are the 45 degree backplates printed. As you can see with the natural Zytel the right one in the picture warped pretty bad. I have 2 more printing out of glass fiber reinforced Zytel. The glass and carbon fiber version Zytel filament are more stable during printing.

I have to find my 1/4-32 tap or order a new one to tap these for tarno/TD venturi use.

3D printed beam mount .049 backplate - Page 2 A7f54d10
Jason_WI
Jason_WI
Diamond Member
Diamond Member

2019 Supporter

Posts : 2724
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  1/2A Nut on Thu Oct 24, 2019 4:53 pm

Looking good via proportions should be a winner!

Popcorn
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

2019 Supporter

Posts : 2610
Join date : 2013-10-20
Age : 56
Location : Brad in Texas

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  getback on Thu Oct 24, 2019 5:33 pm

I have to find my 1/4-32 tap or order a new one to tap these for tarno/TD venturi use. Lookie Lookie  Very Happy
getback
getback
Top Poster
Top Poster

2019 Supporter

Posts : 6329
Join date : 2013-01-18
Age : 62
Location : julian

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Jason_WI on Thu Oct 24, 2019 5:53 pm

getback wrote: Lookie Lookie  Very Happy

You haven’t seen my basement.

3D printed beam mount .049 backplate - Page 2 89477e10


Jason_WI
Jason_WI
Diamond Member
Diamond Member

2019 Supporter

Posts : 2724
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Jason_WI on Fri Oct 25, 2019 2:46 am

Glass fiber reinforced Zytel. Here it is mounted to one of my customized engines. Tarno placed for now as I need to order a 1/4-32 tap.

3D printed beam mount .049 backplate - Page 2 9c4cd810
3D printed beam mount .049 backplate - Page 2 Faba5a10
3D printed beam mount .049 backplate - Page 2 6a852610
Jason_WI
Jason_WI
Diamond Member
Diamond Member

2019 Supporter

Posts : 2724
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  1/2A Nut on Fri Oct 25, 2019 3:12 am

Painting a good picture, are those beam bore holes the same dia. as what's on a TD?

Popcorn
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

2019 Supporter

Posts : 2610
Join date : 2013-10-20
Age : 56
Location : Brad in Texas

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  getback on Fri Oct 25, 2019 7:19 am

lol! lol! Now that's a basement Pumpkin I bet it is Brad , as soon as that tap get there you'll find the other , at least that's what happen to me with a oddball one i had gotten for a .020 TD prop screw/crank. Doh!
getback
getback
Top Poster
Top Poster

2019 Supporter

Posts : 6329
Join date : 2013-01-18
Age : 62
Location : julian

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Jason_WI on Fri Oct 25, 2019 8:58 am

1/2A Nut wrote:Painting a good picture, are those beam bore holes the same dia. as what's on a TD?

Popcorn

Yes the hole pattern on this is the same as a TD.
Jason_WI
Jason_WI
Diamond Member
Diamond Member

2019 Supporter

Posts : 2724
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Jason_WI on Mon Oct 28, 2019 1:09 am

1/4-32 tap arrived.

Tarno installed. Hopefully get a chance to run it this week.


M3D printed beam mount .049 backplate - Page 2 7bcc3110
3D printed beam mount .049 backplate - Page 2 77316d10
Jason_WI
Jason_WI
Diamond Member
Diamond Member

2019 Supporter

Posts : 2724
Join date : 2011-10-09
Age : 44
Location : Neenah, WI

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  1/2A Nut on Mon Oct 28, 2019 1:54 am

Looks tough enough to handle the power. RC carb is well in the clear for ease of use.
Should be a real treat to run.

I have prepped a .049 for testing will use a Galbreath / Nelson plug adapter and a
vintage engine that has zero run time. #2 cylinder / 2 bypass ports and 1 flute per port.
Thick wall with single large exhaust ports.

Pumpkin Small Cox Logo Pumpkin Thumbs Up

3D printed beam mount .049 backplate - Page 2 20191019
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

2019 Supporter

Posts : 2610
Join date : 2013-10-20
Age : 56
Location : Brad in Texas

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  1/2A Nut on Sat Nov 09, 2019 7:07 am

This would work great for CL profile planes, plenty of influx with a TD venturi / NV.
NV is easy to get to and clear of the exhaust blast.

Hex head screws would be a nice touch and a bit longer then what was used here.

3D printed beam mount .049 backplate - Page 2 20191114

3D printed beam mount .049 backplate - Page 2 20191113

Small Cox Logo Thumbs Up
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

2019 Supporter

Posts : 2610
Join date : 2013-10-20
Age : 56
Location : Brad in Texas

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  getback on Sat Nov 09, 2019 8:13 am

Look Good Brad Very Happy Got to get off my but before it gets too cold to run anything ! Cold 27F this morn.
getback
getback
Top Poster
Top Poster

2019 Supporter

Posts : 6329
Join date : 2013-01-18
Age : 62
Location : julian

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  1/2A Nut on Sat Nov 09, 2019 11:01 am

Yes Eric nice little twist makes it all more fun, I will be bench testing a handful of configurations.
This was fast to set up so will go first. I will be using a muffler to keep the noise down.
Jason has done a great effort to make this beam mount part very suitable for CL use and throttled RC!

3D printed beam mount .049 backplate - Page 2 20191115
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

2019 Supporter

Posts : 2610
Join date : 2013-10-20
Age : 56
Location : Brad in Texas

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  ticomareado on Sat Nov 09, 2019 3:26 pm

Now that's some serious hot rodding. A hybrid semi-plastic Space Hopper
ticomareado
ticomareado
Platinum Member
Platinum Member

Posts : 865
Join date : 2013-10-03
Location : NC

Back to top Go down

3D printed beam mount .049 backplate - Page 2 Empty Re: 3D printed beam mount .049 backplate

Post  Sponsored content


Sponsored content


Back to top Go down

Page 2 of 3 Previous  1, 2, 3  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
