Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  fredvon4 on Thu Jan 02, 2020 10:57 am

Please slog around on this site to see how the military launched gliders by soldiers to use as targets


http://www.americanjuniorclassics.com/index.html


Last edited by fredvon4 on Fri Jan 03, 2020 8:49 am; edited 1 time in total
fredvon4
fredvon4
Top Poster
Top Poster

2019 Supporter

Trusted Seller
Posts : 3267
Join date : 2011-08-26
Age : 64
Location : Lampasas Texas

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  Levent Suberk on Thu Jan 02, 2020 12:55 pm

Select very light balsa sheet and print the coloring scheme on thin paper. Glue paper on balsa sheet then cut the parts.


Last edited by Levent Suberk on Wed Mar 04, 2020 5:32 am; edited 3 times in total
Levent Suberk
Levent Suberk
Platinum Member
Platinum Member

Posts : 797
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  Levent Suberk on Sat Jan 04, 2020 8:19 am

I printed plan on A3 sheet paper and bought A grade balsa sheets. Ready to stick paper and cut. Very Happy

Jim Walker's Interceptor Plan - Page 2 Untitl16
Levent Suberk
Levent Suberk
Platinum Member
Platinum Member

Posts : 797
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  Marleysky on Sat Jan 04, 2020 8:35 am

Levent, Looks great so far. Is A3 a special thin (tissue like) paper? Or sticky on one side? I have been thinking of building these planes based on your super color cutouts, but thought if using regular copy paper it would be to heavy. Plus, I haven’t figured out how to make or install the dihedral brace. If you complete the glider, please show how those pieces are made and installed. THANKS!
Marleysky
Marleysky
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 2660
Join date : 2014-09-28
Age : 67
Location : Grand Rapids, MI

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  Levent Suberk on Sat Jan 04, 2020 9:35 am

Marleysky, thanks for kind words. It is laser print plain paper, not tissue. Printing on tissue is better, however I couldn't find a printer company to print tissue. It is thin and can be stuck between rollers. It will be a little heavy, but I choose very light balsa sheets. I am going to made wings from 1 mm sheet, instead of 1/16" sheet, approximately 0.5 mm thinner. Fuselage is same thickness as in plan, 4.5 mm sheet, because the wing pivot may not work properly with thinner fuselage.

Dihedral brace in plan is made of thin aluminum, so it can cut the thin balsa sheet wings or may be bent when the wings opened. I am going to made it from 1.5 mm ply.

I am going to send photos.
Levent Suberk
Levent Suberk
Platinum Member
Platinum Member

Posts : 797
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  Levent Suberk on Sun Jan 05, 2020 7:39 am

Update: Plain paper is unsuccessful because tail is heavy. Too much lead weight needed for nose weight. Using marker pens is a must for coloring folding wing gliders. Contest grade very light balsa must be used in construction.
Levent Suberk
Levent Suberk
Platinum Member
Platinum Member

Posts : 797
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  Marleysky on Sun Jan 05, 2020 1:43 pm

Mine looks "OK” it printed out on a standard letter sized sheet. Windows upgrade took away my printers ability to do poster or tile printed plans. The Interceptor Drone will only be 9” long and 10” wingspan! I think I’ll wait til I can get a full size printed out.
Marleysky
Marleysky
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 2660
Join date : 2014-09-28
Age : 67
Location : Grand Rapids, MI

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  Levent Suberk on Sun Jan 05, 2020 2:00 pm

Perhaps printing directly on balsa sheet is better than marker pens which is time consuming.

Try two small neodymium magnets for nose weight instead of lead. Practical.
Levent Suberk
Levent Suberk
Platinum Member
Platinum Member

Posts : 797
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  Levent Suberk on Sun Jan 05, 2020 2:45 pm

Using neodymium magnets as nose weight. Aplying a little glue on magnets is good for catapult launching.

Jim Walker's Interceptor Plan - Page 2 Image110
Jim Walker's Interceptor Plan - Page 2 Image310
Levent Suberk
Levent Suberk
Platinum Member
Platinum Member

Posts : 797
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  ian1954 on Sun Jan 05, 2020 2:54 pm

Marleysky wrote:Levent, Looks great so far.  Is A3 a special thin (tissue like) paper? Or sticky on one side? I have been thinking of building these planes based on your super color cutouts, but thought if using regular copy paper it would be to heavy. Plus, I haven’t figured out how to make or install the dihedral brace. If you complete the glider, please show how those pieces are made and installed. THANKS!

A3 refers to the size of the paper (metric), A4 is the nearest size to "letter" and A3 is like two A4s side by side.

Jim Walker's Interceptor Plan - Page 2 Metric10

I hope we return to Imperial measurements now that we are leaving the EU.
ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2682
Join date : 2011-11-16
Age : 65
Location : England

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  ticomareado on Sun Jan 05, 2020 4:07 pm

This just an untested W.A.G. (wild-ass guess), so try at your own peril:

Stick some tissue to a sheet of regular computer paper with a coat of nitrate dope and allow to dry. Then print your designs on your laminated tissue. Detach the tissue from computer paper with thinner and re-attach to the desired surface with more dope.
ticomareado
ticomareado
Account Under Review

Posts : 1082
Join date : 2013-10-03
Location : NC

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Thornburg 404 Interceptor

Post  DanMc on Thu May 28, 2020 10:10 am

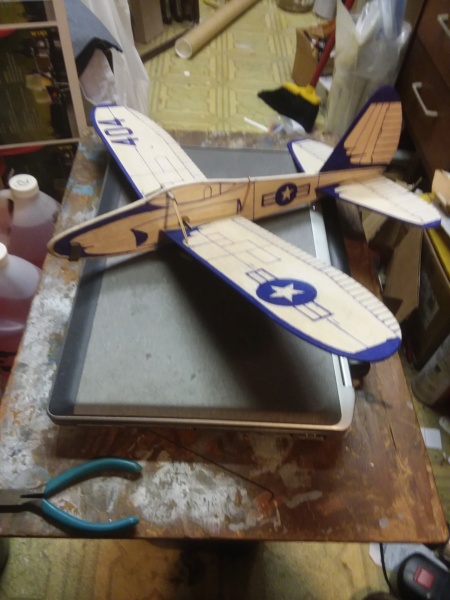

I just finished building four of these, what I call the Thornburg Interceptor . Dave Thronburg of Bird of Time R/C sailplane fame, Old Buzzards Soaring Book, and Do You Speak Model Airplane fame designed this and did the article. I have several of the Macey replicas, a few of the originals 404 Interceptors and the Thornburg model is larger. The model used in the movie "Best Years of Our Lives" was the Army Interceptor that they used in the Army as a "target drone" for gunnery practice targets. I have a few of the fuselages for these and I'm looking for accurate wing outlines or drawing so I can build up some of these. These are great fun and fly VERY well. VERY thermal worthy. I think the tail surfaces on the Thornburg model are a bit too big so I reduced them to about 80% of the original size and the look much better and still fly very well. I used dollar store markers, sharpies and ink pens to color mine. I made templates of the trim designs from the plans and used those to eyeball the outlines , then colored them in with markers. I just sprayed a very light coat of clear lacquer on the wood first, then when finished decorating them, gave them another really light coat to help seal it. I just used hardware store spray lacquer. I'm going to try and post a picture or two if I can remember how!
  Stay safe and healthy everyone!
  Type at you later,
 Dan McEntee

In the first photo, the Thornburg model is next to a Macey replica 404 Interceptor. The tail surfaces below them are the original sized stab and the reduced size so you can see the difference.

    Jim Walker's Interceptor Plan - Page 2 20200412
Jim Walker's Interceptor Plan - Page 2 20200411
Jim Walker's Interceptor Plan - Page 2 20200410Jim Walker's Interceptor Plan - Page 2 20200310
DanMc
DanMc
Moderate Poster
Moderate Poster

Posts : 27
Join date : 2014-09-17

Back to top Go down

Jim Walker's Interceptor Plan - Page 2 Empty Re: Jim Walker's Interceptor Plan

Post  getback on Fri May 29, 2020 9:39 am

Those Look Great Dan , I see what you mean about the tail section , that is Big!! lol!
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 6988
Join date : 2013-01-18
Age : 62
