How I measure piston-rod end play

Go down

How I measure piston-rod end play Empty How I measure piston-rod end play

Post  batjac on Sat Jan 18, 2020 5:36 am

I was deleting old files from a thumb drive and found these pics that show how I measure the amount of play in pistons.  I'm not good measuring by just holding the piston/rod in one hand and a caliper in the other, so I made a simple jig to do it.

I took a scrap piece of ply and cut it into two pieces for the jig.  The first is just a stick with a couple more pieces glued to the bottom so I can clamp it in a vise, and a second piece for an arm with a slot in it.  I hammered a brad into the vise piece and hook the bottom of the rod on it.  Then I use the arm to hold the piston out to max distance and use my caliper to measure the distance.  Then I use the caliper and measure the minimum length.  The difference in the two measurements is the total end play in the ball joint.

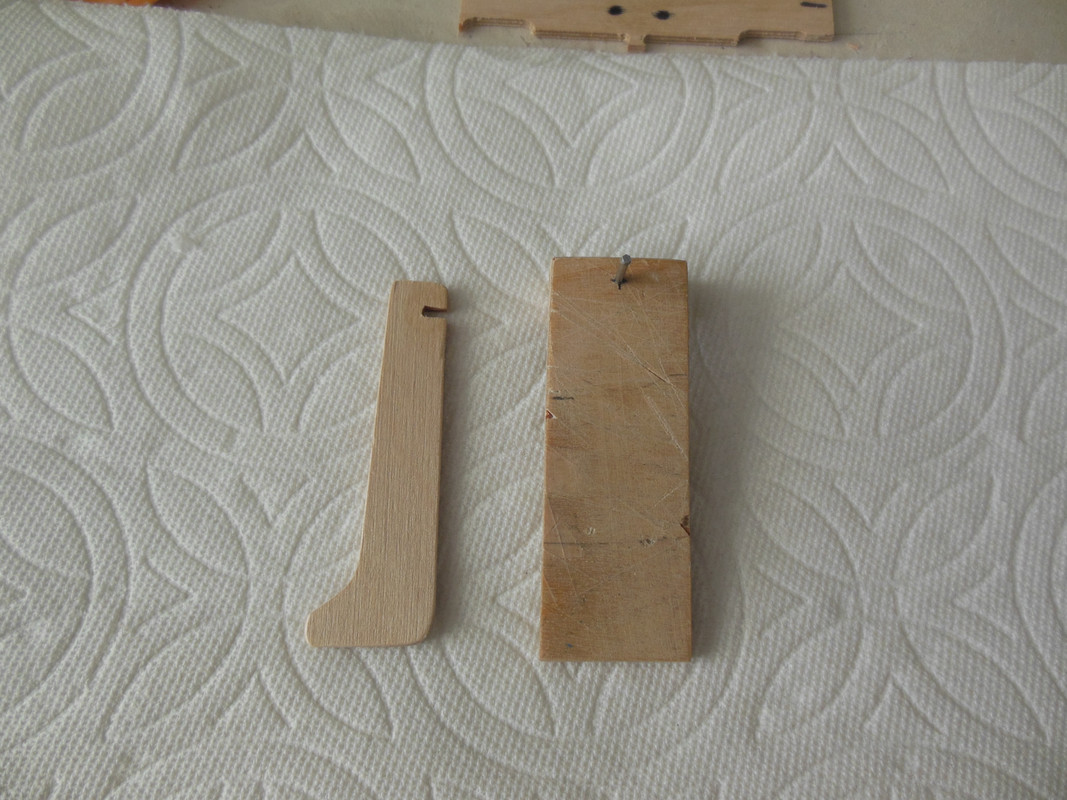

How I measure piston-rod end play DSCN6832
How I measure piston-rod end play DSCN6833

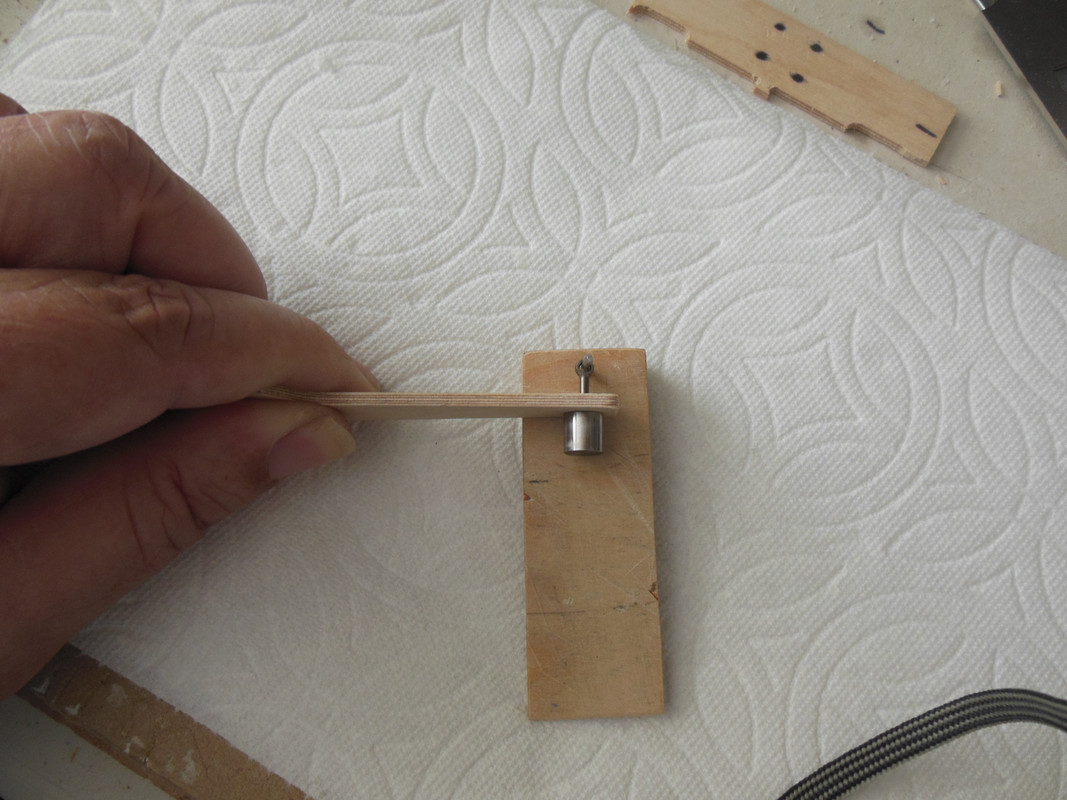

How I measure piston-rod end play DSCN6836
How I measure piston-rod end play DSCN6839

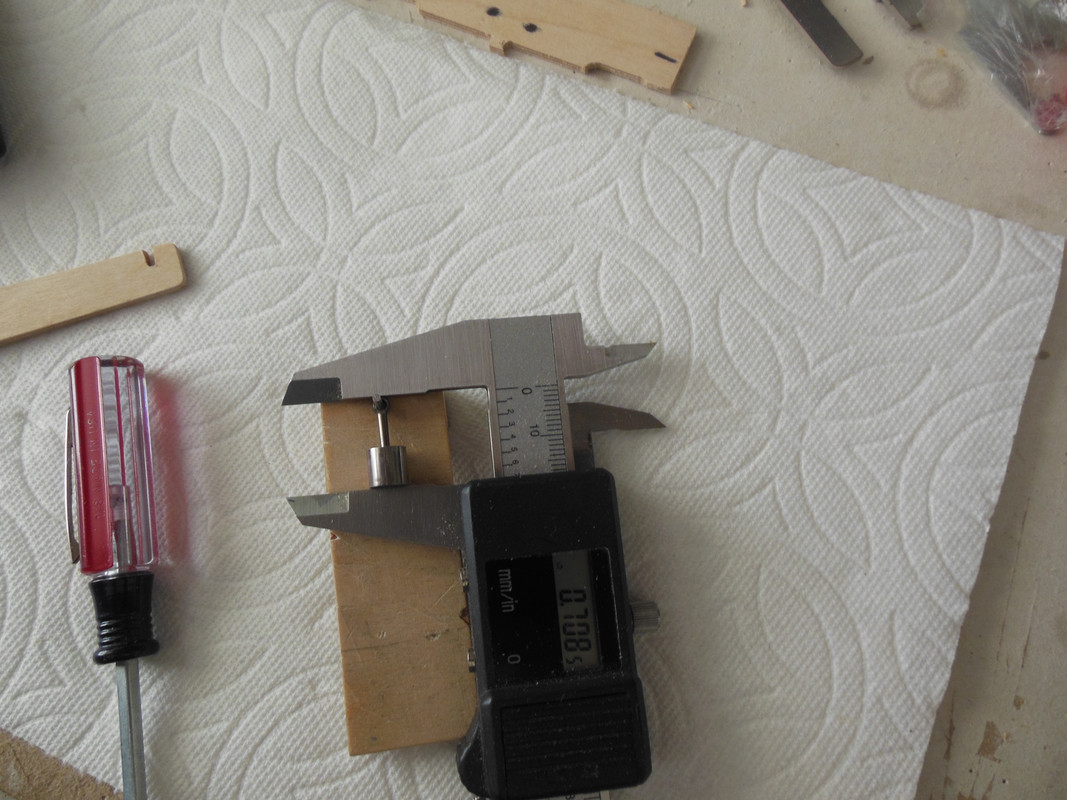

How I measure piston-rod end play DSCN6840



The Simple Mark
batjac
batjac
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 1918
Join date : 2013-05-22
Age : 57
Location : Portland, OR, USA

Back to top Go down

How I measure piston-rod end play Empty Re: How I measure piston-rod end play

Post  balogh on Sat Jan 18, 2020 7:23 am

A good idea,thanks for posting
balogh
balogh
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 3271
Join date : 2011-11-06
Age : 62
Location : Budapest Hungary

Back to top Go down

How I measure piston-rod end play Empty Re: How I measure piston-rod end play

Post  andrew on Sat Jan 18, 2020 8:33 am

Good approach to a fiddly job. What tolerance is acceptable before you do a reset? I've never measured the slop, but took a "That feels about right" approach.
andrew
andrew
Diamond Member
Diamond Member

Posts : 1358
Join date : 2011-08-11
Age : 73
Location : Western Kentucky

http://web2.murraystate.edu/andy.batts/ps/POWERSUPPLY.HTM

Back to top Go down

How I measure piston-rod end play Empty Re: How I measure piston-rod end play

Post  NEW222 on Sat Jan 18, 2020 11:56 am

Well isn't that a great, easy solution to measuring the end play. I have personally never measured any, but just went with what feels right. Now with your pictures, it will make something like this very easy. Thanks for the great tip and pictures!
NEW222
NEW222
Top Poster
Top Poster

Posts : 3053
Join date : 2011-08-13
Age : 42
Location : oakbank, mb

Back to top Go down
