BabeBee venturi gasket Empty BabeBee venturi gasket

Post  OhBee Mon Feb 17, 2020 2:28 pm

How thick,and what material should this be made of?
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 658
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  944_Jim Mon Feb 17, 2020 3:15 pm

Me personally? While the OEM one is still available from EXModelEngines and Cox International, why bother with making do when I can easilly get new?

Now, If I could buy a bunch of dart shaft o-rings locally, I would try that. Just because I like to try different things...especially since I squeeze a penny head until the penny is dead!

Now if I suspected an o-ring and had some spare fuel line, then I would slice off a piece just for the sake of seeing if that was my issue. The Paul Gilbert document describes the process.

Have you gotten it yet? I think you will find it a quick read that will leave you poised to jump back in quickly. I think I have a copy, and can send it your way via email...or grab it from the link in your other thread.

Oh, and hang o. For few minutes. Just like a Windows computer, there are a half-dozen ways to accomplish the same thing. Five more answers will land before midnight (chuckle).
944_Jim
944_Jim
Platinum Member
Platinum Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1088
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  dckrsn Mon Feb 17, 2020 3:31 pm

dckrsn
dckrsn
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 2571
Join date : 2010-10-21
Age : 68
Location : Long Island, New York

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  OhBee Mon Feb 17, 2020 3:45 pm

Thickness is kinda critical from what I can see. .....how thick ? Was the original an o ring or some kind of gasket material?
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 658
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  andrew Mon Feb 17, 2020 4:47 pm

I have used dart O-rings before, but was not completely pleased with the fit. I ordered a couple of sizes from McMaster-Carr that fit better, but I'm not at home and do not remember the ID/OD that I use. If I can remember, I'll check when I get back.
andrew
andrew
Diamond Member
Diamond Member

Posts : 1361
Join date : 2011-08-11
Age : 73
Location : Western Kentucky

http://web2.murraystate.edu/andy.batts/ps/POWERSUPPLY.HTM

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  Levent Suberk Mon Feb 17, 2020 9:12 pm

Cox venturi gaskets looks like neoprene:

https://coxengines.ca/cox-.049-neoprene-fuel-tank-line-10.html

Some common types of O-ring materials including Nitrile, Neoprene, EPDM Rubber, Viton and Silicone. You can flatten an o-ring on a fine sandpaper.
Levent Suberk
Levent Suberk
Platinum Member
Platinum Member

Posts : 1198
Join date : 2017-12-24
Location : Turkey

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  Mark Boesen Mon Feb 17, 2020 11:12 pm

Mark Boesen
Mark Boesen
Top Poster
Top Poster

Posts : 3895
Join date : 2011-09-01
Age : 62
Location : Rockford, Il

http://groups.yahoo.com/group/049Collectors/

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  OhBee Mon Mar 09, 2020 8:24 pm

I finally gathered what I needed to cut venturi gaskets out of silicone fuel tubing,but it took several attempts to finally get a good one . Then I determined it was just too thick....quite a gap before tightening screws...so I made a thinner one...still a gap to squeeze shut. Last one was maybe 1/16 " thick. How much gap and squeeze/compression against this tubing gasket is tolerable? Was tougher than the pics and instructions made it look. Bad eyes,unsteady hands don't help.... doubt i can make one thinner than the last one. Everything looks bigger in forum pics!
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 658
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  944_Jim Mon Mar 09, 2020 8:29 pm

Time for a bench-mounted magnifyng glass. Laughing
944_Jim
944_Jim
Platinum Member
Platinum Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1088
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  OhBee Mon Mar 09, 2020 8:34 pm

Jim....got one for when I tied tiny trout flys....its packed away somewhere like most of what I own.  We are between homes at the moment so conditions aren't the best. But I have to do SOMETHING to keep from going nuts!.....so about the "squish" factor? ...  Preparing motor for Satan follies!
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 658
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  getback Tue Mar 10, 2020 5:36 am

As long as there is a little resistance to the fit so it is sealing Small Cox Logo Babe Bee .049 Small Cox Logo
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 7713
Join date : 2013-01-18
Age : 63
Location : julian , NC

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  roddie Wed Mar 11, 2020 7:00 pm

Wow.. I wish I'd seen this thread weeks ago. I've made gaskets out of kitchen-gloves. Do you remember the slogan; "so flexible.. you can pick up a dime..."? They were "Playtex" Kitchen gloves.. and Walmart still sells them.

BabeBee venturi gasket Kitche10

I've made tank-back venturi gaskets for Cox reed-valve engines.. ie: Babe Bee, Golden Bee etc.

Obtain a plier-type standard hole-punch (1/4" dia.) Punch-out some areas high on the cuff.. to retain the integrity of the glove.

BabeBee venturi gasket Kitche11

Collect the cut-outs and punch their centers .125" (1/8"). Pick the "nicest one" (closest to center..) and install it on the intake-side of the venturi-tube.

BabeBee venturi gasket Gap_ex12
BabeBee venturi gasket Gap_ex11

The material is spongy. When you mate-up the backplate to the tank-bowl (with its fuel pick-up positioned where you want it.. ) there will be a "slight gap" between the two.. (see below)

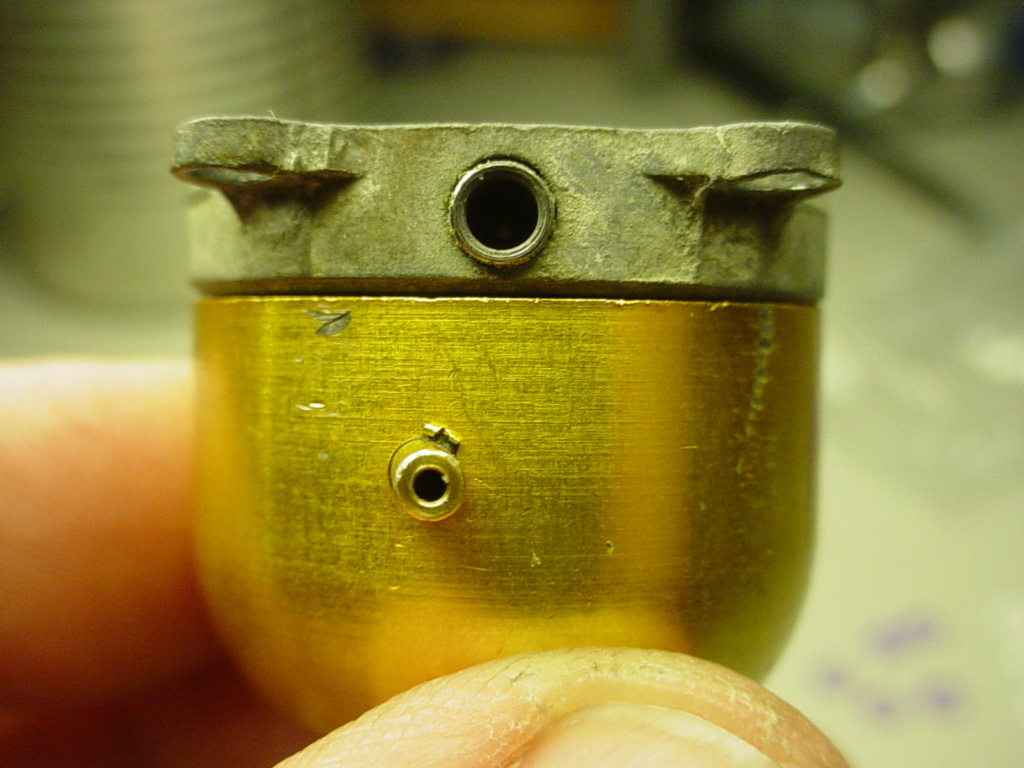

BabeBee venturi gasket Gap_ex13

When compressed, the gap closes and the seal is made.

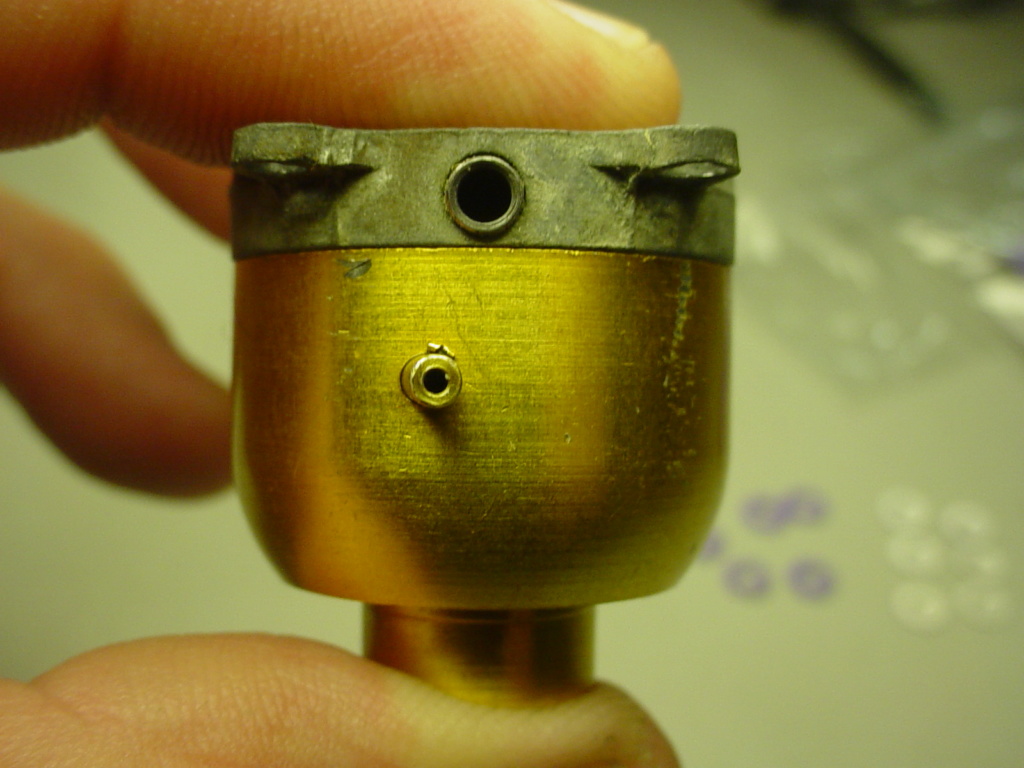

BabeBee venturi gasket Gap_ex14






roddie
roddie
Top Poster
Top Poster

Posts : 7140
Join date : 2013-07-17
Age : 61
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  NEW222 Wed Mar 11, 2020 7:59 pm

Thanks roddie. I was just going to dig up the thread and mention you adventures of making those gaskets. Just one of the small things that has stayed in my mind since you posted it.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3219
Join date : 2011-08-13
Age : 42
Location : oakbank, mb

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  OhBee Wed Mar 11, 2020 10:15 pm

Well mine from tubing turned out thicker than that...gap is bigger.But I guess it will work ok. Not good at small precision surgery anymore!
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 658
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  NEW222 Wed Mar 11, 2020 10:43 pm

Should work just fine. I have made them a bit thicker like yours and the engine still ran.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3219
Join date : 2011-08-13
Age : 42
Location : oakbank, mb

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  RknRusty Wed Mar 11, 2020 11:13 pm

You could try something similar to the short black fuel tube like the PT19 fuel line. If it's the right ID and OD, chuck it in your drill press onto an inverted bit, ~.078" (or thereabouts), and spin it up slicing it with a razor till you get the best thickness. Those gloves Roddie uses look good too. The OEM gasket is flat, not toroidal like o-rings are.
Rusty


Last edited by RknRusty on Wed Mar 11, 2020 11:18 pm; edited 1 time in total

_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist
RknRusty
RknRusty
Rest In Peace
Rest In Peace

2019 Supporter

2020 Supporter

Posts : 10869
Join date : 2011-08-10
Age : 65
Location : South Carolina, USA

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  OhBee Wed Mar 11, 2020 11:16 pm

Ya...i was certain it would work fine,just needed a bit more squeeze to button it up. Dissassembled it again today and everything appears  copacetic......Wink  chucking it all in a drill sounds like a great idea! I used the old bamboo skewer technique which takes a steady hand and sharp eyes.
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 658
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  dckrsn Thu Mar 12, 2020 4:56 pm

@RknRusty wrote:You could try something similar to the short black fuel tube like the PT19 fuel line. If it's the right ID and OD, chuck it in your drill press onto an inverted bit, ~.078" (or thereabouts), and spin it up slicing it with a razor till you get the best thickness. Those gloves Roddie uses look good too. The OEM gasket is flat, not toroidal like o-rings are.
Rusty
Nice language from a moderator! Toroidal!! UGH!
The disgusted Bob
dckrsn
dckrsn
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 2571
Join date : 2010-10-21
Age : 68
Location : Long Island, New York

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  Cribbs74 Thu Mar 12, 2020 5:32 pm

Dart o-rings! As mentioned several times already, no need to re-invent the wheel.

Throwing darts, as seen in pubs...

They work better than anything and are reuseable. They come in packs of 100 and are very cheap.
Cribbs74
Cribbs74
Moderator

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 11468
Join date : 2011-10-24
Age : 47
Location : Tuttle, OK

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  roddie Thu Mar 12, 2020 5:59 pm

Beware that the vintage Cox pot-metal (Mazac/Zamac?) tank-backplate is fragile. If a venturi gasket is too thick.. or tough to compress, it could pose undue stress on the backplate prior to its sealing around the tank-bowl. The tank could leak. The backplate could fracture where the screw-heads seat.

Just something to be conscious of..
roddie
roddie
Top Poster
Top Poster

Posts : 7140
Join date : 2013-07-17
Age : 61
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  OhBee Thu Mar 12, 2020 7:56 pm

Wasn't THAT hard to push the gap together!... Mine is less than 1/16 " thick. I'm not driving 60 mi round trip to look for something that probably is unfindable around here when I can make something from materials on hand with a bit of scrounging. My backplate appears to be brass also...not potmetal.
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 658
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  Oldenginerod Thu Mar 12, 2020 8:37 pm

@OhBee wrote:My backplate appears to be brass also...not potmetal.
None were ever brass. They're just plated with a gold-coloured coating. Earliest Babe Bee backplates were silver colour. Probably zinc plated.
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3313
Join date : 2012-06-15
Age : 58
Location : Drouin, Victoria

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  NEW222 Thu Mar 12, 2020 9:43 pm

@roddie wrote:Beware that the vintage Cox pot-metal (Mazac/Zamac?) tank-backplate is fragile. If a venturi gasket is too thick.. or tough to compress, it could pose undue stress on the backplate prior to its sealing around the tank-bowl. The tank could leak. The backplate could fracture where the screw-heads seat.

Just something to be conscious of..

Uh oh roddie. Wish I knew that before.... I had to compress a couple of mine pretty decent. I guess I will have to take them apart and see which had teh thick gaskets. Or would one think now that they're compressed they will be fine.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3219
Join date : 2011-08-13
Age : 42
Location : oakbank, mb

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  RknRusty Thu Mar 12, 2020 11:08 pm

If Ron says the dart o-rings work, then i'm inclined to believe it.

@dckrsn wrote:Nice language from a moderator! Toroidal!! UGH!
The disgusted Bob
What, Bob? Are moderators supposed to use simpler syntax so as to appeal to the masses? Lol. You know I've always been a bit anal about the use of our language, and we have lots of self-taught engineers around here.. I coulda said "Donut-Shaped." But that might have made me hungry...Mmmmm, Dooonuuts... Doh, Gotta go now!

Rusty


_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist
RknRusty
RknRusty
Rest In Peace
Rest In Peace

2019 Supporter

2020 Supporter

Posts : 10869
Join date : 2011-08-10
Age : 65
Location : South Carolina, USA

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  crankbndr Fri Mar 13, 2020 5:07 pm

The dart o rings I tried were too fat, like in the doughnut (toroidal) kind of way. Mine must have been too toroidal as a matter of fact. I tried to split the toroidal lengthways, no dice.
If I can cut silicone tube paper thin that works for me, even if a little irregular. I certainly would not force the backplate in any way. YMMV


PS thanks for the new word Rusto Man
crankbndr
crankbndr
Diamond Member
Diamond Member

I Support My Forum

Posts : 2660
Join date : 2011-12-10
Location : Homestead FL

Back to top Go down

BabeBee venturi gasket Empty Re: BabeBee venturi gasket

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top



Permissions in this forum:
You cannot reply to topics in this forum
