Post  Kim Tue Mar 03, 2020 9:51 am

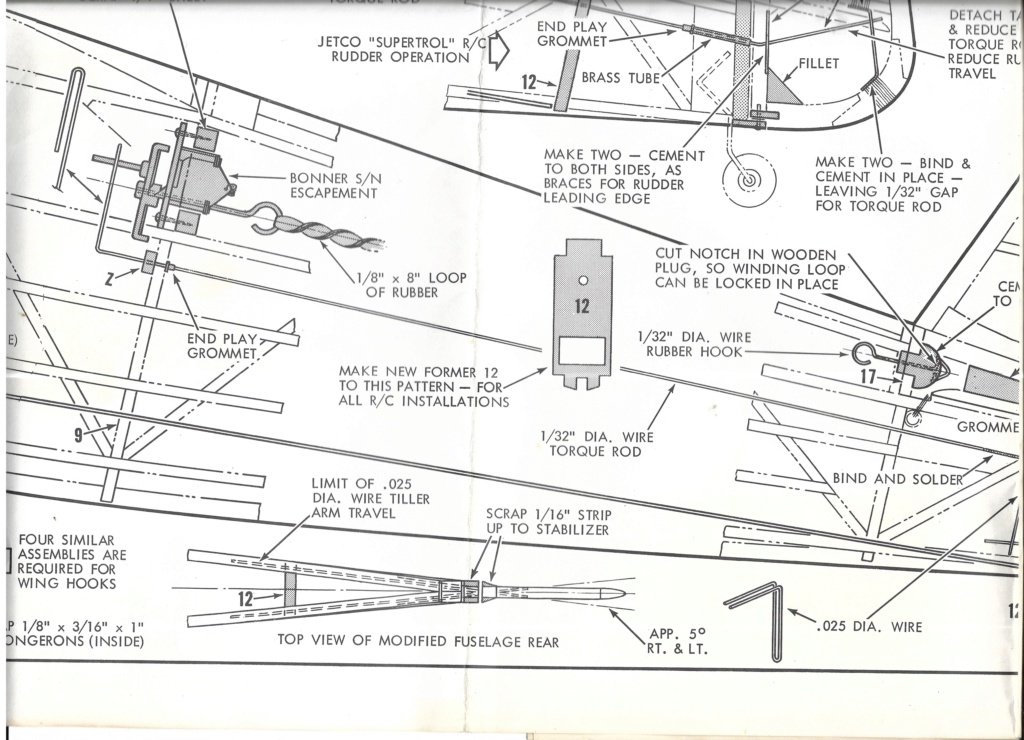

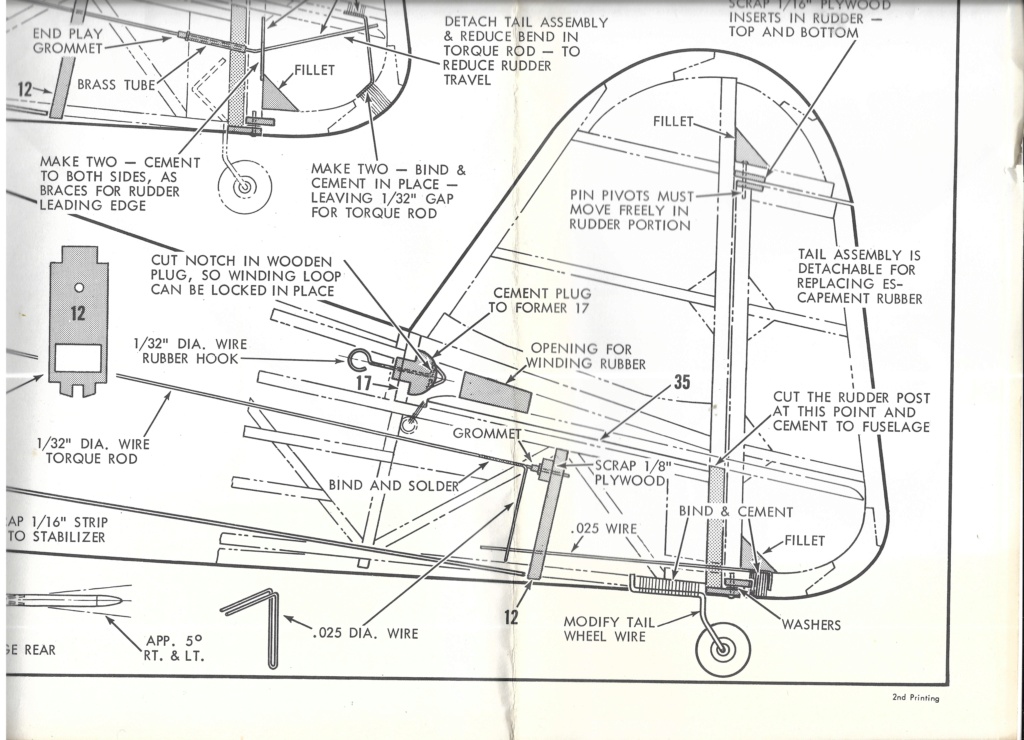

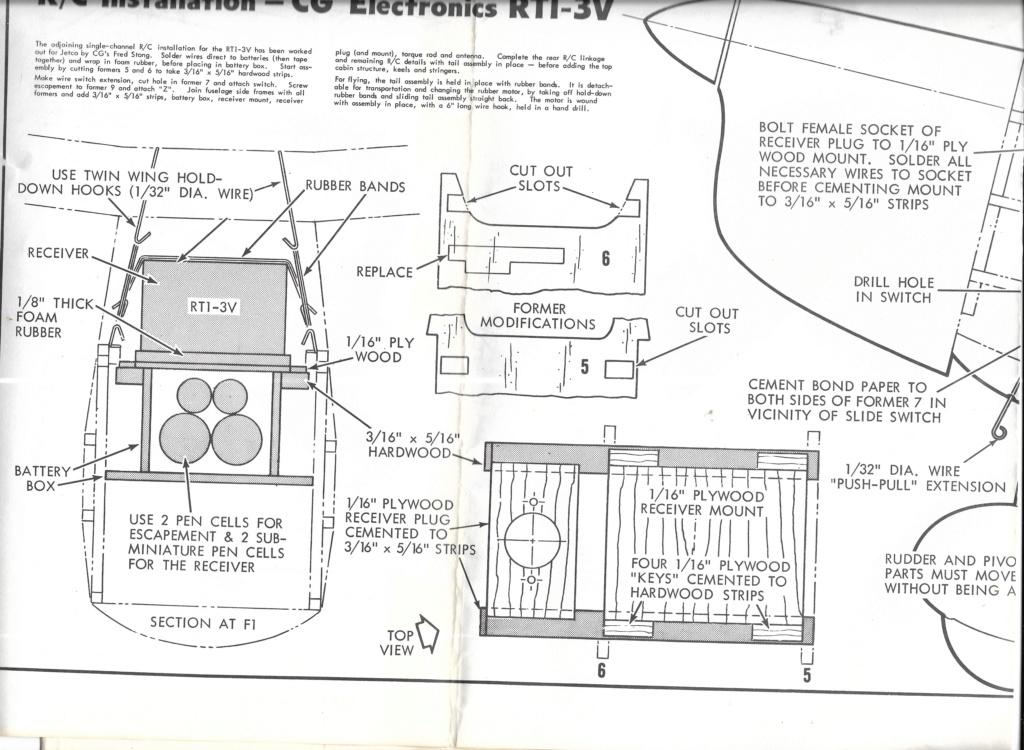

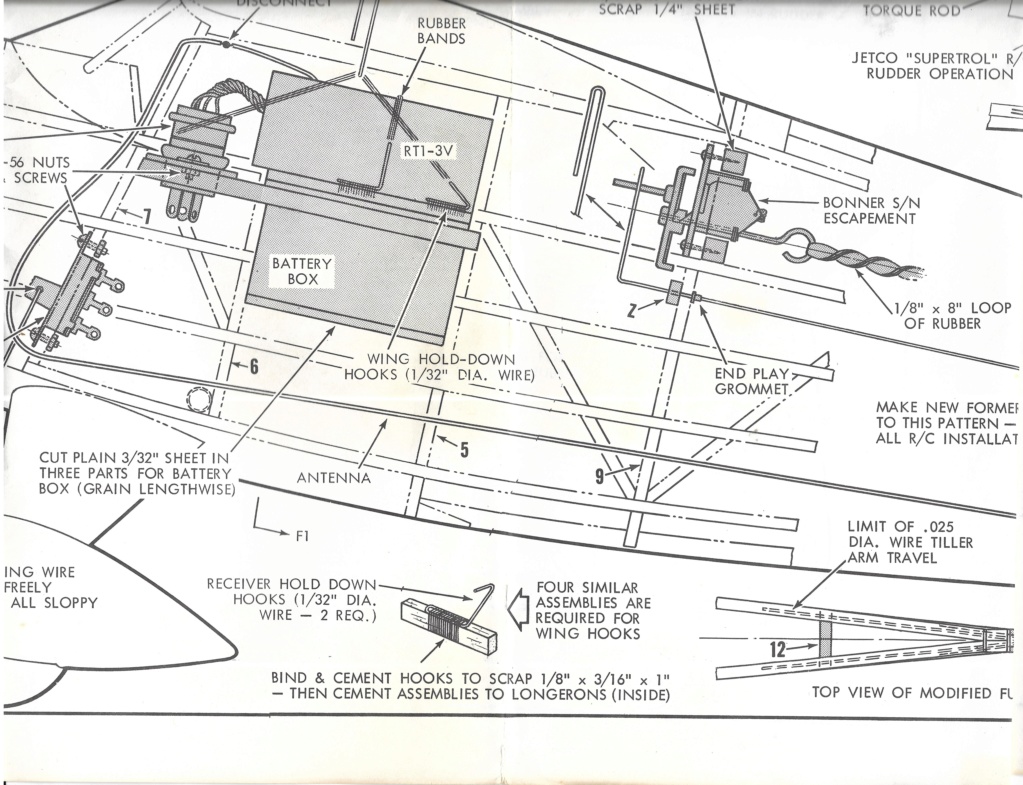

Here's my attempt at scanning Plan Sheet "A" of Jetco's Rearwin Speedster.  The period radio featured is a rubber band escapement, and most of the build looks similar to the Free Flight version, save for the rudder being hinged and allowances for mounting the radio.

I can still get it copied at Staples for cost and postage if you'd want the whole sheet.

Good Luck with the build!

Jetco Rearwin "Speedster" Plan Sheet A 0_1810

Jetco Rearwin "Speedster" Plan Sheet A 0_1611

Jetco Rearwin "Speedster" Plan Sheet A 0_1411

Jetco Rearwin "Speedster" Plan Sheet A 0_1010

Jetco Rearwin "Speedster" Plan Sheet A 0_614
