Cylinder Porting - Page 2 Empty Plans for the lathe

Post  happydad on Fri Jul 10, 2020 4:50 pm

aspeed wrote:$300 is a great deal for the Harbor Freight lathe.  I think the mill is better for cutting the slots though. That lathe has a lot of followers that like it after a good cleaning and adjusting mods.

I also have some wood working plans on my bucket list.

   So many projects and so little time.

Edit 2:53p.m. PST

Harbor Freight Tools doesn’t carry the cheap $300 version anymore. They have a beefier version for $600 and up now. I will look around.
   1 lathe or 6 cox .010 engines. Hmmm.   Huh...  Huh...

Found a nice one for $475 plus $29 shipping. Verifying shipping. Comparable to HFT $600, but green???

Happydad RC Plane 4th of July Flag


Last edited by happydad on Fri Jul 10, 2020 5:11 pm; edited 2 times in total (Reason for editing : Change content, added content)
happydad
happydad
Diamond Member
Diamond Member

I Support My Forum

2020 Supporter

Posts : 1588
Join date : 2012-05-28
Age : 75
Location : Escondido, CA

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  aspeed on Fri Jul 10, 2020 5:44 pm

There are a few brand names that are the same machine coming from the same factory.  Look carefully to see that it is the same one.  There are forums on that lathe with a big following. http://www.mini-lathe.com/  Sometimes you can get a used one for half price too.  My Taig was used and a deal that I could not pass up.  I bought a few accessories at full price though.  For metalworking machines, I always consider them to be a usable investment.  Normally you get the money back if you bought it used.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 511
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Cylinder Porting - Page 2 Empty Lathe companies

Post  happydad on Fri Jul 10, 2020 7:08 pm

aspeed wrote:There are a few brand names that are the same machine coming from the same factory.  Look carefully to see that it is the same one.  There are forums on that lathe with a big following. http://www.mini-lathe.com/   Sometimes you can get a used one for half price too.  My Taig was used and a deal that I could not pass up.  I bought a few accessories at full price though.  For metalworking machines, I always consider them to be a usable investment.  Normally you get the money back if you bought it used.

Aspped: the company I just looked at for $474 for a mini lathe was Grizzly.com . waiting for more info. I have seen the link you posted before and will review again. Thanks.

I have been "talking" with Coxaddict about how to remove the bar between the dual slit cylinders and was inspired to try it. some of the pictures focus switched from the subject to the background. I only have 2 hands, but you will get the idea.

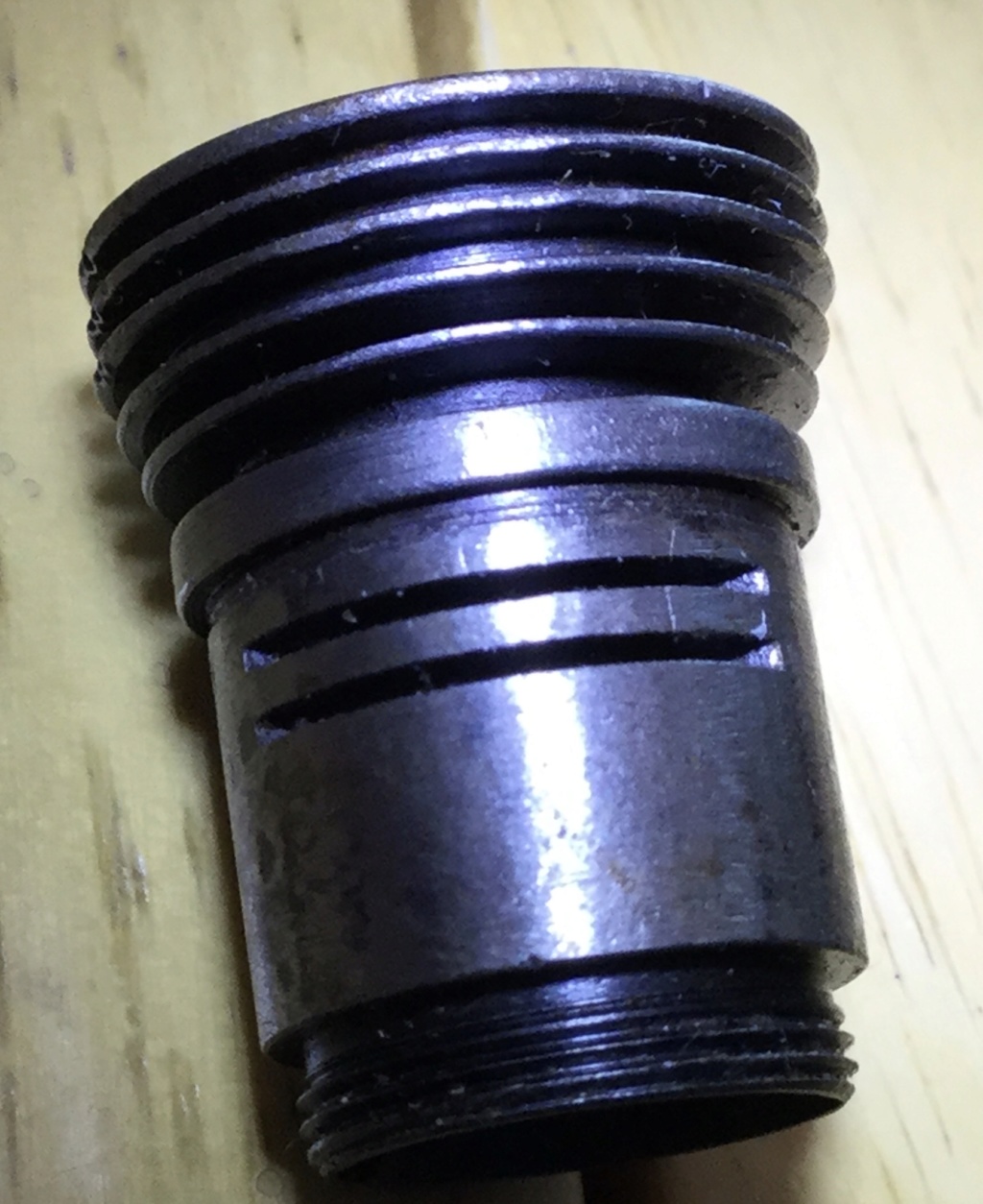

Cylinder Porting - Page 2 Img_1312
basic dual slit cylinder

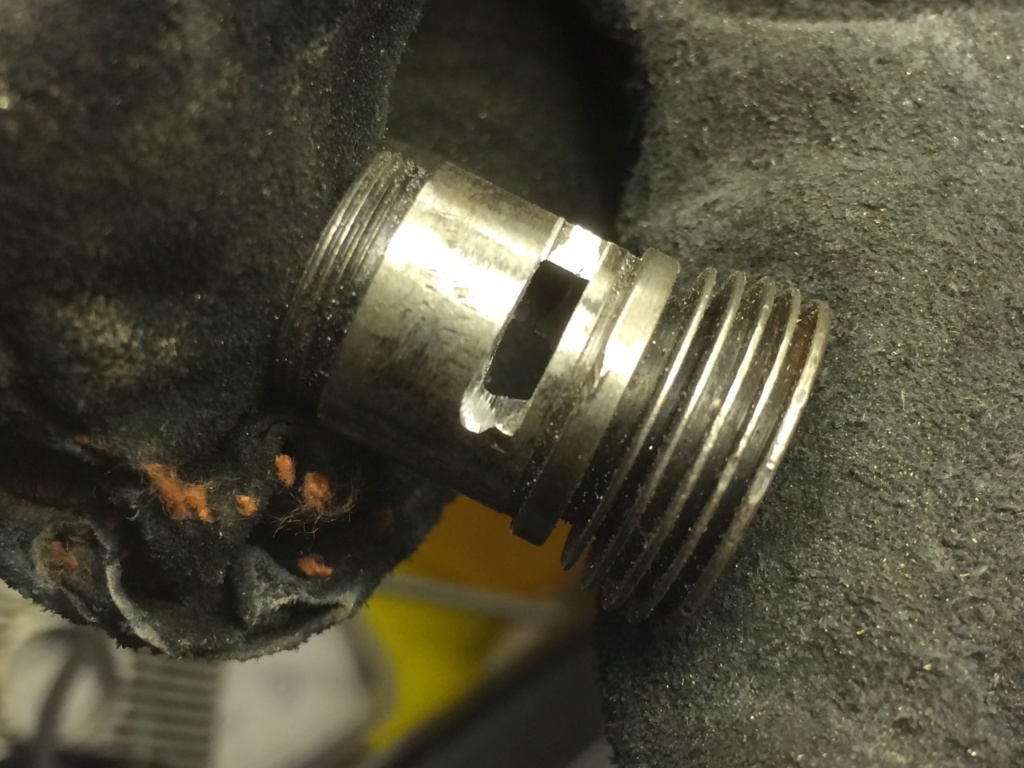

Cylinder Porting - Page 2 Img_0511
first try to remove bar, notice some mistakes. different lighting.

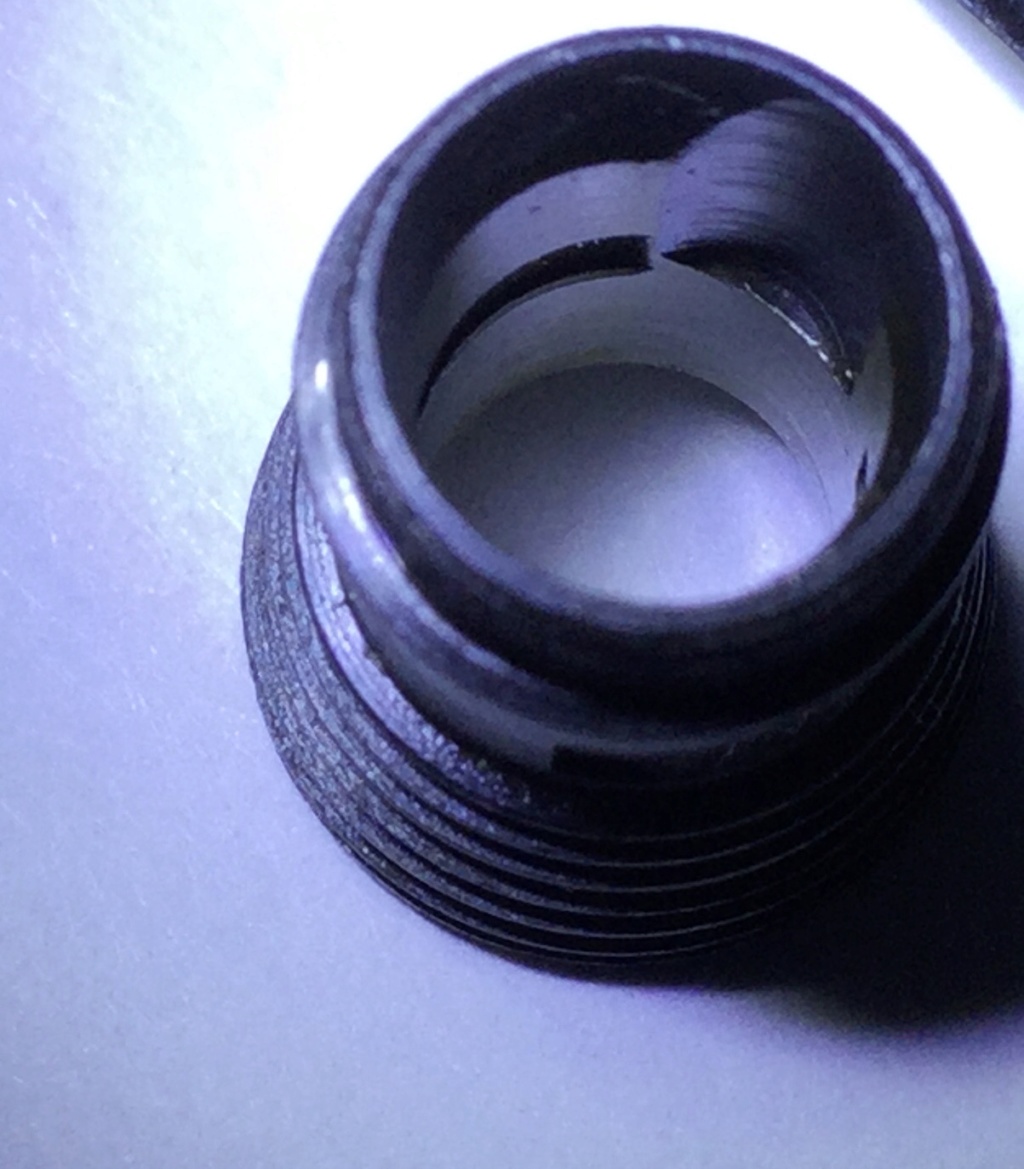

Cylinder Porting - Page 2 Image013
interior porting, 1 of 2

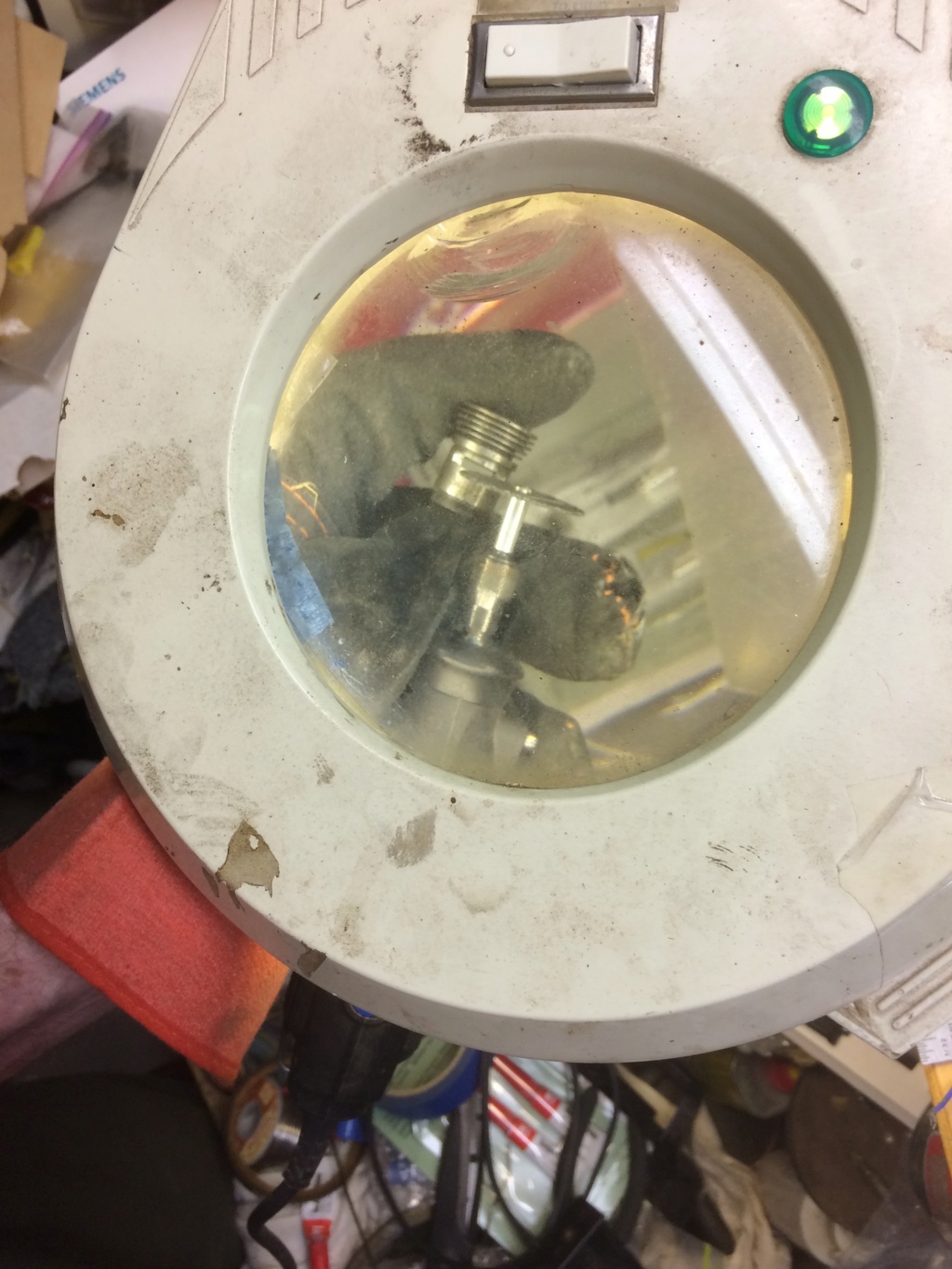

Cylinder Porting - Page 2 Img_0512
typical setup using magnifying light as spark protection, hard to see cylinder and rotating blade. notice GLOVES.

Cylinder Porting - Page 2 Img_0513
2nd cylinder, damage in lower corner. Tried to add SPI, but cut into edge of exhaust port. OOPS.

Cylinder Porting - Page 2 Img_0516
2nd side of 2nd cylinder, note damage. the Dremel tool was getting really hot. garage was in the 100's.

thanks for the advice Coxaddict.

happhdad Old Bugger RC Plane 4th of July Flag I Love This Forum!
happydad
happydad
Diamond Member
Diamond Member

I Support My Forum

2020 Supporter

Posts : 1588
Join date : 2012-05-28
Age : 75
Location : Escondido, CA

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  aspeed on Fri Jul 10, 2020 7:34 pm

The 100s? You wouldn't catch me out there. The cylinder looks pretty good. I don't see a burr inside the port. I would use a mill, but your method is fine. I do similar stuff. I even have a magnifier just like that with a round flourescent bulb. I use dollar store 2.5 x glasses on top of the magnifier. I am getting old.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 511
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Cylinder Porting - Page 2 Empty I don’t see your age shown? LOL

Post  happydad on Fri Jul 10, 2020 8:58 pm

aspeed wrote:The 100s?  You wouldn't catch me out there.  The cylinder looks pretty good.  I don't see a burr inside the port.  I would use a mill, but your method is fine.  I do similar stuff.  I even have a magnifier just like that with a round flourescent bulb.  I use dollar store 2.5 x glasses on top of the magnifier.  I am getting old.

The good side is the house is in the low 80’s. And I can get some of my fun work done out there.
   The cylinder(s) were a first time test. If I do it again I will try to jig everything so I can fine tune movement, like with the micro lathe I looked at. It has a table with X-Y movement I could use for the cylinder movement and jig the dremel tool with blade to the lathe somewhere.
   Besides it’s only money. Money Toss   I taught computer basics to seniors at a senior living facility for 5 years and all the money I made, $30 a day, one day a week, I saved for toys. Along the way several of the days were cancelled for holidays or at the last moment due to “meetings”, so I eventually quit because of the dishonesty of the management at the facility.
  That $475 lathe is looking better every second. I wish now I had purchased the lathe when I retired back in 2007. Then I still had access to other metal working tools like bending brake, shear cutting table, etc. I wanted to buy the tools when the company went bankrupt a few years later, but the dummy manager so it by the pound. 🤯
   Heading back to the .020 All Star Biplane wing.
Happydad RC Plane Very Happy 4th of July Flag Old Bugger Old Bugger
happydad
happydad
Diamond Member
Diamond Member

I Support My Forum

2020 Supporter

Posts : 1588
Join date : 2012-05-28
Age : 75
Location : Escondido, CA

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  coxaddict on Sat Jul 11, 2020 3:09 am

Cutting exhaust ports

Cylinder Porting - Page 2 Dscf1313
3" diameter x .081" cut slitting saw
coxaddict
coxaddict
Gold Member
Gold Member

Posts : 344
Join date : 2013-01-27
Location : north shore oahu, Hawaii

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  coxaddict on Sat Jul 11, 2020 3:21 am

Finished cylinder

Cylinder Porting - Page 2 Dscf1413
coxaddict
coxaddict
Gold Member
Gold Member

Posts : 344
Join date : 2013-01-27
Location : north shore oahu, Hawaii

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  coxaddict on Sat Jul 11, 2020 3:24 am

Cylinder Porting - Page 2 Dscf1422
Dual port, single booster on each. Sure start cylinder with center piece removed and bottom of port lowered for SPI
coxaddict
coxaddict
Gold Member
Gold Member

Posts : 344
Join date : 2013-01-27
Location : north shore oahu, Hawaii

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  coxaddict on Sat Jul 11, 2020 3:57 am

happydad,  use the damaged cylinder in a vise by grinding off the fins. Then you can screw your work cylinder into the cylinder in the vise to free up your hands.  If you use a thicker cutting wheel you can make a smoother cut. I ruined a couple of cylinders trying to cut the slits on my mill! Shocked My first jig wasn't solid enough. You can use the same setup to cut the intake ports. The male or female threads can be used to hold the work cylinder depending on which end of the cylinder needs to be facing you.


Last edited by coxaddict on Sat Jul 11, 2020 4:03 am; edited 1 time in total
coxaddict
coxaddict
Gold Member
Gold Member

Posts : 344
Join date : 2013-01-27
Location : north shore oahu, Hawaii

Back to top Go down

Cylinder Porting - Page 2 Empty Show off

Post  happydad on Sat Jul 11, 2020 3:58 am

coxaddict wrote:Finished cylinder

Cylinder Porting - Page 2 Dscf1413

Ok. Ok. Yours looks better than mine. Now what do I do oh bee one?
LOL

Happydad Old Bugger sleep Sleeping at Computer
happydad
happydad
Diamond Member
Diamond Member

I Support My Forum

2020 Supporter

Posts : 1588
Join date : 2012-05-28
Age : 75
Location : Escondido, CA

Back to top Go down

Cylinder Porting - Page 2 Empty Yes, oh bee one

Post  happydad on Sat Jul 11, 2020 4:04 am

coxaddict wrote:happydad,  use the damaged cylinder in a vise by grinding off the fins. Then you can screw your work cylinder into the cylinder in the vise to free up your hands.  If you use a thicker cutting wheel you can make a smoother cut. I ruined a couple of cylinders trying to cut the slits on my mill! Shocked My first jig wasn't solid enough.

I heard that from my old friend in New Zealand about 6 or 7 years ago, but never thought I would even consider a lathe at that age, 67. What a padawan.

P.S. can’t seem to find the right blades for the dremel multi rotary tool yet. Just the thin ones. If I buy the $25 adapter kit I can use many more cutting blades. I am learning.

Happydad Money Toss Sleeping at Computer
happydad
happydad
Diamond Member
Diamond Member

I Support My Forum

2020 Supporter

Posts : 1588
Join date : 2012-05-28
Age : 75
Location : Escondido, CA

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  Oldenginerod on Sat Jul 11, 2020 4:24 am

coxaddict wrote:Cylinder Porting - Page 2 Dscf1422
Dual port, single booster on each. Sure start cylinder with center piece removed and bottom of port lowered for SPI

Pretty much exactly as Bernie sells as a Tee Dee Cylinder.  Very good performer.
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3149
Join date : 2012-06-15
Age : 58
Location : Victoria, Australia

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  coxaddict on Sat Jul 11, 2020 5:23 am

happydad,  the Dremel  541 grinding wheel is .125" thick.  Check out their website for other bits especially the tungsten carbide ones.

Oldenginerod, since I have mostly slit exhaust cylinders I thought I'd give it a try. Real happy with the results.
coxaddict
coxaddict
Gold Member
Gold Member

Posts : 344
Join date : 2013-01-27
Location : north shore oahu, Hawaii

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  aspeed on Sat Jul 11, 2020 8:17 am

Do you have a before and after tach reading? I have a slitted cylinder, and thought it went pretty good considering.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 511
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  coxaddict on Sat Jul 11, 2020 2:29 pm

aspeed, I didn't think of doing a before and after rpm comparison, maybe I will the next time I do a Bench run. The SPI definitely made a difference. The Killer Bee runs high rpms with a slit exhaust and SPI. If I can find the right slitting saw maybe I can replicate a Killer Bee cylinder.
coxaddict
coxaddict
Gold Member
Gold Member

Posts : 344
Join date : 2013-01-27
Location : north shore oahu, Hawaii

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  davidll1984 on Thu Sep 17, 2020 9:30 pm

If Not finish m'y suggestion is try... dale kirn.. in search tool is 1 crude Drawing of tee dee modification wit référence number look now Drawing its 3 boost port on 2bypas and 1 longer the 3 boost ist finish like just extra if .???
davidll1984
davidll1984
Platinum Member
Platinum Member

Posts : 513
Join date : 2020-02-12
Age : 35
Location : shawinigan

Back to top Go down

Cylinder Porting - Page 2 Empty He's Baaaccckk

Post  happydad on Thu Sep 17, 2020 11:39 pm

coxaddict wrote:aspeed,  I didn't think of doing a before and after rpm comparison, maybe I will the next time I do a Bench run.  The SPI definitely made a difference. The Killer Bee runs high rpms with a slit exhaust and SPI.  If I can find the right slitting saw maybe I can replicate a Killer Bee cylinder.

coxaddict:  good to see you back. I am getting close to my goal. I have emptied about 25 boxes, cataloged about 10 boxes and still have about 20 boxes to go. I have discovered thing I thought I had lost forever. I found a brand NEW ACE RC 4 Channel KIT with everything except a battery, a frequency module and about 50 wires to connect. It was there entry into the digital age. I am pretty sure I ordered a 53.4MHz transmitter module, I am also a HAM, and can use the 53MHz band. I already have a 53.1MHz transmitter I built back in the early 1980's.

    So when does lesson 2 start in the cylinder modification series begin. I can always find time for a little Dremel tool fun. I still have everything just as we left it, ready to go.

Hope you and yours are safe and the GIANT SURF isn't too big for you. Stay safe.

happydad RC PlaneBiplaneJeep                               Old Bugger United States
happydad
happydad
Diamond Member
Diamond Member

I Support My Forum

2020 Supporter

Posts : 1588
Join date : 2012-05-28
Age : 75
Location : Escondido, CA

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  coxaddict on Fri Sep 18, 2020 1:18 pm

Hope everyone is safe from all the fires and bad weather. The ocean is like glass until the wind picks up around 9 A.M.. Been too busy repairing my roof and painting my house. The good thing about that is my wife lets me buy more tools that I tell her is needed for the job. lol! lol! Those Milwaukee brand M18 cordless tools are the bomb! When we start to have rainy weather then I'll stay indoors.
I have a lot of .049 parts and engines both early and late and have noticed that all the early thin wall cylinders including the number 2 cylinders have a taper bore. I like the pinch at the top as I think it makes for easier restarts when hot. Now the thought of modifying those number 2 cylinders come to mind. I have had success milling a second intake port but will take it another step by adding booster ports. I will however need to get a better tachometer to gauge the results.
coxaddict
coxaddict
Gold Member
Gold Member

Posts : 344
Join date : 2013-01-27
Location : north shore oahu, Hawaii

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  balogh on Fri Sep 18, 2020 4:41 pm

I wish I had those old stock COX parts to play with. Very Happy

If you have a smartphone with Android op system, you can download from Google Play the Rpm gauge free app, that is an audio based tachometer and is as accurate as any optic version...
balogh
balogh
Top Poster
Top Poster

2019 Supporter

Posts : 3147
Join date : 2011-11-06
Age : 62
Location : Budapest Hungary

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  coxaddict on Sat Sep 19, 2020 3:25 am

Thanks balogh,
I'll check out Google play, my phone is taking over my life lol!
coxaddict
coxaddict
Gold Member
Gold Member

Posts : 344
Join date : 2013-01-27
Location : north shore oahu, Hawaii

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  getback on Sun Sep 20, 2020 8:04 am

You did a superb job on the cly. coxaddict I have never cared much for the slit cylinders myself . This Site Rocks!
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 7225
Join date : 2013-01-18
Age : 63
Location : julian , NC

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting

Post  coxaddict on Sun Sep 20, 2020 12:22 pm

Thank you getback,
Slit exhaust cylinders come in a variety of port configurations. There's a lot of experimenting that I want to do. Maybe removing the slit but shortening the piston to allow sub-piston induction?
coxaddict
coxaddict
Gold Member
Gold Member

Posts : 344
Join date : 2013-01-27
Location : north shore oahu, Hawaii

Back to top Go down

Cylinder Porting - Page 2 Empty Re: Cylinder Porting
