JR radios technical service.

Page 2 of 2 Previous  1, 2

Go down

JR radios technical service. - Page 2 Empty Way to go Jason. I think you hit the nail on the head.

Post  happydad Mon Aug 03, 2020 4:30 pm

Jason_WI wrote:I looks like its trying to boot up but data to the LCD or the LCD itself is bad.

Check the main IC quad flat pack (QFP) in the center of the main PCB for proper solder connections. The areas circled in red look to have questionable solder connections.

JR radios technical service. - Page 2 Qfp11

For proper solder connections on gull wing leads look at Figure 4 in the link.

http://www.circuitrework.com/guides/7-1-3.html


the other possible issue is the LCD itself is bad. I have seen where oxidation on the elastomeric conductive rubber strip needs to be cleaned as well as the glass LCD and PCB with 97% or greater isopropyl alcohol. The metal tabs around the black frame of the LCD need to be turned straight and then remove the frame from the PCB to expose the glass LCD and elastomeric strips. This would be a last ditch repair attempt.

https://en.wikipedia.org/wiki/Elastomeric_connector

https://www.youtube.com/watch?v=-QZk9WCz-D8

Jason: great points. So MauricioB get out the pcb cleaner, or alcohol and clean any areas like you see in the pictures Jason_WI shows and has a black cruddy look to it. It may be corrosion like Jason said. You may need a 10x magnifying glass or a magnifying microscope like I use due to poor eyesight.
   I think we are getting closer to the problem. Take your time, there are a lot of circuits.

Happydad. RC Plane     United States Argentina   Old Bugger Old Bugger
happydad
happydad
Rest In Peace
Rest In Peace

Posts : 1592
Join date : 2012-05-28
Age : 78
Location : Escondido, CA

Back to top Go down

JR radios technical service. - Page 2 Empty Re: JR radios technical service.

Post  MauricioB Tue Aug 04, 2020 6:13 am

Thanks Jason for your time.
Yes I did that screen cleaning many years ago, a data line on the screen was gone and then I took that screen apart and cleaned the elastomer contacts, I put it back together just putting everything in its place and everything went back to normal.
Regarding what you tell me about the connections, then now wipe supervising with a magnifying glass, everything is perfectly free of rust and humidity.

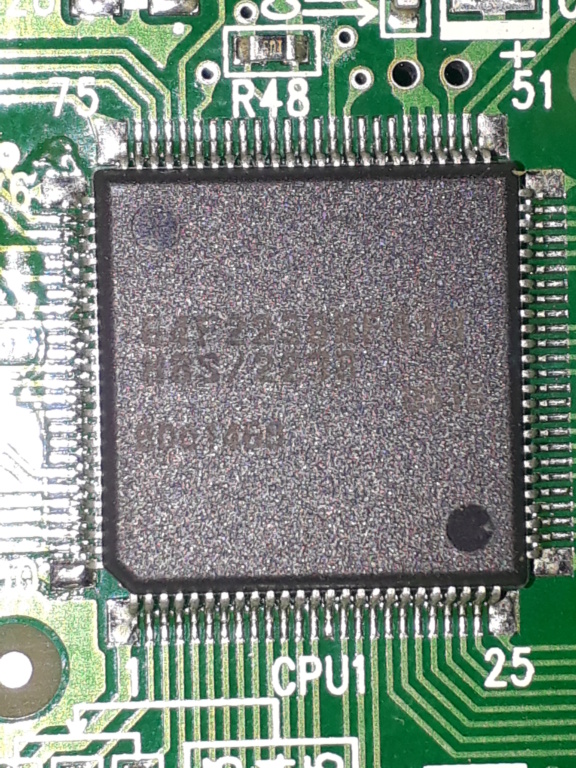

Here I leave a photo, I hope you can see it.
