Bed Wood restoration

Page 1 of 2 1, 2  Next

Go down

Bed Wood restoration  Empty Bed Wood restoration

Post  Cribbs74 on Wed Dec 02, 2020 12:03 am

My old bed wood was literally falling off as I drove so I decided it was high time to replace it. Last time I did this was 13yrs ago it was a pain then and a pain now. You would think you would have to just cut 7 1x8 boards to length, but not so. The inner 5 boards require 7 cuts a piece, the outer 2 require 5 a piece. Grand total of 45 cuts if you do it right the first time. This is assuming the bed is perfectly square and every hole and bed strip lines up perfectly. Yeah, so my bed wasn’t perfectly square and it required a lot of massaging to get it back into shape. It also caused me to have to cut nearly double the required amount.

Compound that with welding in new angle strips on a 48yr old bed that is dented and surface rusted. Then once that is all done you have to get over 60 bolts to line up perfectly to put it back together. Rolling Eyes

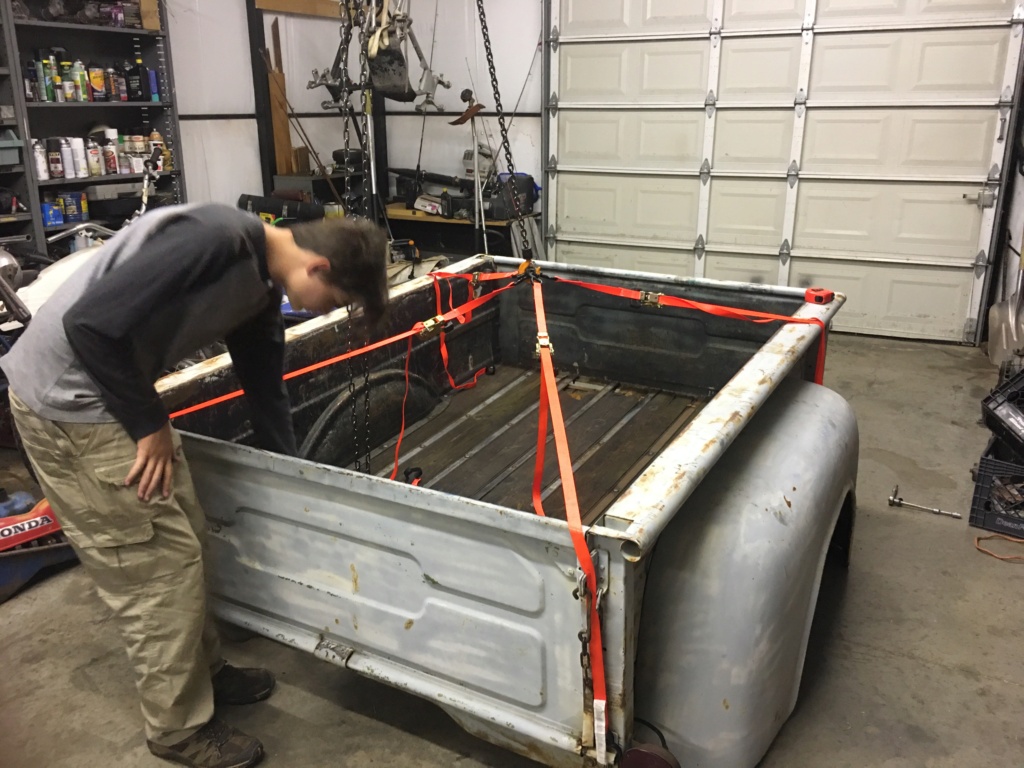

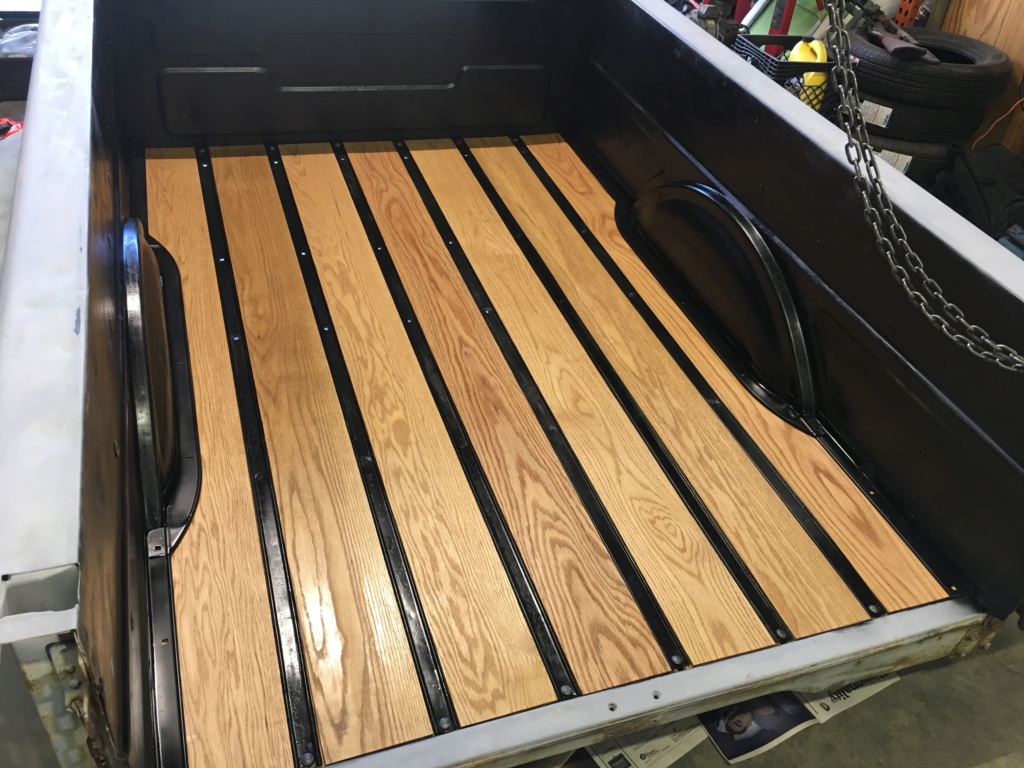

I started this project last Tuesday and I am nearing completion. Bed should go back on tomorrow, then I need to weld and massage the tailgate as it’s not straight either. I am attaching a before and after picture.

Ron

Bed Wood restoration  9f0ba710
Bed Wood restoration  764ace10
Bed Wood restoration  8d228210
Cribbs74
Cribbs74
Moderator

2019 Supporter

2020 Supporter

Posts : 11180
Join date : 2011-10-24
Age : 46
Location : Tuttle, OK

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  OhBee on Wed Dec 02, 2020 1:08 am

Oooh,SWEET! It's that hot 360 that torqued your box out of square! 🙂
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 610
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  Ken Cook on Wed Dec 02, 2020 3:55 am

I've done 2 of them and it's a lot of work. First was a Lil Red using ash and my neighbor has a Warlock which I did in white oak. I did the Lil Red when I was in high school and to date it's still holding up well. The oak is not so good, it can be repaired but the open grain created a lot of lifting and checking. I did the Warlock 10 years ago. Rabbeting in the retaining strips was a bit of a task. It would take 3 passes per board otherwise it would chunk and tear out. My neighbor bought polished stainless and most of the holes were off which we spent a lot of time with a uni bit opening up the holes in the channels.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 4181
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  getback on Wed Dec 02, 2020 6:57 am

Man that looks GOOD i envy your energy !! I have never taking a bed off a truck and it does look like a lot of work for sure >> since it was out of sq. let me ask , could you have not used a port-a-power (rent) to put it back in sq. or would that have made it not fit back on the truck? Huh... Paint next?! Snowman
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 7466
Join date : 2013-01-18
Age : 63
Location : julian , NC

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  Cribbs74 on Wed Dec 02, 2020 11:32 am

Ken,

Glad I am not alone in the pain, I originally had yellow pine in the bed, but went with Oak this go around. Expensive at $30 a board. I took a lot of measurements before I welded the angle strips on, luckily I only had one hole that didn’t play nice. I was only off a little so I just opened up the underneath bed hole a little. My biggest issue was the fore and aft meaaurment. I was over an inch off with the bed strip alignment. I had to unbolt the bed front and reshape it as over the years the bottom was pushed forward from stuff slamming into it.

Eric, everything unbolts on that bed and it can be manipulated by hand with a little bit of effort and a big hammer. The box itself is 4 separate panels minus the tailgate.

OhBee. That bed needed attention long before I installed the 360, it probably just finished it off!

I love this truck so to me it’s worth it.

Cribbs74
Cribbs74
Moderator

2019 Supporter

2020 Supporter

Posts : 11180
Join date : 2011-10-24
Age : 46
Location : Tuttle, OK

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  rsv1cox on Wed Dec 02, 2020 5:24 pm

Wow, beautiful Ron. Nothing like natural wood for that good feeling feel.

But, TREX, that stuff will outlive your truck.

https://www.homedepot.com/p/Trex-Transcend-1-in-x-5-5-in-x-1-ft-Tiki-Torch-Composite-Decking-Board-Sample-TTT90000/302673448?MERCH=REC-_-pipsem-_-302673464-_-302673448-_-N

and you don't have to worry about scaring it up.
rsv1cox
rsv1cox
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 5843
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  dckrsn on Wed Dec 02, 2020 7:05 pm

Bed Wood restoration  The-li10
Apropo of nothing, except it is a Dodge.
Bob


Last edited by dckrsn on Wed Dec 02, 2020 7:38 pm; edited 1 time in total
dckrsn
dckrsn
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 2428
Join date : 2010-10-21
Age : 68
Location : Long Island, New York

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  Marleysky on Wed Dec 02, 2020 7:32 pm

Ron, that really looks fantastic! That oak should last a good long time if your just hauling dirt bikes and quads. What cuts am I missing, left side, right side, Front(top), back (bottom) first 4 . Are there tongue and groove to fit in the side in between?
I had a 85 Chevy El Camino, moved just about everything in the back of it. 20 years later the ONLY part of the vehicle that didn’t have any rust was the bed!
Marleysky
Marleysky
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 2828
Join date : 2014-09-28
Age : 68
Location : Grand Rapids, MI

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  NEW222 on Wed Dec 02, 2020 7:49 pm

Amazing work there Ron. Looks great, and I am sure that even though your pictures do make it look great, I am sure that they do not do it justice as compared to seeing it in person. Keep up the good work!
NEW222
NEW222
Top Poster
Top Poster

Posts : 3066
Join date : 2011-08-13
Age : 42
Location : oakbank, mb

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  Cribbs74 on Wed Dec 02, 2020 7:56 pm

No tongue and groove, you have to cut each side twice to make the groove for the bed strip, then cut to length and then 2 passes through the planer. Looking down the board end it looks like this:

Bed Wood restoration  C16e8610
Cribbs74
Cribbs74
Moderator

2019 Supporter

2020 Supporter

Posts : 11180
Join date : 2011-10-24
Age : 46
Location : Tuttle, OK

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  dckrsn on Wed Dec 02, 2020 9:53 pm

Labors of love produce the richest of rewards.
Really nice work, Ron.
Bob
dckrsn
dckrsn
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 2428
Join date : 2010-10-21
Age : 68
Location : Long Island, New York

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  Marleysky on Wed Dec 02, 2020 10:20 pm

Cribbs74 wrote:No tongue and groove, you have to cut each side twice to make the groove for the bed strip, then cut to length and then 2 passes through the planer. Looking down the board end it looks like this:

Pictures worth a 1000 words, sketch’s are worth more!!   Thanks for sharing!
Yup, woodworking is like model building, just bigger sticks.
loving your craftsmanship.
Marleysky
Marleysky
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 2828
Join date : 2014-09-28
Age : 68
Location : Grand Rapids, MI

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  OhBee on Thu Dec 03, 2020 8:16 am

Whens the new paint coming?....🙂
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 610
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  NEW222 on Thu Dec 03, 2020 8:41 am

Wow. I was wondering how and why you mentioned so many cuts per board. I never knew, and only thought they were straight boards with a simple joiner between. But apparently that was not the case. Learn something new every day!
NEW222
NEW222
Top Poster
Top Poster

Posts : 3066
Join date : 2011-08-13
Age : 42
Location : oakbank, mb

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  OhBee on Thu Dec 03, 2020 9:12 am

I've removed and reinstalled several boxes...but never did the woodwork R&R !
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 610
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  Cribbs74 on Thu Dec 03, 2020 9:31 am

Yeah, it looks simple, you could get away with cutting boards to length and bolting the strips on top of the wood. Problem is sliding things in and out of the bed would be impossible. The factory did it this way for a reason.

If I had a Dado blade I could have done it in one pass per side. I had a table saw so It took more cuts to make it right. Might have gone faster if I was a carpenter.

I’d rather be working on the Super Clown, but this had to get done.
Cribbs74
Cribbs74
Moderator

2019 Supporter

2020 Supporter

Posts : 11180
Join date : 2011-10-24
Age : 46
Location : Tuttle, OK

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  OhBee on Thu Dec 03, 2020 11:57 am

Well you need diversity in your projects....trust me...As its too cold here for garage work,all I've done is model work at the bench in the basement. ...Frankly I'm getting tired of this plane!
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 610
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  rsv1cox on Thu Dec 03, 2020 12:06 pm

OhBee wrote:Well you need diversity in your projects....trust me...As its too cold here for garage work,all I've done is model work at the bench in the basement. ...Frankly I'm getting tired of this plane!

I can sympathize OB, nothing like getting outside in the fresh air and getting your hands dirty.

Only 120 days left of this stuff.  Shortest day/longest night of the year comes in couple of weeks, then the days start getting longer.  O dark hundred at 1630 is no fun.
rsv1cox
rsv1cox
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 5843
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  dckrsn on Thu Dec 03, 2020 5:48 pm

Cribbs74 wrote: Might have gone faster if I was a carpenter.
"If I Were A Carpenter"
Bob
dckrsn
dckrsn
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 2428
Join date : 2010-10-21
Age : 68
Location : Long Island, New York

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  roddie on Thu Dec 03, 2020 6:25 pm

Beautiful work Ron. Looks really nice!
roddie
roddie
Top Poster
Top Poster

Posts : 7050
Join date : 2013-07-17
Age : 60
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  Cribbs74 on Thu Dec 03, 2020 9:55 pm

dckrsn wrote:
Cribbs74 wrote: Might have gone faster if I was a carpenter.
"If I Were A Carpenter"
Bob

I stand corrected.... Thanks Tim Hardin. Laughing
Cribbs74
Cribbs74
Moderator

2019 Supporter

2020 Supporter

Posts : 11180
Join date : 2011-10-24
Age : 46
Location : Tuttle, OK

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  crankbndr on Fri Dec 04, 2020 6:31 am

That oak looks nice in there! I should hold up well with a good oil finish that soaks in well, maybe 20 W synthetic. Laughing Will darken though.
Price of lumber is going up, crazy! Tree huggers I suspect.
I was a carpenter 40 yrs, retired now. Since you have a table saw and did that nice restro work I say you are an honorary carpenter!! lol!
crankbndr
crankbndr
Diamond Member
Diamond Member

I Support My Forum

Posts : 2619
Join date : 2011-12-10
Location : Homestead FL

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  davidll1984 on Fri Dec 04, 2020 12:36 pm

Is it ?Ford f150 1979 stepside 4x4 Shocked y wanted To trade one wit m'y 1980 Porsche 924 s dint hapen couple year from now finaly sale the cars for 6000$ now mis m'y old 924 Crying or Very sad
davidll1984
davidll1984
Platinum Member
Platinum Member

Posts : 900
Join date : 2020-02-12
Age : 36
Location : shawinigan

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  Jason_WI on Fri Dec 04, 2020 3:07 pm

When my friend was restoring his 50 F1 Ford truck I cut him black walnut on my bandmill for use as the bed boards. Also made a center console and a display piece for under the hood on his CNC router. He wanted something different.

Bed Wood restoration  9c5e7b10

Bed Wood restoration  1bc0bf10

Bed Wood restoration  Eee5df10


His next truck a 52’ Ford he will use spalted maple for the bed.

Bed Wood restoration  A4950410
Jason_WI
Jason_WI
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 3059
Join date : 2011-10-09
Age : 45
Location : Neenah, WI

Back to top Go down

Bed Wood restoration  Empty Re: Bed Wood restoration

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top



Permissions in this forum:
You cannot reply to topics in this forum
