need help identifying these engines/parts

Go down

need help identifying these engines/parts Empty need help identifying these engines/parts

Post  lalakunoth Thu Mar 04, 2021 4:25 pm

Hi everyone! Here's another lot of parts/engines/etc... from Happydad's collection. Once I figure out what everything is I'll be posting them to ebay so any help on identifying a few things below is much appreciated!

There are too many images to share here, so this is a link to my google drive where you can see them all:
https://drive.google.com/drive/folders/1xqpcxRs4WBKiUKobmxrnBrsf_OksRpPd?usp=sharing

IMG-1193 - Cars - I want to keep and fix 1 of them up, which one would you recommend keeping? The other 2 I will sell.
IMG-1240 - is this the ghost medallion someone was interested in?
IMG-1247 & 1248 - any idea what this is??

Everything else - any tips on selling the rest, ie. another huge lot of parts, or separately, please let me know

And if you see something you want/need, just dm me a reasonable offer. I'd love for his things to go to people who will use and appreciate them!
lalakunoth
lalakunoth
Moderate Poster
Moderate Poster

Posts : 18
Join date : 2021-01-10
Location : Carlsbad, CA

Back to top Go down

need help identifying these engines/parts Empty Re: need help identifying these engines/parts

Post  OVERLORD Thu Mar 04, 2021 5:27 pm

Hi Laura,

I think the red car, a Prop Rod, on the right is the most valuable. But it's missing the canopy.
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1673
Join date : 2013-03-19
Age : 56
Location : Normandy, France

Back to top Go down

need help identifying these engines/parts Empty Re: need help identifying these engines/parts

Post  Marleysky Thu Mar 04, 2021 5:42 pm

Well let me be the first to respond, with some identifying remarks.
keep the Yellow Shrike, sell the Red Prop Rod (to me) and sell the sand blaster.

What i see:
1193. Racing tires, sandBlaster yellow shrike(yours) Red propRod (mine)
1194. Cox 049, electric motor, + misc parts
1199. 1/2a plane landing gear
1207. Car tires and bushings on top, plane wheels on botton
1208. Buggy tires?
1214 Shrike axle with tires (front) sand blaster Rear tires and wheels
1218 Spinners and nosecones, can’t see are the white ones for three blades prop?
1226 glow heads
1227 glow heads
1228 prop balancer, A3 glo plugs
1229 cox crankcase gaskets
1220 older OEM cox glow head (check number)
1231 reed retainers and mylar reeds for 049
1232 tank gasket (dragon fly?) venturi gaskets, cylinder shims? Mufflertops?
1235 cox battery as marked
1236. Parts as packaged
1237 engine crankcases and cylinder head Heat sinks
1238 pistons and screws as marked
1241. 1/2a engine mount for profile control line plane (Goldberg?)
Marleysky
Marleysky
Top Poster
Top Poster

2020 Supporter

2021 Supporter

2022 Supporter

Posts : 3559
Join date : 2014-09-29
Age : 69
Location : Grand Rapids, MI

Back to top Go down

need help identifying these engines/parts Empty Re: need help identifying these engines/parts

Post  Marleysky Thu Mar 04, 2021 6:19 pm

1240. Cox medallion 049, throttle sleeve that should fit the ground cylinder of the medallion, a spray bar, 4-cox cylinders...No I don’t think this is the Ghost Engine

1241.Parts as marked, 1/2a motor mount, wrenchs
1242. Older servo mounting trays
1243. Fuel tube
1244. attwood 049 crankcase w/cox driveplate. (Missing cylinder head & Glo plug)
         Pkg of cox drive plates and bent con rod.
1245 & 1246 Carburetor for larger engine ( im guessing a 32cc weedwacker type)

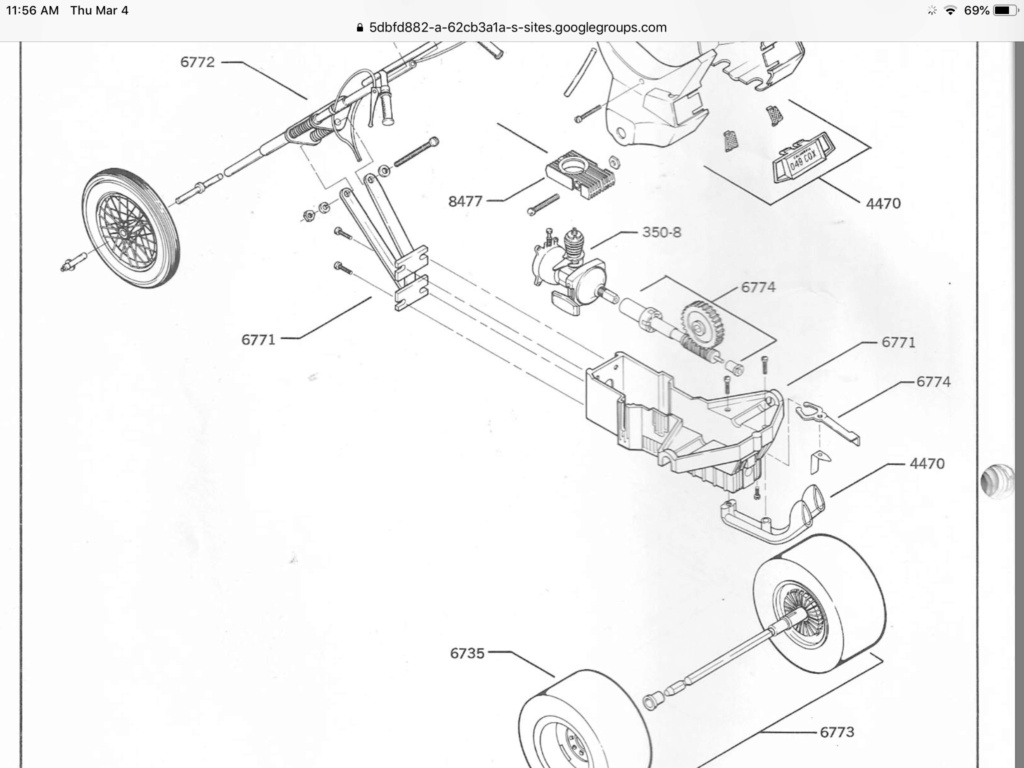

1247 & 1250 cox TriCycle engine base and axle, front frame: see picture
need help identifying these engines/parts 64a6df10

1249. It’s a thread cutting Tap. See side of shank for size ie: 6-32 or 10-24 or??
1251.  Ooo some goodies, spread em out so we can see what’s there! (Oh, they might be throttle cables with end connectors )
1255. Older servos on top, the “orange box” is a Orange micro receiver with binding plug and attached to a small micro servo.

I think that’s it,  hopefully some others can chime in and add to or fine tune my descriptions!


Last edited by Marleysky on Thu Mar 04, 2021 6:24 pm; edited 1 time in total (Reason for editing : Gtp parts guess)
Marleysky
Marleysky
Top Poster
Top Poster

2020 Supporter

2021 Supporter

2022 Supporter

Posts : 3559
Join date : 2014-09-29
Age : 69
Location : Grand Rapids, MI

Back to top Go down

need help identifying these engines/parts Empty Re: need help identifying these engines/parts

Post  lalakunoth Thu Mar 04, 2021 6:27 pm

Thank you sooo much!! You just saved me hours+ of searching online!! I'm still undecided on which car to keep, but will start to get everything else listed over the weekend and into next week.

Also 1251 is just a stack of the same part Wink
lalakunoth
lalakunoth
Moderate Poster
Moderate Poster

Posts : 18
Join date : 2021-01-10
Location : Carlsbad, CA

Back to top Go down

need help identifying these engines/parts Empty Re: need help identifying these engines/parts

Post  davidll1984 Fri Mar 05, 2021 12:23 am

Cox gtp brake câble wit its strap 1251 u have the engine wit its engine mount Good parts hard To Find bether sale one at the time
davidll1984
davidll1984
Diamond Member
Diamond Member

Posts : 2046
Join date : 2020-02-12
Age : 37
Location : shawinigan
