A boat for Happydad's Enya Empty A boat for Happydad's Enya

Post  OVERLORD Thu Mar 25, 2021 2:58 pm

I started the build of Vic Smeed's Remora. This runabout was designed in 1964 for a .19 engine. I will mount the Enya 19 IV marine form Happydad. The prototype had an OS 19. I have such an engine as well but the crankshaft thread is so uncommon now that finding a coupling is not an easy task. The Enya , however has a M6 thread for which it is easier to find or to make a coupling.

The Remora plan can be downloaded from Aerofred. The article from the Dec 1964 issue of Model Maker can be found on Modelboats.co.uk.

The Remora:


https://www.youtube.com/watch?v=jbTdqq582rg&t=25s

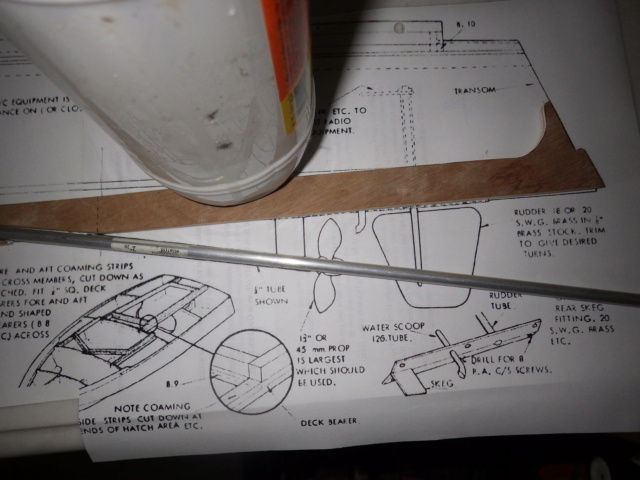

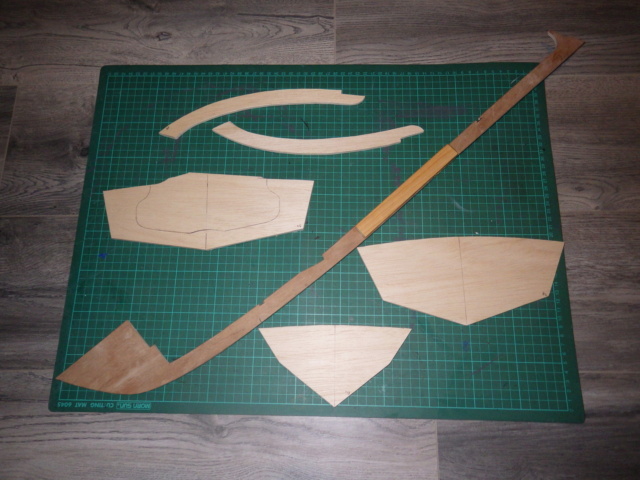

I printed out the plan on A4 and blew up parts of the drawing with frames and keel to make templates. I cut out frames and the 2 parts that form the keel. The keel was assembled to one piece with doublers in way of the prop shaft tube. All was assembled and glued over the plan. I made the keel from 5mm plywood instead of the 1/8" according to plan and too thin in my eyes. I still have to cut 1 frame and the transom out of 3mm ply.  Next thing to do is to cut out more frames and cut notches for the stringers and the keel.

A boat for Happydad's Enya Imgp6520

A boat for Happydad's Enya Imgp6519

A boat for Happydad's Enya Imgp6521

A boat for Happydad's Enya Imgp6522
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  davidll1984 Thu Mar 25, 2021 3:21 pm

Cool like the model Nice litle boat
davidll1984
davidll1984
Diamond Member
Diamond Member

Posts : 1535
Join date : 2020-02-12
Age : 36
Location : shawinigan

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  1/2A Nut Thu Mar 25, 2021 4:44 pm

Small Cox Logo Old Bugger Popcorn Clapping Thumbs Up Thumbs Up
1/2A Nut
1/2A Nut
Top Poster
Top Poster

2019 Supporter

2021 Supporter

Posts : 3100
Join date : 2013-10-20
Age : 58
Location : Brad in Texas

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  roddie Thu Mar 25, 2021 5:47 pm

Loved the vid Lieven! I so wish we didn't live so far from each other. I have a windfall of Birch plywood in thicknesses that you might want for laying-up a boat-hull. I've heard that there's a fella who lives near to me.. who is building model/outboard-boat drives for Cox engines. I will report further.. as discovery is made.
roddie
roddie
Top Poster
Top Poster

Posts : 7240
Join date : 2013-07-17
Age : 61
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Fri Mar 26, 2021 4:35 pm

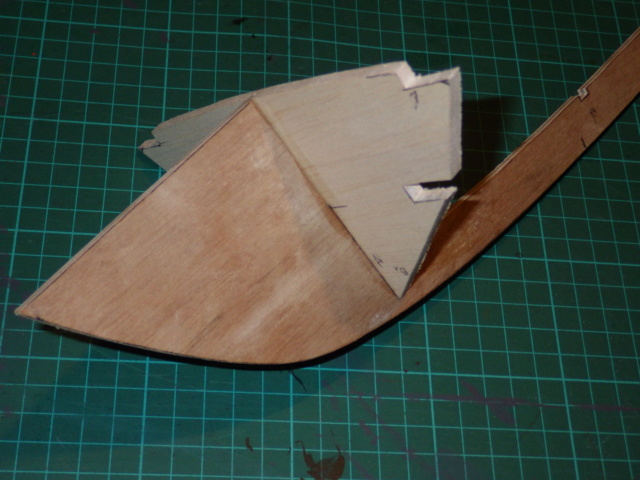

Thanks for your comments. The first frame is glued to the keel after cutting out the notches for the apron and breasthook parts. The apron on both sides is curved upwards and laminated from 2 pieces of 3mm thick balsa.

The second frame is ready to be glued and has to be fixed parallel to the forward frame. I will make spacers to put between both frames while drying.

A boat for Happydad's Enya Imgp6523

A boat for Happydad's Enya Imgp6524
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  rsv1cox Fri Mar 26, 2021 6:32 pm

It's going to be hard to top this one Lieven! Fell in love with it the first time I saw it.

A boat for Happydad's Enya Lieven11
rsv1cox
rsv1cox
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 6717
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  Cribbs74 Fri Mar 26, 2021 7:22 pm

I have to say you did some nice cutting there. Good choice of model too! Very sharp looking, wouldn’t mind a full size version of that.
Cribbs74
Cribbs74
Moderator

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 11637
Join date : 2011-10-24
Age : 47
Location : Tuttle, OK

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Sat Mar 27, 2021 2:58 am

@roddie wrote:Loved the vid Lieven! I so wish we didn't live so far from each other. I have a windfall of Birch plywood in thicknesses that you might want for laying-up a boat-hull. I've heard that there's a fella who lives near to me.. who is building model/outboard-boat drives for Cox engines. I will report further.. as discovery is made.

Yes, I will need thin plywood to skin the hull. Smeed says 1/16, so I'll use 1 mm. I still have a small sheet but it won't be long enough. I will have to find a place to acquire that at a reasonable price. In model shops, this cost an arm and a leg. Before, fruit cases were a good source but now they're mostly made of carton. Curious to know about the Cox outboard drive, with gears or a cable maybe?

@Cribbs74 wrote:I have to say you did some nice cutting there. Good choice of model too! Very sharp looking, wouldn’t mind a full size version of that.

I use a scroll saw to cut all that stuff. The frames are 5mm balsa or 3mm ply. The balsa is a very hard quality and not as light, it feels more like oak. It take some practice to work with the scroll saw but when you get the hang of it, it's very fast. A full size version? why not. People built Cluedo houses in the past!!

@rsv1cox wrote:It's going to be hard to top this one Lieven!  Fell in love with it the first time I saw it.

That's from a few years back. The problem is that the Dragonfly doesn't have enough power. The engine should be an 09 minimum I think. and then with a 3 blade LH prop?! One time, I started to put wheels on it with trailing arms and springs, then in another year, I made knifes for ice to replace the skis. By the time I got a feasable idea, frost was gone.
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  getback Sat Mar 27, 2021 6:19 am

Very Happy Thanks for bringing us along , this should bee a interesting build . Looking Good ! This Site Rocks!
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 8108
Join date : 2013-01-18
Age : 64
Location : julian , NC

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Sat Mar 27, 2021 12:26 pm

Thanks Eric.

The Remora looks like the Chris Craft Custom Sedan

A boat for Happydad's Enya 1950-c10


https://www.youtube.com/watch?v=dg6otpcm2Ys
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  roddie Sat Mar 27, 2021 12:45 pm

@OVERLORD wrote:
@roddie wrote:Loved the vid Lieven! I so wish we didn't live so far from each other. I have a windfall of Birch plywood in thicknesses that you might want for laying-up a boat-hull. I've heard that there's a fella who lives near to me.. who is building model/outboard-boat drives for Cox engines. I will report further.. as discovery is made.

Yes, I will need thin plywood to skin the hull. Smeed says 1/16, so I'll use 1 mm. I still have a small sheet but it won't be long enough. I will have to find a place to acquire that at a reasonable price. In model shops, this cost an arm and a leg. Before, fruit cases were a good source but now they're mostly made of carton. Curious to know about the Cox outboard drive, with gears or a cable maybe?


Yes.. plywood in that thickness is going to be expensive.. unless you can source some through a non-model/hobby entity. The wood (3-ply Birch) that I have in surplus, is .093" (2.3mm) at its thinnest. I still have some 1/16" and 1/32" plywood that I bought from Sig years ago.. but I use it mostly for 1/4A-1/2A profile C/L airplane nose-doublers.

I spoke with the fellow who is building the Cox glow-engine powered outboards a few nights ago.. but didn't want to overwhelm him with questions about them. He's a model-boat guy.. and is into vintage hydroplanes. He lives only a few miles away from me.. so I want to ease-my way into his domain. I actually found him thru CEF member Bill Steklenski". I mentioned my having a surplus of 2-3mm birch plywood to share.. to which he mentioned having a stock of Mahogany plywood that he purchased directly from Dumas.. if I needed any. Regarding the outboard-units.. I didn't press him for info. on them. I hope to find out about them soon.

I like the Remora a LOT! I've wanted to build a glow-engine powered/inboard-drive runabout for what seems like forever.. but haven't sourced plans for one. I like the Chris Craft "Continental" and "Corina".. but don't know of any scale-model plans for them.

A boat for Happydad's Enya Chris-10
A boat for Happydad's Enya Chris-11

Gorgeous water-crafts.. Another high-quality American pleasure-boat manufacturer was "Century". One of my earliest exposures; camping with my grandparents on lake Manchaug in Sutton, MA circa 1969.. the Menard family had a gorgeous 19' Century runabout with an inboard-drive 390 cu. in. V8. That lake was scarcely long-enough to open-up the throttle on that boat. It was a 60+mph. boat when it planed-out at full throttle. Smile
roddie
roddie
Top Poster
Top Poster

Posts : 7240
Join date : 2013-07-17
Age : 61
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Sun Mar 28, 2021 2:37 am

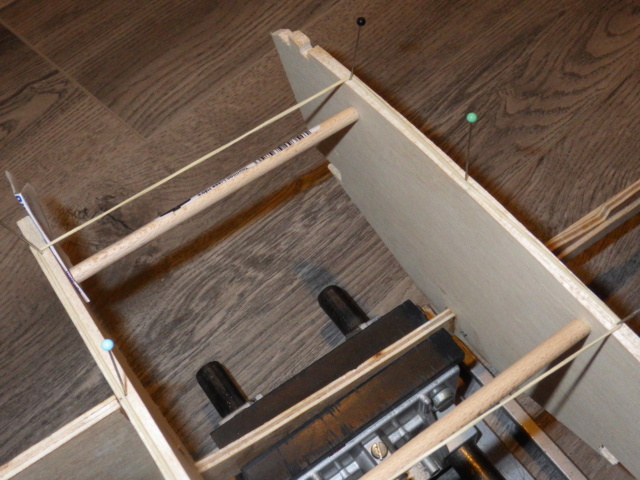

This is how I immobilized the second frame: I cut 2 dowels of equal length that were held between the frames by rubber bands. On the bottom, the frame is notched, so there, it can't move. On top of the frames I put some pins to hold the rubber band and keep everything tight. I then measured the distance on both sides near the keel and on top near the edges. I adjusted where needed by adding paper until it was right. The pins in the centre are there to check the centre line.

A boat for Happydad's Enya Imgp6525

A boat for Happydad's Enya Imgp6526

A boat for Happydad's Enya Imgp6527



The 3rd frame is a ply one. I need to make the cut outs for the stringers and a hole for the exhaust pipe.
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Fledgling

Post  Coxfledgling Sun Mar 28, 2021 2:42 pm

That is so good, Vic Smeed stuff is brill.
I bet happydad is really happy and smiling like a Cheshire cat !

Nice one. How did you recover the boat, cast a line over it a real it in ?

A water cooled exhaust cools, quietens and seems to make engine run a bit better, but make sure the engine cannot ingest any water.

You started engine via thin rope or belt and electric starter ?

A model skier who rides out of the water when boat moves off ?
Coxfledgling
Coxfledgling
Gold Member
Gold Member

Posts : 152
Join date : 2021-01-10

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Sun Mar 28, 2021 5:02 pm

@Coxfledgling wrote:That is so good, Vic Smeed stuff is brill.
I bet happydad is really happy and smiling like a Cheshire cat !

Nice one.  How did you recover the boat, cast a line over it a real it in ?

A water cooled exhaust cools, quietens and seems to make engine run a bit better, but make sure the engine cannot ingest any water.

You started engine via thin rope or belt and electric starter ?

A model skier who rides out of the water when boat moves off ?

I find Smeed's plans well drawn and the parts fit well together. I never recovered it because  I just started building. I started the other engines I have with a shoe lace. I hope to do the same with this one.
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Mon Mar 29, 2021 2:55 am

To give the stem some strength, I fixed the breasthook parts on both sides. First I dry fitted both parts and adjusted the frame cut-outs.


A boat for Happydad's Enya Imgp6530

A boat for Happydad's Enya Imgp6529

A boat for Happydad's Enya Imgp6528

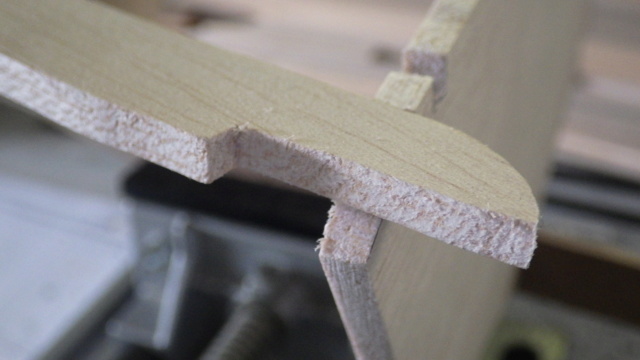

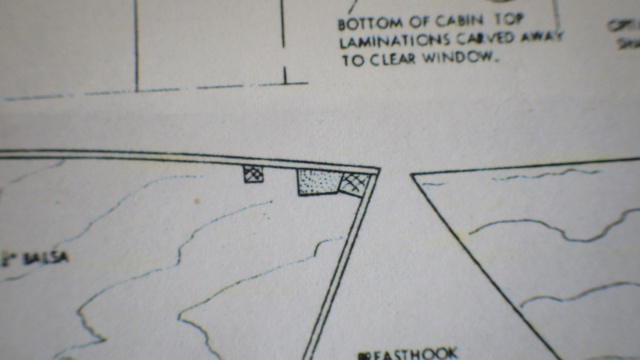

Near the second frame, the breasthook connects to the inwale. The inwale is positioned at an angle. The breasthook cut-out needs to be adjusted to fit.

A boat for Happydad's Enya Imgp6532

A boat for Happydad's Enya Imgp6531

A boat for Happydad's Enya Imgp6533

A boat for Happydad's Enya Imgp6534


However, there is an error on the drawing. In way of frame 1, the inwale and chime are still drawn but both inwale and chime stop at about 10 mm in front of frame 2.

A boat for Happydad's Enya Imgp6535

A boat for Happydad's Enya Imgp6536
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  getback Mon Mar 29, 2021 5:05 am

I am glad you know what ur doing , a lot of this is foreign to me Smile
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 8108
Join date : 2013-01-18
Age : 64
Location : julian , NC

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Tue Mar 30, 2021 2:53 am

The 3rd frame is glued in place. Before I fix the next frame, I have to drill a hole for the exhaust. I put the engine where it is supposed to be mounted lateron to determine the lateral position of the exhaust pipe.



A boat for Happydad's Enya Imgp6538

A boat for Happydad's Enya Imgp6537
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Fri Apr 02, 2021 1:50 am

All frames and transom stern glued. Next thing to do is to saw the stringers of 7x7mm square, glue the stringers to the frames and at the same time fit and glue the aprons.

A boat for Happydad's Enya Imgp6539
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  getback Fri Apr 02, 2021 8:26 am

Looking Good ! I like the way you use the drill press clamp? it seems to do a good job of holding things stable too while working on it.
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 8108
Join date : 2013-01-18
Age : 64
Location : julian , NC

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Sat Apr 03, 2021 9:23 am

After checking the appearance and dimensions, I found out that there was a problem with frame 4, the one that is cut out. The frame was too high and I removed 3 mm in heigth. I also cut the 4 stringers. They're a bit stiff and difficult to bend so I cut slots every 10 mm to make bending easier.



A boat for Happydad's Enya Imgp6540

A boat for Happydad's Enya Imgp6542

A boat for Happydad's Enya Imgp6541
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Mon Apr 05, 2021 1:45 am

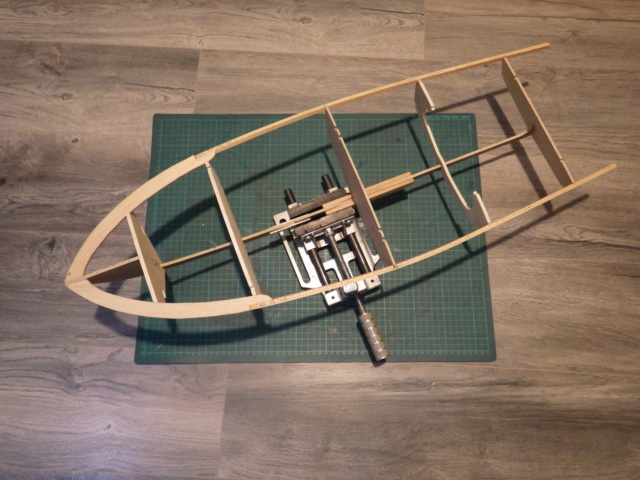

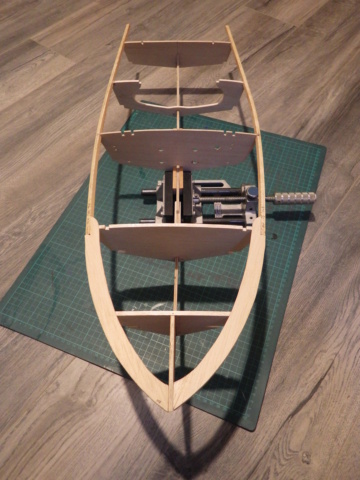

In the past 2 days, I glued the inwales. It takes a lot of measuring to keep the frames in the right position and to keep the symmetry. I started at the breasthook ends and glued the inwales at each next frame on both sides. I will have to adjust frame 4 some more. Next thing to fix are the chines and aprons.

A boat for Happydad's Enya Imgp6543

A boat for Happydad's Enya Imgp6610

A boat for Happydad's Enya Imgp6611

A boat for Happydad's Enya Imgp6612
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Tue Apr 06, 2021 5:43 am

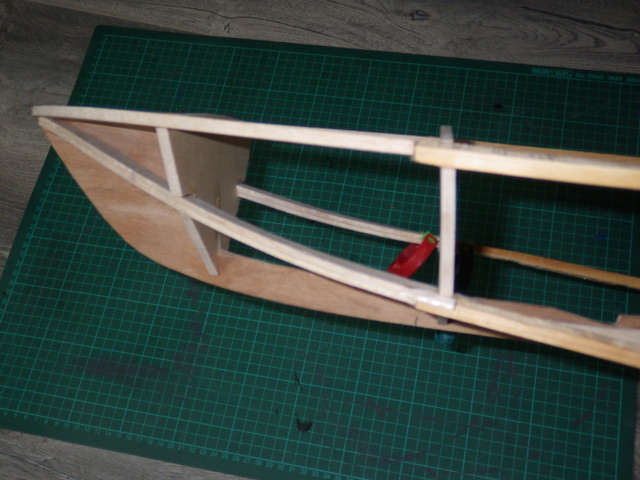

Today, I glued the aprons. The aprons are the internal beams in way of the stem. They need to be curved and that's why each apron is build up from 2x 3mm pieces that are laminated to keep the shape required.

A boat for Happydad's Enya Imgp6613

A boat for Happydad's Enya Imgp6615

A boat for Happydad's Enya Imgp6614
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  944_Jim Tue Apr 06, 2021 7:49 pm

I'm digging this build. Thanks for sharing. I look forward to the completed model!
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1226
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Wed Apr 07, 2021 10:51 am

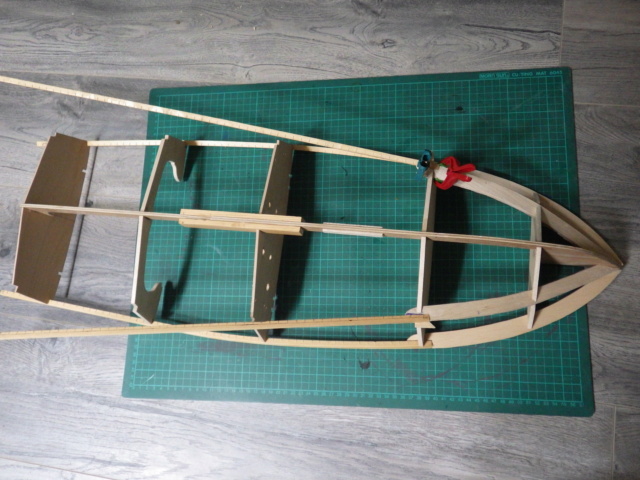

I started to glue the chines. The rear part of the chines is almost straight but the forward part between frame 2 and 3 is curved upwards. I fixed the forward end of the chine to frame 2 and in line with the apron on both sides. When fully dry -and that will be tomorrow at noon- the chine can be pulled around to be glued to the next frames. For now, I ended up with some sort of Spoutnik.


A boat for Happydad's Enya Detail10

A boat for Happydad's Enya Imgp6617

A boat for Happydad's Enya Imgp6616

A boat for Happydad's Enya Imgp6618
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  OVERLORD Fri Apr 09, 2021 2:14 pm

Getting there...

A boat for Happydad's Enya Imgp6619

A boat for Happydad's Enya Imgp6621

A boat for Happydad's Enya Imgp6622

A boat for Happydad's Enya Imgp6623
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1644
Join date : 2013-03-19
Age : 55
Location : Normandy, France

Back to top Go down

A boat for Happydad's Enya Empty Re: A boat for Happydad's Enya

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top



Permissions in this forum:
You cannot reply to topics in this forum
