Wen-Mac .049 exhaust throttle spring

stuntpilot Sun Jun 27, 2021 8:32 pm

I need a picture or instructions on how the spring and throttle arm on the exhaust "throttle" plate work. Its for the flying platform that has a control wire and a throttle string attached to the arm.

Marleysky Mon Jun 28, 2021 1:20 pm

stuntpilot wrote:I need a picture or instructions on how the spring and throttle arm on the exhaust "throttle" plate work. Its for the flying platform that has a control wire and a throttle string attached to the arm.

go here and scroll down about 2/3rds of the thread:

https://www.coxengineforum.com/t5836-amf-wen-mac-parts-or-help

OOPS! ! You want pics of the Hiller Flying Platform...that not what I showed above, sorry.

Marleysky Mon Jun 28, 2021 1:51 pm

this one is on E-bay right now if you want to buy one.
https://www.ebay.ca/itm/264586917994?hash=item3d9a9bf86a:g:ZgAAAOSwkP1eDzoO

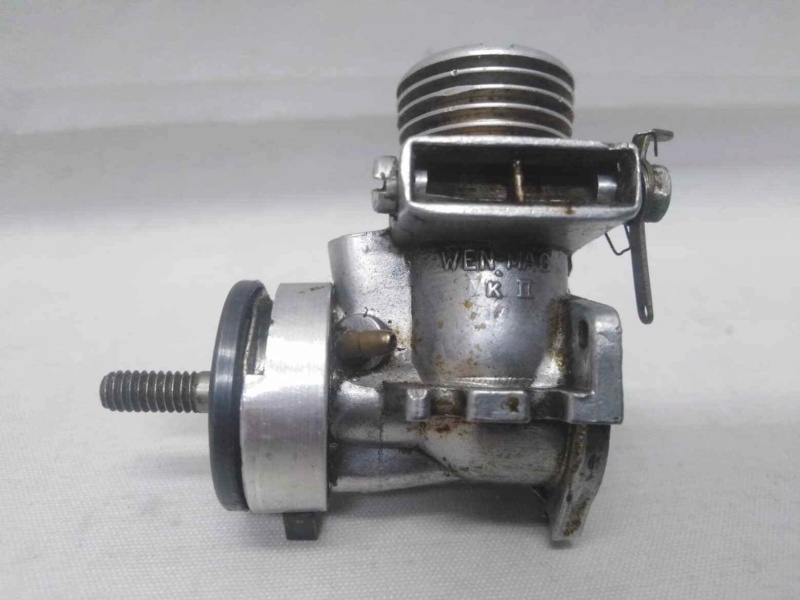

Wen-Mac .049 exhaust throttle spring Wenmac10

stuntpilot Mon Jun 28, 2021 3:20 pm

Marleysky wrote:
stuntpilot wrote:I need a picture or instructions on how the spring and throttle arm on the exhaust "throttle" plate work. Its for the flying platform that has a control wire and a throttle string attached to the arm.

go here and scroll down about 2/3rds of the thread:

https://www.coxengineforum.com/t5836-amf-wen-mac-parts-or-help

OOPS! ! You want pics of the Hiller Flying Platform...that not what I showed above, sorry.

Thats ok, it has a unique throttle adjustment exhaust port. The engine I have had been taken apart and therefor I don't exactly know how it goes back on.

stuntpilot Mon Jun 28, 2021 3:23 pm

Marleysky wrote:this one is on E-bay right now if you want to buy one.
https://www.ebay.ca/itm/264586917994?hash=item3d9a9bf86a:g:ZgAAAOSwkP1eDzoO

The one I have had been taken apart and was just kind of put together. I am sure I have all the pieces and will have to just reverse engineer the arm, spring, step washer for centering the spring and the nut. The one pictured is also in a messed up condition with a bent arm and the spring looks to be not attached at the lower end.

Kim Mon Jun 28, 2021 4:32 pm

I had this one handy, and think it's untouched as far as the throttle assembly is concerned. As you probably know, it's spring-loaded closed so a third line can be pulled, opening the throttle.

Hope this might help:

Wen-Mac .049 exhaust throttle spring Wm_thr10

Wen-Mac .049 exhaust throttle spring Wm_thr11

getback Mon Jun 28, 2021 4:34 pm

Hey Man is this it i don't know alot about Wen-Mac But googled what you said you were looking for >> https://thecabe.com/forum/threads/wen-mac-049-model-airplane-engine-with-instructions.152163/

stuntpilot Tue Jun 29, 2021 7:30 pm

Kim wrote:I had this one handy, and think it's untouched as far as the throttle assembly is concerned. As you probably know, it's spring-loaded closed so a third line can be pulled, opening the throttle.

Hope this might help:

Yes that does help. Thanks
