It started w/a 3-view.. Empty It started w/a 3-view..

Post  roddie Wed Jan 12, 2022 8:06 pm

It started w/a 3-view.. because there was no kit/plan/drawing in this scale to build from. An airplane to compete in CEF's 1st 1/2A C/L Profi-Scale (reed) Speed-contest. Jim Roselle (CEF-JPvelo) was the brainchild for the idea.

Most of us who entered, had to get creative with a design. I settled on modelling an air-racing-conversion (Reno, NV air-racing series) of an F8F-2 Grumman Bearcat renamed "Rare Bear". I fell in love with the "whole idea" of that airplane.

I needed some scale-proportions to work with though.. so a 3-view was in order;

It started w/a 3-view.. Grumma10

and photos of the subject and the conversion;

It started w/a 3-view.. F8f-2-12
It started w/a 3-view.. 03bear11
It started w/a 3-view.. F8f-2-13
It started w/a 3-view.. Latu0010

We all had to design and build really small models.. and hoped that they'd fly.. and fly FAST!!!

Here's some early photos of my build;

It started w/a 3-view.. 11-11-10
It started w/a 3-view.. 11-11-11

The dark-tone wood is a hardwood-spar which does double-duty as a mounting-point for scale-location main landing-gear legs. (which have proven problematic for ROG launching)

It started w/a 3-view.. 11-11-12

The fuse was overbuilt.. because weight was not as much a concern with a straight-line/hammer-down race!

It started w/a 3-view.. 11-17-10

(to be continued)
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  firstwordisee Wed Jan 12, 2022 8:13 pm

Cant wait to see this unfold.
firstwordisee
firstwordisee
Gold Member
Gold Member

2022 Supporter

Posts : 147
Join date : 2021-11-01
Location : Descanso CA

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Wed Jan 12, 2022 8:29 pm

firstwordisee wrote:Cant wait to see this unfold.

Hey.. thanks! I took an insane amount of photos.. and have a 3-ring binder for hard-copies of drawings, build-notes.. alternate-scale decals.. (more insanity..)
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  firstwordisee Wed Jan 12, 2022 8:37 pm

Ive read a lot of your post here, you are Class A, building something that flies from pictures takes some special stuff. Very interested in you build just to see your ingenuity.
firstwordisee
firstwordisee
Gold Member
Gold Member

2022 Supporter

Posts : 147
Join date : 2021-11-01
Location : Descanso CA

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  Cribbs74 Wed Jan 12, 2022 10:33 pm

Yeah, but it hasn’t flown yet…. Laughing

Couldn’t help myself Roddie, please forgive me. Maybe this is the year? Hand launch it.
Cribbs74
Cribbs74
Moderator

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 11907
Join date : 2011-10-24
Age : 50
Location : Tuttle, OK

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  rsv1cox Thu Jan 13, 2022 7:04 am

As you know roddie, your Bearcat is one of my all time favorite models.

I bet your enjoying "Chuck Tuckers Hot-Rod Bell Kingcobras" article in the latest issue of Air Classics. Interesting how these WW2 era fighters were modified and used in the various air races.
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 11095
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Fri Jan 14, 2022 5:38 pm

Cribbs74 wrote:Yeah, but it hasn’t flown yet…. Laughing

Couldn’t help myself Roddie, please forgive me. Maybe this is the year?  Hand launch it.

Ron's 100% correct! I Love You Ron.. and it's because you're always direct. Smile
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Fri Jan 14, 2022 5:58 pm

rsv1cox wrote:As you know roddie, your Bearcat is one of my all time favorite models.

I bet your enjoying "Chuck Tuckers Hot-Rod Bell Kingcobras" article in the latest issue of Air Classics.  Interesting how these WW2 era fighters were modified and used in the various air races.

I appreciate that VERY much Robert! Thank You!

There's currently a forum thread that caught my eye entitled; "Bell P-39 Airacobra and P-63 Kingcobra confusion but so interesting".. and I'll be checking that out too. Smile CEF member RKflyer (Richard) built a P39 Airacobra for the 1st CEF Reed Speed contest.. and it was a "true" mid-engine example;

It started w/a 3-view.. 0051010
It started w/a 3-view.. Dscf0011
It started w/a 3-view.. Dscf0010

... now that deserves notoriety.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Fri Jan 14, 2022 6:05 pm

There were several WWII-era military aircraft models built for the CEF Speed Contest series. Some members built a "second" entry.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Fri Jan 14, 2022 6:20 pm

Our "Rusty" (Lord rest his soul) built a North American P51 Mustang for the Contest.. as did Mark Boesen.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Fri Jan 14, 2022 6:26 pm

Our member batjac (Mark McRiley) built Sea Fury racers that just "Pop" with excitement.. when you look at them..

his .049 variant;

It started w/a 3-view.. Dscn1510

his .020 variant;

It started w/a 3-view.. Post_c10

.. arent' those just wicked?
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  firstwordisee Fri Jan 14, 2022 6:45 pm

Love the flames behind tank on that one.
firstwordisee
firstwordisee
Gold Member
Gold Member

2022 Supporter

Posts : 147
Join date : 2021-11-01
Location : Descanso CA

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Sun Jan 16, 2022 12:20 pm

Getting back to my Bearcat; I overbuilt and overthought every little thing about that airplane. Geez.. I forget what it weighs.. but for a 16" w/s model.. it's pretty heavy. These photos will show most of the reason why..

It started w/a 3-view.. 12-10-10
It started w/a 3-view.. 12-21-11
It started w/a 3-view.. 12-21-10

There's a lot of wing area.. for a sheet-wing model of this size.

It started w/a 3-view.. 1-24-111
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Sun Jan 16, 2022 3:50 pm

To replicate its "round-engine" design.. I made my profile's fuselages' nose to the rear-most inside measurements of the cowl that I settled on. This would provide a top/bottom mounting. Four "tabs" would be added.. which radially-stabilized the cowl.

The cowling I chose was the cap from a cartridge-style aerosol air-freshener.

It started w/a 3-view.. Dsc02912

I used hole-saws to cut the two holes. In this case there where no offset engine-thrust angles to be considered; therefore
the hole for the "jug" was the one that required precise-figuring, in order to be on-center when mounted to the nose of the airplane.

It started w/a 3-view.. 12-13-11

The engine's "back-end" was changed from the 5cc integral tank, to the later (and current) "Horseshoe" backplate/carb. which moved the entire engine "rearward" requiring a 2nd cowling to be made where the jug would once again be centered. The jugs' orientation would also be changed from vertically-upright.. to horizontally-outboard.

Some photos;

It started w/a 3-view.. 1-24-113

Brass tabs which key-into a "ridge" just inside the cap/cowl helping to stabilize it.

It started w/a 3-view.. 1-25-113
It started w/a 3-view.. 1-25-114
It started w/a 3-view.. 1-25-115
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  rsv1cox Sun Jan 16, 2022 4:44 pm

I'm glad that you're revisiting this roddie. I'm eager to read about your finishing details, where you got the decals etc.
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 11095
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Sun Jan 16, 2022 5:46 pm

This model was built 8 years ago.. and you know  Huh...  ... it's hard to believe that much time has passed. Shocked Eight years ago "to the week".. (early Jan. 2014) I tried my hand at hard-soldering some uniflow-vent fuel tank designs. A first for me; I sought the advice of Paul Gibeault, Ken Cook.. read some articles.. and began cutting panels from .008" tinplate. I bought some Sun brand 1/8" OD soft copper tube from an auto parts store.

It started w/a 3-view.. Sunpro10
It started w/a 3-view.. Hillma10

This was the first tank.. (photo date 2014-01-08)

It started w/a 3-view.. 1-8-1411
It started w/a 3-view.. 1-8-1410
It started w/a 3-view.. 1-23-110
It started w/a 3-view.. 1-23-111

I would build several tanks of this design.. never even knowing if they would work.. but it was enjoyable for me. I was creating original pieces that should in theory work.

It started w/a 3-view.. 2-26-110
It started w/a 3-view.. 2-26-111

I wanted to see "how small" I could make a tank of this design.. with these materials. I could build a "spec. cc" tank for the contest later-on.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Sun Jan 16, 2022 6:03 pm

rsv1cox wrote:I'm glad that you're revisiting this roddie.  I'm eager to read about your finishing details, where you got the decals etc.

Hey Robert! Thanks so much for the interest. The original Rare Bear decal-sheet came from Tower Hobbies; offered as a spare part to an RC model of the "Rare Bear" that they offered at that time. Their ad images were .jpg format which could be saved and resized.. which Lynne helped me with. When the appropriate scale was decided, the graphics were laser-printed onto 8.5" X 11" matte-finish shipping labels.. (a far cry from decals.. but is what I used) Those laser-printable matte-finish shipping labels were available through Staples .com at that time.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Sun Jan 16, 2022 7:19 pm

The landing gear was custom made by me. I've always been an advocate for scale-like gear on a scale model aircraft. "This one" would comply. Its tail-dragger design; I'd planned for early-on with the hardwood "strip-spar" near the L/E of the sheet-wing to provide a mounting-point for the mains.

I had no plans on winning this contest.. but wanted to look good trying. That would involve attempting to replicate the Bearcat's gear layout/location.

I'd always used K & S .062" music-wire for the "mains" on my designs. This build would be no different.. but it would be my first build having "independent" mains.. as opposed to the inverted-V style included in many 1/2-A C/L profile kits.

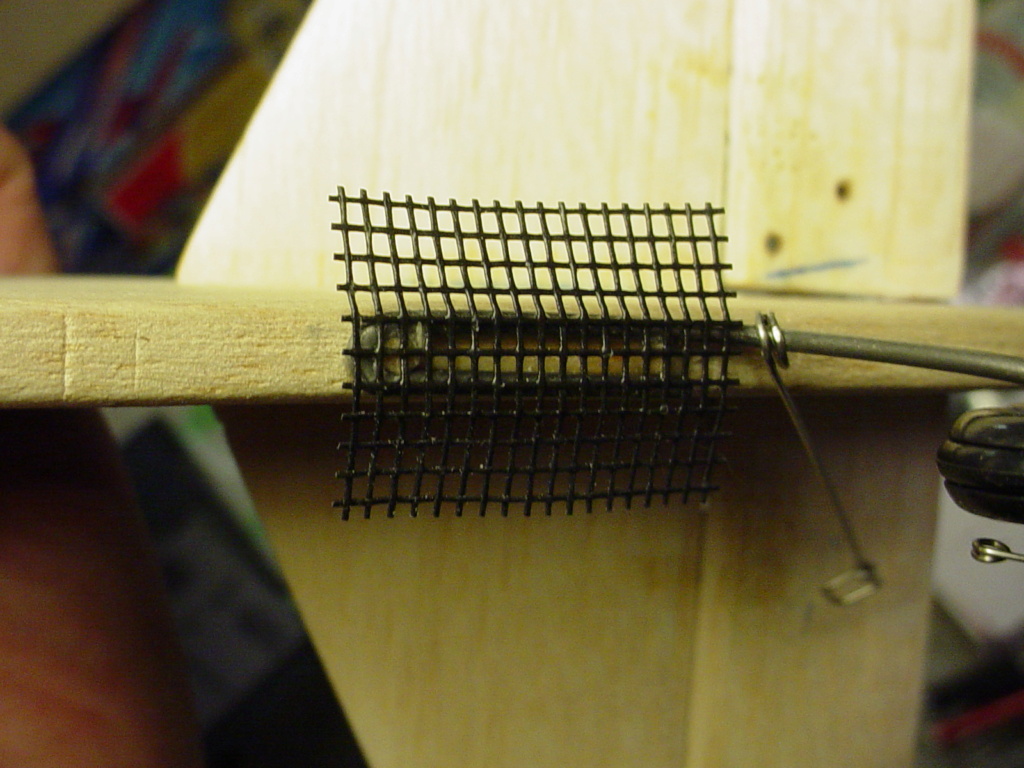

I needed to interface with the hardwood strip-spar.. which required a block for rigidity. I had a lg. kitbox full of pre-cut hardwood beam-stock.. and chose some Cherrywood to fabricate the two blocks. First I had to cut them to size.. then drill-through for the .062" dia. music-wire struts. What you "don't see" in the next photos is the V-notch filed-into the top of the block. The music-wire (strut) passes up thru the block and is then bent 90 degrees and trimmed to locate into the notch in the top of the block. The blocks are then drilled to accept wood-screws from the hardwood strip spar.

It started w/a 3-view.. 11-19-16

The wheels are homemade.. with the help of a CNC router machine..

It started w/a 3-view.. 9-9-1410

add hot-melt reinforcement, O-ring tires, axle-bearings and gear-doors.. Cool

It started w/a 3-view.. 11-19-17

The gear doors were cut from .020" clear plastic sheet.. which took paint quite well.


roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Mon Jan 17, 2022 6:45 pm

The tail-wheel is made from a rubber grommet with an appropriate size O-ring "tire" stretched around it and into the groove. The hub-hole was bushed to fit the axle.

It started w/a 3-view.. 12-28-10
It started w/a 3-view.. 12-28-11

I cut a tab from fiberglass window-screen.. and spread epoxy through it to reinforce the .062" dia. music-wire tail-wheel strut.

It started w/a 3-view.. 1-2-1410

The .025" music-wire link has an "eye" to engage a pin-stooge.

It started w/a 3-view.. 1-18-111

We are having fun..
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Mon Jan 17, 2022 7:10 pm

The elevator horn is a Dubro Cat. #107 and the engine is a Cox. Small Cox Logo Most everything else.. was custom fabricated from my model-stash of odds and ends.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Mon Jan 17, 2022 7:47 pm

Back when I worked for the sign company, I designed (CAD) some stuff for my models.. including the bellcrank that would be used here.

.030" sheet aluminum.. with a cast-acrylic bearing. sized to accept a #5 machine screw.

It started w/a 3-view.. 4-10-113

Lead-outs are .025" music-wire "solids" and the lead-out "guides" are made from safety pins.

It started w/a 3-view.. 4-10-114
It started w/a 3-view.. 4-10-115

We're really having fun now...
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Mon Jan 17, 2022 8:17 pm

So much stuff to be "fitted" then removed to resume the "finishing" processes. It's all good.. when you're "into it".. and I definitely was.

It started w/a 3-view.. 2-5-1410

I needed to create an illusion.. being a profile model with a sheet-wing..

It started w/a 3-view.. 3-28-110
It started w/a 3-view.. 3-28-111
It started w/a 3-view.. 3-28-112
It started w/a 3-view.. 3-28-113
It started w/a 3-view.. 4-10-116
It started w/a 3-view.. 4-10-117
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  balogh Tue Jan 18, 2022 12:30 am

Beautiful work Roddie, your zoom photos prove you are very particular about the details and accuracy of the build. Congratulations. It takes crafts, imagination  and patience I could very well use when I build..

The firewall shows 2 different engine mounting patterns. Which COX engines are the candidates? I guess one is the red horseshoe backplate reedie? Or maybe the same engine but in 2 optional mounting positions with the cylinder up or sideways?

Will you post photos or vids about the maiden flight?
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4908
Join date : 2011-11-06
Age : 65
Location : Budapest Hungary

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  getback Tue Jan 18, 2022 8:43 am

Nice to revisit this build and compaction , It was alot of fun ! My model pretty much sucked from look to fling , I don't think i even placed because of the push rod had NO guide and was flexing really bad ! WOW this was 2016 when was the first one ? https://www.coxengineforum.com/t8828p50-reed-speed-2016-qualifying-photos?highlight=reed+speed 20140>> Damn I can't find the one i was referring too LOL https://www.coxengineforum.com/t7115p400-cef-speed-contest-design-discussions-2014?highlight=reed+speed
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10390
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  roddie Tue Jan 18, 2022 7:13 pm

balogh wrote:Beautiful work Roddie, your zoom photos prove you are very particular about the details and accuracy of the build. Congratulations. It takes crafts, imagination  and patience I could very well use when I build..

The firewall shows 2 different engine mounting patterns. Which COX engines are the candidates? I guess one is the red horseshoe backplate reedie? Or maybe the same engine but in 2 optional mounting positions with the cylinder up or sideways?

Will you post photos or vids about the maiden flight?

Thanks so much Andras. "You" are certainly an inspiration for me. I only dream about being able to fly Radio Control.

The firewall does have two Cox .049 reed-valve patterns. The build started with the 5cc integrally-tanked engine with a straight-forward/upright cylinder orientation. No need for a stunt-venting.. but there was a matter of whether 5cc's would be enough fuel for the 10 laps. To swap-in an engine with the horseshoe-style backplate meant fabricating a 2nd cowling.. and working-out what to use for an external fuel-cell with a more than 5cc capacity. That's when I got involved with building the Tin-plate hard-tanks. I really enjoyed that.

Andras; this model has seen X2 outings (thus far..) where it might have flown. The 1st time was in 2014 for the 1st CEF Reed-Speed Contest.. and the 2nd was just a couple years ago. The model noses-over on a R.O.G. (stooge) launch from pavement. I've only tried to fly it those two times. The 2nd attempt saw smoother pavement (which I thought would make the difference..) but there were other gremlins involved.. that cautioned me; "today's not the day to fly this model Roddie".
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8658
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

It started w/a 3-view.. Empty Re: It started w/a 3-view..

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
