What tiny Cox engine is this?

Go down

Help! What tiny Cox engine is this?

Post  Casual Flyer Mon Apr 04, 2022 9:34 pm

Digging through my stuff and came across my OLD u-control engines (1950's).  I identified all except this one which is smaller than my Thimble Drome .049.
Some parts are missing and would like to make it whole again.

What tiny Cox engine is this? Back10
What tiny Cox engine is this? Bottom10
What tiny Cox engine is this? Front10
What tiny Cox engine is this? Left10
What tiny Cox engine is this? Right10
Casual Flyer
Casual Flyer
New Member
New Member

Posts : 3
Join date : 2022-04-04

Back to top Go down

Help! Re: What tiny Cox engine is this?

Post  GallopingGhostler Tue Apr 05, 2022 12:00 am

Yours is a .049 "190" product engine from the 1960's. They were made from 1962 to the late 1960's to power various Cox RTF's. Because your .049's nose taper is wider, I suspect it to be possibly from the latter half of the 1960's.

En-Academic Wikipedia - Cox Model Engines
en-academic wrote:* 1962 Series 190 Product Engine (Cat#190) Babe Bee with plastic backplate and brass needle valve. Various shapes were used depending on the model they were fitted to. Some had dual bypass port cylinders while others had single, it depended on the airplane.

It is commonly called a "postage stamp" engine. I have 2 of them salvaged from my RTF's while in high school, a Cox Piper Cub L-4 Grasshopper (WW2 observation plane) and a P-51 turtle deck (earlier version).

Carl Goldberg seeing a way to encourage sale of his half-A C/L kits, sometime not long after the 190 came out, designed and sold a nylon engine mount for it, to help owners salvage the engine when the RTF was destroyed and reuse them in balsa kit aircraft with a separate fuel tank. It had the same bolt pattern as the Cox .049 tank Bee engines, so they adapted readily, cost then $0.59 US each.

What tiny Cox engine is this? Cox_0435

What tiny Cox engine is this? Cox_0434

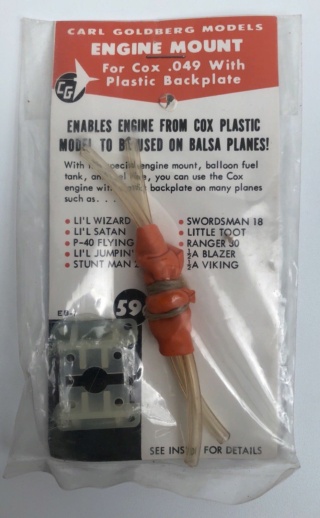

These are my 190's with the CG mount:

What tiny Cox engine is this? Cox_0432

What tiny Cox engine is this? Cox_0433

Some have made their own mounts out of pieces of sheet metal, cut fit, drilled and bent also.

There are two versions. One with Babe Bee like power, may be more is single bypass with sub-port induction (SPI, air gap with piston skirt when piston is at top dead center.) The stronger one with power similar to Black Widow was used in heavier / larger RTF plastic planes. It is dual bypass. The red (some were in white) back is made of a special durable nylon called Dupont Delrin. It is tough, doesn't harden with age, and is superior to the latest gray plastic horseshoe backs.

Yours looks like it only needs a prop screw and mount. The Goldberg EB-1 mount does occasionally come up in E-Bay, but although thousands were made, they are not as common. If in NOS packaging, some of the bidding lately has commanded ridiculously high prices for what used to be a $0.59 item.

Perhaps the easiest way to reuse the engine is remove the back, save it. Then buy one of the relatively inexpensive horseshoe back assemblies and install it, use it.
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5430
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

Help! Re: What tiny Cox engine is this?

Post  cstatman Tue Apr 05, 2022 3:22 pm

someone here was selling 3d printed versions of those goldberg adapters.

If I knew who? I'd order some right jiggity now.
cstatman
cstatman
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

Posts : 551
Join date : 2021-02-17
Age : 60
Location : San Jose, CA

Back to top Go down

Help! Re: What tiny Cox engine is this?

Post  NEW222 Tue Apr 05, 2022 5:08 pm

cstatman wrote:someone here was selling 3d printed versions of those goldberg adapters.

If I knew who?   I'd order some right jiggity now.

Matt at EX Model Engines shows the postage stamp mount in stock. Click below:

http://www.exmodelengines.com/product.php?productid=18497&cat=268&page=1

But yes, a member here did make a run of them and Coxinternational did sell them, but are sold out and not on their site any longer.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3895
Join date : 2011-08-13
Age : 45
Location : oakbank, mb

Back to top Go down

Help! Re: What tiny Cox engine is this?

Post  Cribbs74 Tue Apr 05, 2022 7:45 pm

As others mentioned there is nothing really missing from that engine, besides a washer and screw for the prop.

You mentioned that it appears smaller, but if you compare it to any other .049 engine you have you will notice that the crankcase, cylinder and head are identical in size.

Cribbs74
Cribbs74
Moderator

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 11904
Join date : 2011-10-24
Age : 50
Location : Tuttle, OK

Back to top Go down

Help! Re: What tiny Cox engine is this?

Post  getback Wed Apr 06, 2022 8:27 am

Jason , was selling them at one time , don't know now he's on and off here lately . Small Cox Logo Babe Bee .049 Small Cox Logo Here is one post >> https://www.coxengineforum.com/t12512-postage-stamp-mount-rebirth?highlight=3d+printed+postage+stamp+mounts


Last edited by getback on Wed Apr 06, 2022 8:35 am; edited 1 time in total (Reason for editing : add on)
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10273
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

Help! Re: What tiny Cox engine is this?

Post  cstatman Wed Apr 06, 2022 9:13 am

thanks team - ordered 2 of em from Matt!
cstatman
cstatman
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

Posts : 551
Join date : 2021-02-17
Age : 60
Location : San Jose, CA

Back to top Go down

Help! Re: What tiny Cox engine is this?

Post  GallopingGhostler Wed Apr 06, 2022 4:14 pm

cstatman wrote:thanks team - ordered 2 of em from Matt!

You're welcome, cstatman. The photos of the EB-1 mount I show is one I bought from I think Penn Valley Hobby Center on-line store may be 10 years ago. (Then, their store was closed and was liquidating their stock through E-Bay. I bought a couple kits, props, etc. from them. Since they have gone out of business, I think that the owners since have passed away.) He had the earlier ones in stock (why the $0.59 price tag), so I was very fortunate to latch on to it. (I had another prior one, may have bought in the late 1970's.) I think I paid a total of $10 plus shipping then. It is fortunate that Matt of Ex Model Engines was able to get a stash of them. For others who want, I wouldn't waste any time, because even at his price, given our inflation, it is still a bargain.

The nice thing also about the postage stamp engines is they came with the finer thread, I believe 100 turns per inch needles. The later engines except for the special high performance ones came with a courser thread needle. Dialing in the running RPM for flight is easier with the finer threaded needle.

And, AFAIK, the dual bypass ported 190's power is similar to the Black Widow. They were used for a 1/2-A proto speed classification in the late 1960's, I believe. (Mine are only single bypass.)

I had one of my 190's with the EB-1 on my CG 16" Little Toot bipe initially, but removed it and the tank to install a Testor's Red Head .049 Rotomatic with tank on it. Now, I wished I left it alone, because it was balanced just right with the lighter 190 engine and Perfect wedge tank. Plus, the late Carl Goldberg if he was still living would have probably been pleased to see one of his kit aircraft graced with the 190 and EB-1 in use.
