T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Sun Feb 05, 2023 5:45 pm

enough about that... here's my stab-elev. assembly with its Sig Easy-Hinges (CA type) installed.

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-s14

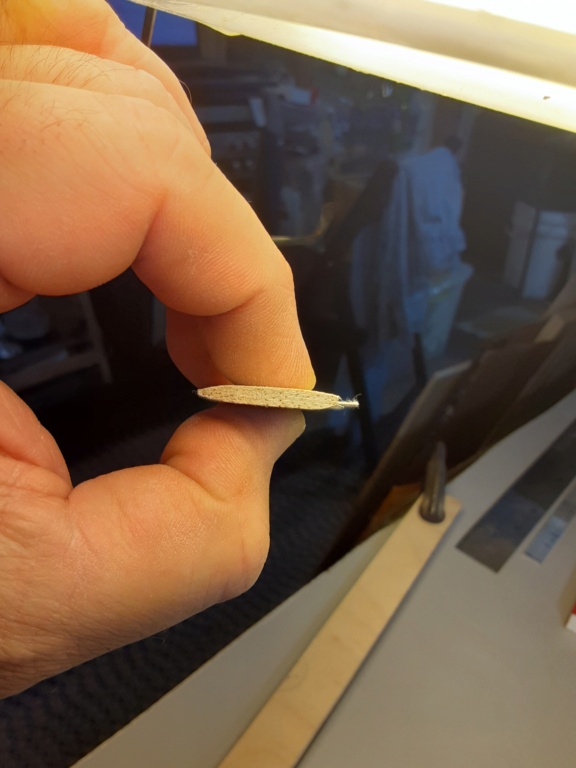

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-s15

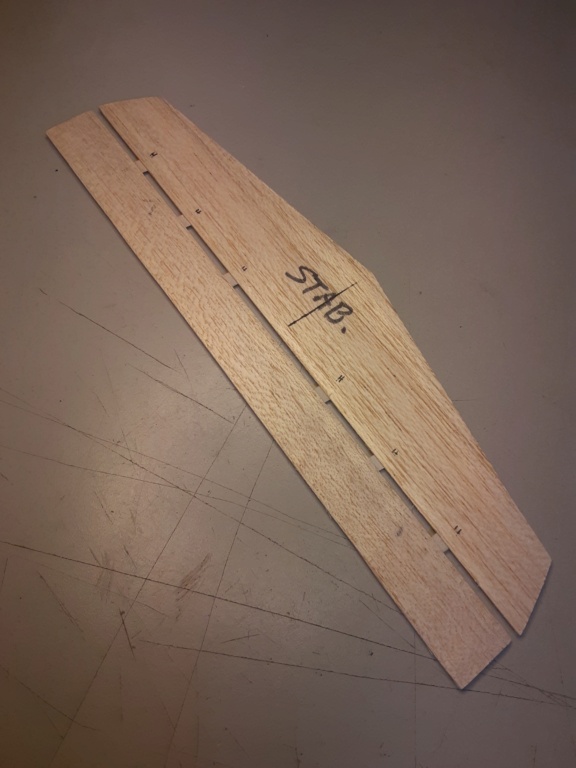

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-s16

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-s17

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-s18

Nice deflection.. yes? Should never need to deflect 90 degrees... but fully-capable if necessary.

I use Dubro #107 1/2A Control Horns on all of my 1/2A builds.. and will use one on this model's elevator.

Next phase for me.... is to cut the "wing-slot" into the fuse.
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Sun Feb 05, 2023 6:57 pm

I don't know how to proceed... in a safe manner.. I need to build a fixture/jig to document for repeatability.
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  HalfaDave Mon Feb 06, 2023 5:23 pm

Hi roddie,
I'm guessing you have heard all the 'Playing with your Barbie' jokes... Smile
Looks great. I have not seen a flat plate wing with flaps before...
Long skinny skiis like that here are called, Nancy Greene's. ( a Canadian Olympic skier of the day)
Flying off of snow, is an art form, all its own...

My favourite hinges are/were small Klett brand with the L shaped wire pin. String them up on a wire, every slot gets aligned...
When the first 'plastic hinges' arrived here, there were many failures.
Our club made a rule, you had to 'pin' hinges. (gluing shiny plastic was hard, with the fear of goobering the hinge)
I have moved on.
Dental Floss and CA figure8's. Stronger than balsa, up to .25 sized planes...
Your results may vary,
Dave
HalfaDave
HalfaDave
Platinum Member
Platinum Member

Posts : 557
Join date : 2022-12-06
Location : Oakville, Ontario

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Wed Feb 08, 2023 6:30 pm

HalfaDave wrote:Hi roddie,
I'm guessing you have heard all the 'Playing with your Barbie' jokes... Smile
   Looks great. I have not seen a flat plate wing with flaps before...
Long skinny skiis like that here are called, Nancy Greene's. ( a Canadian Olympic skier of the day)
Flying off of snow, is an art form, all its own...

My favourite hinges are/were small Klett brand with the L shaped wire pin. String them up on a wire, every slot gets aligned...
When the first 'plastic hinges' arrived here, there were many failures.
Our club made a rule, you had to 'pin' hinges.  (gluing shiny plastic was hard, with the fear of goobering the hinge)
I have moved on.
Dental Floss and CA figure8's. Stronger than balsa, up to .25 sized planes...
Your results may vary,
Dave

I enjoy your commentary immensely Dave! I've wanted to try "stitched-hinges" on one of these builds.. I've wanted to...I swear.. but just haven't yet. My mom is a seamstress. You'd think that would ring the bell.. but I'm a creature of habit. We have fun.. and that's really what it's all about! Thumbs Up
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Wed Feb 08, 2023 8:35 pm

So I made a tool to cut my wing-slot. (RE: my OCD TV thread)

A quick summary; I cut a sm. guage-block... attached a fence.. and a #11 hobby-blade on the opposite side, to score/cut the wing and stab-slots in the fuse.

This required me to finally decide (roll the dice..) on a tail-moment.. which I had allowed for... from the design's inception.

First things first... the tool..


T-Bee-D1 (a Rod-de-sign) - Page 4 Wing-s18


The slots and tail-moment decision..

T-Bee-D1 (a Rod-de-sign) - Page 4 Wing-s19

T-Bee-D1 (a Rod-de-sign) - Page 4 Stab-s10


had to revise the drawing.. (This is where it pays to source good quality paper that will tolerate erasures/revisions.)

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-216

more changes to drawing are needed.. but I will make them.

We now have this layout... and I'm liking it.

roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Wed Feb 08, 2023 8:45 pm

T-Bee-D1 (a Rod-de-sign) - Page 4 20230210

T-Bee-D1 (a Rod-de-sign) - Page 4 20230211

T-Bee-D1 (a Rod-de-sign) - Page 4 20230212

I'm likin' it.....  gonna' draw some "fin" profiles tonight or tomorrow. stay tuned..... Smile

"Blocking-up" to help with alignment for spreading epoxy into these critical areas.

T-Bee-D1 (a Rod-de-sign) - Page 4 Final-10

It's time again for OCD TV.......
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  rsv1cox Thu Feb 09, 2023 8:04 am

Beautiful roddie, I like the four panel wing offset.  Be a shame to cover it.  Take a note from Robert, tissue and dope.

No? Ok then, build two..........or six .010, .020, .049
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10429
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Thu Feb 09, 2023 3:27 pm

rsv1cox wrote:Beautiful roddie, I like the four panel wing offset.  Be a shame to cover it.  Take a note from Robert, tissue and dope.

No?  Ok then, build two..........or six .010, .020, .049

Thanks Robert! I'll be filling/sanding the wing and priming/painting it when the time comes. No need for silkspan or iron-on film.

Check-out my wing-alignment system........... Shocked What?

T-Bee-D1 (a Rod-de-sign) - Page 4 Final-11

Those blocks are 19-ply 27mm thickness (1.080") Baltic Birch, that I brought home from work. They are CNC cut aperture-scrap (inside cut-outs) to a job I was running on the machine.

X2 blocks will straddle the fuse and are thick enough to "cradle it" with the sheet-wing sitting level across and on top of them. Being perfectly square; they provide for near perfect alignment.
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  rdw777 Thu Feb 09, 2023 4:59 pm

Very detail oriented Roddie, I like that…. I read something once about building projects, That it was a series of decisions until no more can be made, And the final product is the result… Sounds simple but when you break it down that way it makes each step seem more important…. You have certainly planned each step …I think you’ll be proud of the end result…. Neat and clean workmanship as well ..Fun to watch, Thanks….
rdw777
rdw777
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 1188
Join date : 2021-03-11
Location : West Texas

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Sat Feb 11, 2023 10:44 am

The alignment process had me scratching my head a bit; how to hold and keep the parts in alignment when applying glue. I must say that this build got more attention to "that detail"... than any of my other previous builds. The slots that I cut for the wing and stab. were both too large, requiring me to use shims to make-up the slop.. but it worked-out.

Both slots are on the center-line of the fuse, so I ended up supporting the wing and stab. with guage-blocks.. and letting the fuse "float" which helped to set it's squareness to the wing's trailing-edge and overall perpendicularity. The wing-joint was glued first.. using 5-min. epoxy.

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-a13

The stab. is currently "tacked" in place with thin CA.. and I'm very happy with the way it all lines-up.

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-a14

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-a15

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-a16

Thinking about a fin-shape now..


Last edited by roddie on Sat Feb 11, 2023 11:01 am; edited 1 time in total (Reason for editing : added photos)
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  rdw777 Sat Feb 11, 2023 1:53 pm

Nice job on the alignment Roddie…. Extra effort there will certainly pay off on fly day…. I bet it will track like it’s on rails…

Nice layout on the wing woodwork too…Hard C grain leading edge and outboard panel…. Softer, lighter on trailing edge…. Multi panel glue joints for warp resistance…. Very well thought out….
rdw777
rdw777
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 1188
Join date : 2021-03-11
Location : West Texas

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Sat Feb 11, 2023 2:50 pm

rdw777 wrote:Nice job on the alignment Roddie…. Extra effort there will certainly pay off on fly day…. I bet it will track like it’s on rails…

Nice layout on the wing woodwork too…Hard C grain leading edge and outboard panel…. Softer, lighter on trailing edge…. Multi panel glue joints for warp resistance…. Very well thought out….

Thank you very much Rob! Yea... that C-grain outer-forward wing-panel is noticeably heavier. I may not apply much (if any) tip-weight.

Here's a photo of a penny placed on the "inboard" panel.. to help show the imbalance.

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-f15

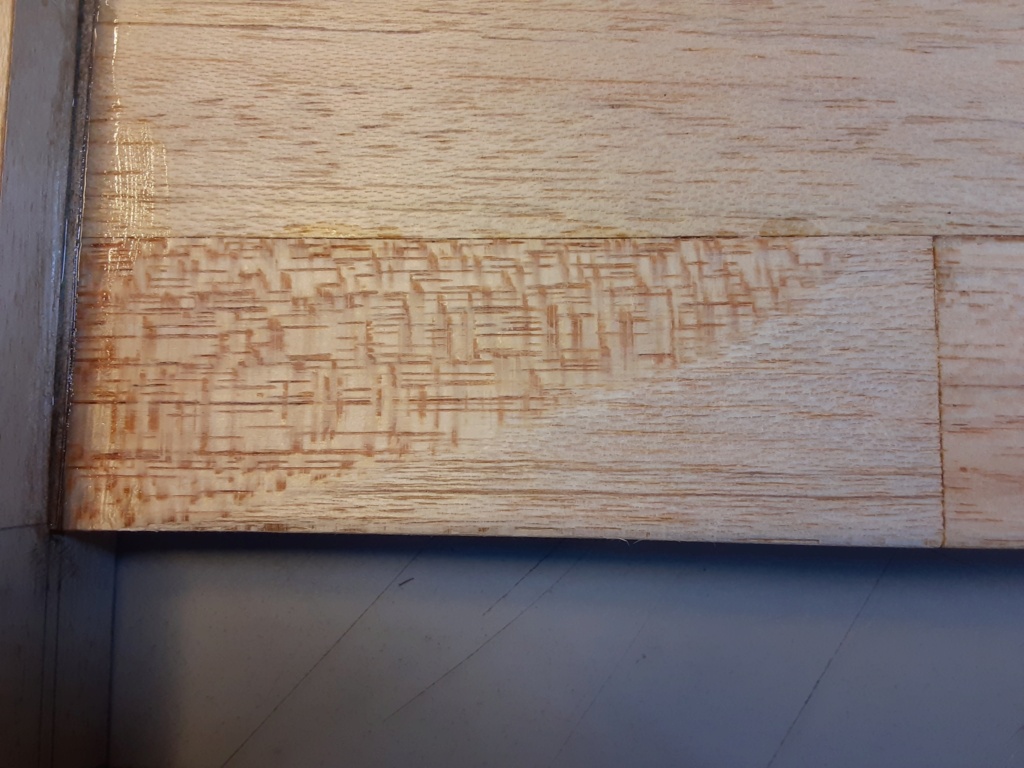

check-out that crazy wood-grain..  What?

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-w16

Keep in mind; this is definitely not hobby-grade balsa..  Laughing

That "fin" is a cardboard template of the shape that I plan to go with. It will be made from 1/8" sheet balsa.. and also of lighter-weight wood. The same will apply to a canopy-profile, which I'll probably try.. to see how it looks. Gahtooo have styling.. ya know? Cool
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Sat Feb 11, 2023 9:23 pm

roddie wrote:
That "fin" is a cardboard template of the shape that I plan to go with. It will be made from 1/8" sheet balsa.. and also of lighter-weight wood. The same will apply to a canopy-profile, which I'll probably try.. to see how it looks. Gahtooo have styling.. ya know? Cool

It's been brought to my attention.. that the 1st (#1) fin-shape that I drew.. and mounted a cardboard template of and previewed in my OCD thread.....  has some favorable aesthetic contrast to the straight-line/geometric styling given to the wing and stab. profiles of this model..

Here are images of the #1 radiussed-shape fin that I thought might "clash". I got the French-curves out, like I did with my last build.. but this design had a much different look.

I started laying-out the fin for this model by measuring the distance between the trailing-edge of the wing and the point where the fuselage terminated at the tail. This is 5.75". I then added 1.5" of length to make the "fin-blank" 7.25" L. X 1.5" high. The 5.75" measurement is the "turtle-deck" measurement.. The 1.5" that I added, is for the trailing-edge of the fin to extend rearward of the fuse.. at an up-swept/rearward way as to not interfere with the elevator's range of motion

See below; photos of my cardboard-template layouts..

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-f25

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-f27

The only difference is in the applied radii.
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  Yabby Sat Feb 11, 2023 9:50 pm

nice build Roddie Thumbs Up I have never checked the balance of my plane as you have done several posts above. Makes absolute sense now I have seen it done. Something I too will now do. I like the find on your plane. I like reasonably large sized fins as I believe they provide extra stability to a slab - profile when overhead. Really is looking like a plane that wants to fly well cheers sunny
Yabby
Yabby
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

Posts : 693
Join date : 2021-06-08
Location : Yorke Peninsula South Australia

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  rdw777 Sun Feb 12, 2023 7:07 am

I did notice how that piece of wood transitioned Roddie…. Interesting, that must have been where the tree had twisted…. C grain is similar to quarter sawn in the hardwood world, Cut out of the log with radial cuts like cutting a pie rather than cutting slabs….
Regardless, Excellent choice and use of your materials…

I like the fin but would be good with the straight fin too, Putting more emphasis on the canopy….Maybe even a little dorsal between either fin and canopy…. Looking forward to see what you come up with Very Happy
rdw777
rdw777
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 1188
Join date : 2021-03-11
Location : West Texas

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  getback Sun Feb 12, 2023 11:44 am

I like the new fin contor I make my HM models with the out of way of the elevator in mine without having to go through a bunch of bull with the elev. split and all , With the length you should bee fine . Two Cents Liken the wild grade wood grain too , adds corrector Thumbs Up
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10028
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Mon Feb 13, 2023 10:31 am

getback wrote:I like the new fin contor I make my HM models  with the out of way of the elevator in mine without having to go through a bunch of bull with the elev. split and all , With the length you should bee fine . Two Cents  Liken the wild grade wood grain too , adds corrector Thumbs Up

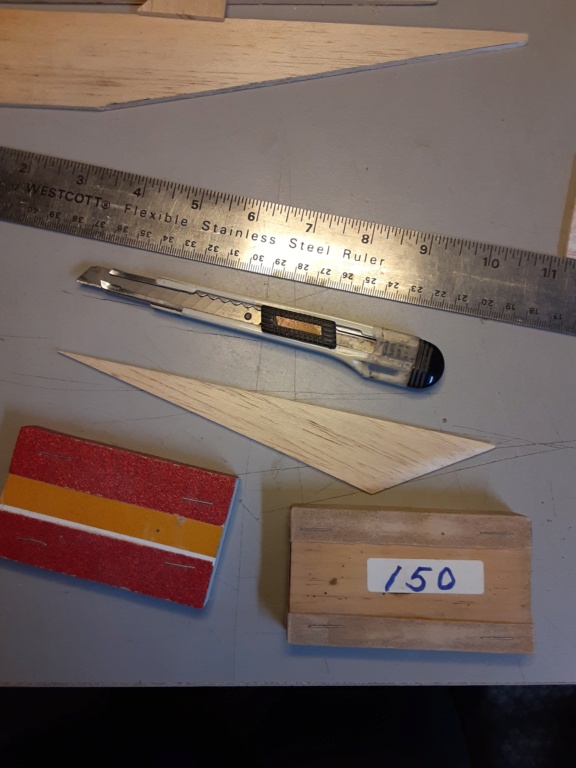

Hi Eric! I like the new (2nd) fin contour too. I made one from 1/8" sheet balsa, using the template this afternoon.. and applied judicial use of taper to the top edge and rear under-cut.

Check it out..

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-f28

T-Bee-D1 (a Rod-de-sign) - Page 4 Tbd1-f29
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty fin(s) and canopy

Post  roddie Mon Feb 13, 2023 2:05 pm

Your thoughts...?

Fin-shape #1

T-Bee-D1 (a Rod-de-sign) - Page 4 20230217

Fin-shape #2

T-Bee-D1 (a Rod-de-sign) - Page 4 20230218


Last edited by roddie on Mon Feb 13, 2023 6:27 pm; edited 1 time in total (Reason for editing : added fin-shape #'s)
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  akjgardner Mon Feb 13, 2023 2:08 pm

I like the second one better Roddie
akjgardner
akjgardner
Diamond Member
Diamond Member

2023 Supporter

2024 Supporter

Posts : 1449
Join date : 2014-12-28
Age : 64
Location : Greensberg Indiana

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Mon Feb 13, 2023 6:23 pm

akjgardner wrote:I like the second one better Roddie

Thanks Joe
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  Yabby Tue Feb 14, 2023 1:52 am

Yep, if we are holding a poll, I also like the second fin better Thumbs Up
Yabby
Yabby
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

Posts : 693
Join date : 2021-06-08
Location : Yorke Peninsula South Australia

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Tue Feb 14, 2023 4:32 am

Yabby wrote:Yep, if we are holding a poll, I also like the second fin better Thumbs Up

Thanks Gary. My wife and a non-CEF aeromodeler friend like fin-shape #1 Neutral
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  Yabby Tue Feb 14, 2023 5:03 am

I agree that Fin 1 is the fin for people with some sense of Art and flare Laughing Fin 2 is the Techo no sense of style type selection that I would make. :-) I almost said Fin 1 as I know its more 'stylish.

Go with Fin 1 it has a LOT more style than fin 2. I reckon you should incorporate the similar curve into the trailing edge of the wing near the tips. Would look like something a Viking would fly. lol!
Yabby
Yabby
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

Posts : 693
Join date : 2021-06-08
Location : Yorke Peninsula South Australia

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  rdw777 Tue Feb 14, 2023 6:12 am

Me 2 vote fin #2 Very Happy ……..Everything else is hard angles and #2 only compliments….Side view would be cool, Jet like….It’s an entirely subjective choice ultimately left to the designer…Will be interesting to see your paint/trim scheme…
rdw777
rdw777
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 1188
Join date : 2021-03-11
Location : West Texas

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  roddie Tue Feb 14, 2023 6:15 am

Yabby wrote:I agree that Fin 1 is the fin for people with some sense of Art and flare Laughing  Fin 2 is the Techo no sense of style type selection that I would make. :-)  I almost said Fin 1 as I know its more 'stylish.

Go with Fin 1 it has a LOT more style than fin 2.  I reckon you should incorporate the similar curve into the trailing edge of the wing near the tips. Would look like something a Viking would fly. lol!

Yea.. I thought more than once about applying radii to the wing-tips.. decisions decisions.. Rolling Eyes
roddie
roddie
Top Poster
Top Poster

Posts : 8160
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

T-Bee-D1 (a Rod-de-sign) - Page 4 Empty Re: T-Bee-D1 (a Rod-de-sign)

Post  Sponsored content


Sponsored content


Back to top Go down

Page 4 of 8 Previous  1, 2, 3, 4, 5, 6, 7, 8  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
