Cox Engine of The Month
S.M.A.L.L. 2023 "Here We Go"
Page 3 of 4
Page 3 of 4 • 1, 2, 3, 4
Levent Suberk- Diamond Member
- Posts : 2270
Join date : 2017-12-24
Location : Türkiye
Re: S.M.A.L.L. 2023 "Here We Go"
Kim, that Zipper was one that back in high school, really loved the design but never bought the kit and built it. As far as zipping, well, the majority of half-A kits were zippers.
Yeah, a scale up would be in order. A 1.5X scale up making 18 inches into 27 inches would make it suitable for an A.C. Gilbert .11 Thunderhead, McCoy 9 or Fox .09 Rocket, IMO.
You certainly do have a wide variety of aircraft there covering nearly all angles of flight except for rotor aircraft. Looks like you'll have a really fine time with the others at SMALL.
GallopingGhostler- Top Poster
-
Posts : 5742
Join date : 2013-07-13
Re: S.M.A.L.L. 2023 "Here We Go"
Levent Suberk wrote:Kim, it is an interesting model. Very good work.
Thank You Levent! Gonna have some fun here in a little bit!!!
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
GallopingGhostler wrote:Kim, that Zipper was one that back in high school, really loved the design but never bought the kit and built it. As far as zipping, well, the majority of half-A kits were zippers.
Yeah, a scale up would be in order. A 1.5X scale up making 18 inches into 27 inches would make it suitable for an A.C. Gilbert .11 Thunderhead, McCoy 9 or Fox .09 Rocket, IMO.
You certainly do have a wide variety of aircraft there covering nearly all angles of flight except for rotor aircraft. Looks like you'll have a really fine time with the others at SMALL.
Thanks George!
Yeah, most of the Scientific Models I experienced (with the exception of "Big Otto") have actually been over-powered with an .049 pulling them. I scratched out a 10% enlarged Big Otto with a Tee Dee .049 and it flys great...just needs a rebuild of its nose.
I think the Zipper could be enlarged by 20% and STILL be a nice flyer with a regular, healthy .049.
Memories--Memories!
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
Spaghetti Alert!!!
Doug and Becky will be serving us SPAGHETTI at S.M.A.L.L. on Friday Night!!!!
Doug and Becky will be serving us SPAGHETTI at S.M.A.L.L. on Friday Night!!!!
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
Kim, as you know I love that Zipper.
Were I a hundred years or so younger I would hit you up for those enlarged plans. But sadly not to be. I can cut down a 30' tall tree with a chain saw but I can't follow an exacto line on balsa.
Were I a hundred years or so younger I would hit you up for those enlarged plans. But sadly not to be. I can cut down a 30' tall tree with a chain saw but I can't follow an exacto line on balsa.
rsv1cox- Top Poster
-
Posts : 11298
Join date : 2014-08-18
Location : West Virginia
Re: S.M.A.L.L. 2023 "Here We Go"
You remember the Dumas 24 inch wingspan half-A Tom-Tom II and profile version Tomahawk of 140 sq. in. wing area? They were fine for the hotter half-A reedies, better than the less than 60 sq. in. 18 inch half-A's with sheet wings, less than 100 sq. in. on built up wings. But I gather that the reason of the 18 inch magical number had to do with the available sheet balsa stock of the time was 36 inches. You could make 2 wings out of 36x3x1/8 inch stock. Also, the smaller wing area still worked fine for the OK Cubs, Wen Macs, and other less powerful half-A engines.Kim wrote:Yeah, most of the Scientific Models I experienced (with the exception of "Big Otto") have actually been over-powered with an .049 pulling them. I scratched out a 10% enlarged Big Otto with a Tee Dee .049 and it flys great...just needs a rebuild of its nose. I think the Zipper could be enlarged by 20% and STILL be a nice flyer with a regular, healthy .049. Memories--Memories![/color][/size][/b]
Regarding spaghetti, it is the least expensive but good way to feed the multitudes. Back in Jesus' day, it was the fish and bread loaves from a child's lunch box. Today, who knows, may be spaghetti with meat balls and corn bread?
GallopingGhostler- Top Poster
-
Posts : 5742
Join date : 2013-07-13
Re: S.M.A.L.L. 2023 "Here We Go"
Last edited by Kim on Fri May 05, 2023 8:10 am; edited 1 time in total
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
Wrinkled, dented, and bent but unbroken. The Lazy Bee lives on!!! Hero status!!
rsv1cox- Top Poster
-
Posts : 11298
Join date : 2014-08-18
Location : West Virginia
Re: S.M.A.L.L. 2023 "Here We Go"
rsv1cox wrote:Wrinkled, dented, and bent but unbroken. The Lazy Bee lives on!!! Hero status!!
Yes!! We BOTH are Too Stubborn to Croak!!!
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
After "Van Prep", then "Camper Prep", some airplanes are finally being strapped to the shelving in the van, with an E-Powered Cub chucked onto the bed in the camper.
Gotta work on the "Big Yellow Thing" after smacking it in a test flight, and got to try to fix the weird throttle fixture on the Quaker's Medallion .15 after the throttle arm fell off its rotating spray bar....gonna try some "precision peening". But if it doesn't work I'll use the Medallion Bob sent me that has the less weird strangle throttle.
The Little Black Thing and the Zoom Slot flying platter need test flights which are gonna happen at S.M.A.L.L.
Also gotta fix the Lazy Bee after it got "Tumbleweeded" in the wind at Breezy Hill last weekend.
A bunch of old stand-byes are going so, there ought to be plenty of stuff to fiddle with, and maybe even launch.
So, the clock ticks down........
https://www.youtube.com/watch?v=scsJZ67ssDY
Gotta work on the "Big Yellow Thing" after smacking it in a test flight, and got to try to fix the weird throttle fixture on the Quaker's Medallion .15 after the throttle arm fell off its rotating spray bar....gonna try some "precision peening". But if it doesn't work I'll use the Medallion Bob sent me that has the less weird strangle throttle.
The Little Black Thing and the Zoom Slot flying platter need test flights which are gonna happen at S.M.A.L.L.
Also gotta fix the Lazy Bee after it got "Tumbleweeded" in the wind at Breezy Hill last weekend.
A bunch of old stand-byes are going so, there ought to be plenty of stuff to fiddle with, and maybe even launch.
So, the clock ticks down........
https://www.youtube.com/watch?v=scsJZ67ssDY
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"

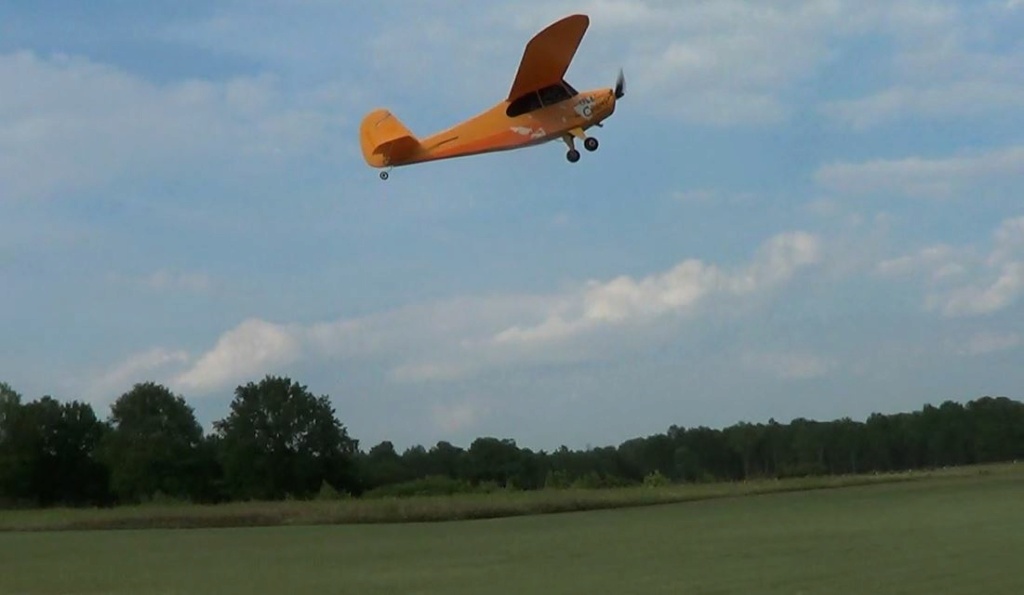

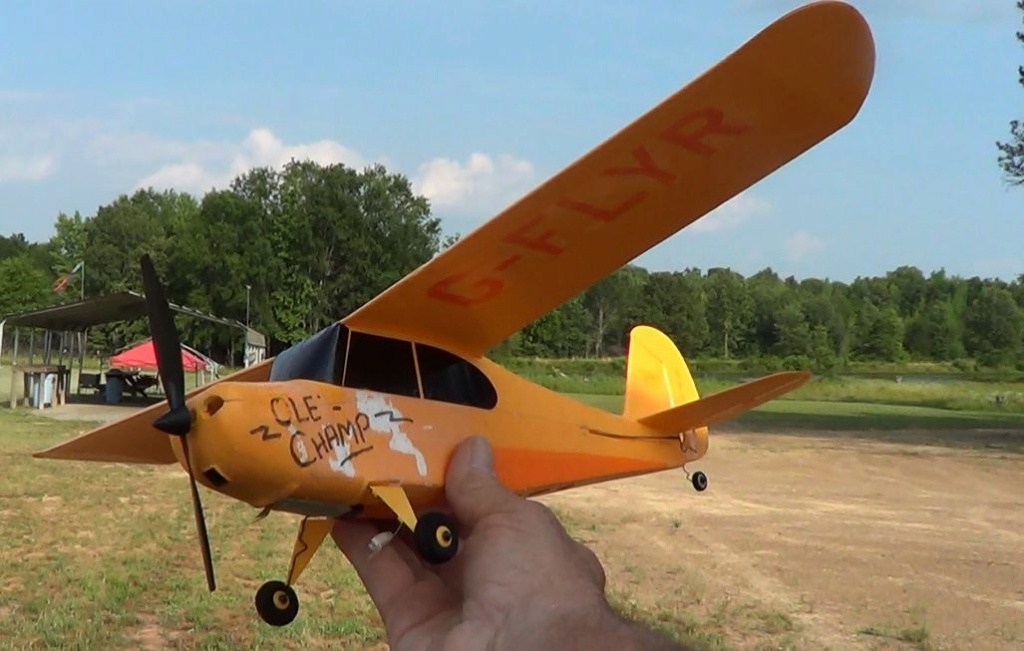

I and my Cessna's resemble that statement!Kim wrote:Yes!! We BOTH are Too Stubborn to Croak!!!rsv1cox wrote:Wrinkled, dented, and bent but unbroken. The Lazy Bee lives on!!! Hero status!!
Older photos, don't have new ones yet after repairs.

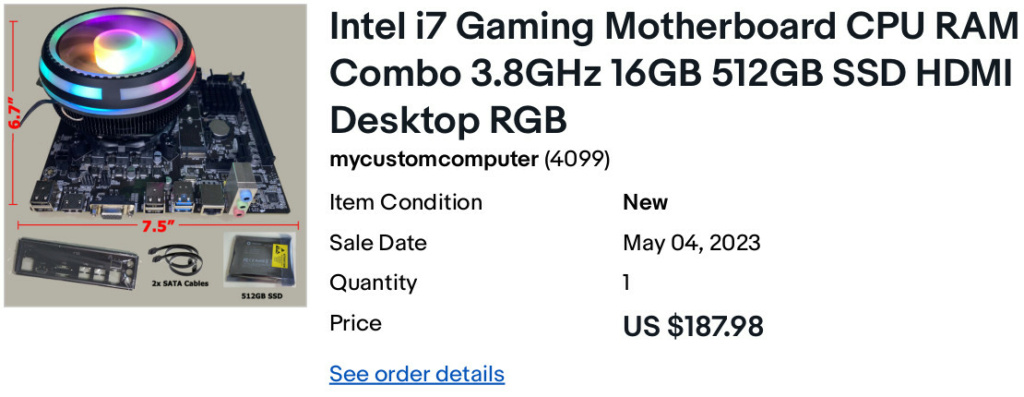

Latest project showing my age, replacing my old 2008 PC system with 400 MHz front side bus with 2.9 GHz AMD processor, 4 GB RAM. New is an Intel based chipset motherboard with an Intel 3.8GHz i7 CPU, 16 GB RAM and a 512 GB solid state disk.

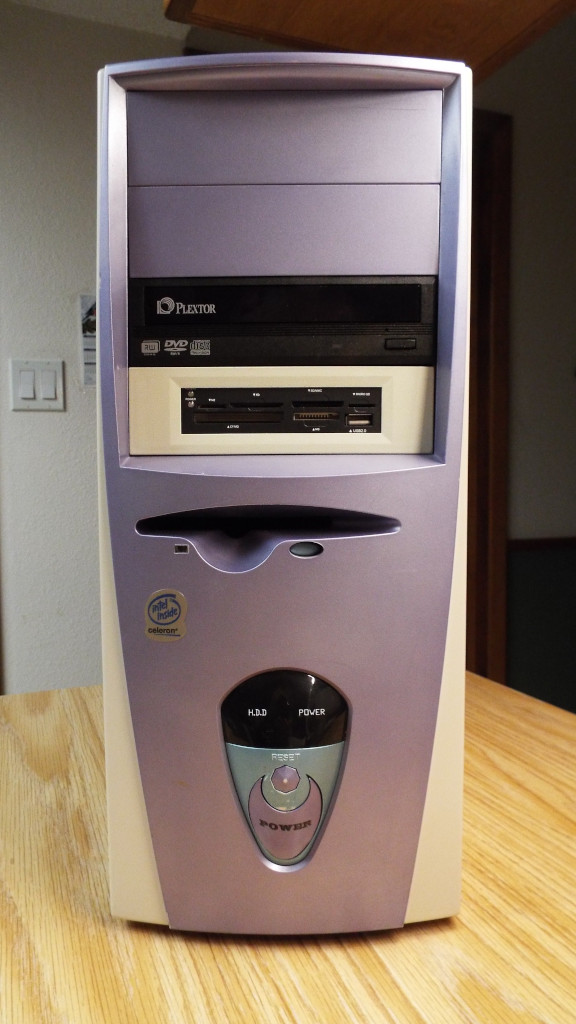

I had a system predating the 2008 stored in the garage.

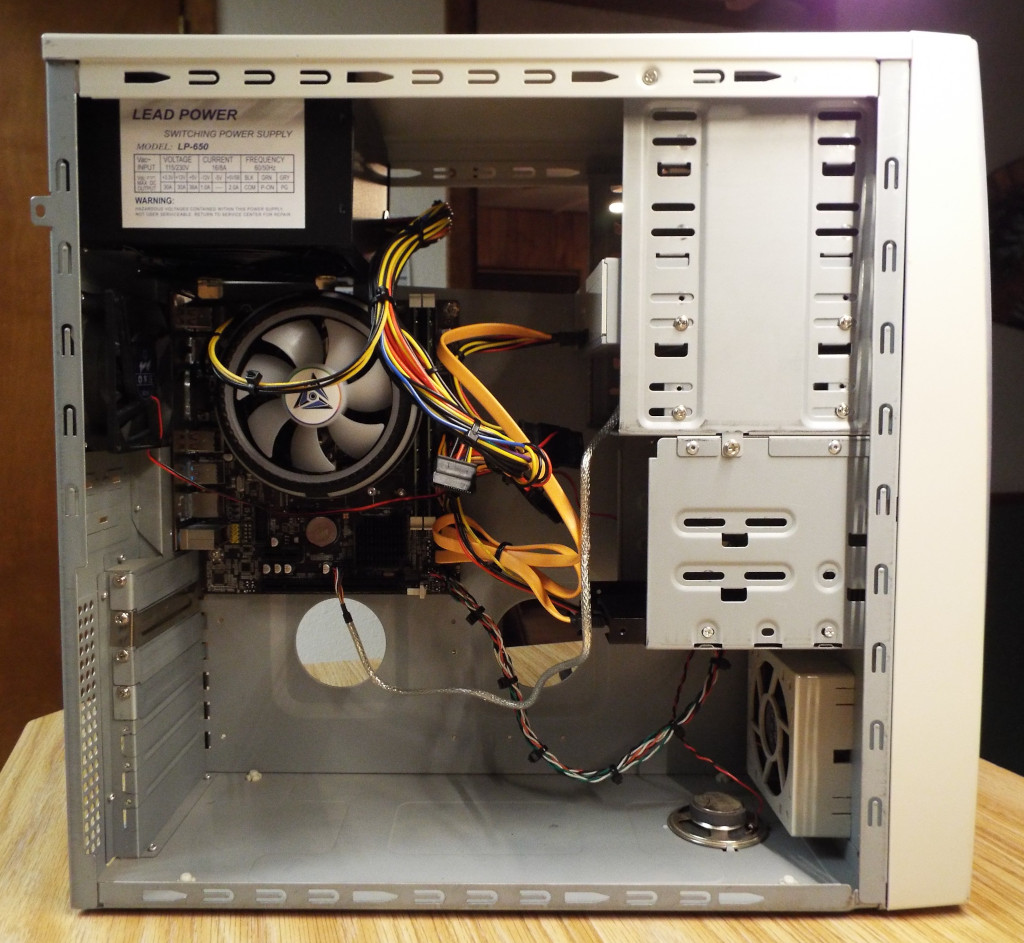

I gutted the case and cleaned it up, installing this new motherboard kit, new power supply, 2 new cooling fans, new DVD rewriter and a new 3.5 in. Sabrent multicard reader for CF, SD, XD, M2 and micro SD cards, plus USB thumb drive.
Front on and reset switches work perfectly, the hard drive and power LED's light up as they should.
The floppy slot is unpopulated (new mobo. doesn't have the interface for those anymore). Box looks so old that I think of it as an anti-theft deterent.
Older 2008 system was still adequate with latest Linux Ubuntu Mate software, but this new mobo is blazingly fast. Web pages pop up immediately. Shuts down in less than 10 seconds after commanding.
GallopingGhostler- Top Poster
-
Posts : 5742
Join date : 2013-07-13
Re: S.M.A.L.L. 2023 "Here We Go"
Well, as a retired Intel employee, I shouldn't care. But good choice of Intel over AMD. And, depending on when the chipsets and processor were made, I could have worked on those myself...
The Company Man Mark
The Company Man Mark
batjac- Diamond Member
-
Posts : 2375
Join date : 2013-05-22
Age : 61
Location : Broken Arrow, OK, USA
Re: S.M.A.L.L. 2023 "Here We Go"
Mark, you shared some facts that I never knew or suspected of you.batjac wrote:Well, as a retired Intel employee, I shouldn't care. But good choice of Intel over AMD. And, depending on when the chipsets and processor were made, I could have worked on those myself... The Company Man Mark
- Choice between Intel versus AMD:
- was more related to cost. For some odd reason, the equivalent AMD mobo's were double the price though similarly equipped (processor, RAM, and SSD). My last mobo (2008) and before, AMD was cheaper.
Got the box installed on my desk, would have to pull the cover off to see if there are any dates on the chipsets. Processor, it came with the cooling fan already installed, so, don't want to pull it off without a new tube of thermal contact paste.
The mobo is a generic hecho in Chino (made in China) one, don't know the manufacturer. Closest I can tell, it may be an Artek one, but they unlike Biostar, MSI, Magellan, Shuttle, Asus, Soyo, etc. do not make available PDF's of their manuals for download. No docs were provided with the mobo.
I was able to figure out the various connectors based on an ASUS Intel i7 mobo of similar layout. The color coded individual pin block for the case switches and LED indicator lights matched ASUS, although component layout including PCI Express card layouts varied a little.
I've been rolling my own home computer systems since the 1980's, starting with Digital Research CP/M-80 on a surplus store Xerox 820-II build modded to a 16/8 with Intel 80186 on expansion chassis to run CP/M-86 and generic MS-DOS 2.0, modded BIOS and hard disk utilities to install a Miniscribe 10 MB hard disk on a system hardcoded to a Shutgart 10 MB HD with different heads and cylinders.
Then went to MS-DOS 4.0 on an Intel 8088 based IBM PC/XT clone, later PC/AT Intel 80286 clones, 386, 486DX, Pentium, Pentium II, and etc. Late 1990's, was doing dual boot Windows and Linux, starting with SuSE 4.3, Red Hat 6.0, then SuSE 6.0, etc. This build, dropped the MS dual boot, strictly Linux.
GallopingGhostler- Top Poster
-
Posts : 5742
Join date : 2013-07-13
Re: S.M.A.L.L. 2023 "Here We Go"
More Whining from my Facebook page:
-----------------------------------------------
"11th Hour Project"
In my shop, this is when you wait to the LAST Minute...when you SHOULD be thinking only about loading and strapping down your planes for the trip to a Fun-Fly...but instead...are fiddling with a tedious repair or finish work that could have been done MONTHS earlier!
My only defense is: "I forgot".

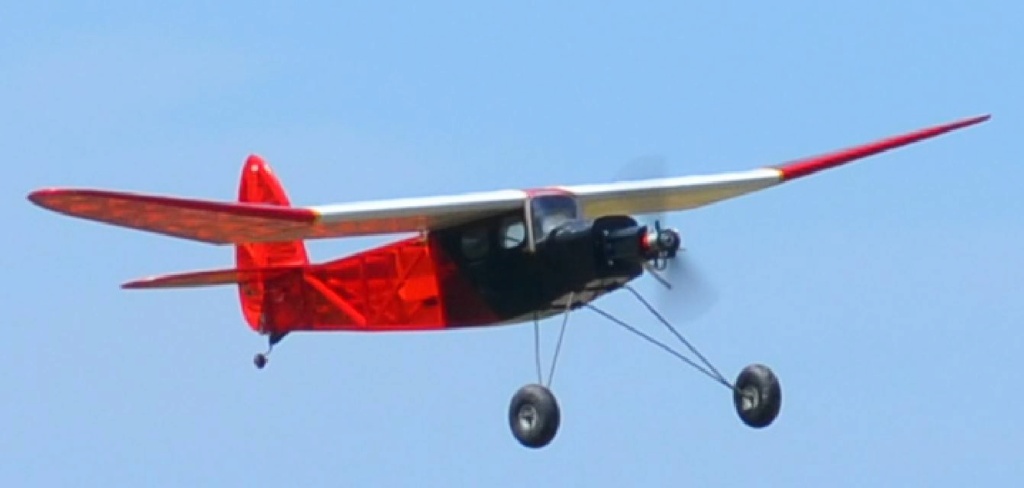

The Quaker is one of my favorite planes, and has been a regular at the past few S.M.A.L.L. Fun-Fly's in Arkansas. I want it to go there again.
So, last fall, during a flight, the throttle arm fell off what's called a spraybar (think carburetor) in it's Medallion .15 engine. The spring steel arm was pressed onto the brass spraybar, and over time, vibration loosened the mechanical bond between them.
This is a "high-time" failure that many engines never see, mostly because their owners quit flying or died, with the little powerplants being chucked in the trash, and never having the chance to "wear out".
Anyway, I got the plane down safely and thought, "No big deal...I'll fix it when I get home." ...and forgot about it...totally...'till I went to load it in the van yesterday.
The two parts still fit relatively well, so I got to rig up a fixture to hold the delicate spray bar in place while I hammer / swage its edges out and over the arm, capturing (and hopefully) pressing it in place for a few more years.
Got to get my "Machine MoJo" going first, so...more Folgers...
P.S.
I KNOW it's not really a "Quaker"...more accurately, a "Flamingo" or such...but I've been calling it a Quaker for too long, so that's its surname, even if not its breed!
----------------------------------------------------------------------
Thanks to Troy Tee Bee for the excellent photos he took during the 2019 Summer S.M.A.L.L. Fun-Fly!
-----------------------------------------------
"11th Hour Project"
In my shop, this is when you wait to the LAST Minute...when you SHOULD be thinking only about loading and strapping down your planes for the trip to a Fun-Fly...but instead...are fiddling with a tedious repair or finish work that could have been done MONTHS earlier!
My only defense is: "I forgot".
The Quaker is one of my favorite planes, and has been a regular at the past few S.M.A.L.L. Fun-Fly's in Arkansas. I want it to go there again.
So, last fall, during a flight, the throttle arm fell off what's called a spraybar (think carburetor) in it's Medallion .15 engine. The spring steel arm was pressed onto the brass spraybar, and over time, vibration loosened the mechanical bond between them.
This is a "high-time" failure that many engines never see, mostly because their owners quit flying or died, with the little powerplants being chucked in the trash, and never having the chance to "wear out".
Anyway, I got the plane down safely and thought, "No big deal...I'll fix it when I get home." ...and forgot about it...totally...'till I went to load it in the van yesterday.
The two parts still fit relatively well, so I got to rig up a fixture to hold the delicate spray bar in place while I hammer / swage its edges out and over the arm, capturing (and hopefully) pressing it in place for a few more years.
Got to get my "Machine MoJo" going first, so...more Folgers...
P.S.
I KNOW it's not really a "Quaker"...more accurately, a "Flamingo" or such...but I've been calling it a Quaker for too long, so that's its surname, even if not its breed!
----------------------------------------------------------------------
Thanks to Troy Tee Bee for the excellent photos he took during the 2019 Summer S.M.A.L.L. Fun-Fly!
Last edited by Kim on Sat May 27, 2023 10:22 am; edited 2 times in total
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
Kim, that Quaker truly is a classic. The partly muffled older exhaust throttle coupled with rotating butterfly styled spray bar tames the .15 Medallion a little, but in your application adds a touch of elegance not illustrated with other engines. The long Hayes engine mount helps with maintaining CG on a lighter weight engine. The plane almost begs for simple side cheek cowling with bottom like the popular Q-Tee to finish her out, with engine head poking through a side hole like on the Scientific Big Otto, But sans and with the throttle set-up, helps the engine to remain cool and not overheat, especially in the balmy but steamy Missouri Summer atmosphere.
However, the Quaker still is such a classy plane.
However, the Quaker still is such a classy plane.
GallopingGhostler- Top Poster
-
Posts : 5742
Join date : 2013-07-13
Re: S.M.A.L.L. 2023 "Here We Go"
Thank you George!
I got the Quaker at a Swap Meet several years ago and, I think I got its .15 at the same time. I REALLY wanted to use this Medallion because of its fairly rare "barrel throttle" or whatever it's called. This throttle set-up pretty much required the long Hayes mount to allow it some distance from the firewall to slide in and out with, as you noted, a BIG help with CG placement.
This .15 has been a REALLY good-natured engine, starts easy and idles great.
It was supposed to get a cowling of some sort, but I wanted to showcase the throttle type, and just left it all hanging out there like an anteater's snoot!
If I can't get this one working properly, I'm gonna use another Medallion that has the regular exhaust band.
One way or the other, the Quaker is headed for S.M.A.L.L.!
I got the Quaker at a Swap Meet several years ago and, I think I got its .15 at the same time. I REALLY wanted to use this Medallion because of its fairly rare "barrel throttle" or whatever it's called. This throttle set-up pretty much required the long Hayes mount to allow it some distance from the firewall to slide in and out with, as you noted, a BIG help with CG placement.
This .15 has been a REALLY good-natured engine, starts easy and idles great.
It was supposed to get a cowling of some sort, but I wanted to showcase the throttle type, and just left it all hanging out there like an anteater's snoot!
If I can't get this one working properly, I'm gonna use another Medallion that has the regular exhaust band.
One way or the other, the Quaker is headed for S.M.A.L.L.!
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
You're welcome, Kim.Kim wrote:Thank you George!
Peter Chinn in his review found out Sceptre Flight Engine Test Reviews archive referred to it as the "Cox Throttle Control assembly". Since wide open, the exhaust port window was open, although it would be quieter than the non-equipped Medallion, I imagine noise is similar to my OS .10R/C or Enya .09-III TV that only had a butterfly exhaust plate restricter for idle, when wide open. (Interestingly, both engines are the same loudness as an unmuffled Cox .049 reedie.)Kim wrote:I got the Quaker at a Swap Meet several years ago and, I think I got its .15 at the same time. I REALLY wanted to use this Medallion because of its fairly rare "barrel throttle" or whatever it's called.
The later simplified version was called the "Cox Throttle Muffler" (if integral muffler included). I'm not sure when article was written as the magazine name and month/year of issue were cropped off to produce the PDF, but imagine it was some time during the 1960's. Peter did the smaller .049 Medallion equipped with same type throttle system in June 1966 Model Airplane News, so I figure the .15 probably was reviewed within a couple months of that before or after. (The model magazines also did reviews of other engines, so it would make sense to space them out to appeal to other modellers.
Overall, I think that you probably won't have much issue with the engine, because your static runs so far showed it runs very reliably. Overall, except for the higher cost of the engine and throttle unit at the time, probably would have sold more engines.Kim wrote:This .15 has been a REALLY good-natured engine, starts easy and idles great. It was supposed to get a cowling of some sort, but I wanted to showcase the throttle type, and just left it all hanging out there like an anteater's snoot! If I can't get this one working properly, I'm gonna use another Medallion that has the regular exhaust band. One way or the other, the Quaker is headed for S.M.A.L.L.!
My garnering of Medallion engines has only been as of fairly recent because of retirement. Otherwise when it came to Cox, in the past I was a strictly Bee reed valve person.
GallopingGhostler- Top Poster
-
Posts : 5742
Join date : 2013-07-13
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
nice repair , I like these throttle setups but they can bee a PIA if someone has getting the whole thing bent out of shape getting things straightened out and adjusted will get ur blood boiling
getback- Top Poster
-
Posts : 10472
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: S.M.A.L.L. 2023 "Here We Go"
getback wrote: nice repair , I like these throttle setups but they can bee a PIA if someone has getting the whole thing bent out of shape getting things straightened out and adjusted will get ur blood boiling
Yeah...don't tell anybody ( ), but I'm also packing the a throttle band .15 that Bob sent me (THANK YOU BOB!!!) as a back-up JUST in case my "machine work" fails on this one. Not sure why I'm so obsessed with flying the Quaker...just the weird whims of my little brain!
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
Okay. I just came in from test running three engines that I converted from control line to radio control use. A Silver Bee, a Black Widow, and a Red Widow. I'll get the RC planes ready tonight and tomorrow, and then I'm ready...
The Run Up Mark
The Run Up Mark
batjac- Diamond Member
-
Posts : 2375
Join date : 2013-05-22
Age : 61
Location : Broken Arrow, OK, USA
Re: S.M.A.L.L. 2023 "Here We Go"
batjac wrote:Okay. I just came in from test running three engines that I converted from control line to radio control use. A Silver Bee, a Black Widow, and a Red Widow. I'll get the RC planes ready tonight and tomorrow, and then I'm ready...
The Run Up Mark
Yeah Man!
Good Prep is everything...a guy will either do it in the shop or on the Flight Line...though sometimes Flight Line Prep can become a "Communal Bonding Affair":
https://www.youtube.com/watch?v=Bx8lpO5d4rE
I'm currently in "The Coast Mode"...got everything loaded, airplane-wise, so time for a check of the van, general clean-up of the camper, and some groceries now that it's fridge is cooled down.
Then, just gonna park in my lawn chair out front, watching the barn swallows, hawks, and occasional bald eagle fly around the hill...while I collect my MoJo.
Shooting to depart around 8am tomorrow, with a fuel stop and ritual catfish dinner at Bald Knob, Arkansas.
Let the Fun begin.
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"

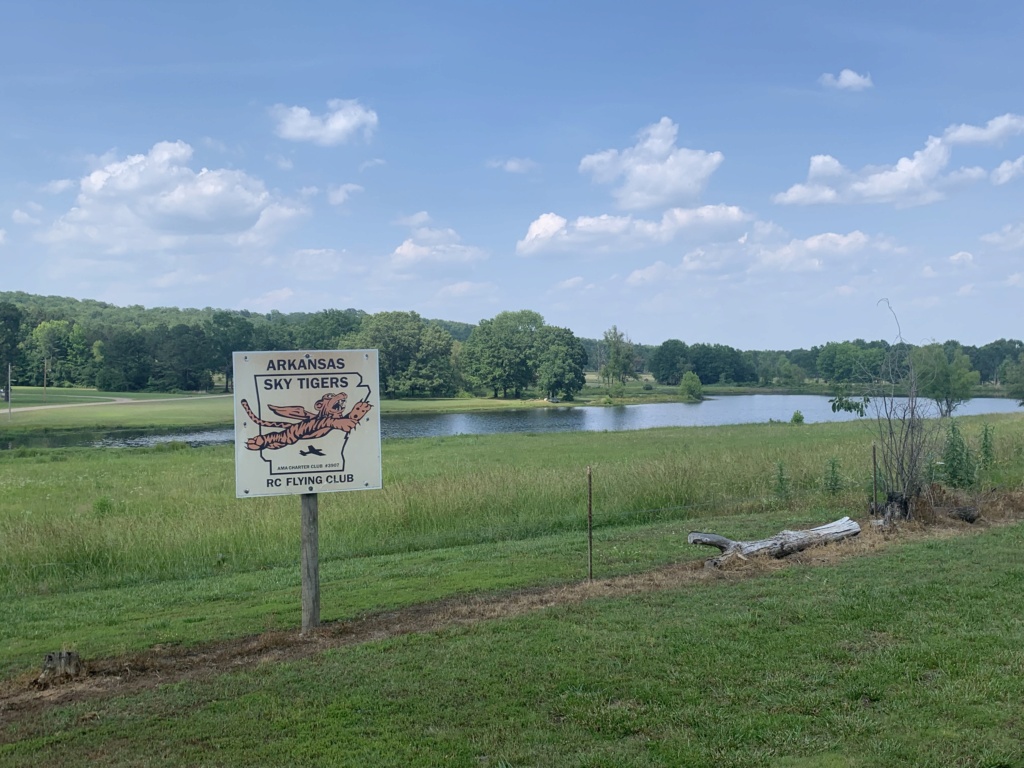

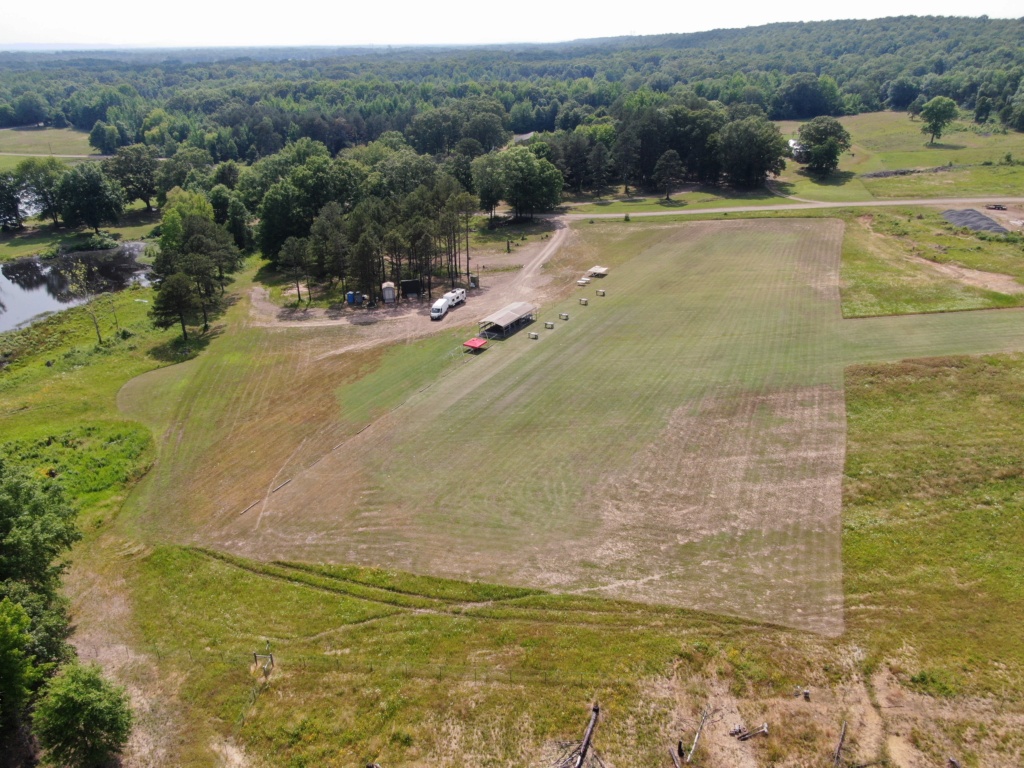

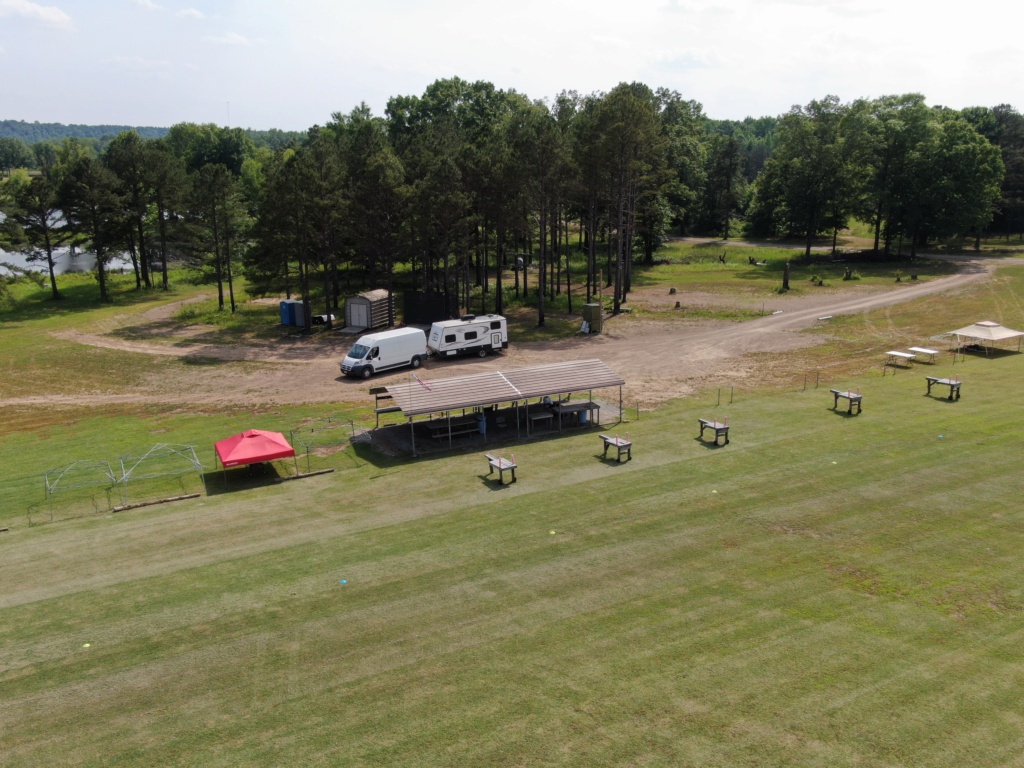

Rolled into Sky Tiger Field yesterday around 4, and sent the drone out around for some footage of this beautiful place.
After checking with David, I parked in the same spot as last Fall, and ran my old Champ around the field in the amazingly calm air, while trying to video it at the same time...wasn't my best work...but I got a few capture frames from the shakey footage.
So now it begins.
After checking with David, I parked in the same spot as last Fall, and ran my old Champ around the field in the amazingly calm air, while trying to video it at the same time...wasn't my best work...but I got a few capture frames from the shakey footage.
So now it begins.
Kim- Top Poster
-
Posts : 8646
Join date : 2011-09-06
Location : South East Missouri
Re: S.M.A.L.L. 2023 "Here We Go"
Man that looks so nice and clam (even with a engine running ) i KNOW YOUR GOING TO HAVE A GREAT TIME ! I see they have the field groomed for glory , Very Nice you are very lucky , Hope Mark gets there soon . Glad you did safely
getback- Top Poster
-
Posts : 10472
Join date : 2013-01-18
Age : 67
Location : julian , NC
