Foam hand kids glider converted to 0.049 CL

Page 1 of 2 1, 2  Next

Go down

Foam hand kids glider converted to 0.049 CL Empty Foam hand kids glider converted to 0.049 CL

Post  layback209 Sun May 07, 2023 7:11 pm

Seen this awesome build on a Facebook group. Thought I share. Think I'll be heading to the dollar store 😆. It's brilliant.

Foam hand kids glider converted to 0.049 CL Screen18
Foam hand kids glider converted to 0.049 CL Screen19
layback209
layback209
Gold Member
Gold Member

Posts : 282
Join date : 2017-10-13
Age : 38
Location : Okotoks

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  Oldenginerod Sun May 07, 2023 8:26 pm

https://www.facebook.com/Controllineaeromodellersofbrisbaneinc/

Have a look.  They start 'em young in Brisbane!  The glider comes from Kmart.  I have one exactly the same I got my grandson.
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3984
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  NEW222 Sun May 07, 2023 9:16 pm

Too funny. I think I actually have that hand glider out in the garage. If not, mine is very similar anyways.....
NEW222
NEW222
Top Poster
Top Poster

Posts : 3895
Join date : 2011-08-13
Age : 45
Location : oakbank, mb

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  Oldenginerod Mon May 08, 2023 1:28 am

Looks like a great adaptation. There are flying shots but no video I can find. Note the guy has reinforced under the wings and horizontal stab with balsa or ply, plus added a tail skid. My only real concern is that when the landing gear gets hung up in the grass, (and it will), it will pivot rearwards, snapping the nose off right at the gear mount, launching the engine up and back over the plane. But for $3.50 and a small amount of effort it'd still be fun to try. Maybe do away with the landing gear. Huh...
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3984
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  roddie Tue May 09, 2023 5:42 pm

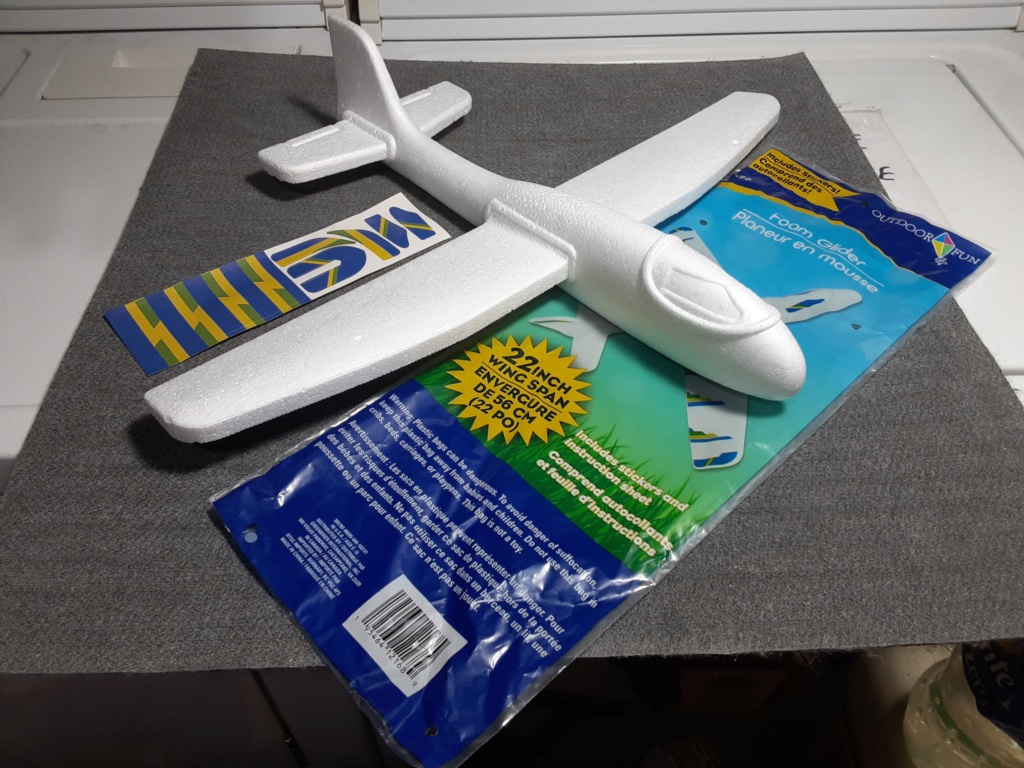

Here's my local "dollar store's" offering. Bought it a few days ago for $1.25 USD.

Foam hand kids glider converted to 0.049 CL Dollar10

It has a 22" wingspan.. but needs a LOT of help (a 40-grit block maybe)... with creating somewhat of a symmetrical airfoil. You can see that the leading-edge is "squared-off". I can't understand how this design would glide through the air with this wing-profile..

The 2-piece wing halves are mold-marked on their bottom-sides; "R" and "L" which is correct when viewing the bottom of the model while holding its' nose upright. The horizontal-stab. is in no-way aerodynamic; with square-edges around its' perimeter.. same as the wing-profile. The tail seems a bit more robust.. having only the single-slot for the stab. which has zero-degrees incidence from datum. The fuse has the most going for it.. regarding aerodynamics.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8452
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  rsv1cox Tue May 09, 2023 6:25 pm

The imagination runs wild with either of these models.  $1.25 - fuel, who cares at that price, let it eat, or electric.  Bring five or six to the field.  Velcro engine mounts, Pee Wee crash it hitch up another.  Free flight, whatever.  I visualize Ken and his son having fun like they did with the gyro's.

I'm heading to the Dollar Store.  Smile
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10842
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  Oldenginerod Tue May 09, 2023 9:50 pm

rsv1cox wrote:The imagination runs wild with either of these models.  $1.25 - fuel, who cares at that price, let it eat, or electric.  Bring five or six to the field.  Velcro engine mounts, Pee Wee crash it hitch up another.  Free flight, whatever.  I visualize Ken and his son having fun like they did with the gyro's.

I'm heading to the Dollar Store.  Smile
As mentioned, the glider in question came from Kmart here in Oz.  It has very slender wings and tail hence the reinforcing strips of woodthe creator has used.
Because of the chunky control surfaces of Roddie's glider, I'd suggest it would be wothwhile spending the extra on the Kmart ones.  Kmart USA have them as a two pack at $14.65.
https://www.kmart.com/huture-2-packs-15inch-glider-airplane-throwing-foam/p-A092681715
A little rich I think as the Aussie equivalent sells for around $3.50 each.
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3984
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  GallopingGhostler Wed May 10, 2023 12:21 am

Dimensions shown make it IMO, suitable for .020 Pee Wee and .010 & .020 Tee Dee, or maybe an early WenMac or OK Cub .049 with glow plug head.
Foam hand kids glider converted to 0.049 CL 2023-116
From Oldenginerod's Kmart product link.

It is rather smallish on wing area, less than 50 sq. in. On Cox .049 reed power, it would be a fast flyer, perhaps an overkill.
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5430
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  Oldenginerod Wed May 10, 2023 6:56 am

I've been in contact with the club in Brisbane whose facebook page the converted glider was posted on. The guy who did the conversion is going to get back to me with details of the build, which I will post here.

Rod.
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3984
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  roddie Wed May 10, 2023 9:44 am

The glider that I bought is of Styrofoam (beaded foam) construction.. whereas the smaller one featured looks to be of the newer and more resilient Depron (link) type foam.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8452
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Not depron

Post  cmulder Wed May 10, 2023 1:08 pm

The models that are promoted having "bouncy" foam are made of so called "epo" or also called "elapor" foam.
This foam can be glued with ca besides epoxy or "low temp hot glue"
Advantage is that they are more durable, disadvantage is that the foam is more flexable and heavier.
Depron (roofmate and that pink foam) are also made from polystyrene just like the cheap white glider just with a smaller "grain"
This is easier to shape (cut/ hot wire and sand) is stiffer but much more brittle then epo.

If a light stiff so good flying model is your design goal then depron is your best choice.
And if more durable is more important to you then the epo models are the better choice.
cmulder
cmulder
Gold Member
Gold Member

Posts : 279
Join date : 2022-02-10

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  roddie Wed May 10, 2023 9:07 pm

cmulder wrote:The models that are promoted having "bouncy" foam are made of so called "epo" or also called "elapor" foam.
This foam can be glued with ca besides epoxy or "low temp hot glue"
Advantage is that they are more durable, disadvantage is that the foam is more flexable and heavier.
Depron (roofmate and that pink foam) are also made from polystyrene just like the cheap white glider just with a smaller "grain"
This is easier to shape (cut/ hot wire and sand) is stiffer but much more brittle then epo.

If a light stiff so good flying model is your design goal then depron is your best choice.
And if more durable is more important to you then the epo models are the better choice.

So good to have the variations explained. Always good for prospective.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8452
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  roddie Wed May 10, 2023 9:14 pm

I'm game for giving "my" dollar-store foamy a place in history.. with the 1/2A control-line community looking-on. (awaiting an answer)
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8452
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  Iceberg Wed May 10, 2023 10:29 pm

Doesn't the nitro disolve the styrofoam?
Ice
Iceberg
Iceberg
Gold Member
Gold Member

Posts : 381
Join date : 2018-11-03
Location : Suva Fiji Islands

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  GallopingGhostler Wed May 10, 2023 10:55 pm

Iceberg wrote:Doesn't the nitro disolve the styrofoam?
I never had problems with nitro on my expanded polystyrene ARF foamies, but I usually painted them with a foam compatible paint that resisted glow fuel. Also, I brought spray cleaner and wiped down the aircraft before going home, so no fuel residue was left except where hard to get, like areas of the engine compartment.

However, two of mine, 46-in. Hobby Shack Cessna 150 (powered by Magnum .15 R/C plain bearing Schneurle - could loop in horizontal flight) and their 40-in. Cessna 180 (for .049 but I used .09 - .10 legacy cross scavenge R/C engines), didn't bother to paint, except the 180 used low heat generic plastic covering on the balsa tail surfaces. About the only thing is that without paint, they get dirty a lot easier. Also used Urethane varnish, tends to give a yellowing effect but still makes easier to keep clean.

However, in both cases, didn't have a problem with hot exhaust contacting the foam. Doesn't take much heat to damage the foam.

YMMY (your mileage may vary).
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5430
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  Oldenginerod Thu May 11, 2023 12:24 am

Ok, so I just got off the phone to Andrew, member of Brisbane Control Line club, who's Cox powered blue foam glider conversion prompted this thread.
He's a little surprised to get so much attention. He tells me that his two young boys were playing with their gliders in the back yard when he suddenly wondered if the conversion was possible, so he ducked into his workshop with his boys and proceeded to cut the nose off one. He tells me he just checked the position of the engine by eye to maintain the original overall length, as close as he could get to right angles to the wing. He said the first attempt was perfect with just a small piece of lead on the tail for balance. He shared his thoughts with others from his club and they were all sure it wouldn't work. They had to eat their words. He says that it does indeed fly very well, even with just strips of ply glued under the wings and tail for strength. He claims that after a number of disasterous crashes no damage has occured and the plane bounces exceptionally well. Engine cut at the top of a loop, is speared into the ground nose first, broke nothing, refilled it with fuel and was straight back in the air.
His next attempt will include carbon fibre rods instead of ply. He cut and reglued the rudder with offset. Joined the elevators with a piece of bent stainless wire and used standard Du-bro slot hinges. All assembly was done with 5 minute epoxy. He's sending me more information, dimensions and pictures.

Rod.
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3984
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty some design suggestions

Post  cmulder Thu May 11, 2023 6:21 am

Foam hand kids glider converted to 0.049 CL 31177110

From the lidl glider group on facebook.

No mention on how much LSD was was involved during design. Huh...
cmulder
cmulder
Gold Member
Gold Member

Posts : 279
Join date : 2022-02-10

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  rsv1cox Thu May 11, 2023 6:45 am

No mention on how much LSD was was involved during design.

Smile Smile

But what is going on with the black tri motor in the lower right hand corner with the satantic stars.  Very intreresting.
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10842
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Germans take there "toy" gliders VERRY serious

Post  cmulder Fri May 12, 2023 3:18 pm

Note the 3 year (!) warranty and the Certification ID for savety.

Foam hand kids glider converted to 0.049 CL Dscf7539
Foam hand kids glider converted to 0.049 CL Dscf7540
cmulder
cmulder
Gold Member
Gold Member

Posts : 279
Join date : 2022-02-10

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty there is a youtube channel

Post  cmulder Fri May 12, 2023 3:25 pm

rsv1cox wrote:But what is going on with the black tri motor in the lower right hand corner with the satantic stars.  Very intreresting.
crazy rc planes on youtube.

cmulder
cmulder
Gold Member
Gold Member

Posts : 279
Join date : 2022-02-10

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  Oldenginerod Sat May 13, 2023 6:43 am

Andrew (the guy who devised the foam glider to CL conversion) sent me a heap of pictures and specs on his build today so once I get them off my phone and onto my desktop I'll post them here.
Interestingly, I asked Andrew how the foam stood up to fuel. He says he has no plroblems at all because he doesn't use nitro. Doesn't like it because "it's corrosive" so he uses it in none of his engines. Just Methanol & Castor oil in all his engines. Says his Cox starts and runs fine on 0%. Go figure!!
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3984
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  sosam117 Sat May 13, 2023 7:03 am

Oldenginerod wrote:Andrew (the guy who devised the foam glider to CL conversion) sent me a heap of pictures and specs on his build today so once I get them off my phone and onto my desktop I'll post them here.
Interestingly, I asked Andrew how the foam stood up to fuel.  He says he has no plroblems at all because he doesn't use nitro.  Doesn't like it because "it's corrosive" so he uses it in none of his engines.  Just Methanol & Castor oil in all his engines.  Says his Cox starts and runs fine on 0%.  Go figure!!

On my Cox Texaco engines, I too use no nitro in my fuel.
And I have shimmed the cylinder so that the top of the piston is even with the shoulder of the cylinder at the top.
And it seems that with no nitro the engine runs longer, though a little slower (RPM) than with the nitro.

Foam hand kids glider converted to 0.049 CL Texaco25
Foam hand kids glider converted to 0.049 CL Texaco26
sosam117
sosam117
Diamond Member
Diamond Member

Posts : 1310
Join date : 2016-03-23
Location : Suburb of Chicago, Illinois

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Nitro is a "two edged sword"

Post  cmulder Sat May 13, 2023 7:42 am

Nitro generates oxygen when it "burns"
This oxygen allouws for more fuel to be burned in a single "engine stroke"
Compaired to no nitro fuel you just empty the content of your fuel tank faster. You still have about the same amount of energy out of the fuel just quicker. Don't know if burning nitro gives the same amount of energy as methanol; the total resulting energy from a tank might even be lower then with no nitro fuel.
So for a aplication where duration is of bigger importance then power like the texaco events, zero nitro makes perfect sence.
Also the bigger slower turning props are more efficient "moving air"
There is a good chance the texaco engines are better converting the energy stored in fuel into kinetic energy then the higher rpm "TD" engines.
It takes them just a little more time.
Besides shorter run time on the same tank, some of the resulting products of burning nitro are acidic and will corrode you engine if not take care off.
This is the reason for "after run oil"

For these converted gliders power is not a big requirement; flight duration is and the lower cost of the fuel helps too.
cmulder
cmulder
Gold Member
Gold Member

Posts : 279
Join date : 2022-02-10

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  aspeed Sat May 13, 2023 11:29 am

The Texaco is the same as most of the other Bees except for the venturi hole being smaller, and the head with more fins AFAIK. The fins are on because it is expected to be overpropped with a 7" prop. I am not sure what nitro would do. We always used more pitch with high nitro, so maybe a higher pitch combined with nitro would wash out the oxygenation loss. Some of the guys would mix some Coleman gas to run a bit longer for endurance events many years ago. It would run a bit hotter, and slower as well.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 790
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  aspeed Sat May 13, 2023 11:36 am

Kind of surprised that no one from the CEF has put together one of these foamy control line planes yet. Looks like a one hour job. We need video!!!. I think the size is just right for the reedy. Our mouse race rules were a minimum of 30 sq. in. and the 1/2A proto rules were 45 or 50 sq. in. minimum, so if it is strong enough it should be a go. The 45 sq. in. planes flew much better than the smaller ones.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 790
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Foam hand kids glider converted to 0.049 CL Empty Re: Foam hand kids glider converted to 0.049 CL

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
