"Steam Bee" how it was made

Go down

"Steam Bee" how it was made Empty "Steam Bee" how it was made

Post  OVERLORD on Wed Dec 11, 2013 10:34 am

This steam engine, using a 049 Babe Bee, was made without a lathe or milling machine. All materials can be bought at a DIY shop or come from the skip.

I removed the tank and made 2 aluminium L shaped profiles with 4 brass tubes to be able to reuse the 4 fuel tank bolts.

"Steam Bee" how it was made Imgp5413

The glow plug was replaced by a cylinder head that can take a standard plug. in the end of the silicone tube, I inserted a small piece of brass tube of about 4 mm long. The tube was then inserted in the hole starting from the cylinder end. The silicon-and-brass end screws thight in the spark plug hole.

"Steam Bee" how it was made Imgp6210

"Steam Bee" how it was made Imgp6211

The excentric for the valve was made out of a bearing you can find in roller blade wheels. The conrod was made with a 2mm piano wire bent around the bearing and soldered. That took a bit of a struggle and a lot of cursing. Inside the bearing, I glued a piece of dowel wood with a 3 mm hole drilled off centre for the mounting bolt. The crosshead comes out of an old lamp fitting.

"Steam Bee" how it was made Imgp5212

"Steam Bee" how it was made Imgp5110

"Steam Bee" how it was made Imgp5213

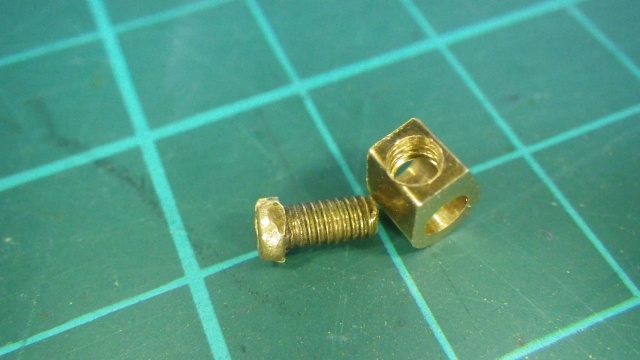

The valve is a piston that moves back and forth and connects the silicon tube to the steam inlet or outlet. The valve cylinder is made out of standard copper tubing and end caps. First, I made the piston out of dowel wood that I doped, but that seemed to bind in the cylinder due to humidity. I replaced it by a aluminium piston. The piston rod is 2,5 mm piano wire.

"Steam Bee" how it was made Imgp5214

"Steam Bee" how it was made Imgp5215

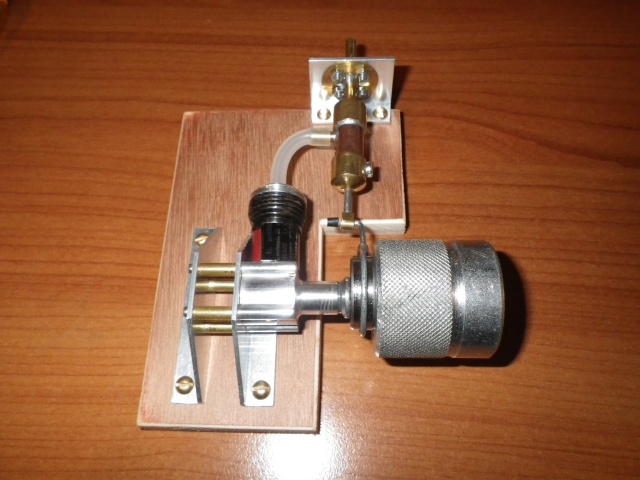

Because the Babe Bee is a square or even over square engine, it needs a big fly wheel. I replaced the original fly wheel by a heavier one and I also closed off the cylinder exhaust slits. If it works? I don't know. It should do. I don't have compressed air and my lungs or the the aquarium air pump only give enough pressure for 1 down stroke.

"Steam Bee" how it was made Imgp6212

It is a nice experiment and it can evoluate to a compound engine using a Pee Wee for high pressure and a Babe Bee for low pressure.
