CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  getback Thu Jul 24, 2014 7:28 am

Theo there was a post early on that I think this is the site for what you need , not to dough anyone's word on here .......   http://www.airfieldmodels.com/information_source/math_and_science_of_model_aircraft/formulas/straight_tapered_and_delta_wing_area.htm you will need to scroll down a bit Babe Bee .049 Eric
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 7881
Join date : 2013-01-18
Age : 63
Location : julian , NC

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  RknRusty Fri Jul 25, 2014 12:01 am

@getback wrote:Theo there was a post early on that I think this is the site for what you need , not to dough anyone's word on here .......   http://www.airfieldmodels.com/information_source/math_and_science_of_model_aircraft/formulas/straight_tapered_and_delta_wing_area.htm  you will need to scroll down a bit Babe Bee .049 Eric
Yeah I posted that. It's a very helpful and easy to understand site.

_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist
RknRusty
RknRusty
Rest In Peace
Rest In Peace

2019 Supporter

2020 Supporter

Posts : 10869
Join date : 2011-08-10
Age : 65
Location : South Carolina, USA

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Theo Kleynhans Fri Jul 25, 2014 2:21 am

Hi Guys

Thank you to all of you that replied, I appreciate the help.

Thank you for the info of the site. I will definately use it.

Mark, thank you for the calculations and the advise. Much appreciated. Yes I hope the plane is going to be a good choise. I like the look of it.

I will have a look at everything and then see what I will have to do.

Theo

Theo Kleynhans
Theo Kleynhans
Gold Member
Gold Member

Posts : 196
Join date : 2013-12-30
Age : 39
Location : South Africa

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Mark's Next Entry

Post  batjac Fri Jul 25, 2014 3:57 am

Well, here’s my entry for the November Reed Speed contest.  It is, to me, the sexiest homebuilt aircraft ever designed.  The George Pereira GP-4.  It’s an all wood two-seater, cruises at 240 MPH on a 200 HP Lycoming, and sleek as all get-out.

CEF speed contest Design Discussions (2014) - Page 2 Pdfjs2014-7-2504449_zps2b6706ab


It’s also been done in yellow, and this looks kind of appealing to me.  But I’ll probably go with the original red paint scheme.

CEF speed contest Design Discussions (2014) - Page 2 GP4a_zps46bb6fcd


I got a tiny 3-view from the Osprey Aircraft website and enlarged the picture to get a minimum of 45 squares.  With the long, sleek wing and fuse, it came out to a 16 inch wingspan and 13 inch fuse.  I could have made the wing shorter and fatter, but that would be sacrilege.  I’ll sacrifice the numbers to keep the scale proportions.  The 3-view was more of a thumbnail than a good picture, so the outlines are fuzzy when enlarged.  Good enough to work off of, although the stab and elevator are going to be pretty small at the scale dimensions.  Here’re my working drawings:

CEF speed contest Design Discussions (2014) - Page 2 Gp-4_disp_01a_zps2065ff47
CEF speed contest Design Discussions (2014) - Page 2 DSCN1938_zpsf9fe7614

And here’s the fuse wood.  I didn’t have one piece of hard 1/8” balsa in my scrap box long enough to do the whole fuse, so I’m taking a chance and butt gluing another piece of hard balsa to the nose, as it’s going to be sandwiched with ply anyway.

CEF speed contest Design Discussions (2014) - Page 2 DSCN1940_zpsdd078b54
CEF speed contest Design Discussions (2014) - Page 2 DSCN2097_zps75a98253


Since it has that sexy little wasp waist (which also turns me on in women.  Go figure…), I also put a small ply doubler on one side of the fuse at the transition to the fin to keep it from breaking on landing if it tumbles.  I made the fin and rudder a single piece with the fuse, because I didn’t want any breaks in the fuse profile.  Nice and smooth transition like the full sized plane.  You can also see the wing cut to shape and the ply bellcrank mount glued into the wing.  A couple of pencil lines were drawn to give me the leadout lines so I know where to put holes in the fuse for the leadouts.  I’m gonna try mounting the bellcrank a little differently this time.  I’m trying to decide if I’ll do Spectra leadouts or piano wire leadouts on this one.  Probably Spectra again, so I can eliminate the drag of line clips on the leadouts.

CEF speed contest Design Discussions (2014) - Page 2 DSCN2099_zpsbb6efd0f
CEF speed contest Design Discussions (2014) - Page 2 DSCN2107_zps76408eed


I cut the stab/elevator from 1/16” hard balsa.  I bent a piece of piano wire I had in the scrap box to make a joiner, and then recessed it into the elevator.  I glued two pieces of scrap 1/32” ply over the wire and then cut out the balsa between the elevators.  Nice and torsionally stiff.  Are you getting the impression I oughta name this plane “Scrappy”?
CEF speed contest Design Discussions (2014) - Page 2 DSCN2094_zps0d05cd18
CEF speed contest Design Discussions (2014) - Page 2 DSCN2096_zps4da9db34
CEF speed contest Design Discussions (2014) - Page 2 DSCN2095_zps0ba4074d


Next, I taped the stab and elevators together with scotch tape and marked the Scotch tape in pencil for the thread holes for the hinges.  I’ve only done thread hinges a couple of times, and never done a single thread hinge for each elevator.  In a couple of old plans I saw this done, so I thought I’d try it.

CEF speed contest Design Discussions (2014) - Page 2 DSCN2102_zps05fa0ebc
CEF speed contest Design Discussions (2014) - Page 2 DSCN2104_zps68acf516


Now, after sitting back and looking at what I did with the holes for the thread hinges, I think I might have been smarter to offset the holes on the elevator and stab, instead of a putting them in a straight line along the span, making a possible fracture line in the wood.  I’m sure when I glue the thread to the surfaces it’ll fill the holes okay, but it just bothers me a little.  Key learnings for future models.


The Scrappy Mark
batjac
batjac
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 1975
Join date : 2013-05-22
Age : 58
Location : Portland, OR, USA

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Mike Mulligan Fri Jul 25, 2014 2:16 pm

Wow! That looks like 100mph just sitting there!

Maybe we need to call you "The Streamlined Mark"...
Mike Mulligan
Mike Mulligan
Gold Member
Gold Member

Posts : 103
Join date : 2014-06-08
Age : 57
Location : Vista CA (Near San Diego)

http://Mulliganracing.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Mike Mulligan Fri Jul 25, 2014 2:52 pm

I wanted to do another model besides the Bearcat. One, because it's fun and two, I had some other ideas I wanted to try out.

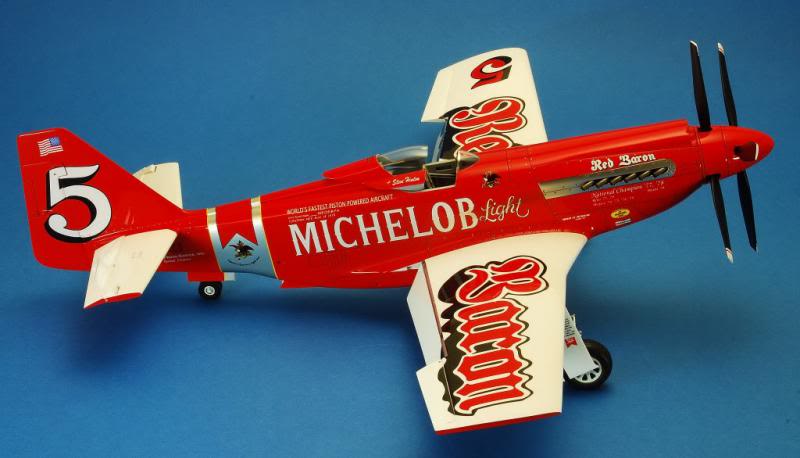

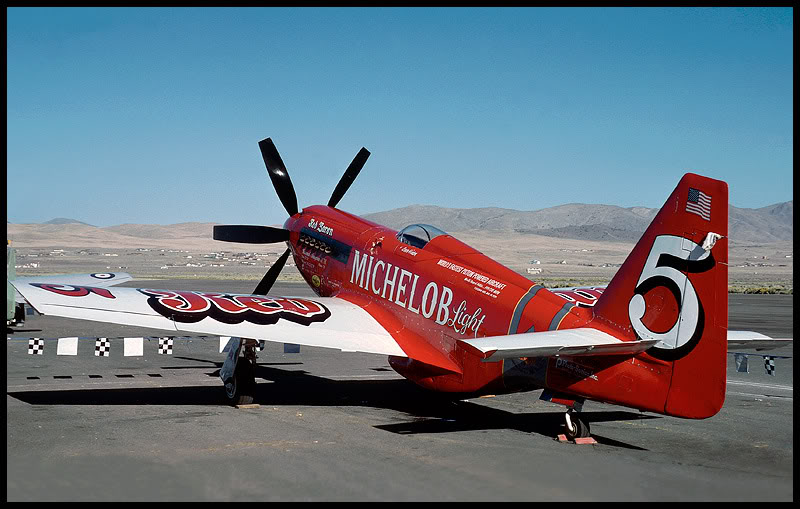

I think this is going to be it; my "other" all-time favorite race plane...
CEF speed contest Design Discussions (2014) - Page 2 Renop510
CEF speed contest Design Discussions (2014) - Page 2 Renop511
CEF speed contest Design Discussions (2014) - Page 2 Redbar10

I might have a chance to get started on it this weekend, depending upon any plans established by She Who Must Be Obeyed, of course.
Mike Mulligan
Mike Mulligan
Gold Member
Gold Member

Posts : 103
Join date : 2014-06-08
Age : 57
Location : Vista CA (Near San Diego)

http://Mulliganracing.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  dckrsn Fri Jul 25, 2014 6:39 pm

Thought you might like these Mike.
Bob
CEF speed contest Design Discussions (2014) - Page 2 Red_ba10

CEF speed contest Design Discussions (2014) - Page 2 Red_ba11
Greenie for the "Rumpole The Bailey" reference, and the cool pix.
dckrsn
dckrsn
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

Posts : 2643
Join date : 2010-10-21
Age : 68
Location : Long Island, New York

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  RknRusty Fri Jul 25, 2014 8:44 pm

@batjac wrote:Now, after sitting back and looking at what I did with the holes for the thread hinges, I think I might have been smarter to offset the holes on the elevator and stab, instead of a putting them in a straight line along the span, making a possible fracture line in the wood.  I’m sure when I glue the thread to the surfaces it’ll fill the holes okay, but it just bothers me a little.  Key learnings for future models.


The Scrappy Mark
Mask the line of holes off with blue tape and soak the area with super thin CA. Rip off the tape before it's stuck down. Immediately dress it down with a 220 sanding block, and your hinge line will be hard as a rock. You might need a pen vice to open the holes back up.

I bought some pink label CA at Hobby Lobby that is so thin you can't even glue two pieces of balsa together because it all soaks in leaving none on the surface. It's worthless for joining anything but it's super for hardening balsa.
Rusty

_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist
RknRusty
RknRusty
Rest In Peace
Rest In Peace

2019 Supporter

2020 Supporter

Posts : 10869
Join date : 2011-08-10
Age : 65
Location : South Carolina, USA

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  RknRusty Fri Jul 25, 2014 8:49 pm

@Mike Mulligan wrote:

I think this is going to be it; my "other" all-time favorite race plane...
CEF speed contest Design Discussions (2014) - Page 2 Renop510
No kidding. That's just stupefyingly cool.

_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist
RknRusty
RknRusty
Rest In Peace
Rest In Peace

2019 Supporter

2020 Supporter

Posts : 10869
Join date : 2011-08-10
Age : 65
Location : South Carolina, USA

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Nose jewelry...

Post  Mike Mulligan Fri Aug 01, 2014 1:23 am

I was looking for a spinner for the Red Baron and I found these from Brodak. Its not quite the right shape, but it is the right size at 1" in diameter, all aluminum and VERY light. It also happens to be stunning! It is an absolutely incredible piece of work. Here's a link:

http://brodak.com/brodak-1-spinner-with-2-holes.html

It was a bit pricey at $16.50 or so, but it comes with a 4-40 prop stud, a 4-40 prop nut that the tip of the spinner threads into to hold it all together, and another prop nut with a different, larger thread (haven't measured it yet), presumably for larger engines.

Did I mention that its also rather stunning? Red Baron never flew with a polished spinner, but I might have to claim artistic licence; this thing is too nice to slather with paint! Even at the price very highly recommended.

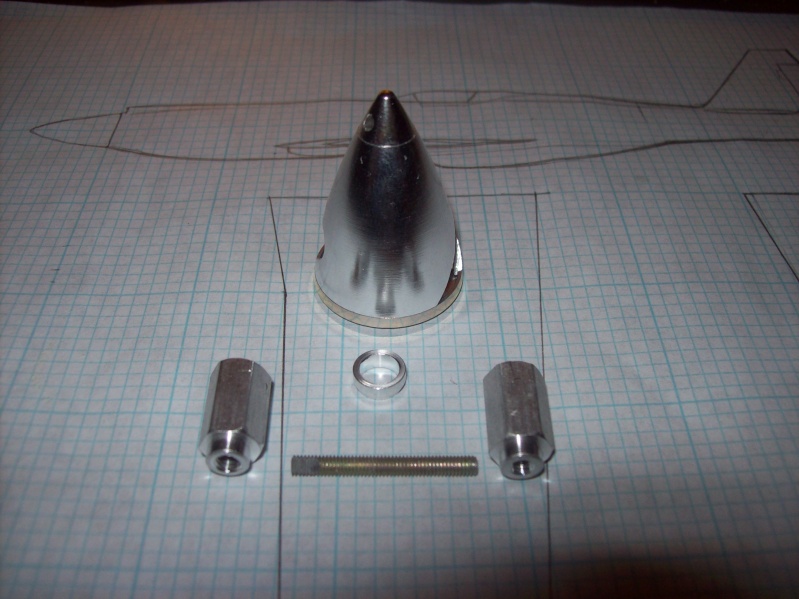

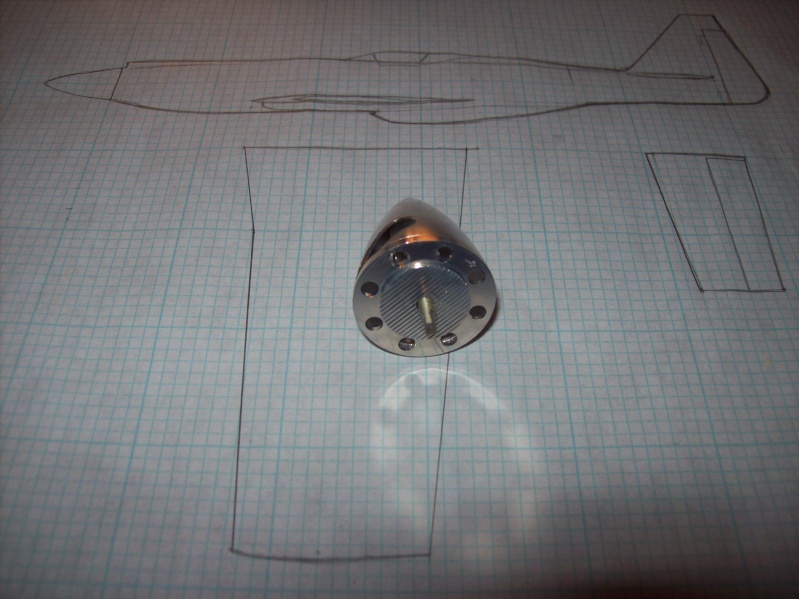

Here are a couple of pics, though they don't do it justice:

CEF speed contest Design Discussions (2014) - Page 2 101_0210
CEF speed contest Design Discussions (2014) - Page 2 101_0211
CEF speed contest Design Discussions (2014) - Page 2 101_0212
CEF speed contest Design Discussions (2014) - Page 2 101_0213
CEF speed contest Design Discussions (2014) - Page 2 101_0214
Mike Mulligan
Mike Mulligan
Gold Member
Gold Member

Posts : 103
Join date : 2014-06-08
Age : 57
Location : Vista CA (Near San Diego)

http://Mulliganracing.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  roddie Fri Aug 01, 2014 5:42 am

@Mike Mulligan wrote:I was looking for a spinner for the Red Baron and I found these from Brodak. Its not quite the right shape, but it is the right size at 1" in diameter, all aluminum and VERY light. It also happens to be stunning! It is an absolutely incredible piece of work. Here's a link:

http://brodak.com/brodak-1-spinner-with-2-holes.html

It was a bit pricey at $16.50 or so, but it comes with a 4-40 prop stud, a 4-40 prop nut that the tip of the spinner threads into to hold it all together, and another prop nut with a different, larger thread (haven't measured it yet), presumably for larger engines.

Did I mention that its also rather stunning? Red Baron never flew with a polished spinner, but I might have to claim artistic licence; this thing is too nice to slather with paint! Even at the price very highly recommended.

Here are a couple of pics, though they don't do it justice:

CEF speed contest Design Discussions (2014) - Page 2 101_0210
CEF speed contest Design Discussions (2014) - Page 2 101_0211
CEF speed contest Design Discussions (2014) - Page 2 101_0212
CEF speed contest Design Discussions (2014) - Page 2 101_0213
CEF speed contest Design Discussions (2014) - Page 2 101_0214


Hi Mike, MAKE SURE it's a "5-40" prop-stud (Brodak's description is vague)... Your Cox .049 uses a 5-40 prop-screw/stud. I don't know why Brodak would sell a spinner with a 4-40 stud.. unless it's possibly for an electric application... but I doubt it. Even a Pee Wee .020 takes a 3-48 prop-screw. Just make sure before you thread it into your crank. The Bearcat is coming along great! I love your design-work!!!!
roddie
roddie
Top Poster
Top Poster

Posts : 7186
Join date : 2013-07-17
Age : 61
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  JPvelo Fri Aug 01, 2014 11:41 am

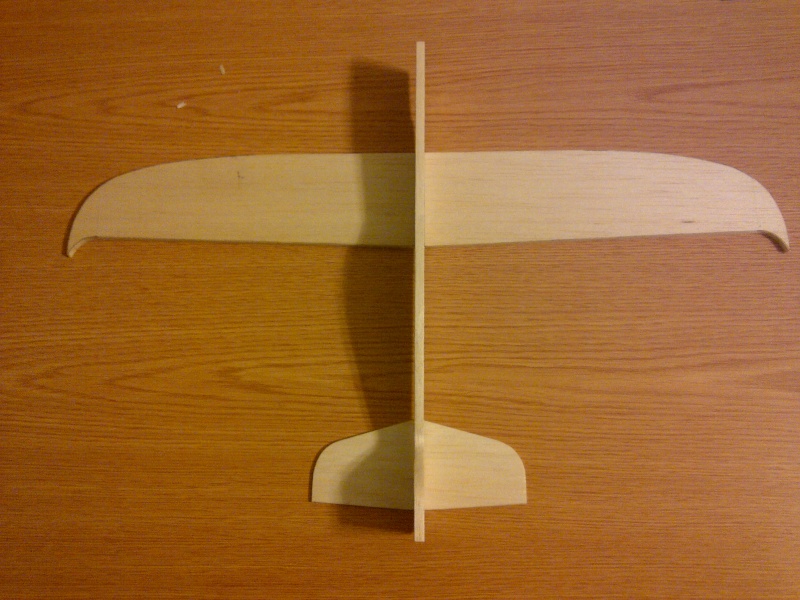

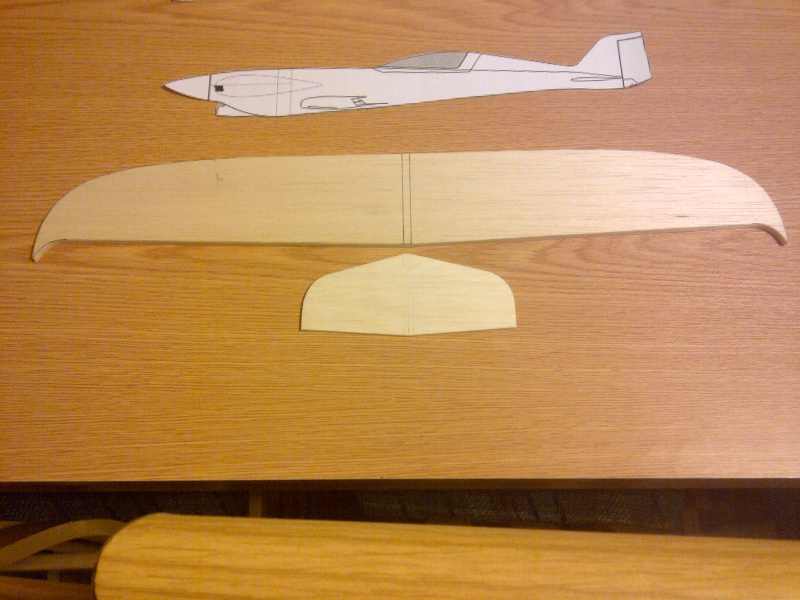

Finally had a chance to do some sanding today:
CEF speed contest Design Discussions (2014) - Page 2 K4UayG1
CEF speed contest Design Discussions (2014) - Page 2 8O9fjLc
CEF speed contest Design Discussions (2014) - Page 2 Kr7ZtRQ
JPvelo
JPvelo
Diamond Member
Diamond Member

Posts : 1962
Join date : 2011-12-02
Age : 53
Location : Phoenix

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Mike Mulligan Fri Aug 01, 2014 12:20 pm

@roddie wrote:Hi Mike, MAKE SURE it's a "5-40" prop-stud (Brodak's description is vague)... Your Cox .049 uses a 5-40 prop-screw/stud. I don't know why Brodak would sell a spinner with a 4-40 stud.. unless it's possibly for an electric application... but I doubt it. Even a Pee Wee .020 takes a 3-48 prop-screw. Just make sure before you thread it into your crank. The Bearcat is coming along great! I love your design-work!!!!

Good call Roddie. I didn't really do much more than open the bag and marvel at the thing. I don't know what the 4-40 shaft is designed to fit. Perhaps it fits the Brodak brand .049. The good news is that the prop nut has plenty of room to be drilled and re-tapped to 5-40.
Mike Mulligan
Mike Mulligan
Gold Member
Gold Member

Posts : 103
Join date : 2014-06-08
Age : 57
Location : Vista CA (Near San Diego)

http://Mulliganracing.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Mike Mulligan Fri Aug 01, 2014 12:30 pm

@JPvelo wrote:Finally had a chance to do some sanding today:
CEF speed contest Design Discussions (2014) - Page 2 K4UayG1
CEF speed contest Design Discussions (2014) - Page 2 8O9fjLc
CEF speed contest Design Discussions (2014) - Page 2 Kr7ZtRQ

That is looking great!
Mike Mulligan
Mike Mulligan
Gold Member
Gold Member

Posts : 103
Join date : 2014-06-08
Age : 57
Location : Vista CA (Near San Diego)

http://Mulliganracing.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Mike Mulligan Fri Aug 01, 2014 12:38 pm

I managed to get some cutting done last weekend as well...

CEF speed contest Design Discussions (2014) - Page 2 101_0215
CEF speed contest Design Discussions (2014) - Page 2 101_0216
CEF speed contest Design Discussions (2014) - Page 2 101_0217
Mike Mulligan
Mike Mulligan
Gold Member
Gold Member

Posts : 103
Join date : 2014-06-08
Age : 57
Location : Vista CA (Near San Diego)

http://Mulliganracing.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  roddie Fri Aug 01, 2014 7:24 pm

@Mike Mulligan wrote:I managed to get some cutting done last weekend as well...

CEF speed contest Design Discussions (2014) - Page 2 101_0215
CEF speed contest Design Discussions (2014) - Page 2 101_0216
CEF speed contest Design Discussions (2014) - Page 2 101_0217

Oh Boy!!! Between you and Jim's latest posts; I'm itching to start drawing!! I've had my mind on a jet.

possibly...

CEF speed contest Design Discussions (2014) - Page 2 Lok_t-11
roddie
roddie
Top Poster
Top Poster

Posts : 7186
Join date : 2013-07-17
Age : 61
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Theo Kleynhans Mon Aug 04, 2014 6:24 am

Hi Guys

Here are my first cuts:
CEF speed contest Design Discussions (2014) - Page 2 Img-2056

I had to scale the wing to a 20.5inch span to get the needed 45 squares. Yes it is a bit long, but I prefer that than going wider at the root. This ensures a nice scale look.

I hope the stab is big enough.

I was out of 6mm balsa. So I will have to cut the fusulage tonight.

I have a question regarding the wing: I want to shape it with an airfoil. Now I know you have to sand it, but how do you guys do it? How do you ensure a similar shape all the way throughout the wing? What should the shape look like?

I will appreciate the help.

Theo
Theo Kleynhans
Theo Kleynhans
Gold Member
Gold Member

Posts : 196
Join date : 2013-12-30
Age : 39
Location : South Africa

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  pkrankow Mon Aug 04, 2014 8:08 am

I hate sanding airfoils. It is generally unnecessary for flight at this scale, but this contest is about getting the MOST out of the model, so airfoil shape is needed.

One way is to use brass or steel rods taped to the table as sanding guides. Careful sanding with a long enough sanding block to bridge the guides will produce very even smooth tapers over long surfaces. Basically draw tangent lines to the desired airfoil shape then figure the guide thickness and distance apart. Some double stick tape on the bottom of the wing may also help.

Another way of doing things is to use outside templates of the desired shape. Card stock is perfectly suitable as you cut the desired profile away, then sand to shape using the template as a guide. Simply place the template over the work and "sand the daylight" out of it carefully. In this case it is literally sanding the high spots until daylight does not show between the template and the part.

Using both of these techniques together will help make an airfoil that is very even in shape. Compound tapers are also possible, by either working in section or having the guides not parallel, or the part not parallel. Just work out a set of tangents for each end of each section, then think through the process remembering that this is a SUBTRACTIVE process, material is removed and cannot be added (easily).

Remember to have Fun! This makes an awful mess.

Phil
pkrankow
pkrankow
Top Poster
Top Poster

Posts : 3025
Join date : 2012-10-02
Location : Ohio

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  RknRusty Mon Aug 04, 2014 11:03 am

I cheated and bought pre-shaped 1/4" balsa airfoil stock from Sig.

_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist
RknRusty
RknRusty
Rest In Peace
Rest In Peace

2019 Supporter

2020 Supporter

Posts : 10869
Join date : 2011-08-10
Age : 65
Location : South Carolina, USA

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  pkrankow Mon Aug 04, 2014 11:08 am

@RknRusty wrote:I cheated and bought pre-shaped 1/4" balsa airfoil stock from Sig.

That is probably more smart than cheating!

Phil
pkrankow
pkrankow
Top Poster
Top Poster

Posts : 3025
Join date : 2012-10-02
Location : Ohio

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Mike Mulligan Mon Aug 04, 2014 4:25 pm

Hi Theo,

That is looking good. I think you may be on to something; the longer wing should be more efficient and might actually be lower drag than a short stumpy wings.

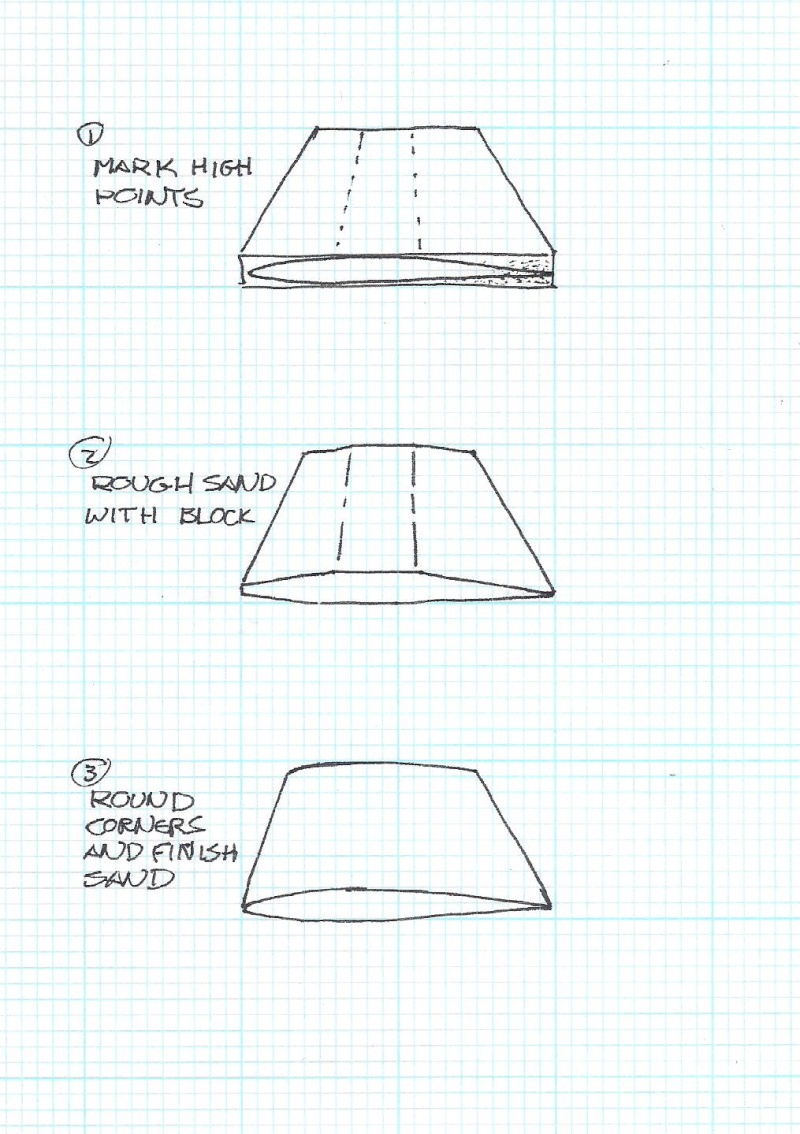

I hate sanding airfoils too, but there really isn't any option, though I might have to look into the Sig wood that Rusty used. I haven't seen that before. Here is how I go about The Hated Task. Hopefully the drawing is fairly clear:

CEF speed contest Design Discussions (2014) - Page 2 Airfoi10

Of course the process creates LOADS of dust. If you are sensitive (even if you are not), you might want to wear a mask or something.

Keep us posted!
Mike Mulligan
Mike Mulligan
Gold Member
Gold Member

Posts : 103
Join date : 2014-06-08
Age : 57
Location : Vista CA (Near San Diego)

http://Mulliganracing.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  ian1954 Mon Aug 04, 2014 4:56 pm

Mike,

Nice diagram but I would recommend adding a centre line for the leading and trailing edge. I can't manage without that - it helps keep a symmetrical wing true.
ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2682
Join date : 2011-11-16
Age : 66
Location : England

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Mike Mulligan Mon Aug 04, 2014 5:01 pm

@ian1954 wrote:Mike,

Nice diagram but I would recommend adding a centre line for the leading and trailing edge. I can't manage without that - it helps keep a symmetrical wing true.

Absolutely right... I neglected to mention that. Thanks.
Mike Mulligan
Mike Mulligan
Gold Member
Gold Member

Posts : 103
Join date : 2014-06-08
Age : 57
Location : Vista CA (Near San Diego)

http://Mulliganracing.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Theo Kleynhans Tue Aug 05, 2014 1:06 am

Thank you for all the info and help guys. I really appreciate it.

Phil, thank you for the detailed explanation. It seems that slow and steady is on the menu here.

Mike, thanks for the diagrams, looks straight forward, but I know it is going to be a long hard process.

I cut the fuse last night. I must say it is looking really cool. Seing everything together I am getting excited.
CEF speed contest Design Discussions (2014) - Page 2 Img-2057

CEF speed contest Design Discussions (2014) - Page 2 Img-2058

CEF speed contest Design Discussions (2014) - Page 2 Img-2059

I still need to ponder on what I am going to do on the nose with the engine. I am not sure how I will do some sort of cowling yet.

First I need to start and get the wing shaped.

Theo
Theo Kleynhans
Theo Kleynhans
Gold Member
Gold Member

Posts : 196
Join date : 2013-12-30
Age : 39
Location : South Africa

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  roddie Tue Aug 05, 2014 5:59 am

Hi Theo, Your model looks real sharp! You can make a sanding "beam" from a piece of light-gage 1.5" aluminum angle stock and the emery-cloth that Plumbers use, that comes in a roll. Cut your alum. angle to around 24" (a good length for your wing) and attach the emery-cloth with full length/width double-sided film tape placed on the beam first.. then stick-on the abrasive. Place the wing-panel flat, on an elevated plate and make a couple of passes.. then check.  This will remove a LOT of wood.. so be careful. You can fine-sand afterward.
roddie
roddie
Top Poster
Top Poster

Posts : 7186
Join date : 2013-07-17
Age : 61
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

CEF speed contest Design Discussions (2014) - Page 2 Empty Re: CEF speed contest Design Discussions (2014)

Post  Sponsored content


Sponsored content


Back to top Go down

Page 2 of 20 Previous  1, 2, 3 ... 11 ... 20  Next

Back to top



Permissions in this forum:
You cannot reply to topics in this forum
