1/2A stunt trainer design

Page 3 of 9 Previous  1, 2, 3, 4, 5, 6, 7, 8, 9  Next

Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  duke.johnson Thu Jun 04, 2015 10:35 am

Very Happy That's so cool Roger! I need a laser cutter.
duke.johnson
duke.johnson
Diamond Member
Diamond Member

Posts : 1734
Join date : 2012-11-06
Age : 52
Location : Rochester, Washington

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Thu Jun 04, 2015 12:11 pm

duke.johnson wrote: Very Happy  That's so cool Roger! I need a laser cutter.

yea it's a great tool for sure. takes a few hours to draw out the parts and a matter of minutes to cut them. i keep pushing for a larger bed machine that will cut metal....
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  Oldenginerod Thu Jun 04, 2015 6:47 pm

Roger. You da man Good Idea
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3984
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Fri Jun 05, 2015 10:56 am

did some cutting before work today.

[img]1/2A stunt trainer design - Page 3 B70EB43E-6420-4072-BF03-61B9EDC64131[/img]
[img]1/2A stunt trainer design - Page 3 5A273D66-8CDC-41F8-82DE-1511D9F9F81A[/img]
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  GallopingGhostler Fri Jun 05, 2015 11:00 am

Looks good, Roger. You have a stuntable easy build sport plane, ought to be a lot of fun to fly. I just wished our area here in eastern NM had calm weather, like when I lived in California, Arkansas and Virginia. Smallest I fly so far is .15 because of that. Ron Cribbs can testify to that.
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5427
Join date : 2013-07-14
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Fri Jun 05, 2015 11:56 am

GallopingGhostler wrote:Looks good, Roger. You have a stuntable easy build sport plane, ought to be a lot of fun to fly. I just wished our area here in eastern NM had calm weather, like when I lived in California, Arkansas and Virginia. Smallest I fly so far is .15 because of that. Ron Cribbs can testify to that.

thanks!  we have quite a few breezy days here. most often though in the summer the wind clams down early evening.  i am about 3 miles from the atlantic ocean and maybee a somewhere around a mile from the closest bay.

i think i will order another piece of this air foil. depending on how this one performs i might mess with the fuse length
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  duke.johnson Mon Jun 08, 2015 6:12 pm

Roger
I'm back in town and tryuing to wrap up loose ends. So I owe you $23, right? How do you want it? In $100 bills? :-) Paypal? And if you send me your address, I'll print you off a copy of a plane with flaps you might like.
Here's a link with a picture, third post on second page of the thread, if I screwed up the link. It's called a Wing Master. I really like the plane and want to build another, but would make minor changes to the flaps for strength of the fuse.
https://www.coxengineforum.com/t5117p20-new-castor-oil-odyssey-plane
duke.johnson
duke.johnson
Diamond Member
Diamond Member

Posts : 1734
Join date : 2012-11-06
Age : 52
Location : Rochester, Washington

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Mon Jun 08, 2015 7:09 pm

duke.johnson wrote:Roger
I'm back in town and tryuing to wrap up loose ends.  So I owe you $23, right? How do you want it? In $100 bills? :-) Paypal?  And if you send me your address, I'll print you off a copy of a plane with flaps you might like.
Here's a link with a picture, third post on second page of the thread, if I screwed up the link. It's called a Wing Master.  I really like the plane and want to build another, but would make minor changes to the flaps for strength of the fuse.
https://www.coxengineforum.com/t5117p20-new-castor-oil-odyssey-plane

Hundreds would be fine LOL!
Duke, I will pm you my email and mailing address. I like the plane. It looks similar in construction to mine. If you have a drawing of the ribs etc that you need send that along as well

Thanks!
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Mon Jun 08, 2015 9:29 pm

Progress on my second trainer. I laminated the fuse from engine mount back to about 3/4" past the trailing edge of the wing with 1/32" plywood. Did the same on the stunt trainer.
[img]1/2A stunt trainer design - Page 3 BF4AE039-9815-40CE-8F96-AAE50D477611[/img]
[img]1/2A stunt trainer design - Page 3 7E27F642-2642-429A-93EE-7878DFB73611[/img]
[img]1/2A stunt trainer design - Page 3 3443BCBE-FB94-492A-B0AF-0FF6E42D0A97[/img]
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Mon Jun 08, 2015 9:29 pm

[img]1/2A stunt trainer design - Page 3 6E5AE6A2-9294-4F21-807E-A12FCB6B940D[/img]
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  roddie Mon Jun 08, 2015 10:24 pm

SWEET Rog! Thumbs Up  I like it a lot. Coupling the flaps is tedious.. but I found it easiest to use a drill-guide attachment that comes with the Dubro hinge-slotting tool (#216) to drill the holes for a U-bent music-wire joiner. I twist the drill-bit with my fingers or a pin-vise through the hole in the centering-guide on the tool. Bending the "U" perfectly level takes some patience too. I install the coupler/joiner-wire first.. then mark and cut my hinges in. (same process for a split-elevator)

Here's the tool.. (shown with the drill-centering guide installed) I think the three drill sizes are 1/16", 3/32" and 1/8".

1/2A stunt trainer design - Page 3 Dubro_10

Here's the flap/elev. linkage on a tri-plane I designed years ago. The flap isn't split on this model though.. but the elevator is. I cut a < notch in the fuse for the one-piece flap.

1/2A stunt trainer design - Page 3 Rog_cu10
1/2A stunt trainer design - Page 3 Rog_cu11

Kind of a twist on "built-up"/sheet-slab construction.. wings and fuse.. covered in Mono-kote.

1/2A stunt trainer design - Page 3 Rog_cu12

The tripe's tail-section of the fuse is framed with 1/4" square-Spruce stringers. It's hard to see in the pic.
roddie
roddie
Top Poster
Top Poster

Posts : 8449
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Mon Jun 08, 2015 10:33 pm

Thanks roddiie! I may need to invest in some tools. I have always just gone the exacto knife method for cutting in hinges and yes flaps were always tedious as I remember. I'm also going to make one with a bit longer fuse to get a bit more space between the trailing edge of the wing and leading edge of the stab and see what works better
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Mon Jun 08, 2015 10:39 pm

Love the tri wing btw roddie!
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  pkrankow Mon Jun 08, 2015 11:48 pm

You'll love the duobro slotting kit! Less than a minute per slot, then you get better at it.

Phil
pkrankow
pkrankow
Top Poster
Top Poster

Posts : 3025
Join date : 2012-10-02
Location : Ohio

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Tue Jun 09, 2015 1:50 pm

pkrankow wrote:You'll love the duobro slotting kit!  Less than a minute per slot, then you get better at it.

Phil

on order Very Happy Laughing Clapping now i have to wait for it bounce Paranoid
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Tue Jun 09, 2015 7:58 pm

Update on the bipe. So far I only see 1 fitment problem that I need to fix. I had enough material laying around to cut out a kit except for the 1/16" plywood for the struts. Hope to get to the LHS in the next couple days and pick up a small piece of ply to cut the struts. Other than that so far so good. I also have some plastic coming and hope to include the windshield as well
[img]1/2A stunt trainer design - Page 3 8866794A-C53E-44F0-BB15-5CF3AC6E6934[/img]
[img]1/2A stunt trainer design - Page 3 492668AF-1DB3-4701-A2ED-008279F4C2D7[/img]
[img]1/2A stunt trainer design - Page 3 0D3DA1D8-44EA-4026-8BDE-6DD4DC80FBDF[/img]
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  roddie Tue Jun 09, 2015 9:38 pm

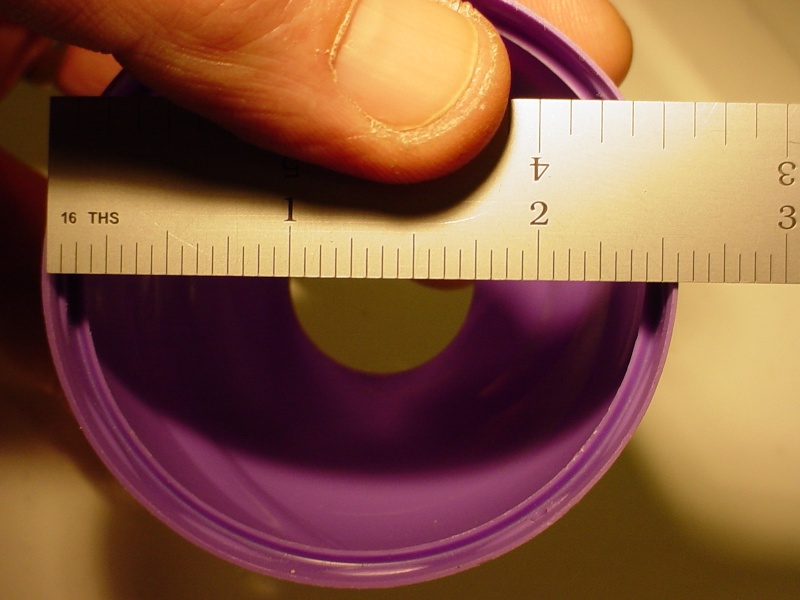

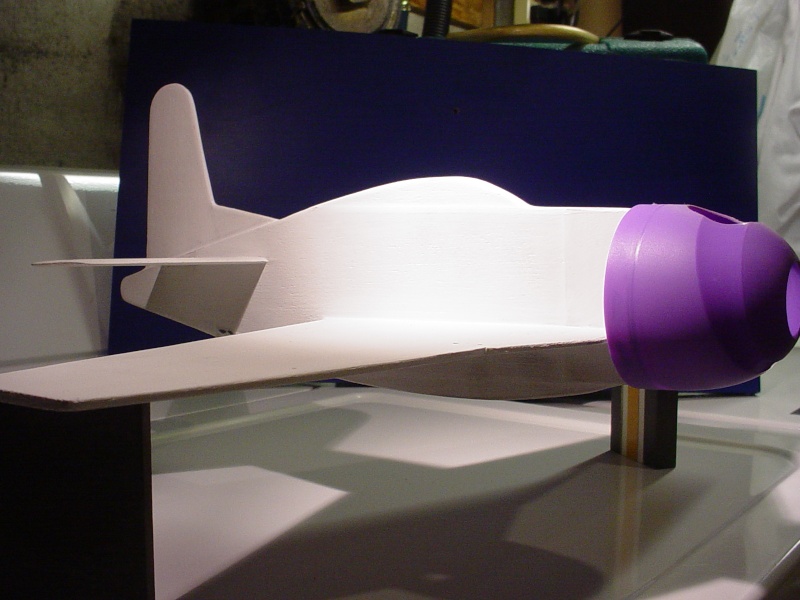

Nice Rog! What's the nose's vertical dimension? Wondering how an aerosol-can cap-cowling would look. That bipe would look wicked with a cowl!  Cool

1/2A stunt trainer design - Page 3 3-16-110
1/2A stunt trainer design - Page 3 2-19-110

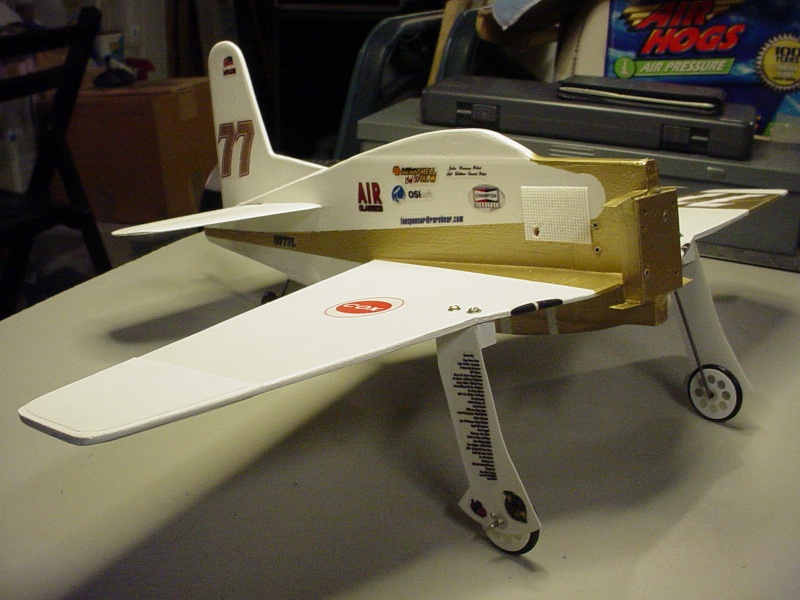

A few key provisions for a radial/reedie mount would be to use a pair of 3/8" sq. Spruce blocks.. vertically adhered both sides of the nose.. on the thrust-line. Make them only just longer (taller) than needed to accommodate the engines back-plate mount. I used 4 Brass tabs mounted to the tops/bottoms of the blocks, for additional support for the cowl.

1/2A stunt trainer design - Page 3 4-10-111

I ended up mounting the engine cylinder horizontal/outboard. The trim accents help to give a more 3-D illusion to a cowling on a profile fuse.

1/2A stunt trainer design - Page 3 3-29-110

And then there's Jim Roselle's gorgeous Staggerwing..

1/2A stunt trainer design - Page 3 Nfcbam10
roddie
roddie
Top Poster
Top Poster

Posts : 8449
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Tue Jun 09, 2015 9:50 pm

now that's cool roddie!

i love all the detail in yours but that red one is really sweet! i think your right, a cowl would really make a difference!
the nose is 1.75" high but it would be easy to build up a bit. whats the smallest cap that will work and what should i look for?
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  getback Wed Jun 10, 2015 10:49 am

Roger , the Ring Bipe is looking good , If possible I would like mine in a single piece wing , I can pay the extra shipping if needed ? The Scout plans are in the mail to you , going to PM you some pics also . Thanks ! Eric Small Cox Logo
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10269
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Wed Jun 10, 2015 11:10 am

getback wrote:Roger , the Ring Bipe is looking good , If possible I would like mine in a single piece wing , I can pay the extra shipping if needed ? The Scout plans are in the mail to you , going to PM you some pics also . Thanks ! Eric Small Cox Logo

oh i plan on it eric. these are the "export " wings. i wanted to cut a set and check the fitment.

i will let you know when the plans arrive.

who's this for a cowl Roddie? my first i must say. i cut a new engine mount and a backing plate

1/2A stunt trainer design - Page 3 3E3363F2-6053-4E06-8834-4B9F4AC4F930
1/2A stunt trainer design - Page 3 FFC162EC-1BED-4B36-A7AA-B380CEC9C9F2
1/2A stunt trainer design - Page 3 F00D2551-98CB-483B-8633-81DD67FF565E
1/2A stunt trainer design - Page 3 90B86035-C68B-436D-94B5-D500DF1B7CDE
1/2A stunt trainer design - Page 3 0DA71062-AB72-44C9-B094-459AD08846F1
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  GallopingGhostler Wed Jun 10, 2015 1:04 pm

Cowl is a sharp addition to the Ring bipe, looks really good, firewall holes should provide ample cooling air through the cowl.
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5427
Join date : 2013-07-14
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Wed Jun 10, 2015 4:45 pm

got home and threw the bipe together real quick. looks cool with the cowl! thanks for the suggestion roddie!!

1/2A stunt trainer design - Page 3 C2338DE6-2A4D-4C93-A0A0-EBB6F467C3CD
1/2A stunt trainer design - Page 3 4E2CFBB9-78DE-4744-A7AC-C68FD1B5DC70
1/2A stunt trainer design - Page 3 F74A8EAE-ED75-4A7D-8D68-894DF72BEE9D
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rsv1cox Wed Jun 10, 2015 6:00 pm

Wow, nice on everybody. Now I'm anxious to get my kit. Smile But, no rush Roger, I'm still working on my 1/2A Cyclone.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10834
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  RknRusty Wed Jun 10, 2015 8:49 pm

Wow, you dudes have some classy looking stuff going on.
Rusty

_________________
Don't Panic!
...and never Ever think about how good you are at something...
while you're doing it!


My Hot Rock & Blues Playlist
RknRusty
RknRusty
Rest In Peace
Rest In Peace

Posts : 10869
Join date : 2011-08-10
Age : 68
Location : South Carolina, USA

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  rogermharris Wed Jun 10, 2015 9:00 pm

RknRusty wrote:Wow, you dudes have some classy looking stuff going on.
Rusty

Thanks rusty!

Having fun for sure. I think I need to cut a machine gun to mount somewhere...

I need to get the other two finished up. Not even sure I have another bee to put on this one..
rogermharris
rogermharris
Platinum Member
Platinum Member

Posts : 503
Join date : 2015-03-17
Age : 61
Location : Long Branch, New Jersey

Back to top Go down

1/2A stunt trainer design - Page 3 Empty Re: 1/2A stunt trainer design

Post  Sponsored content


Sponsored content


Back to top Go down

Page 3 of 9 Previous  1, 2, 3, 4, 5, 6, 7, 8, 9  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
