Can you identify this tool?

Post  Sig Skyray on Mon Jun 08, 2015 9:25 am

I bought a small lot of plane parts and tools over the weekend and haven't identified these two.  In the first photo, on the right side is a laser that rocks in it's mount with a threaded weight in the center for adjustment and on the left is a scale that the laser points at with zero in the center.  Looks like the brackets probably grip a wing.  Everything slides left and right along the red aluminum bar.
I assume it's part of this guys modeling tools... it was an estate sale and the seller didn't have a clue as to what was in the box.

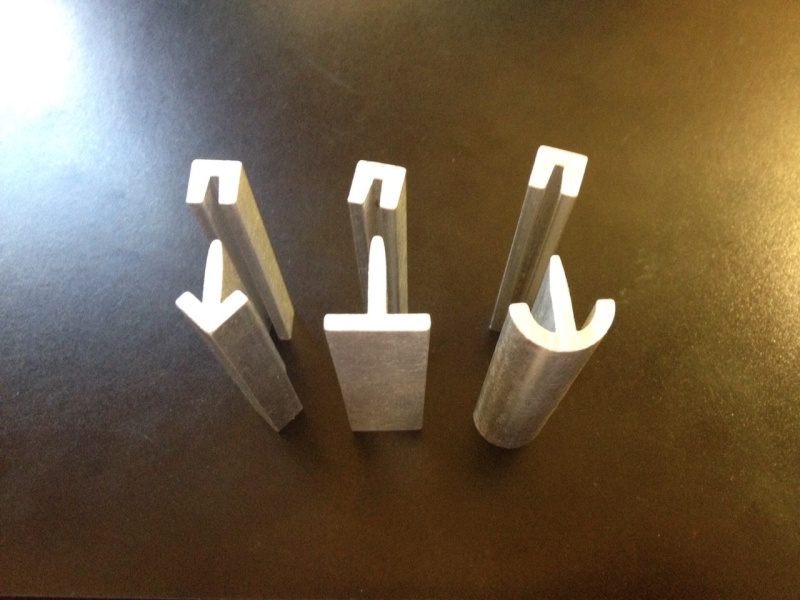

The second item are these 6 aluminum pieces each 3" long.  Covering tools?

Greg


avatar
Sig Skyray
Gold Member
Gold Member

Posts : 222
Join date : 2015-04-02
Age : 55
Location : Lake Mary, FL

View user profile

Back to top Go down

Re: Can you identify this tool?

Post  getback on Mon Jun 08, 2015 9:30 am

The first one is a wing incidence gauge  from some error ...
https://www.google.com/?gws_rd=ssl#q=wing+incidence+gauge
 the other not sure of Huh...


Last edited by RknRusty on Mon Jun 08, 2015 2:54 pm; edited 1 time in total (Reason for editing : Fixed URL in message)
avatar
getback
Top Poster
Top Poster

Posts : 4163
Join date : 2013-01-18
Age : 60
Location : julian, n.c.

View user profile

Back to top Go down

Re: Can you identify this tool?

Post  Marleysky on Mon Jun 08, 2015 9:34 am

Hey!Nice find. The 1st pic is a wing intensive gauge ( darn spellcheck ). Incidence gauge. 2nd set I would guess to be sanding blocks lol!
avatar
Marleysky
Diamond Member
Diamond Member

I Support My Forum

Posts : 1311
Join date : 2014-09-28
Age : 64
Location : Grand Rapids, MI

View user profile

Back to top Go down

Re: Can you identify this tool?

Post  TDbandit on Mon Jun 08, 2015 10:04 am

Top as everyone else has said is a wing/stab incidence gauge very nice tool to have bottom is some type of sanding block set dunno what manufacturer is. (Bandit)
avatar
TDbandit
Platinum Member
Platinum Member

Posts : 839
Join date : 2014-12-01
Age : 45
Location : Fort Valley Georgia

View user profile

Back to top Go down

Re: Can you identify this tool?

Post  Sig Skyray on Mon Jun 08, 2015 10:39 am

Thanks.  This incidence gauge is no longer available from Great Planes but MSRP was $52 at the time.

The aluminum pieces... they seem a bit short for sanding blocks to me but if they are it makes sense that the sandpaper would get pressed in between the block and the "T" handle deal.  The 3 small "T" shaped pieces fit perfectly inside the shaped tools but don't fasten or attach. No handles, no good way to grip the thing. The box came with monocote and sealing tools like a sealing iron, heat gun, covering iron, etc. so I'm wondering if it's related.  It also came with a slot machine (hinge slotting tool), all of which I have no use for at the moment....

Greg


Last edited by Sig Skyray on Mon Jun 08, 2015 11:13 am; edited 2 times in total (Reason for editing : Clarification)
avatar
Sig Skyray
Gold Member
Gold Member

Posts : 222
Join date : 2015-04-02
Age : 55
Location : Lake Mary, FL

View user profile

Back to top Go down

Re: Can you identify this tool?

Post  Marleysky on Mon Jun 08, 2015 10:59 am

hey I'll  send you a virtual quarter, you can drop it in the "slot machine" and pull the handle.....if it comes up all 7's....I won!  And you can send it to me lol!
Look like you got a whole bunch of goodies. Now you have the material and tools to build a airfoil wing and cover it with mojo coat ( monocoat) darn spellcheck Shocked


Looks Like they've made improvements to the tools over the years. You may have the 70's version of this style sander.

http://www.horizonhobby.com/airplanes/sanding-tools/round-head-carbide-sander%3A-medium-grit-mid1177

You wrap the sandpaper around the tool overlapping the ends at the top and push the U shape down to secure the paper in place, while using your thumb and forefinger to hold the sander to get in to tight spaces.


Last edited by RknRusty on Mon Jun 08, 2015 2:52 pm; edited 2 times in total (Reason for editing : Fixed link)
