Nakajima B5N 'Kate'

Testor's Wood and Metal cement is celluloid. It is similar to Ambroid, but thicker consistency.

Phil

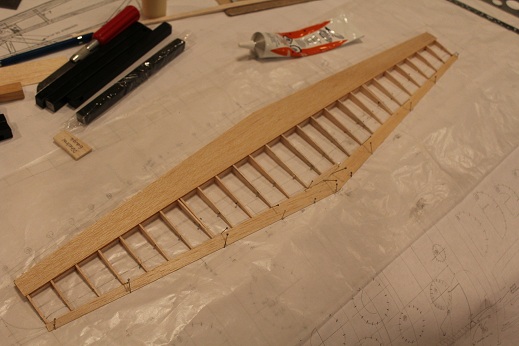

DUCO and Sigment are good alternatives, too! Started the wing this weekend. Ribs rough cut, pinned together then top surface sanded. I'm building the top half of the wing first then will add balsa to the flat bottom in order to make a semi-symmetrical wing. To cut the spar slot for the tapered spar a 'spacer' was put on one end so that the slot is 4mm on wing tip end and 8mm on root end. Passing this across the table saw got the desired result. The spar was pinned flat side down then ribs added. The false LE added after truing the front end of ribs with sanding stick. Once dry the ribs were sanded fair. There are double ribs at the dihedral break location. A dihedral gauge used to set one rib properly each side. When wing is done the outer panels can get cut free then re-glued with a brace. Top surface LE and TE sheeting added. Once it's all dry it'll get finished. That's all for now!

ARUP, Whats the wingspan on your Kate ?

akjgardner, it'll be a little over 25". I've been working on it a little at a time. Been putting ribs on bottom side a few at a time then sanding them. Eventually it'll be a semi-symmetrical foil.

got any new updates on the Kate?

akjgardner wrote:got any new updates on the Kate?

He's working on the Nieuport 28.

Yes, I would like to see the Kate in finished form too. BTW, looking at the last photo with the Ambroid, my LHS has a lot of it for sale. Maybe it's available again.

My apologies for the inactivity. The wings just don't look like Guillow's construction and I've been thinking about re-building them but then I hate to just toss what is built. The Nieuport plans are laid out but nothing is started. I'm lazy! Better buy that Ambroid while you can. Its shelf life is almost forever and you will eventually use it!

rsv1cox wrote:

akjgardner wrote:got any new updates on the Kate?

He's working on the Nieuport 28.

Yes, I would like to see the Kate in finished form too.  BTW, looking at the last photo with the Ambroid, my LHS has a lot of it for sale.  Maybe it's available again.

Bob is it the same as the pic of that there tube?? and how much was it if so> Eric

This is it Eric.



I no longer have the receipt but the price didn't scare me off, probably $2.99. I was in there last week and the Ambroid display had about 6 tubes left. I will check the price when I go back next time.

Bob

Bob O buddy /pal /long distance friend /sweet pea of mine if that's 2.99-3.99 or so would you bee so kind as to pick me up 2 tubes and send them to me I will pay you for your price and time . Eric

No problem old buddy friend of mine and fellow model airplane knocker. I should be going back sometime next week.

The ole' sweet pea Bob

Thank You Sir. Eric

ARUP, have you ever considered using CAD ?  Your drafting and geometry skills demonstrated are certainly adequate.

ARUP wrote:Fred, thank you kindly for your response AND your 'views'. I have a thread going on RCG and it has absolutely no responses and very few 'views'. Amazing.

Here's how the fuselage formers will get their stringers. The largest former was number 4 so it was traced onto a piece of paper then a scrap paper was used to measure a quadrant. It was 44mm long and 4 stringers should suffice so 44/5 gives ~9mm spacing. Artisitic license used to draw points around the former then diagonals drawn to get these points, mirror image fashion, to the other quadrants. This becomes the guide to draw stringer stations on all the other formers. These former were then traced onto the plans for future reference. Hope this makes sense.







I have more formers to cut from balsa. Once they started getting put onto the plans more pics will come!
