Veron Combateer

Post  ian1954 on Thu Jun 09, 2016 2:22 pm

I started this a couple of weeks ago but due to the demise of my camera - I lost most of the pictures.



It was designed for 2 - 5cc diesels, I only have a few that match that description Smile , but because of my location I have to introduce it to the dark side.

So far I have built it to plan with the exception of the engine bearers. I have lowered these and pushed them back to help support the wing so that they can also support the battery.

The bearers have also been cut flush so that I can apply a motor mount to the front.













Next step will be to build in the battery mount and notch the front of the wing inside the fuselage. I am a little perturbed about weakening the wing but I want to get the battery as near to the centre line as possible. That will be trial and error!

The motor will be a Black Tiger 3530 with a 9x6 propeller. Should give a good 15 performance.
avatar
ian1954
Diamond Member
Diamond Member

Posts : 2425
Join date : 2011-11-16
Age : 63
Location : England

View user profile

Back to top Go down

Re: Veron Combateer

Post  getback on Fri Jun 10, 2016 7:06 am

Hi Ian , your running a chop shop there having to go to the DARK side , kind of a strange plane, i see there were no cuts in the LE and TE for the ribs and the bellcrank looks to be mounted to the balsa wing covering ? Just out of curiosity what is the black wrappings on the landing gear . Not putting it down its a good looking aeroplane , yea cutting into the wing isn't the best thing maybe use some glassing to reinforce it ? Eric Huh...
avatar
getback
Top Poster
Top Poster

Posts : 4701
Join date : 2013-01-18
Age : 60
Location : julian

View user profile

Back to top Go down

Re: Veron Combateer

Post  pkrankow on Fri Jun 10, 2016 7:39 am

avatar
pkrankow
Diamond Member
Diamond Member

Posts : 2946
Join date : 2012-10-02
Location : Ohio

View user profile

Back to top Go down

Re: Veron Combateer

Post  ian1954 on Fri Jun 10, 2016 8:28 am

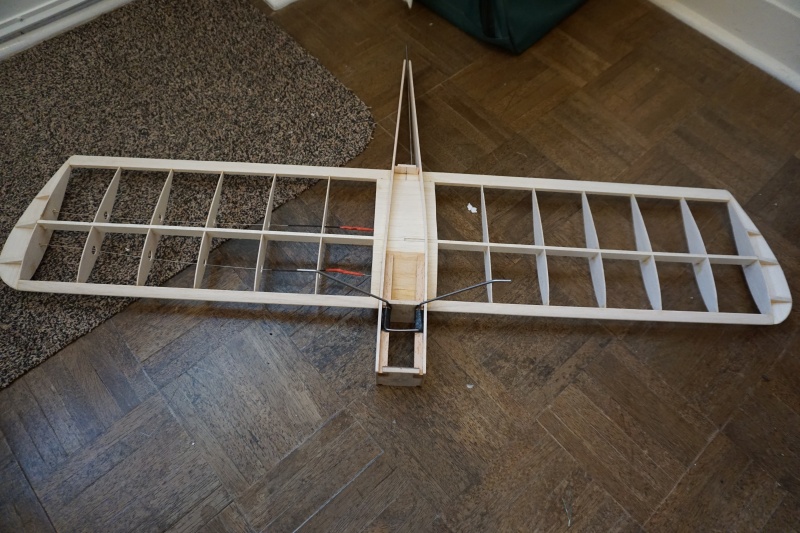

It is unfortunate that I lost the previous pictures - the ribs are slotted in the trailing and the leading edge but they are now blended in so it is not easy to see.

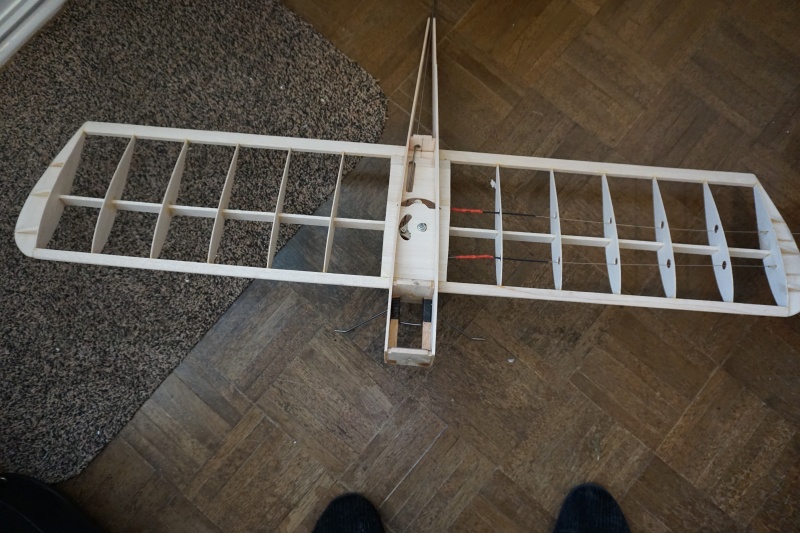

The bellcrank is on a plywood mount but - when I went to sheet the top I had to relieve a portion for it to move freely.

The black wrapping is carbon tow and cyano.

I am still mulling over reinforcing - I will chop out material to get a good battery fit and then think that one through.
avatar
ian1954
Diamond Member
Diamond Member

Posts : 2425
Join date : 2011-11-16
Age : 63
Location : England

View user profile

Back to top Go down

Re: Veron Combateer

Post  pkrankow on Fri Jun 10, 2016 10:28 am

Hack 'n slash battery fitting?

If the wing is not glued in yet there are some reinforcing options that will be pretty easy. You can whip up some interior or exterior doublers, glass and epoxy, and more.

Phil
avatar
pkrankow
Diamond Member
Diamond Member

Posts : 2946
Join date : 2012-10-02
Location : Ohio

View user profile

Back to top Go down

Re: Veron Combateer

Post  ian1954 on Sat Jun 11, 2016 6:42 pm

Battery compartment hacked and slashed. Now for some more reinforcement.

avatar
ian1954
Diamond Member
Diamond Member

Posts : 2425
Join date : 2011-11-16
Age : 63
Location : England

View user profile

Back to top Go down

Re: Veron Combateer

Post  ian1954 on Tue Jun 14, 2016 5:58 pm

Motor mount printed and fitted. Bearing for motor shaft pressed in.

avatar
ian1954
Diamond Member
Diamond Member

Posts : 2425
Join date : 2011-11-16
Age : 63
Location : England

View user profile

Back to top Go down

Re: Veron Combateer

Post  ian1954 on Sat Sep 03, 2016 8:12 am

More progress but still more to do. I covered the elevator but since then it has gone wrinkly.

I need to make a canopy - it won't look right without it.

I messed up the cowling and it needs correcting. Not sure how but the spinner isn't blended in nicely and catches.







avatar
ian1954
Diamond Member
Diamond Member

Posts : 2425
Join date : 2011-11-16
Age : 63
Location : England

View user profile

Back to top Go down

Re: Veron Combateer

Post  getback on Sat Sep 03, 2016 8:52 am

Damn that's a shame about the stab wrinkle , looks like the iron was too hot , I like the full body Nice !
avatar
getback
Top Poster
Top Poster

Posts : 4701
Join date : 2013-01-18
Age : 60
Location : julian

View user profile

Back to top Go down

Re: Veron Combateer

Post  roddie on Sat Sep 03, 2016 2:23 pm

Hi Ian, There's a product called "The Woodpecker" made by Top-Flite.. that's used for perforating sheet-balsa surfaces in prep for iron-on covering.



I don't have one.. and have never tried one. It's only recommended for treating "sheeted-areas" where air/gasses can become trapped under the covering.. causing bubbles/wrinkles. It's also something you'd only want to use with "opaque" covering. I know that you often use transparent film.. but that's generally on your models that have mostly framed-up construction.. and not many sheeted surfaces.  Two Cents

Regarding the clearance between the prop and cowling; have you considered "printing" a small washer (shim) to place behind the prop, to give you a few mm.'s of extra clearance? That might be easier than block-sanding the nose flatter..  Huh... An ABS washer would be less likely to "slip" when the prop is tightened against the grooved-driver on the motor-shaft. The diameter only needs to be the size of the drive-plate.. and have an ID to match it's boss.. or the OD of the prop-screw; depending on the configuration.
