Davis diesel head improvement Empty Davis diesel head improvement

Post  robot797 on Sun Oct 28, 2018 5:19 pm

I am working on improving the cheap davis diesel heads
I am combining the RJL design and the Davis design
if I can get it to work it means you can use the head without the teflon disks
this is my current design

Davis diesel head improvement Diesel10

it should use a normal R9 O ring
I am gonna try and get a prototype made tomorrow
so updates are comming soon (I hope)
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  balogh on Mon Oct 29, 2018 1:34 am

A great idea! Is it the contra-piston that your drawing shows?
balogh
balogh
Diamond Member
Diamond Member

Posts : 2264
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Mon Oct 29, 2018 1:48 am

Yea it is the Contra piston
With a little bit of work it should work
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  balogh on Mon Oct 29, 2018 1:53 am

Make sure you select the right O ring material otherwise it soon gets stiff and non-elastic under engine heat - thus sealing may be compromised- as I experienced with some common silicone rings put on COX cylinder necks to enhance goo control in exhaust mufflers.
balogh
balogh
Diamond Member
Diamond Member

Posts : 2264
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Mon Oct 29, 2018 2:23 am

Silicon and petroleum based fuels don't mix
Normal rubber O rings should work okey
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  Oldenginerod on Mon Oct 29, 2018 5:00 am

As far as I know, most European diesels never ran an o-ring to seal the contra-piston. The piston was just a very tight machine-fit. It looks like the o-ring is an American idea, as I've only seen them in OK Cub diesels and the RJL conversion heads. Certainly of the dozen diesels I have, none use an o-ring. Australian, British, Russian, Chinese, Indian. All have a machined-fit contra-piston. The only real disadvantage is that it's common for the contra-piston to stick, particularly if someone unwittingly screws the comp screw down too far onto part of the bore which has carbon build-up. It can be very hard to budge a stuck contra and many diesels have been damaged by the owners trying. Generally, the first time the engine fires it will shoot the conta back against the comp screw.
Oldenginerod
Oldenginerod
Diamond Member
Diamond Member

Posts : 2528
Join date : 2012-06-15
Age : 56
Location : Victoria, Australia

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Mon Oct 29, 2018 11:33 am

I have never seen a diesel with a O ring seal
well exept for my RJL head
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  Surfer_kris on Mon Oct 29, 2018 12:55 pm

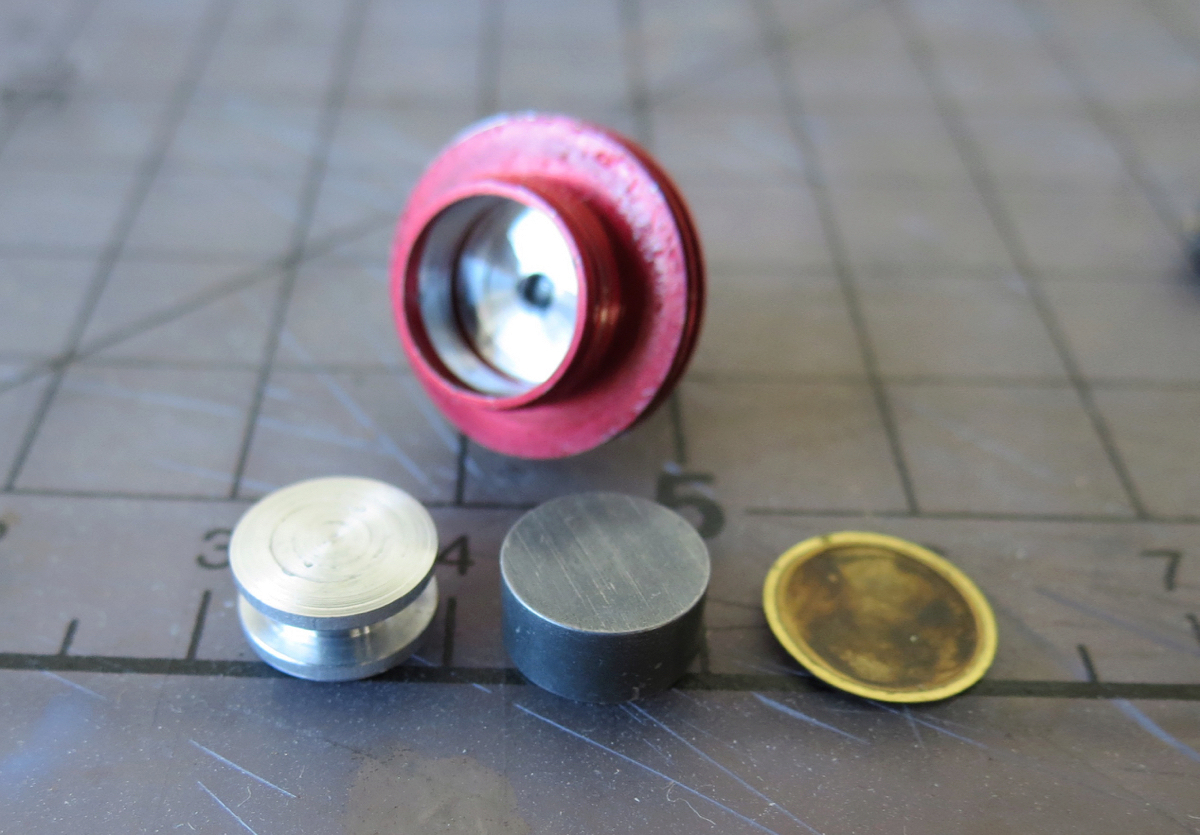

On the small engines I think it is hard to get a good enough seal and there is only room for one o-ring. On the PeeWee my o-ring head would not match the DDD head with a brass washer. Forget about the Teflon, it doean't seal, or you will pinch right through it when tightening the head. Viton rings can take the diesel fuel, but the PeeWee seem to be a little too small and sensitive, to me. For the .049 engines you can also get a Norvel head, the use the traditional press-fit seal.

Davis diesel head improvement Img_0013
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1543
Join date : 2010-11-20
Location : Sweden

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  Cox International on Wed Oct 31, 2018 1:50 pm

Please keep in mind that the Teflon disc is intended as a safety barrier; rupturing before engine damage occurs.
Cox International
Cox International
Diamond Member
Diamond Member

Official Cox Dealer
Posts : 2736
Join date : 2011-08-08
Age : 61
Location : Williams Lake, BC, Canada

View user profile http://www.coxengines.com

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Wed Oct 31, 2018 1:57 pm

Cox International wrote:Please keep in mind that the Teflon disc is intended as a safety barrier; rupturing before engine damage occurs.
yea I know
but the also wear fast and needs constant replacing
if the new contra piston works it is a nice upgrade for the people who are used to diesels
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  Surfer_kris on Wed Oct 31, 2018 3:16 pm

The danger I found was that the teflon discs will always tend to leak a little. This will trick you into increasing the compression setting in order to start the engine. But once it starts the compression setting is simply too high, thus risking to cause damage to the engine... Doh!

The safest option is to have a very good seal, e.g. a brass disc. This seals much better and gives easy starting at a compression setting that is also fine for the running engine, thus much safer in practice compared to the leaky teflon discs...
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1543
Join date : 2010-11-20
Location : Sweden

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Wed Oct 31, 2018 3:29 pm

I agree that is why i switched to aluminium
it wears as fast as the teflon but it seals a lot better
(cant get the brass sheets)
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  Surfer_kris on Wed Oct 31, 2018 3:51 pm

Aluminium seals well but it will fracture after a run or two. Brass works much better, you can get sheets from e.g. K&S Engineering or regular hobby shops. Aim for something around 0.10-0.15mm thick.
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1543
Join date : 2010-11-20
Location : Sweden

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Wed Oct 31, 2018 4:19 pm

really a hobby shop
never thought to look there lol
thanks for the tip
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  Surfer_kris on Thu Nov 01, 2018 1:40 am

I don't really know what to call it, we don't have any RC hobby shops that one can go to, like one could in the past, now there are only online stores for that...

But Craft/hobby stores often have sheet metal and metal wires in various materials.
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1543
Join date : 2010-11-20
Location : Sweden

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  Oldenginerod on Thu Nov 01, 2018 3:58 am

You should be able to find brass sheet at a model railway supplier. Also, automotive parts stores sell brass "shim stock" in various thicknesses.
Oldenginerod
Oldenginerod
Diamond Member
Diamond Member

Posts : 2528
Join date : 2012-06-15
Age : 56
Location : Victoria, Australia

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Mon Nov 05, 2018 11:05 am

well it the part arrived today
and good news it works
the only thing is the groove for the oring should be a little bit bigger (from 1.5mm to 1.55mm)
also I just reread my main text
it is a R3 O ring not a R9
also I made a video but my camera doesnt like the dark
so it is bad (still gonna post it)

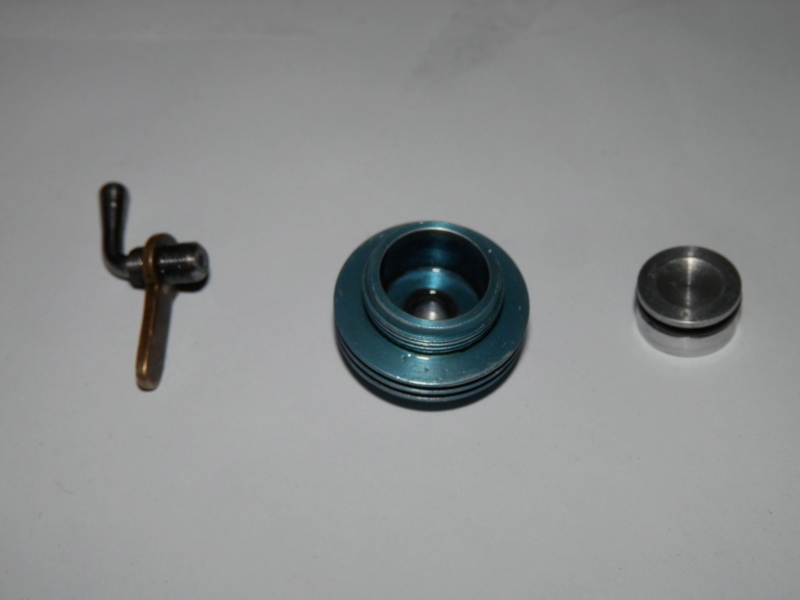

the pictures are the RJL Head and my new design
Davis diesel head improvement Pb050010
Davis diesel head improvement Pb050011

robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Tue Nov 06, 2018 11:44 am

update time
I made a few video's today
and I found out my orings are crap
they have a seam were they break all the time (gonna order some good orings)
the dimple I drew isnt realy nessesairy
i reversed the head to test if a flat contra piston would work
and i hardly notice the diverence
the video will be edited and uploaded when i am back tonight

also I dont have a supplyer so I cant sell these contra pistons
maybe Bernie (cox international) could sell them as a complete head/ upgrade kit?

also the updated drawing will be uploaded tonight
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  fit90 on Tue Nov 06, 2018 12:34 pm

If you have an airport with a maintenacne facility near by see if you can find MS-28775-XXX O rings. The XXX is for the size.
Bring one of your o rings to compare for size.
fit90
fit90
Diamond Member
Diamond Member

Posts : 1294
Join date : 2011-08-11
Location : Naples, Florida

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Tue Nov 06, 2018 3:22 pm

fit90 wrote:If you have an airport with a maintenacne facility near by see if you can find MS-28775-XXX O rings. The XXX is for the size.
Bring one of your o rings to compare for size.

or just look at the chemical resistance sheet and order some on ebay
for the tests i will use what i have and when its done i will use the ones i have ordered
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Tue Nov 06, 2018 4:07 pm

Davis diesel head improvement Diesel11

the new design

and a video


I am looking forward to your replies
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Thu Nov 15, 2018 4:56 pm

update
the specialy selected orings are arived
the v1 head cant fit them
I am so glad I kept this in mind with V2
now to wait for a v2 prototype
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Fri Nov 23, 2018 8:27 am

Davis diesel head improvement 15429810

Good news I received a few v2 prototypes
I am gonna run a few tests when home
And after that the results will be posted
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  Surfer_kris on Fri Nov 23, 2018 9:37 am

Are you having these made somewhere?

Wouldn't it be easier to just get an RJL head instead?

Davis diesel head improvement Rjl_he11
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1543
Join date : 2010-11-20
Location : Sweden

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  robot797 on Fri Nov 23, 2018 10:31 am

RJL heads are expencive and hard to get for me
it is cheaper to design my own

update
the test engine ran
not great but that was becaus i was running a spi piston cylinder combo
lots and lots of power
my orings are still to fat but they do fit with a bit of force
so v3 needs a deeper groove and then it should be good

also my crank broke apeerently i forgot to instal a hardened shaft in the test engine
so for now succes

I shall order a new crank and do some long term tests
are people here interested in the spare contra pistons i have?
robot797
robot797
Gold Member
Gold Member

Posts : 377
Join date : 2013-07-28
Age : 28

View user profile

Back to top Go down

Davis diesel head improvement Empty Re: Davis diesel head improvement

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
