Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem.

Go down

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. Empty Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem.

Post  sosam117 Wed Feb 02, 2022 12:27 pm

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem.

Things for modification:
For Cox .09 Medallion, you’ll need to order an Enya needle valve assembly, Part number 06211
That needle valve assembly is for the small Enya .06 engines.

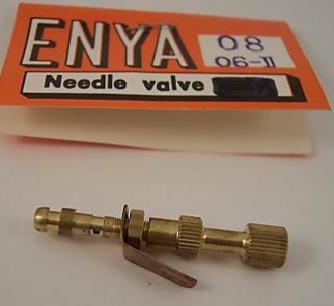

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 008_en12

For Cox .15 Medallion, you’ll need to order an Enya needle valve assembly, Part number 09220
This needle valve assembly is for the Enya .09-III engines.


Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 007_en12

Modifying the Cox .09 Medallion venturi
We’ll 1st start with the easiest venturi to do.
As you take out the .06-II needle valve assembly from the package, you’ll notice that it has two spray bar holes.
We want the holes 90° to the air flow coming into the venturi. So, we don’t see the holes when we look into the venturi.


Now we have two options here.
One is to carefully file into the one end of the spray bar into an octagon like how Cox has it in the venturi for a nice fit.
But remember you’ll have to file the correct orientation on that end (shoulder) to have the holes facing horizontal in the venturi.


I have used a pin-vice to hold the spray bar as I file the flats into the shoulder.
It is easy because my pin vice is octagon shaped and I can orientate it easy to the next face to file.
I have had this pin-vice for years and it was made by X-acto.


Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 009_x-11

The other simpler way is to taper that shoulder so as you tighten on the nut on the other side it will lock it in and while tightening the nut you can orientate the spray bar holes the way they should be.
If you’re doing this method don’t forget the needle valve retainer spring.


I don’t like the 2nd method that much because you’re putting undue stress on the plastic venturi?
And may crack years down the road.


After you completed that side and “if” you did the taper of the other side you should see that the small groove part on the spray bar should be in the middle? I hope it is --- if done right?

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 008a_e11

Last is now to screw in the needle valve.



Now for the Cox .15 Medallion:

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 001a_m10


1st is which side the needle valve will be on?
That is the side where we completely remove the plastic “boss”.

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 003a_b10

Next is to remove the Enya .09-III needle valve assembly from the package.

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 007a_e10

Now for the other side of the venturi, we will cut a notch in it to accept the Enya spray bar.
This too you’ll have to watch for the orientation of the spray hole.
This one should be where the hole in the spray bar is facing down the venturi.


Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 006a_s10

Next is to cut into the boss to make a slot for the Enya spray bar to fit into. As shown in the photo below.

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 005a_o10

Remove the plastic all the way down like in the other side where the spray bar will fit.
**** leave the little plastic "ears" as this will lock in the spray bar from turning when the nut is tightened on the other side.***

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 006a_s11

When done you should have two little plastic ears to orientate the spray bar and also to keep it from rotating when you tighten the nut on the other side.

The last thing to do now is to insert the needle valve retainer spring, screw on the nut and tighten it up and then screw in the needle valve.

If you have remove enough of the plastic "boss" (on both sides) the spray bar hole is in the middle of the venturi?

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 002a_s10

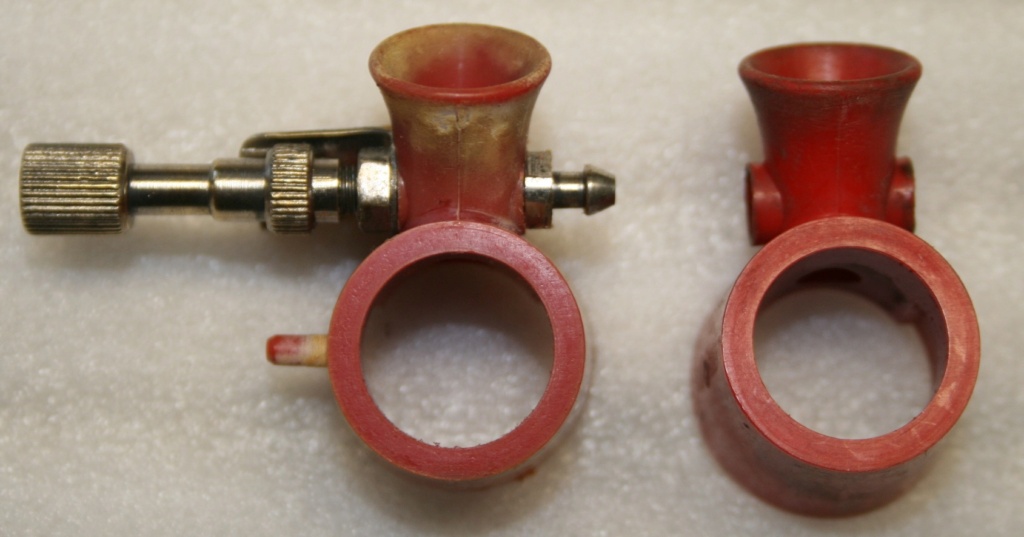

Modified venturi alongside OEM venturi:

Modifying Medallion .09 & .15 Venturi to fit an Enya needle valve assem. 001a_m11


The Enya .06-II and the Enya .09 spray bars are available from Bob Brooks.
Contact him directly at:

Bob Brooks
shtterman@aol.com
954-234-0863

If you purchase items from his store *bay charges him 10% so save you that 10% and contact him directly.
Bob takes Paypal and checks.


Last edited by sosam117 on Wed Feb 02, 2022 12:40 pm; edited 5 times in total (Reason for editing : added info on Bob Brooks (shtterman@aol.com & misspellings)
