What piece catches your eye the most?
Page 1 of 1
Re: What piece catches your eye the most?
1. Looks like that is an early production 051 KB in the bottom right corner? Then it does catch my eyes. Though KB-s were built from slit exhaust cylinders, and the stepped wall cylinder on the photo dates back to the 70's when KB-s did not exist yet. So it may be a Frankenstein engine..
2. In addition, the exhaust deflector shield and exhaust throttle next to the KB, and the
3. red and blue and white postage stamp backplates...
4. also, the dual speed carb in the top ...that should work on a TeeDeeo49 venturi too..but it could not be mounted on a rotary valve COX, only on reed engines with the 3D printed backplate made by Jason for RC carbs on reedies..
...are these up for sale?
2. In addition, the exhaust deflector shield and exhaust throttle next to the KB, and the
3. red and blue and white postage stamp backplates...
4. also, the dual speed carb in the top ...that should work on a TeeDeeo49 venturi too..but it could not be mounted on a rotary valve COX, only on reed engines with the 3D printed backplate made by Jason for RC carbs on reedies..
...are these up for sale?
Last edited by balogh on Thu Nov 24, 2022 6:16 am; edited 1 time in total
balogh- Top Poster
Posts : 4852
Join date : 2011-11-06
Age : 65
Location : Budapest Hungary
Levent Suberk- Diamond Member
- Posts : 2233
Join date : 2017-12-24
Location : Türkiye
Re: What piece catches your eye the most?
Two visible identity markers for the Killer Bee would be the slit cylinder with one slit being wider. The other would be the yellow plastic Nyrod for the needle valve. The Killer Bee wouldn't have a intake screen either.
Ken Cook- Top Poster
- Posts : 5573
Join date : 2012-03-27
Location : pennsylvania
Re: What piece catches your eye the most?
The blue postage stamp catched my eye
Oh, and a two-needle setup for a Space Hopper!
I think the engine in question is a Golden Bee front combined with a red horseshoe backplate off a product engine. Looks like a narrow nose crankcase to me, and as far as I know, Killer Bee was always made with a new style case, plus a dual-slit, thick-wall cylinder (do correct me if I'm wrong).
![Very Happy](https://2img.net/i/fa/i/smiles/icon_biggrin.png)
I think the engine in question is a Golden Bee front combined with a red horseshoe backplate off a product engine. Looks like a narrow nose crankcase to me, and as far as I know, Killer Bee was always made with a new style case, plus a dual-slit, thick-wall cylinder (do correct me if I'm wrong).
KariFS- Diamond Member
- Posts : 2030
Join date : 2014-10-10
Age : 52
Re: What piece catches your eye the most?
Yeah, it's the rarely seen "Blue Backplate" in among a bunch of other goodies that catches my eye.
![Thanksgiving Dinner](/users/3015/29/34/60/smiles/1238312105.gif)
Marleysky- Top Poster
Posts : 3618
Join date : 2014-09-28
Age : 71
Location : Grand Rapids, MI
Re: What piece catches your eye the most?
It them Rings LOL I got a chainsaw i need to reup P.C.kit go the blue soo two speed also don't have one
![Turkey](/users/3015/29/34/60/smiles/725559805.gif)
![Thanksgiving Dinner](/users/3015/29/34/60/smiles/1238312105.gif)
![Leaves](/users/3015/29/34/60/smiles/4125565680.gif)
getback- Top Poster
Posts : 10326
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: What piece catches your eye the most?
The cable ratchet starter, upper right.
OVERLORD- Diamond Member
- Posts : 1799
Join date : 2013-03-19
Age : 58
Location : Normandy, France
Re: What piece catches your eye the most?
The Mccoy ? cylinder. ![Wink](https://2img.net/i/fa/i/smiles/icon_wink.gif)
![Wink](https://2img.net/i/fa/i/smiles/icon_wink.gif)
pman1111- Silver Member
- Posts : 95
Join date : 2022-01-15
Re: What piece catches your eye the most?
I thought Mccoy myself. However, all of the Mccoy cylinders I currently have on my bench have a radius in the corners of the liner cutouts. I'm thinking K&B greenhead.
Ken Cook- Top Poster
- Posts : 5573
Join date : 2012-03-27
Location : pennsylvania
Re: What piece catches your eye the most?
Hmmm.... the cutouts look rounded to me, but I really DO need glasses!
![Huh...](/users/3015/29/34/60/smiles/3929217648.gif)
![lol!](https://2img.net/i/fa/i/smiles/lol.gif)
pman1111- Silver Member
- Posts : 95
Join date : 2022-01-15
Re: What piece catches your eye the most?
I am still not sure and wonder if these are up for sale?
balogh- Top Poster
Posts : 4852
Join date : 2011-11-06
Age : 65
Location : Budapest Hungary
Re: What piece catches your eye the most?
balogh wrote:I am still not sure and wonder if these are up for sale?
I snatched this as a Buy It Now on eBay a few days ago. That's the photo from the eBay listing. The stuff came yesterday and I can take a better picture of the parts later tonight. Much of it is pretty well played with. There's parts there I'd never use, so if anyone sees anything they want, let me know.
Re: What piece catches your eye the most?
Jacob, I currently don't have a need for any of those parts, but because of life (health, wife's health, other volunteer activities, house and vehicle repairs, etc.) just am not as busy into modeling activities lately.
What I see is beyond Cox parts are OK Cub .049 heads, needles, and hodge-podge of other engine parts.
1 NOS OK glow plug in packaging. Good addition for a display collector.
Cox parts:
2 product horseshoe engines. One has a crash damaged back but still may be useful in a balsa model. Other, anodized gold crankcase seems to have possible performance possibilities and a good photo op potential for Cox Engine of the Month Contest.
2 complete postage stamp backs w/fine needles.
2 .049 mufflers w/o tops.
1 .049 cylinder w/piston, condition unknown but may match a throttle ring.
2 throttle rings.
1 exhaust deflector protector.
1 .049 snap starter spring.
1 dual speed NVA for early Cox .049 engine. I've seen occasionally a modeling switching valve that can be servo operates to switch between needles. Value would be someone needing such to complete an early engine.
There are other Cox parts, but above are the ones that caught my eye. The Cox .049 wrench can be de-rusted and shot with a light spray of glow fuel resisting silver paint for collecting or use.
As you allude to, those parts beyond your salvage may be valuable to the one lacking, also help defray your cost of obtaining.
What I see is beyond Cox parts are OK Cub .049 heads, needles, and hodge-podge of other engine parts.
1 NOS OK glow plug in packaging. Good addition for a display collector.
Cox parts:
2 product horseshoe engines. One has a crash damaged back but still may be useful in a balsa model. Other, anodized gold crankcase seems to have possible performance possibilities and a good photo op potential for Cox Engine of the Month Contest.
2 complete postage stamp backs w/fine needles.
2 .049 mufflers w/o tops.
1 .049 cylinder w/piston, condition unknown but may match a throttle ring.
2 throttle rings.
1 exhaust deflector protector.
1 .049 snap starter spring.
1 dual speed NVA for early Cox .049 engine. I've seen occasionally a modeling switching valve that can be servo operates to switch between needles. Value would be someone needing such to complete an early engine.
There are other Cox parts, but above are the ones that caught my eye. The Cox .049 wrench can be de-rusted and shot with a light spray of glow fuel resisting silver paint for collecting or use.
As you allude to, those parts beyond your salvage may be valuable to the one lacking, also help defray your cost of obtaining.
GallopingGhostler- Top Poster
Posts : 5513
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs
Re: What piece catches your eye the most?
that blue backplate
oh, and a wrench? ya know, ya just dont see any wrenches lately
(wrench comment is a joke, I think i have an entire shoebox full of em)
oh, and a wrench? ya know, ya just dont see any wrenches lately
(wrench comment is a joke, I think i have an entire shoebox full of em)
cstatman- Platinum Member
Posts : 555
Join date : 2021-02-17
Age : 60
Location : San Jose, CA
Re: What piece catches your eye the most?
cstatman wrote:that blue backplate
oh, and a wrench? ya know, ya just dont see any wrenches lately
(wrench comment is a joke, I think i have an entire shoebox full of em)
No joke to me. I jump on those closed ended Cox wrenches like a Buzzard on dead meat. It was the first thing that caught my eye. But yes, the blue plate special. I don't have one and if buying that would be what I would get.
rsv1cox- Top Poster
Posts : 10928
Join date : 2014-08-18
Location : West Virginia
Re: What piece catches your eye the most?
Hum
the blue back plate mabe for the blue dragster !!!
![Huh...](/users/3015/29/34/60/smiles/3929217648.gif)
davidll1984- Diamond Member
- Posts : 2307
Join date : 2020-02-12
Age : 39
Location : shawinigan
Re: What piece catches your eye the most?
Here's some better pictures of the parts. This was an impulse buy after spotting that blue postage stamp backplate. The twin needle and the tall car muffler also sweetened the deal. The rest of the parts looked rough and they sure are.
![What piece catches your eye the most? Img_7913](https://i.servimg.com/u/f95/15/46/86/41/img_7913.jpg)

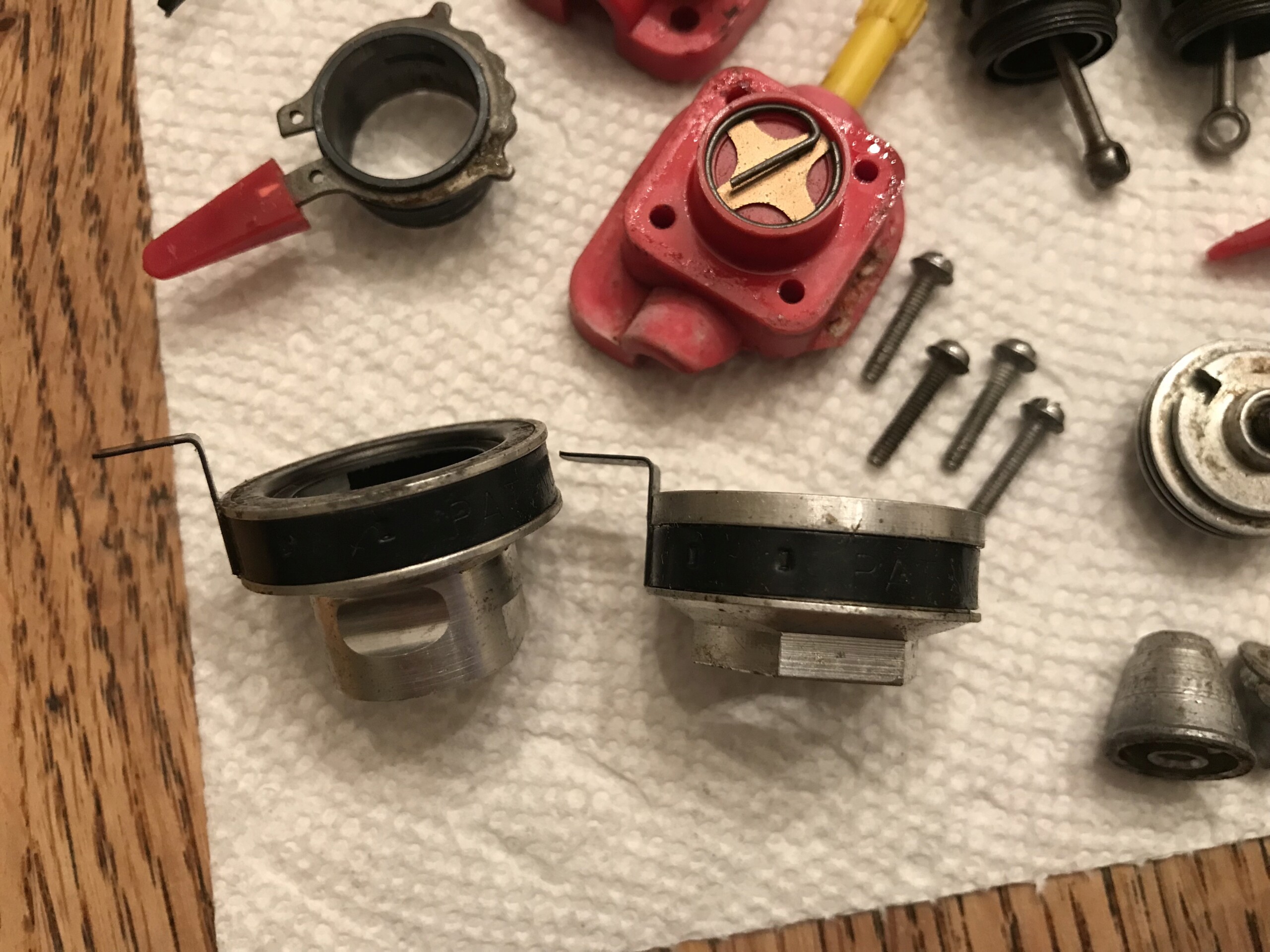

The red postage stamp is modified for some reason (thank God it wasn't the blue one). All have 128tpi needles and none look mangled so that's good. The red hole-less horseshoe is broken unfortunately. The golden bee case looks like new, missing the driveplate. The ground cylinder (for use with a throttle ring) is usable but the glow head hole is squished slightly oval from some pliers, doesn't stop a glow head from threading into it and sealing, but it gives some resistance when screwing it on. The piston moves up and down without issue. The middle cylinder is a #1 and is okay but it too has some pliers marks. The stepped cylinder, also a #1 has some damage that keeps the piston from moving through it smoothly. Not a burr like often the culprit from a wrench that slipped in the exhaust ports, but rather a small dent from a wrench applying pressure on the flat part of the exhaust port. There's some exhaust deflectors. Some Kavan tank extender screws. A bent reed, bent copper o-rings, and some ripped crankcase gaskets. A needle valve with bad damage to it's threads. A narrow neck crankcase assembly that someone used as a pusher or used an electric starter on as it has excessive end play. A couple of throttle rings and the springs that clip on the crankcase, those are always fun. Recoil parts. The recoil spring and cable are good. It's missing one pawl, but both springs are there (those two things just below the golden been crankshaft). I have a recoil start engine that was basically turned into parts because one of those pawl springs was bad, so I may need to get all those parts back together now that I have some replacement springs.
![What piece catches your eye the most? Img_7911](https://i.servimg.com/u/f95/15/46/86/41/img_7911.jpg)
One muffler missing the top ring.
The #1 stepped cylinder with the dent next to the exhaust port.
![What piece catches your eye the most? Img_7924](https://i.servimg.com/u/f95/15/46/86/41/img_7924.jpg)
![What piece catches your eye the most? Img_7925](https://i.servimg.com/u/f95/15/46/86/41/img_7925.jpg)
![What piece catches your eye the most? Img_7912](https://i.servimg.com/u/f95/15/46/86/41/img_7912.jpg)
Some misc. other engine parts.
![What piece catches your eye the most? Img_7915](https://i.servimg.com/u/f95/15/46/86/41/img_7915.jpg)
![What piece catches your eye the most? Img_7916](https://i.servimg.com/u/f95/15/46/86/41/img_7916.jpg)

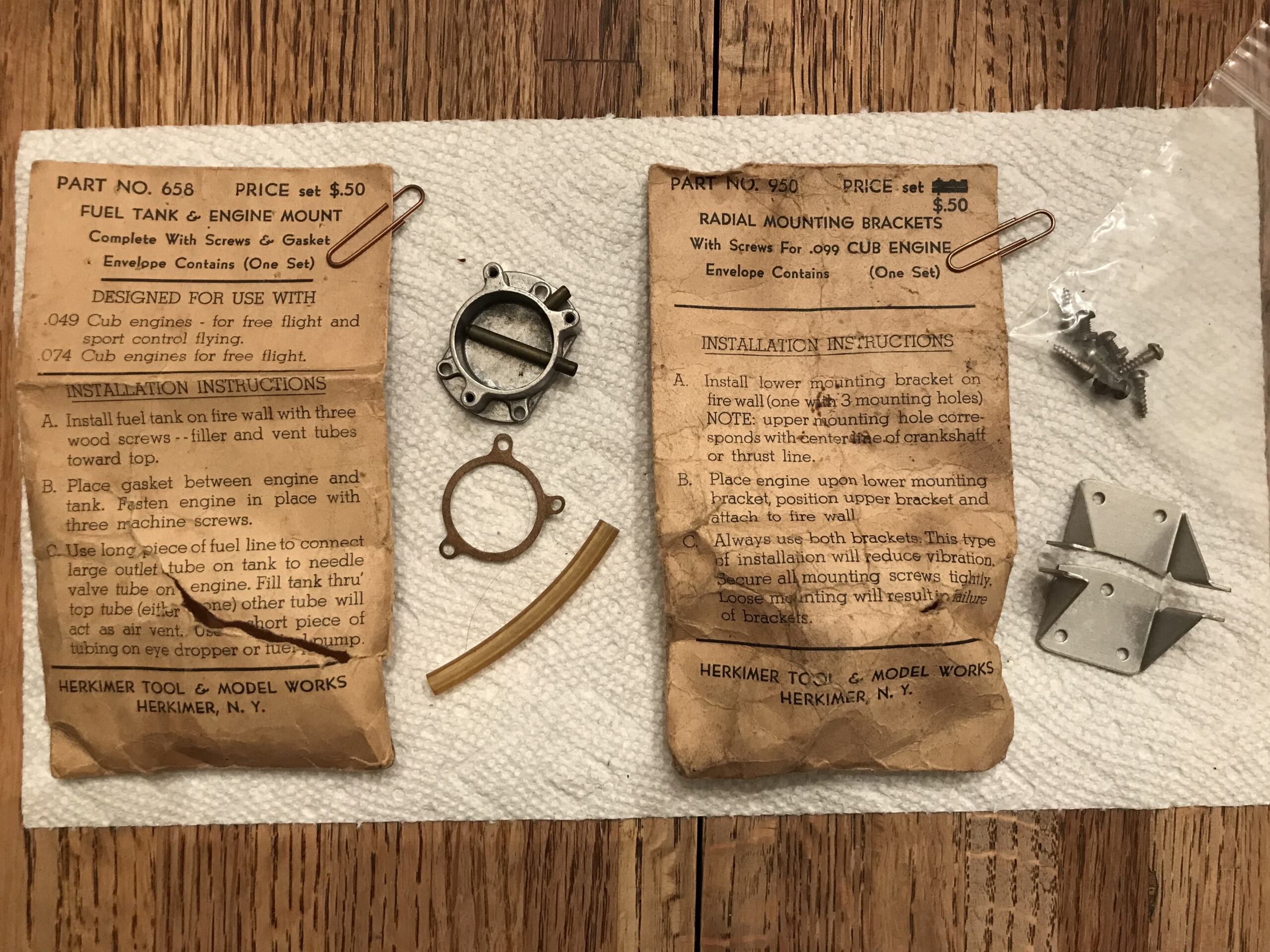

OK Cub Fuel Tank & Engine Mount #658 for .049 and .074 engines (missing screws), and Radial Mounting Bracket #950 for a .099 Cub (missing one screw and nut, but it looks like the rest are there).

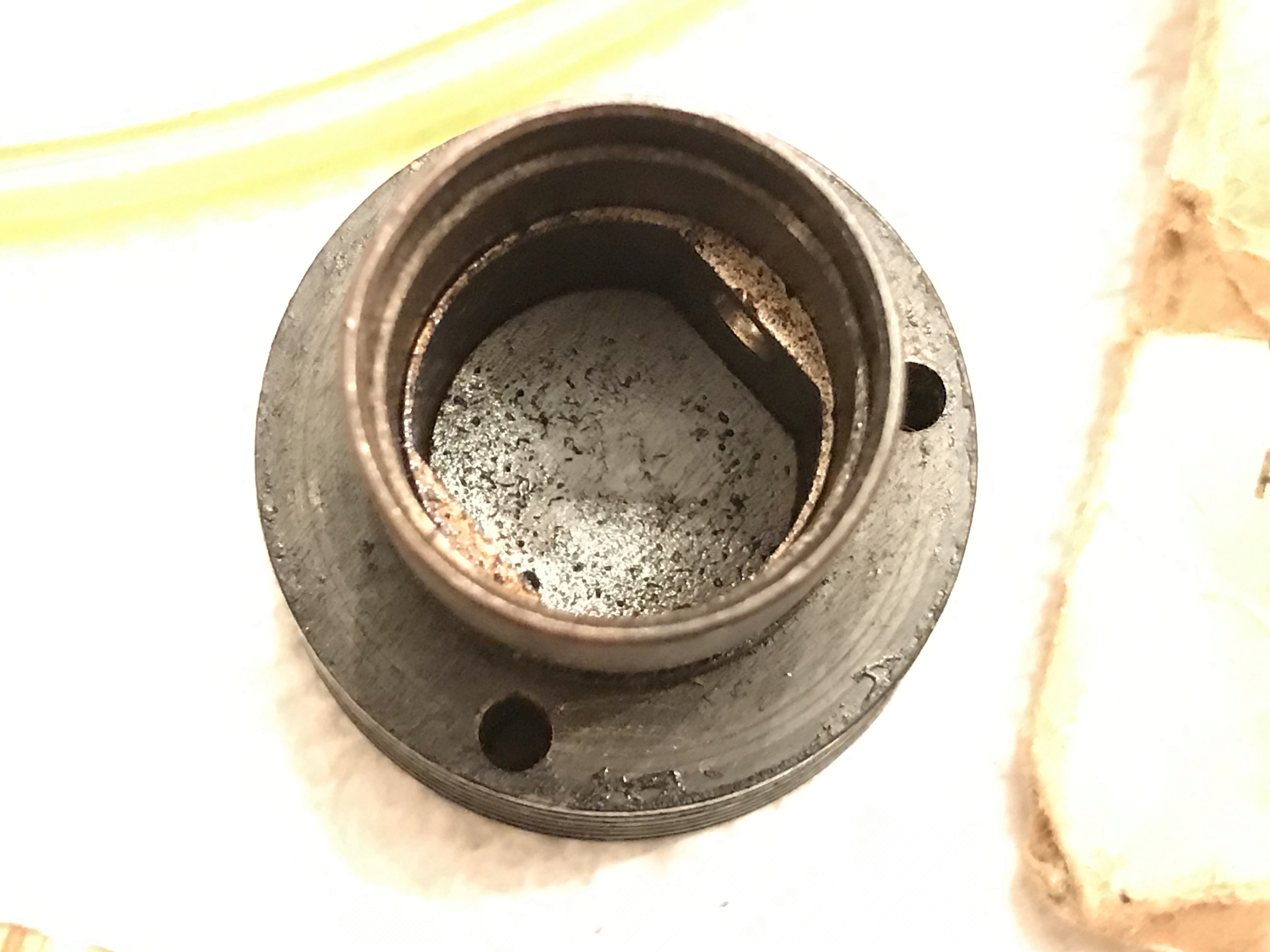

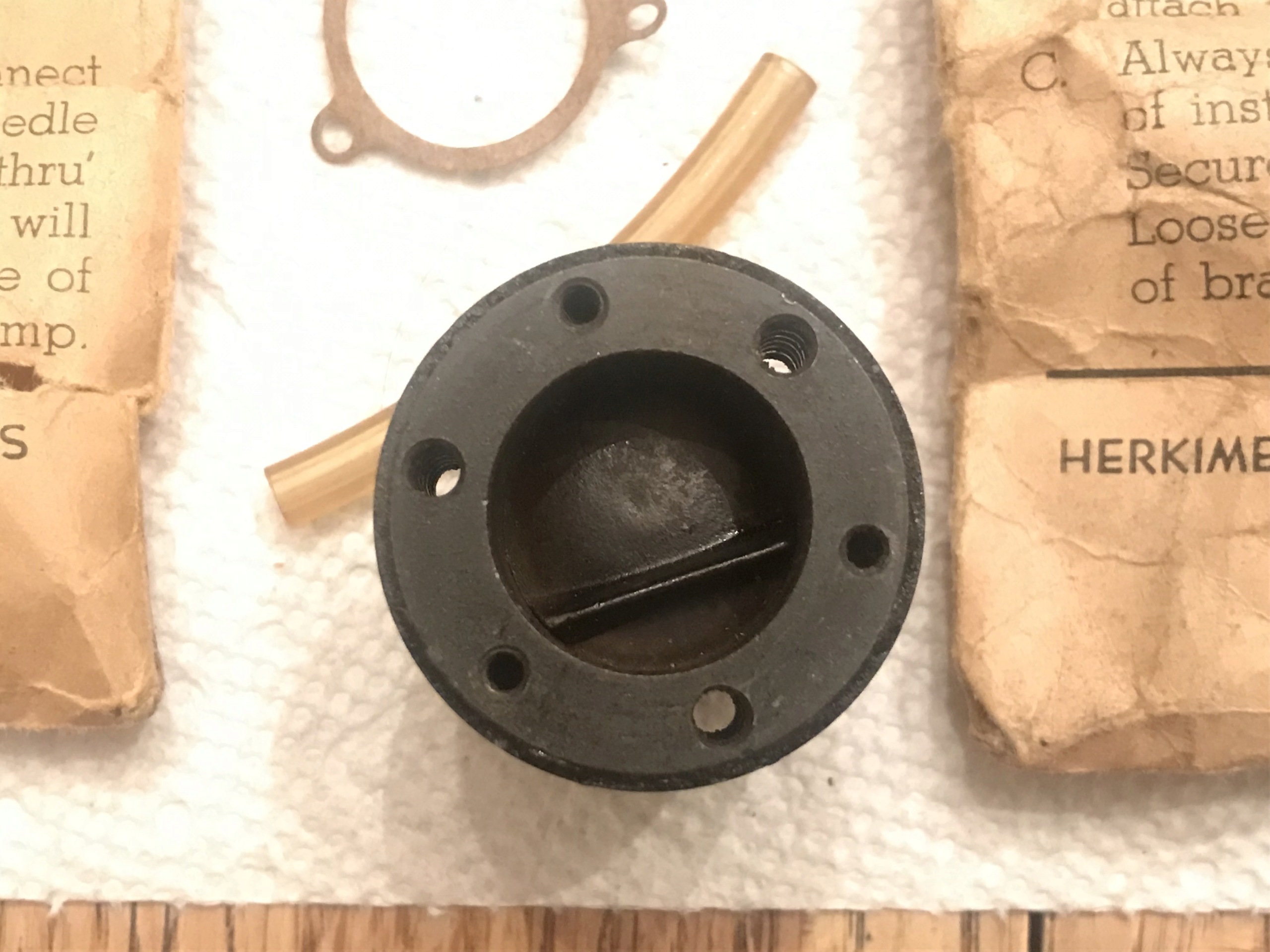

Here's some more pictures of that cylinder. Any idea what it's from? It has a piston stuck in it.
![What piece catches your eye the most? Img_7919](https://i.servimg.com/u/f95/15/46/86/41/img_7919.jpg)
![What piece catches your eye the most? Img_7922](https://i.servimg.com/u/f95/15/46/86/41/img_7922.jpg)
![What piece catches your eye the most? Img_7918](https://i.servimg.com/u/f95/15/46/86/41/img_7918.jpg)
![What piece catches your eye the most? Img_7921](https://i.servimg.com/u/f95/15/46/86/41/img_7921.jpg)
![What piece catches your eye the most? Img_7917](https://i.servimg.com/u/f95/15/46/86/41/img_7917.jpg)
I warmed it up in my hands for a bit then put some downward pressure on the piston with my thumb, and it pushed out slowly. Doesn't look damaged.
![What piece catches your eye the most? Img_7923](https://i.servimg.com/u/f95/15/46/86/41/img_7923.jpg)

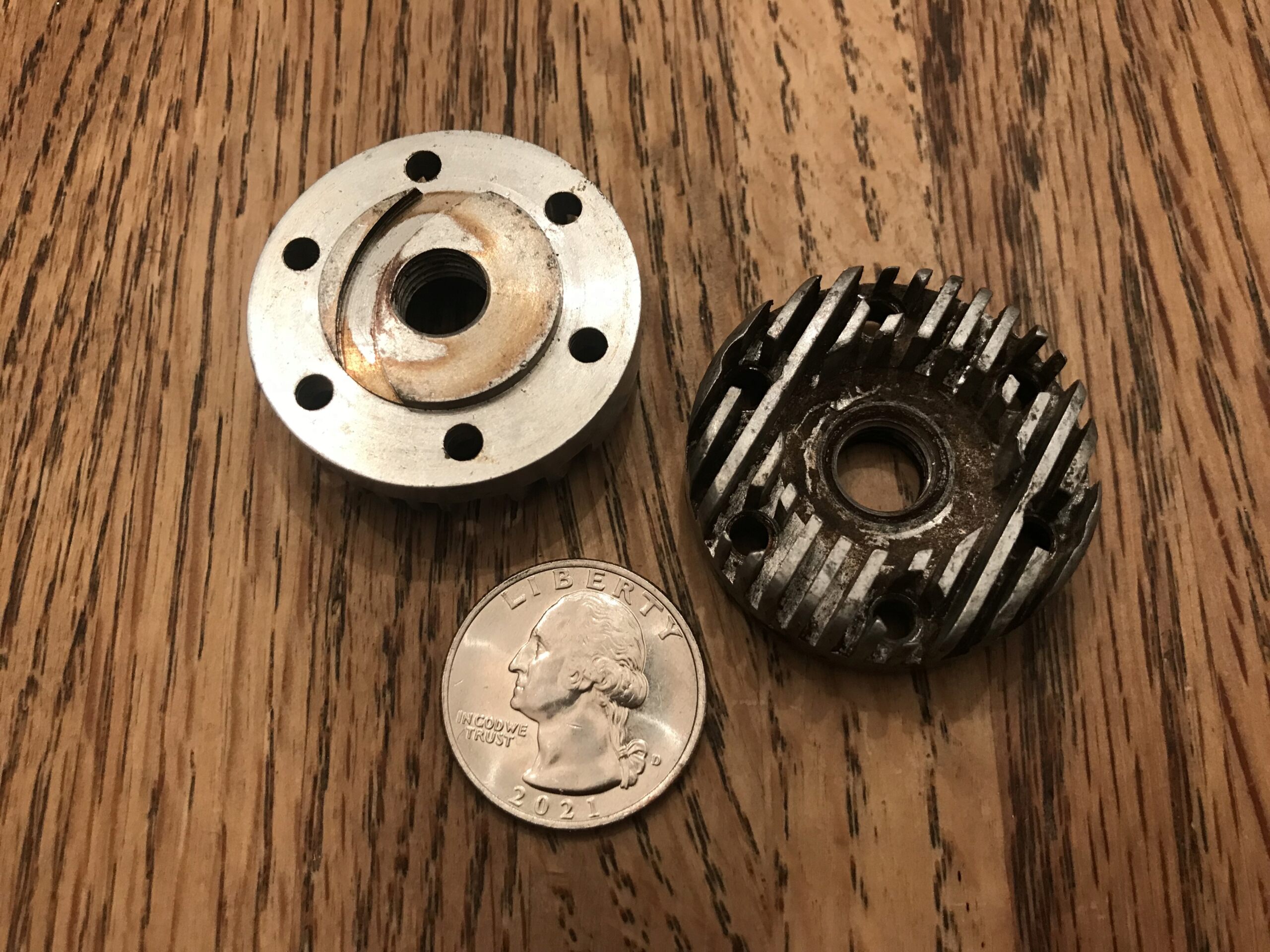

Also the two heads that look to be identical:
![What piece catches your eye the most? Img_7920](https://i.servimg.com/u/f95/15/46/86/41/img_7920.jpg)

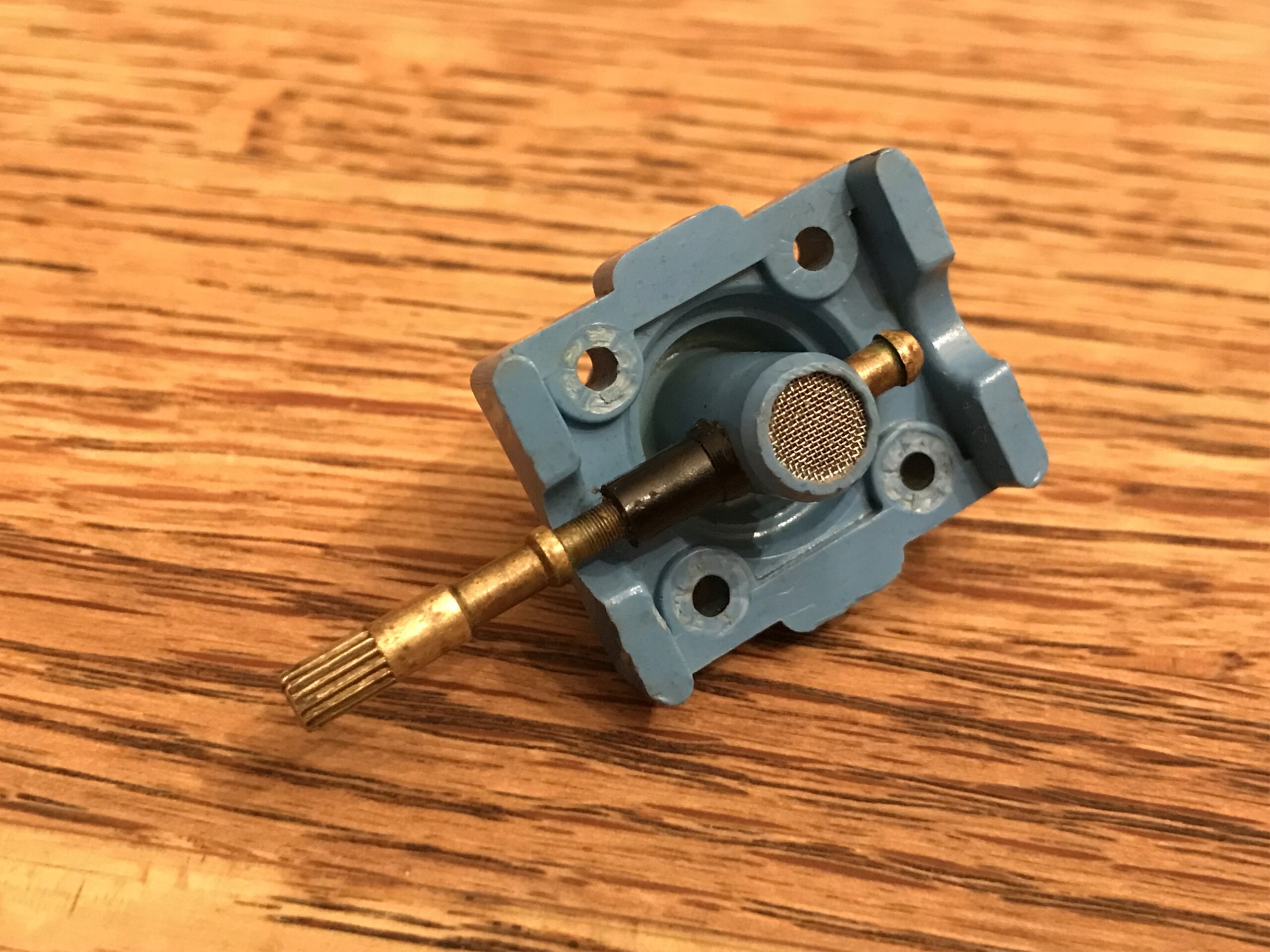

A closer look at the center of attention:
![What piece catches your eye the most? Img_7927](https://i.servimg.com/u/f95/15/46/86/41/img_7927.jpg)
![What piece catches your eye the most? Img_7928](https://i.servimg.com/u/f95/15/46/86/41/img_7928.jpg)
![What piece catches your eye the most? Img_7926](https://i.servimg.com/u/f95/15/46/86/41/img_7926.jpg)
It looks to have speckles and small dark swirls in the Delrin.
![What piece catches your eye the most? Img_7913](https://i.servimg.com/u/f95/15/46/86/41/img_7913.jpg)
The red postage stamp is modified for some reason (thank God it wasn't the blue one). All have 128tpi needles and none look mangled so that's good. The red hole-less horseshoe is broken unfortunately. The golden bee case looks like new, missing the driveplate. The ground cylinder (for use with a throttle ring) is usable but the glow head hole is squished slightly oval from some pliers, doesn't stop a glow head from threading into it and sealing, but it gives some resistance when screwing it on. The piston moves up and down without issue. The middle cylinder is a #1 and is okay but it too has some pliers marks. The stepped cylinder, also a #1 has some damage that keeps the piston from moving through it smoothly. Not a burr like often the culprit from a wrench that slipped in the exhaust ports, but rather a small dent from a wrench applying pressure on the flat part of the exhaust port. There's some exhaust deflectors. Some Kavan tank extender screws. A bent reed, bent copper o-rings, and some ripped crankcase gaskets. A needle valve with bad damage to it's threads. A narrow neck crankcase assembly that someone used as a pusher or used an electric starter on as it has excessive end play. A couple of throttle rings and the springs that clip on the crankcase, those are always fun. Recoil parts. The recoil spring and cable are good. It's missing one pawl, but both springs are there (those two things just below the golden been crankshaft). I have a recoil start engine that was basically turned into parts because one of those pawl springs was bad, so I may need to get all those parts back together now that I have some replacement springs.
![What piece catches your eye the most? Img_7911](https://i.servimg.com/u/f95/15/46/86/41/img_7911.jpg)
One muffler missing the top ring.
The #1 stepped cylinder with the dent next to the exhaust port.
![What piece catches your eye the most? Img_7924](https://i.servimg.com/u/f95/15/46/86/41/img_7924.jpg)
![What piece catches your eye the most? Img_7925](https://i.servimg.com/u/f95/15/46/86/41/img_7925.jpg)
![What piece catches your eye the most? Img_7912](https://i.servimg.com/u/f95/15/46/86/41/img_7912.jpg)
Some misc. other engine parts.
![What piece catches your eye the most? Img_7915](https://i.servimg.com/u/f95/15/46/86/41/img_7915.jpg)
![What piece catches your eye the most? Img_7916](https://i.servimg.com/u/f95/15/46/86/41/img_7916.jpg)
OK Cub Fuel Tank & Engine Mount #658 for .049 and .074 engines (missing screws), and Radial Mounting Bracket #950 for a .099 Cub (missing one screw and nut, but it looks like the rest are there).
Here's some more pictures of that cylinder. Any idea what it's from? It has a piston stuck in it.
![What piece catches your eye the most? Img_7919](https://i.servimg.com/u/f95/15/46/86/41/img_7919.jpg)
![What piece catches your eye the most? Img_7922](https://i.servimg.com/u/f95/15/46/86/41/img_7922.jpg)
![What piece catches your eye the most? Img_7918](https://i.servimg.com/u/f95/15/46/86/41/img_7918.jpg)
![What piece catches your eye the most? Img_7921](https://i.servimg.com/u/f95/15/46/86/41/img_7921.jpg)
![What piece catches your eye the most? Img_7917](https://i.servimg.com/u/f95/15/46/86/41/img_7917.jpg)
I warmed it up in my hands for a bit then put some downward pressure on the piston with my thumb, and it pushed out slowly. Doesn't look damaged.
![What piece catches your eye the most? Img_7923](https://i.servimg.com/u/f95/15/46/86/41/img_7923.jpg)
Also the two heads that look to be identical:
![What piece catches your eye the most? Img_7920](https://i.servimg.com/u/f95/15/46/86/41/img_7920.jpg)
A closer look at the center of attention:
![What piece catches your eye the most? Img_7927](https://i.servimg.com/u/f95/15/46/86/41/img_7927.jpg)
![What piece catches your eye the most? Img_7928](https://i.servimg.com/u/f95/15/46/86/41/img_7928.jpg)
![What piece catches your eye the most? Img_7926](https://i.servimg.com/u/f95/15/46/86/41/img_7926.jpg)
It looks to have speckles and small dark swirls in the Delrin.
Re: What piece catches your eye the most?
The domed piston with tapered cross scavenge fence, cylinder's radiused intake bypass and quarter for sizing is a dead give away that it is a Testor .35 Red Head. I don't know of any other make of engine that has that feature. The K&B Torpedo .35 and Stallion have a different piston appearance, they are not domed but flat with a swept radius on the fence facing the exhaust port.
![What piece catches your eye the most? Torped10](https://i.servimg.com/u/f47/20/46/32/73/torped10.jpg)
K&B .35 Green Head, piston top exposed
![What piece catches your eye the most? 2018-010](https://i.servimg.com/u/f47/20/46/32/73/2018-010.jpg)
K&B .35 Stallion Piston, top is flat
Another tell tale sign is the whacked dimple on the top of the piston dome. This is a technique to restore compression in a worn piston / cylinder fit. One carefully whacks the top with a flat edged drift, which expands the piston slightly, spreading the piston a touch.
The assembly must be well worn and someone may have been attempting to extend the life of the Red Head. Fact you had a little of a bugger sliding the piston out probably means it was run on 100% Castor oil fuel.
GallopingGhostler- Top Poster
Posts : 5513
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs
Re: What piece catches your eye the most?
GallopingGhostler wrote:The domed piston with tapered cross scavenge fence, cylinder's radiused intake bypass and quarter for sizing is a dead give away that it is a Testor .35 Red Head. I don't know of any other make of engine that has that feature. The K&B Torpedo .35 and Stallion have a different piston appearance, they are not domed but flat with a swept radius on the fence facing the exhaust port.Admin wrote:Here's some more pictures of that cylinder. Any idea what it's from? It has a piston stuck in it.
I warmed it up in my hands for a bit then put some downward pressure on the piston with my thumb, and it pushed out slowly. Doesn't look damaged.
K&B .35 Green Head, piston top exposed
K&B .35 Stallion Piston, top is flat
Another tell tale sign is the whacked dimple on the top of the piston dome. This is a technique to restore compression in a worn piston / cylinder fit. One carefully whacks the top with a flat edged drift, which expands the piston slightly, spreading the piston a touch.
The assembly must be well worn and someone may have been attempting to extend the life of the Red Head. Fact you had a little of a bugger sliding the piston out probably means it was run on 100% Castor oil fuel.
Maybe my eyes weren't as bad as i thought!
![Shocked](https://2img.net/i/fa/i/smiles/icon_eek.gif)
pman1111- Silver Member
- Posts : 95
Join date : 2022-01-15
Re: What piece catches your eye the most?
I was thinking the same thing, I have to go get my eyes checked now hahaha .
Ken Cook- Top Poster
- Posts : 5573
Join date : 2012-03-27
Location : pennsylvania
GallopingGhostler- Top Poster
Posts : 5513
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs
![-](https://2img.net/i/empty.gif)
» I like the new forum!
» The postman came today
» postage stamp mounting
» What do you think. I got a new camera.
» Three piece piston
» The postman came today
» postage stamp mounting
» What do you think. I got a new camera.
» Three piece piston
Page 1 of 1
Permissions in this forum:
You cannot reply to topics in this forum
