Carving Props Empty Carving Props

Post  rdw777 Tue Jun 13, 2023 5:56 pm

I’ve carved balsa props for rubber FF and some catapult glider wings…. But never a prop for a gas model…. I found an article on OZ that had a simple formula…. Of the woods that was appropriate it listed was hard Mahogany and I had some so I gave it a go………..A 4x3 for 020…

Carving Props Cafeca10
Carving Props 2ab40a10

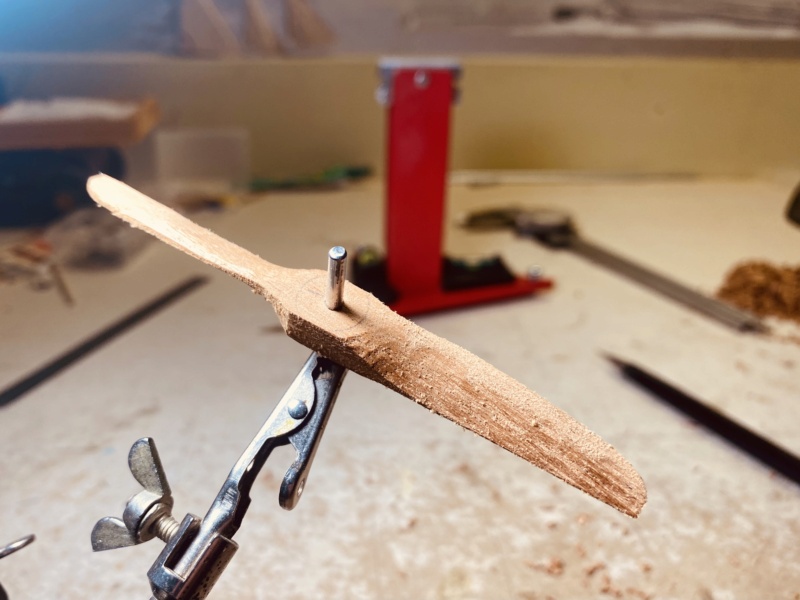

I finished it with Sig Lite Coat…. First coats were very thin to penetrate best possible….
Next to a Cox 4.5 x 2.5…

Carving Props 0c6ee610

I have not ran it yet… Letting the dope cure…. If it works out I’ll try it on Pageboy…

Carving Props 9a12ad10

Anyone else tried this? I’m open to pointers, articles, cautions… etc…
rdw777
rdw777
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 1467
Join date : 2021-03-11
Location : West Texas

Back to top Go down

Carving Props Empty Re: Carving Props

Post  rsv1cox Tue Jun 13, 2023 7:07 pm

Beautiful job as ususal Robert.  Sharp blades and patience.  Special engine, special prop. How did you gauge the pitch?

I keep blocks of Mahogany around for gunstock repair.  As with everything else I buy the worse examples I can find and "fix them up."

Carving Props Rem_5514
Carving Props Rem_5515
Carving Props Rem_5516

A lot easier than carving a propeller.
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10849
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Carving Props Empty Re: Carving Props

Post  getback Wed Jun 14, 2023 5:16 am

I figured it was you Robert , i am a member over at HPA and there is a lot of people from all over the world on there forum , most it seems are FF guys there are some tips there and people that do make there own props . >> https://www.hippocketaeronautics.com/hpa_plans/details.php?image_id=12023&mode=search had a article but in PDF and want open here ... Your prop looks good hope it works as expected.. Very Happy Babe Bee .049 This Site Rocks!
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10273
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

Carving Props Empty Re: Carving Props

Post  Levent Suberk Wed Jun 14, 2023 5:35 am

Very good work Very Happy
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 2228
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Carving Props Empty Re: Carving Props

Post  Levent Suberk Wed Jun 14, 2023 5:40 am

I remembered the carving a propeller in a page of Ladybird Books Air, Wind and Flight, a book from my childhood days. Very Happy

Carving Props Img_2106
Carving Props Img_2105
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 2228
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Carving Props Empty Re: Carving Props

Post  HalfaDave Wed Jun 14, 2023 7:59 am

Hi rdw777,
Beautiful work, thanks for sharing. Cool
I've tried it. 1974?  Pushy Cat, OS.15, the only pusher prop I could get was an 8-6, that did not work.
Found some info in model mags, and set out to carve my own wood 'pusher 8-4'...
Everything went well.
I got to the stage of your first photo, put it on the plane to admire it... Then realized, it was a RH pitch !  Doh!
The LH prop was easier to do with that practice. Smile
It worked,  and flew the Pushy Cat to several under powered flights...
At that time, the pusher thrusts on that OS.15 had done it's toll. Sad
Last pusher plane I've tried... Smile
The prop making was interesting. Marking it out carefully, then shape to that.
Not sure what wood I used (the article said to avoid knots !) Sealed with Buterate dope.
I do remember that it was as 'flexible' as the all nylon props of the day...
Some wood props were were advertised as 'Hard Rock Maple'... Mine was probably semi fine grained ceder or spruce !
As usual,
Your results may vary...
My hint,
Make sure it is a LH or RH while marking it out, then, carve away... Smile
Take care,
Have fun,
Dave
HalfaDave
HalfaDave
Platinum Member
Platinum Member

Posts : 608
Join date : 2022-12-06
Location : Oakville, Ontario

Back to top Go down

Carving Props Empty Re: Carving Props

Post  akjgardner Wed Jun 14, 2023 9:03 am

Nice Job , I like the looks of it too !
akjgardner
akjgardner
Diamond Member
Diamond Member

2023 Supporter

2024 Supporter

Posts : 1527
Join date : 2014-12-28
Age : 64
Location : Greensberg Indiana

Back to top Go down

Carving Props Empty Re: Carving Props

Post  rdw777 Wed Jun 14, 2023 9:31 am

Nice work on the gun stock Bob Very Happy ….. Looks like it was “let in” at the factory for a custom order…. I’ve got a couple of stocks that need repair and refinish…. What do you use for finish?…. The prop pitch is set by the height of the prop blank Very Happy

Thanks for the articles Eric Very Happy….. I like to read so that will keep me occupied for awhile  Thumbs Up

Love the artwork on the book Levent, And nice that you still have it…..The image of the boy with the knife reminds me of my dad teaching me, Always cut away from you….He taught us how to sharpen too…. Funny, We all carried pocket knives as kids, And I still do today…. A little Buck knife I’ve carried most of my life….

Carving Props 24054910

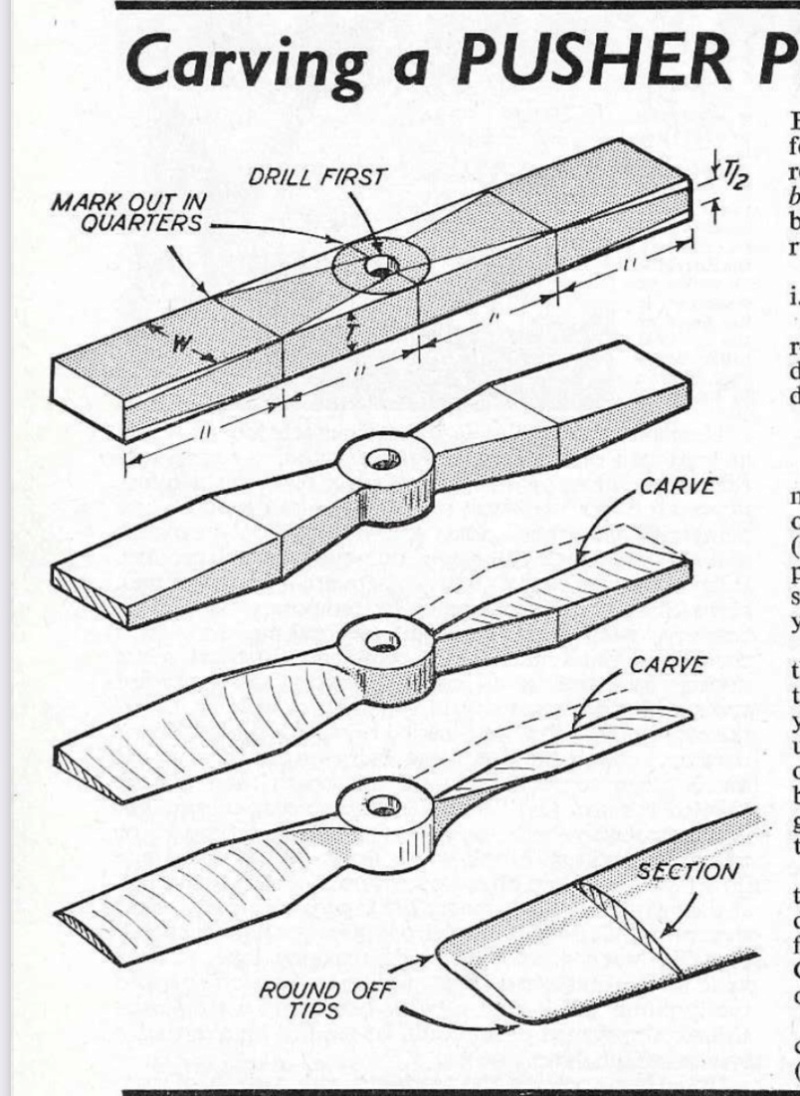

The article I stumbled onto was for a pusher as well Dave….. I just back tracked the information and made it the size and shape I wanted….

Carving Props 055beb10
Carving Props Cf9ad710

Thanks akg  Very Happy….It was a satisfying little project….. I’ll probably make some more…
rdw777
rdw777
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 1467
Join date : 2021-03-11
Location : West Texas

Back to top Go down

Carving Props Empty Re: Carving Props

Post  Levent Suberk Wed Jun 14, 2023 2:27 pm

I have this Wenger Swiss Army standard issue with alox handles. 2.75" Blade, screwdriver, cap lifter, small screwdriver, can opener, reamer, awl and scraper. Discontinued in 2013. I think that a folding knife is best companion of a kid Very Happy
Carving Props Wr165210
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 2228
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Carving Props Empty Re: Carving Props

Post  Levent Suberk Wed Jun 14, 2023 2:31 pm

I searched Buck 303. Beautiful one and still manufactured.

https://www.buckknives.com/product/303-cadet-knife/0303FAM01/

Carving Props 0303rw10
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 2228
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Carving Props Empty Re: Carving Props

Post  rsv1cox Wed Jun 14, 2023 2:56 pm

Sig Lite Coat, is that a clear dope?

I used a variety of finishes, an oil especially designed for gun stocks as well as an assortment of stains, poly, varnishes etc..  At times I would just rub in Howards Feed-N-Wax.

It wsn't beneath me to paint the really busted up ones, but occasionally I would just let the repair show.

Carving Props Marlin22


Last edited by rsv1cox on Thu Jun 15, 2023 10:07 am; edited 1 time in total
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10849
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Carving Props Empty Re: Carving Props

Post  aspeed Wed Jun 14, 2023 3:20 pm

Many years ago, about 40. I needed some 6" x 6" props for FAI Speed and could not find what I wanted so decided to make some. There was a machine called a Duplicarver that looked like it would work. I copied it and machined one up for myself. I used a router on the one side of the arm and the stylus on the other. It worked OK, but not as good as I hoped, little scallops all over. I made a double turntable and a brace so the prop would not vibrate. Here is the machine that is still made now. https://www.duplicarvers.com/q.aspx?p=Cc250-Clone-Carver&q=14 Made up a pitch gauge as well by photocopying the front plate and machining the rest. Took forever. I used maple.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 790
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Carving Props Empty Re: Carving Props

Post  GallopingGhostler Wed Jun 14, 2023 6:08 pm

$800 US is a bit pricey for me @aspeed, those $4 props are looking cheap to me, now. lol!
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5430
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

Carving Props Empty Re: Carving Props

Post  HalfaDave Wed Jun 14, 2023 6:29 pm

Hi All
'Rock Hard Maple' is very hard to get,
Even harder, to carve into a prop.
You results may vary,
Take care,
Have fun,
Dave
HalfaDave
HalfaDave
Platinum Member
Platinum Member

Posts : 608
Join date : 2022-12-06
Location : Oakville, Ontario

Back to top Go down

Carving Props Empty Re: Carving Props

Post  aspeed Wed Jun 14, 2023 7:26 pm

HalfaDave wrote:Hi All
'Rock Hard Maple' is very hard to get,
Even harder, to carve into a prop.
You results may vary,
Take care,
Have fun,
Dave
I got my maple from a Lowes that sold flooring by the sq. ft. Good for motor mounts too.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 790
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Carving Props Empty Re: Carving Props

Post  aspeed Wed Jun 14, 2023 7:32 pm

GallopingGhostler wrote:$800 US is a bit pricey for me @aspeed, those $4 props are looking cheap to me, now. lol!
Yes it is very expensive, that is why I made it myself. Used the cheapest but properly sized B&D router for $50. Still have it and it takes up a lot of space. Probably put it on Kijiji soon. Maybe I will get lots for it since the price has gone up so much over the years? Doubt it.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 790
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Carving Props Empty Re: Carving Props

Post  GallopingGhostler Wed Jun 14, 2023 9:48 pm

You did good then aspeed by making your own tool. I used to do a lot of do it yourself, but older I get, notice I am not as enthusiastic as I was before.

Goes for kits too. Tired w/ Coffee Read Old Bugger Popcorn lol!
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5430
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

Carving Props Empty Re: Carving Props

Post  aspeed Wed Jun 14, 2023 10:40 pm

I was a bit younger 40 years ago.  Not sure I would do that now either.  Was never one for kits.  Usually did them from scratch.  Lately I just get orphans at swap meets and do the least possible effort to get them in the air.  I like building, but have too many planes to build any more.  That Duplicarver would be good for making something like the hollow log fuselage or wood cowls, but I never used it after doing a couple props with so so results. To stay on topic not that it is important, I used to make indoor props with .020" C grain balsa blades that were wrapped around a beer can at an angle, and glued it to a short stick to make a prop. They worked pretty good, wing was covered with condenser paper.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 790
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Carving Props Empty Re: Carving Props

Post  HalfaDave Thu Jun 15, 2023 12:12 am

Hi aspeed,
The 'Rock Hard Maple' may have been a local hobby shop ploy,
To get us to buy the wood props in stock.
They snapped like twigs, compared to the white nylon props that were basicly crash proof. Smile
A 6X6 prop?
Seems impossible to get the wood grain right... Smile

Levent,
My same 'Swiss Army' knife has been sharpened to half its original blade area.
My key chain, 50yrs later ! Nice SS that takes an edge... Cool

rdw777,
That was the basic info I had. Smile Drill a hole in a piece of wood, carve/measure/repeat.
Good luck on your test run.
This is why I like CEF,
Take care,
Have fun,
Dave

HalfaDave
HalfaDave
Platinum Member
Platinum Member

Posts : 608
Join date : 2022-12-06
Location : Oakville, Ontario

Back to top Go down

Carving Props Empty Re: Carving Props

Post  rsv1cox Thu Jun 15, 2023 8:06 am

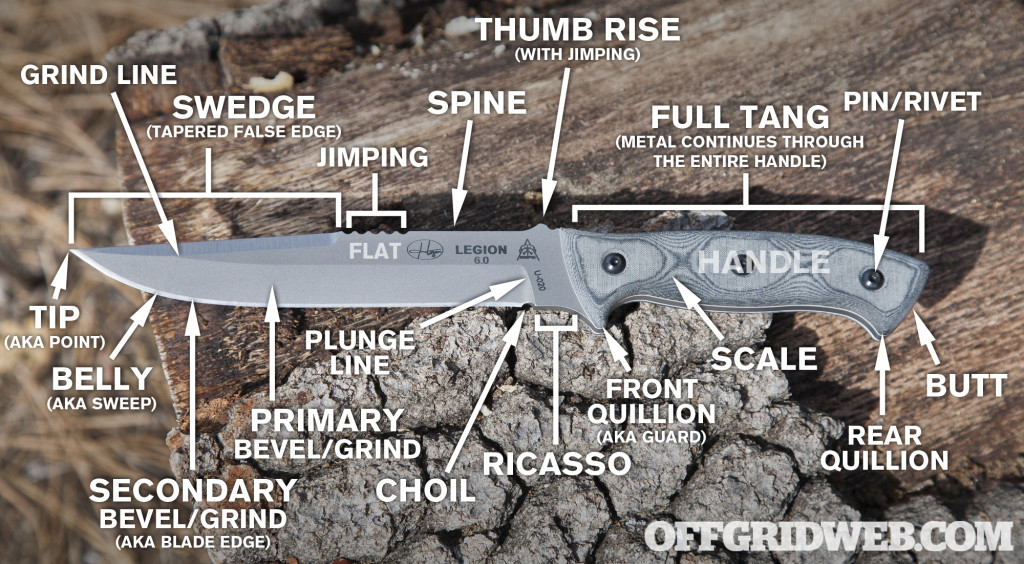

Ok knives - pocket and otherwise.

I'm not a knife guy, but I am a bayonet guy which share the same ID terms.  Interesting if you don't know them already.  Got me going when I was ID'ing my Dad's knife (yellow handle) and mine looking at the "Ricasso" for the manufacturers markings.  Dad's Imperial (Irish manufacture) and mine Camillus (USA manufacture.)

Carving Props Knife-10

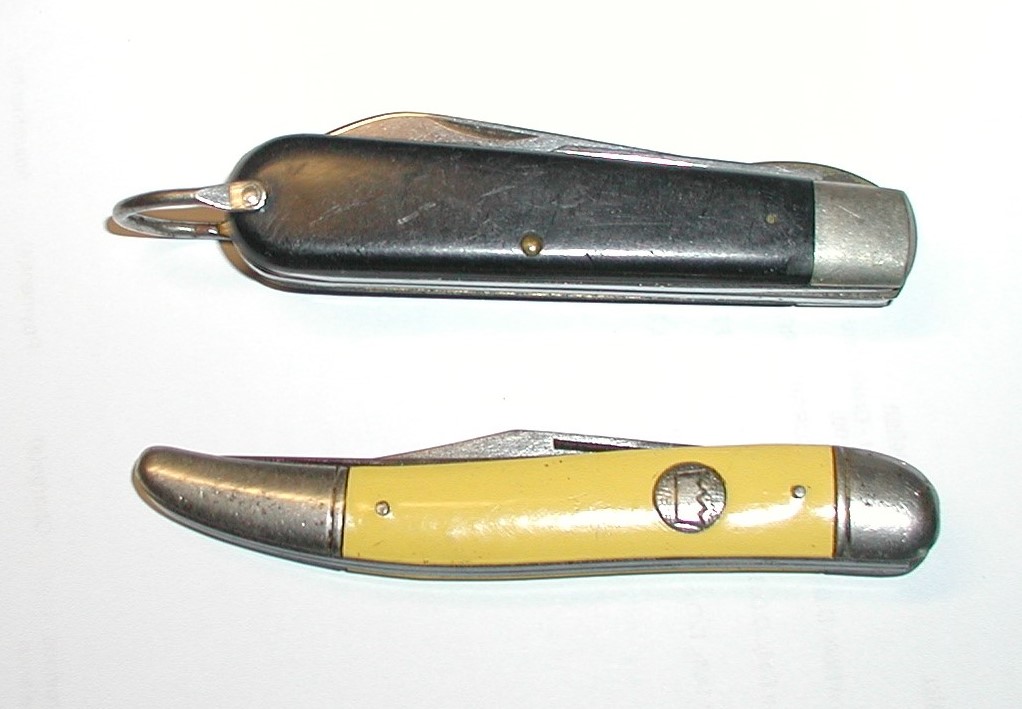

Dad's Imperial knife was the "fish" version, curious as Dad was not a fisherman yet he carried it or one just like it all his life.  Mine went with me only on camping trips.

Carving Props P1015533
Carving Props P1015534

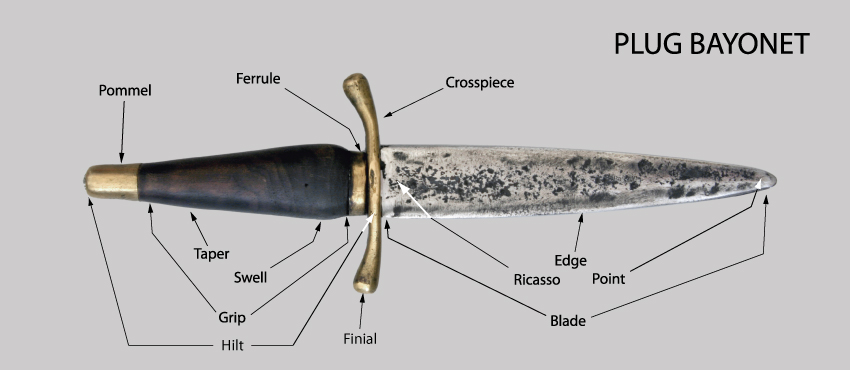

Apologies for the drift Robert but bayonets are so interesting, a history lesson in themselves. Many came with the military surplus rifles that I collected from all nations. Researched every one.

Carving Props Sword_10
Carving Props Plug_b10
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10849
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Carving Props Empty Re: Carving Props

Post  rdw777 Thu Jun 15, 2023 9:32 am

Apologies for the drift Robert but bayonets are so interesting, a history lesson in themselves.

No problem Bob, Love history and I always like to learn something new Very Happy ….. Years ago I read up on the history of swords beginning in the Bronze Age ending up with modern day Samurai….. The progression of the metallurgy alone was amazing…

I’m really not a knife guy either….. Just slightly more than a utilitarian tool to me…. I guess since they were commonly given as gifts or belonged to a relative makes them special…..A few more of mine….The bottom is a semi sharp Old Timer and stays on the workbench for mundane duties…. Surprising how much I reach for it…. Second from bottom is a little Kabar that belonged to my Grandfather…The blue Case is my
“dress knife “…. (My weird humor, Might have to trim a thread off someone’s jacket at church or something Very Happy)….. The top is the one that carved the prop…. It’s just an old kitchen paring knife I got at a flea market for a couple of dollars…. Made by Dexter…But it’s shaped like a whittler and sharpens easily….. Close enough for me Thumbs Up

Carving Props 1a5cbe10

The Swiss Army knife is a classic Levent…. I didn’t know Buck still made the 303, Thanks for sharing that…. The main blade on mine is worn/sharpened back a ways and all of the ribbing on the handle is gone but it still serves well…. Hinges are still tight as they ever were….

Thanks for sharing your prop experience aspeed…. Yep, CL speed guys would know a thing or two about that…. I think that is where some of the most advancement of home made performance props came from….Yes, serious competition could be expensive… Especially at FAI level…. I’m sure it was a fun time ….You sound a little like me…. Indoor flying…. Condenser paper….. Wide variety of interests…. Very Happy
rdw777
rdw777
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 1467
Join date : 2021-03-11
Location : West Texas

Back to top Go down

Carving Props Empty Re: Carving Props

Post  Levent Suberk Thu Jun 15, 2023 3:12 pm

Bob, there is a page for dating Imperial folding knives:

https://www.americanedgeknives.com/blog/dating-vintage-imperial-tang-stamps/

Carving Props Screen90
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 2228
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Carving Props Empty Re: Carving Props

Post  rsv1cox Thu Jun 15, 2023 3:20 pm

Thanks Levent, I bookmarked it. Mine is marked Imperial New York.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10849
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Carving Props Empty Re: Carving Props

Post  Oldenginerod Fri Jun 16, 2023 5:09 am

I can't currently put my hand on it, but many years ago I carved a wooden prop with nothing more than a hacksaw, utility knife and sandpaper.  I had a well-used nylon prop that had a damaged blade so I used it to get the specs and shape as close as I could.  It was carved from a piece of broom handle.  No idea what wood it was, but I figured that a broom handle would be pretty hard and springy.  Looks real nice oiled up, but I doubt I would ever use it on an engine.  Not when you can buy nice looking wooden props so cheap from China.
Still, wasn't a bad exercise, despite taking many hours to do.


Last edited by Oldenginerod on Fri Jun 16, 2023 6:01 pm; edited 1 time in total
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3984
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria

Back to top Go down

Carving Props Empty Re: Carving Props

Post  rdw777 Fri Jun 16, 2023 5:30 pm

That’s cool Rod….If you come across it please take a photo…..Lots of pathways to take with model airplanes…. I guess that’s what keeps it interesting to me Thumbs Up
rdw777
rdw777
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 1467
Join date : 2021-03-11
Location : West Texas

Back to top Go down

Carving Props Empty Re: Carving Props

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
