Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  NEW222 on Wed Feb 27, 2019 8:04 pm

That sound nice. I cannot honestly remember if I had ever heard an .020 run before. If I may ask. What is a 'venturi backplate mount'? Is it the second one you had posted a picture of? If so, where does the needle assy go. That part has me confused. I would be happy with just the standard one, unless there is something I do not know or understand with the function of the second one. Will be watching for sure. Keep up teh good work!
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2147
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  1/2A Nut on Wed Feb 27, 2019 8:20 pm

You can just screw in the venturi and NV body on like you would a TD.
A RC carb could be screwed on the backplate too. Could do up a printed
throttle barrel air choke and use the TD NV assembly.
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  getback on Thu Feb 28, 2019 9:31 am

I could redesign the back to use a TD .020 venturi and NVA since these are available new again. wrote:
Where are these available at ?
getback
getback
Top Poster
Top Poster

Posts : 5779
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  fredvon4 on Thu Feb 28, 2019 10:33 am

fredvon4
fredvon4
Diamond Member
Diamond Member

Trusted Seller
Posts : 2736
Join date : 2011-08-26
Age : 63
Location : Lampasas Texas

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  aspeed on Thu Feb 28, 2019 10:36 am

aspeed
aspeed
Gold Member
Gold Member

Posts : 152
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  Jason_WI on Thu Feb 28, 2019 1:40 pm

Need to beef up the mounting leg area. One broke off removing the print from the bed.

Pee Wee Horseshoe back plate - Page 4 B9828e10
Pee Wee Horseshoe back plate - Page 4 623c4610
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2628
Join date : 2011-10-09
Age : 43
Location : Neenah, WI

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  1/2A Nut on Thu Feb 28, 2019 2:21 pm

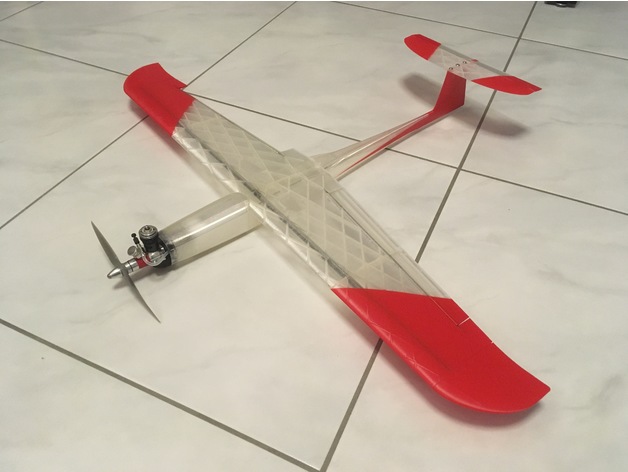

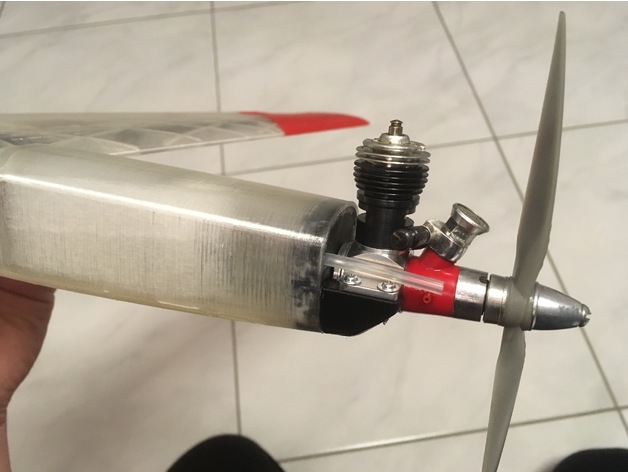

Check out this project:

https://www.thingiverse.com/thing:3457716

Pee Wee Horseshoe back plate - Page 4 _previ10
Pee Wee Horseshoe back plate - Page 4 Previe10
Pee Wee Horseshoe back plate - Page 4 D_prev10

I have asked if this will hold up to nitro 25 to 35%
The E version flies very well with 3 times the power of a TD, many folks have started to print
and fly the electric version with no issues thus far. The weight of the E version is much more
due to batteries and still floats in fine on landings. Direct engine exhaust is going to melt that
firewall the designer is going to need to compensate with a heat shield or muffler.

Small Cox Logo Thumbs Up
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  aspeed on Thu Feb 28, 2019 5:17 pm

Maybe some aluminum foil tape over the front would help scare away the heat. That mount looks nice. A CNC mill would be handy to have to make an aluminum mount. Maybe work a bit of overtime to save up :-)
aspeed
aspeed
Gold Member
Gold Member

Posts : 152
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  Jason_WI on Thu Feb 28, 2019 6:16 pm

HVAC aluminum foil tape should work. Could also print out of PETG that has a higher tg than PLA.
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2628
Join date : 2011-10-09
Age : 43
Location : Neenah, WI

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  1/2A Nut on Thu Feb 28, 2019 8:25 pm

I expect a flight vid at some point he has posted his E version 3wks ago, will post the link
when it happens. I have some of that aluminum tape too, the sticky will unstick but if glued
on it wont go anywhere. Yes the entire project is done with PLA.

1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  Jason_WI on Fri Mar 01, 2019 2:02 am

NEW222 wrote:That sound nice. I cannot honestly remember if I had ever heard an .020 run before. If I may ask. What is a 'venturi backplate mount'? Is it the second one you had posted a picture of? If so, where does the needle assy go. That part has me confused. I would be happy with just the standard one, unless there is something I do not know or understand with the function of the second one. Will be watching for sure. Keep up teh good work!

I’m trying to replicate this setup with the venturi backplate mount.

Pee Wee Horseshoe back plate - Page 4 1de76b10


Good news I found my 11/64-40 tap. I had used it to tap the backplate on the engine above.
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2628
Join date : 2011-10-09
Age : 43
Location : Neenah, WI

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  1/2A Nut on Fri Mar 01, 2019 3:55 am

That is good news onward ye goes! Eyebrows
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  balogh on Fri Mar 01, 2019 4:57 am

1/2A Nut wrote:Check out this project:

...................:

Wow man this is beautiful, reminds me of my TeeDeeVooDoo. Any idea how much this Nucking Fut ( Very Happy ) project weighs with the glow engine in the nose?

Pee Wee Horseshoe back plate - Page 4 Voodoo10
balogh
balogh
Diamond Member
Diamond Member

Posts : 2233
Join date : 2011-11-06
Age : 60
Location : Budapest Hungary

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  KariFS on Fri Mar 01, 2019 5:04 am

That aluminum mount is pretty cool, but requires quite a bit of strength from the material used.

For a plastic version it might be necessary to make a "flange" style mounting surface similar to the birdgage mounts used on Thermal Hopper. Maybe also increase the radius of the bases of the "legs" to spread the load to a bit wider area.

In any case, it is quite mind-blowing to realize that you can print the sealing surface and the retainer groove of the reed system with adequate accuracy and surface quality.
KariFS
KariFS
Diamond Member
Diamond Member

Posts : 1486
Join date : 2014-10-10
Age : 47
Location : Finland

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  getback on Fri Mar 01, 2019 9:57 am

My Bad , i was thinking Pee wee since we were talking that then went to TD i new thoses ventura were available , But thanks Fred and aspeed < > Those TD mounts will bee cool if you can get it to stay together .
getback
getback
Top Poster
Top Poster

Posts : 5779
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  fit90 on Fri Mar 01, 2019 1:33 pm

I’m trying to replicate this setup with the venturi backplate mount.

Pee Wee Horseshoe back plate - Page 4 1de76b10


Good news I found my 11/64-40 tap. I had used it to tap the backplate on the engine above.[/quote]

Could the Carl Goldberg .049 postage stamp backplate mount you made be resized and adapted to go over the venturi style pee wee back plate? Or, could they be combined? I know it is really easy for me to type this stuff. I can only imagine what it is like to be doing what you are doing.
fit90
fit90
Diamond Member
Diamond Member

Posts : 1290
Join date : 2011-08-11
Location : Naples, Florida

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  Jason_WI on Fri Mar 01, 2019 5:24 pm

I knew when I beefed up the mounting tabs things would be pretty tight. I’ll have to open up a little bit to make room for the NVA. Also need to make the lugs a bit deeper to make clearance for the venturi to the firewall. I’ll test it as is to see if there is any better performance.

Pee Wee Horseshoe back plate - Page 4 7fd7e410
Pee Wee Horseshoe back plate - Page 4 Dbf6e010
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2628
Join date : 2011-10-09
Age : 43
Location : Neenah, WI

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  1/2A Nut on Fri Mar 01, 2019 5:45 pm

How much does that assembly weigh with engine?
1/2A Nut
1/2A Nut
Diamond Member
Diamond Member

Posts : 2254
Join date : 2013-10-20
Age : 55
Location : Brad in Texas

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  Jason_WI on Fri Mar 01, 2019 8:17 pm

Shortened the overall design while lengthening out the legs. Shrunk the diameter a bit. Should be lighter too. Can't use the standard 2-56 x. 75' length screws with this design though. Hopefully its still strong enough.

Pee Wee Horseshoe back plate - Page 4 020_ve12
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2628
Join date : 2011-10-09
Age : 43
Location : Neenah, WI

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  getback on Sat Mar 02, 2019 10:34 am

That is pretty close Pee Wee Horseshoe back plate - Page 4 Dbf6e010
Will it need a extension on the needle ?
getback
getback
Top Poster
Top Poster

Posts : 5779
Join date : 2013-01-18
Age : 61
Location : julian

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  Jason_WI on Mon Mar 04, 2019 4:00 pm

Video run of the latest version of the venturi mount. Still need to add clearance and possibly solder an extension on the needle valve. I can’t make the mount any thinner for fear of breaking too easily.



Here are a few pictures.

Pee Wee Horseshoe back plate - Page 4 272cad10
Pee Wee Horseshoe back plate - Page 4 22485210
Pee Wee Horseshoe back plate - Page 4 5b838910
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2628
Join date : 2011-10-09
Age : 43
Location : Neenah, WI

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  fit90 on Mon Mar 04, 2019 4:08 pm

That sounds and looks great!!
fit90
fit90
Diamond Member
Diamond Member

Posts : 1290
Join date : 2011-08-11
Location : Naples, Florida

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  NEW222 on Mon Mar 04, 2019 6:49 pm

Wow. That doesn't even look like it was 'printed', but rather pressed in a mold. I really enjoy seeing your pictures of stuff you print.
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2147
Join date : 2011-08-13
Age : 40
Location : oakbank, mb

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  Jason_WI on Mon Mar 04, 2019 8:05 pm

Its definitely printed. .1mm layer height or 100 microns. I believe I can get better resolution using .9 degree stepper motors vs 1.8 degree stepper motors on the X and Y axis. Less artifacts when micro-stepping in the firmware of the printer controller.

The second picture shows the support material removed. Without support the overhanging parts couldn't be printed. The brim around the legs help keep them adhered to the bed. Nylon likes to warp. I chuck the venturi mount in the lathe to give the surface area where the NVA seats a flat surface. I can shorten this tube now by .2" to save material. I made it longer to adjust the offset of the NVA.
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2628
Join date : 2011-10-09
Age : 43
Location : Neenah, WI

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  Jason_WI on Tue Mar 05, 2019 12:10 am

1/2A Nut wrote:For sure should have more performance with that setup, could also use a GM .030 RC Carb Eyebrows

It might just fit.

Pee Wee Horseshoe back plate - Page 4 6e300c10
Jason_WI
Jason_WI
Diamond Member
Diamond Member

I Support My Forum

Posts : 2628
Join date : 2011-10-09
Age : 43
Location : Neenah, WI

View user profile

Back to top Go down

Pee Wee Horseshoe back plate - Page 4 Empty Re: Pee Wee Horseshoe back plate

Post  Sponsored content


Sponsored content


Back to top Go down

Page 4 of 6 Previous  1, 2, 3, 4, 5, 6  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
