A change of pace: RWD-1
Page 1 of 2
Page 1 of 2 • 1, 2
A change of pace: RWD-1
Hello,
here is an obscure Polish plane from the late 20's. It is a change of pace for me, as it will be my first semi-scale model of a sports plane, rather than a military plane. The full-scale was only built in one example and despite having an excellent usable mass to empty mass ratio (over 1) and glide ratio (12), it wasn't terribly successful, as it was plagued with issues with its unreliable engine. It does, however, hold the distinction of being the first of the line of machines built by the famous (in Poland) RWD company. The company later built planes that won a number of international sport aviation competitions throughout the 1930's and what I believe to be to this day the lightest aircraft ever to cross the Atlantic.
https://en.wikipedia.org/wiki/RWD_1
My model will be 80cm in wingspan, believe it or not, my largest model ever
Power will come either from my Cox QRC or my brand new Sure Start (btw, if someone knows where can I get a 5-10cc tank for the Sure Start I would really appreciate it).
here is an obscure Polish plane from the late 20's. It is a change of pace for me, as it will be my first semi-scale model of a sports plane, rather than a military plane. The full-scale was only built in one example and despite having an excellent usable mass to empty mass ratio (over 1) and glide ratio (12), it wasn't terribly successful, as it was plagued with issues with its unreliable engine. It does, however, hold the distinction of being the first of the line of machines built by the famous (in Poland) RWD company. The company later built planes that won a number of international sport aviation competitions throughout the 1930's and what I believe to be to this day the lightest aircraft ever to cross the Atlantic.
https://en.wikipedia.org/wiki/RWD_1
My model will be 80cm in wingspan, believe it or not, my largest model ever
Power will come either from my Cox QRC or my brand new Sure Start (btw, if someone knows where can I get a 5-10cc tank for the Sure Start I would really appreciate it).
Last edited by dirk gently on Sun Nov 24, 2019 2:55 pm; edited 2 times in total
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
Re: A change of pace: RWD-1
There is one 10 cc tin plate tank:
https://coxengines.ca/1-3oz-fuel-tank-for-cox-engine.html
https://coxengines.ca/1-3oz-fuel-tank-for-cox-engine.html
Levent Suberk- Diamond Member
- Posts : 2235
Join date : 2017-12-24
Location : Türkiye
Re: A change of pace: RWD-1
Do a search for balloon tank. Easy, reliable and put whatever amount of fuel you like. Consistant runs too.
NEW222- Top Poster
- Posts : 3896
Join date : 2011-08-13
Age : 46
Location : oakbank, mb
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
Re: A change of pace: RWD-1
Very nice! I love those 20's and 30 's designs. Should be a fun flyer.
Ricksrod- Bronze Member
- Posts : 57
Join date : 2019-08-20
Age : 75
Location : Northern Calif.
Re: A change of pace: RWD-1
Looks lite and floatable , should make a god flier // whats ur power?
getback- Top Poster
-
Posts : 10376
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: A change of pace: RWD-1
Power will come either from my Cox QRC or my brand new Sure Start, if I can figure out a tank for it. The Sure start has the advantage that the needle is proud of the fuselage, so I wouldn't have to make a cutout to reach it.
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
Re: A change of pace: RWD-1
Looking Good Dirk !
getback- Top Poster
-
Posts : 10376
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: A change of pace: RWD-1
What about 30cc / 1oz tank with throttle for this build?
15cc will get you 4 minutes tops.
10cc will be very short 2.5 mins.
15cc will get you 4 minutes tops.
10cc will be very short 2.5 mins.
1/2A Nut- Top Poster
- Posts : 3468
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
Re: A change of pace: RWD-1
Dirk,
Love the old designs, and this is a beautiful example!
You have retained the spirit of the original, and the structure looks strong enough where it matters.
The Sure Start engine is highly underrated, but has many nice features to it's advantage.
Be sure to check the upper ball joint for play, as these seem to be less carefully fitted in the last days of Cox manufacturing. I've run mine a few short runs to let the ball socket take shape, before reseating with the proper Cox tool. Chances are the re-seating will not have to be repeated.
Performance is second only to the high performance race engines such as the TD, and Venom. The stock intake stack provides the ability to hand choke the engine to ensure initial fuel flow. They were sold by Estes (who purchased Cox) for well under $10 many years ago. I took advantage of that low price as much as I could afford at the time.
Looking forward to your progress, and hopefully more nice pictures and building tips.
Best regards,
Bill Adair
Love the old designs, and this is a beautiful example!
You have retained the spirit of the original, and the structure looks strong enough where it matters.
The Sure Start engine is highly underrated, but has many nice features to it's advantage.
Be sure to check the upper ball joint for play, as these seem to be less carefully fitted in the last days of Cox manufacturing. I've run mine a few short runs to let the ball socket take shape, before reseating with the proper Cox tool. Chances are the re-seating will not have to be repeated.
Performance is second only to the high performance race engines such as the TD, and Venom. The stock intake stack provides the ability to hand choke the engine to ensure initial fuel flow. They were sold by Estes (who purchased Cox) for well under $10 many years ago. I took advantage of that low price as much as I could afford at the time.
Looking forward to your progress, and hopefully more nice pictures and building tips.
Best regards,
Bill Adair
smooth_bill- Gold Member
- Posts : 229
Join date : 2012-02-19
Age : 87
Location : Beaverton, OR
Re: A change of pace: RWD-1

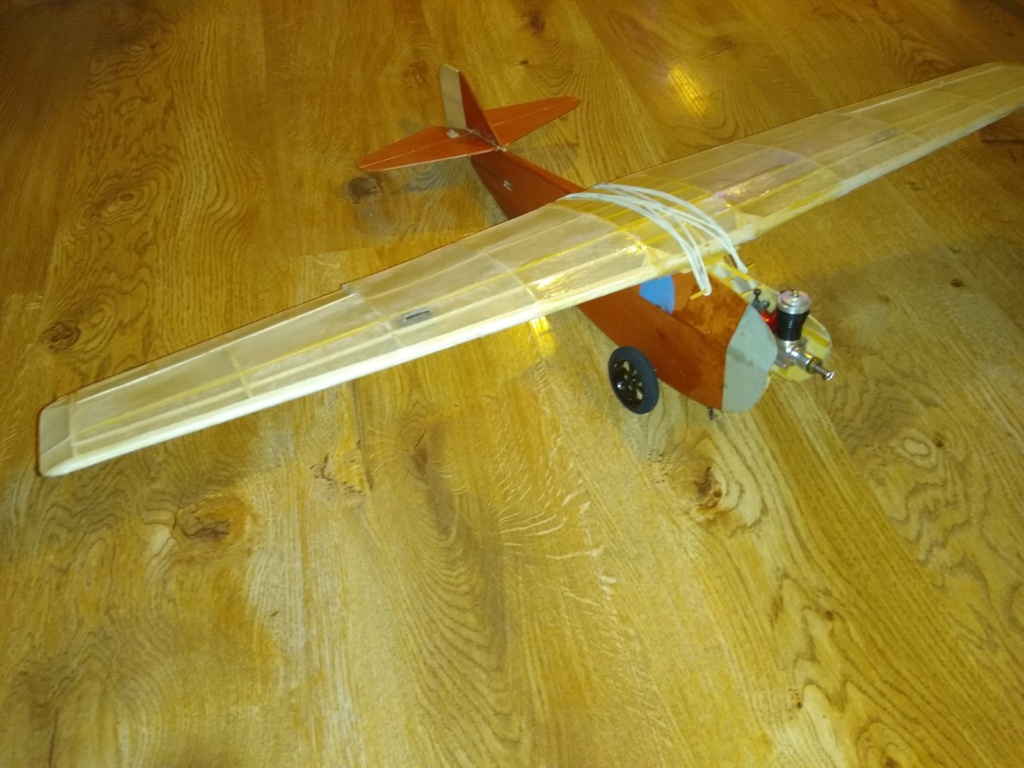

I'm close to finishing this model.
The front of the fuselage came out a bit blotchy after I fuel-proofed it, but that's where the fake scale engine will eventually go, so it will hide some of the mess. It looks much worse in the photos than in person anyway.
I used japanese tissue on the wings, a decision that I'm regretting, as I'm sure I would've been able to get better results using domestic tissue, to which I am much more accustomed. I got severe blushing, even on the inside of the wings(!) which I wasn't really able to get rid of. I used nitro thinner to thin out the dope for one of the wings which gave severe blushing, and acetone for the other wing, which was much better but still not perfect. I bought some cream paint for the wings to hide the blushing and get closer to the colour of the full-scale, but I'm not sure if I want to add any more weight to the wing. The only reason I used japanese tissue was to save weight, but the tissue soaked up so much dope that I'm sure it's heavier than it would've been with plain tissue. I guess I have plenty of time to ponder on whether I want to paint the wing or not, the maiden won't be until March or thereabouts.
Speaking of weight, the "200g AUW" ship has sailed, I think I will end up with 220-230g, which I reckon should still be OK considering the large wing area of the model.
For the first time ever I used a program to calculate the required GC. It came out just ahead of the wing spar. The model balances slightly nose-heavy even without the battery, so we're fine there.
The front of the fuselage came out a bit blotchy after I fuel-proofed it, but that's where the fake scale engine will eventually go, so it will hide some of the mess. It looks much worse in the photos than in person anyway.
I used japanese tissue on the wings, a decision that I'm regretting, as I'm sure I would've been able to get better results using domestic tissue, to which I am much more accustomed. I got severe blushing, even on the inside of the wings(!) which I wasn't really able to get rid of. I used nitro thinner to thin out the dope for one of the wings which gave severe blushing, and acetone for the other wing, which was much better but still not perfect. I bought some cream paint for the wings to hide the blushing and get closer to the colour of the full-scale, but I'm not sure if I want to add any more weight to the wing. The only reason I used japanese tissue was to save weight, but the tissue soaked up so much dope that I'm sure it's heavier than it would've been with plain tissue. I guess I have plenty of time to ponder on whether I want to paint the wing or not, the maiden won't be until March or thereabouts.
Speaking of weight, the "200g AUW" ship has sailed, I think I will end up with 220-230g, which I reckon should still be OK considering the large wing area of the model.
For the first time ever I used a program to calculate the required GC. It came out just ahead of the wing spar. The model balances slightly nose-heavy even without the battery, so we're fine there.
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
Re: A change of pace: RWD-1
Does look a little rough on the wing , if you paint i would suggest yellow since it is already going that way . What's up with the right side wing ? setting in the driver's seat looks like almost a flap but sequered .
getback- Top Poster
-
Posts : 10376
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: A change of pace: RWD-1
double post Duh !
getback- Top Poster
-
Posts : 10376
Join date : 2013-01-18
Age : 67
Location : julian , NC
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
Re: A change of pace: RWD-1
An excellent model. Which fuel proofer did you use?
The reason I ask is that the fuel proofers I use tend to impart their own finish. They remain “tacky’ for 24 hrs and take a week to harden off. I have not managed to achieve a smooth finish with any yet.
Applying finishes over my fuel proofers has been disastrous.
I like your model very much the way it is and would be reluctant to add more weight to it.
For me, another reason for not adding more weight to it is to keep it under 250g where it will not be subject to requiring registering for an operators ID and a flyers ID.
The reason I ask is that the fuel proofers I use tend to impart their own finish. They remain “tacky’ for 24 hrs and take a week to harden off. I have not managed to achieve a smooth finish with any yet.
Applying finishes over my fuel proofers has been disastrous.
I like your model very much the way it is and would be reluctant to add more weight to it.
For me, another reason for not adding more weight to it is to keep it under 250g where it will not be subject to requiring registering for an operators ID and a flyers ID.
ian1954- Diamond Member
- Posts : 2688
Join date : 2011-11-16
Age : 70
Location : England
Re: A change of pace: RWD-1
I use epoxy thinned with epoxy thinner (xylene+isobutane). I only cover the nose of the model (seen as a slightly blotchy area on the photos - they appear less blotchy in person) or areas that I think are susceptible to getting oil on them, like wing roots. If I paint any part of the model (like the engine cowl in some models), I found the paint I use is fuel-resistant enough. The epoxy gives a glass-like finish if it's thinned down enough, which is kind of nice, but not really adequate for a model airplane, what can you do.
Luckily, I don't need to worry about any regulations as long as I don't exceed 25kg (about 55lb) of flying weight
Luckily, I don't need to worry about any regulations as long as I don't exceed 25kg (about 55lb) of flying weight
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
Re: A change of pace: RWD-1
Thanks for the update. I am glad that you are not subject to the draconian laws introduced here in the UK.
Once again, superb model - I like the vintage look.
Once again, superb model - I like the vintage look.
ian1954- Diamond Member
- Posts : 2688
Join date : 2011-11-16
Age : 70
Location : England
Re: A change of pace: RWD-1
You did a nice job.. and the model-subject is very interesting to me also. One the things I like MOST about this forum, is when someone documents' the build of a flying scale-model that I'm unfamiliar with. I still have a whole lot to learn regarding international civilian aircraft.. particularly single-engine designs. I have a few great coffee-table books on the the worlds' aircraft.. but I only open them if I have a question.. or need a visual.
I look forward with you; to the maiden in March! It will be here.. shortly.
I look forward with you; to the maiden in March! It will be here.. shortly.
Re: A change of pace: RWD-1
Plane looks really good Dirk , should fly well for you .Yea come on March , i ready to plant some veggies and get out there and fly/tear up something !!
getback- Top Poster
-
Posts : 10376
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: A change of pace: RWD-1
Here's the maiden:
I can't really say it's a very good flyer. It likes to turn left, but tends to slip into the turn and loses lots of altitude that way. Doesn't want to turn right at all, just banks and stays flying straight. To turn right at all I need to bank it close to 90 degrees and pull hard on the elevator, which looks clumsy. A movable rudder and a smaller prop would probably help.
The glide rate is poor, but landing tend to be soft anyway due to the generous wing area.
The engine is a good performer.
I can't really say it's a very good flyer. It likes to turn left, but tends to slip into the turn and loses lots of altitude that way. Doesn't want to turn right at all, just banks and stays flying straight. To turn right at all I need to bank it close to 90 degrees and pull hard on the elevator, which looks clumsy. A movable rudder and a smaller prop would probably help.
The glide rate is poor, but landing tend to be soft anyway due to the generous wing area.
The engine is a good performer.
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
Re: A change of pace: RWD-1
Very well done! From Sticks and glue to a flying machine, makes you feel good to watch it fly! Thanks for showing us the flight video!
Marleysky- Top Poster
-
Posts : 3618
Join date : 2014-09-28
Age : 71
Location : Grand Rapids, MI
Re: A change of pace: RWD-1
Gee, when it comes to maiden flights you don't muck about! Fire it up and pitch it straight into the air. That shows a lot of confidence in your own flying ability. Well done.
Oldenginerod- Top Poster
- Posts : 4009
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria
Re: A change of pace: RWD-1
What other way is there?
dirk gently- Gold Member
- Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań
