Lathe machining Help needed please?

Go down

Lathe machining Help needed please? Empty Lathe machining Help needed please?

Post  Woody Fri May 20, 2022 6:08 pm

I need to make a set of wheels for my Keil Kraft Phantom.
I have ordered in a metre of Black 50mm rnd Delrin bar.
The drawing has been redone in order to include a plan view which shows the type of taper on the wheels I need to machine.
The diameter must be but the Thinness of the wheels can change. Its the process I am after knowing please?Lathe machining Help needed please? Img_2087

I have thought about it for days but the old brain is not working.
It would be nice to make a tool that can cut inside and outside tapers in one hit but I cannot visualize it.
My Lathe is a small engineers lathe not cnc.
I do not have a taper turning attachment nor want to go to that expense.
Any help really appreciated.
Thanks in advance
Woody
Woody
Woody
Gold Member
Gold Member

Posts : 133
Join date : 2022-04-20

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Levent Suberk Fri May 20, 2022 6:26 pm

It's round tapered but not straight as I see here:
https://www.modelflying.co.uk/forums/index.php?/topic/28248-rc-vintage-keil-kraft-phantom/

Cut a 2 inches disk then drill axle hole. Bolt it on a drill using bolt and nut and round taper it on a flat piece of coarse sandpaper. Then use finer sandpaper. Reverse is same. Make a second one. Easy.
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 1757
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Woody Sat May 21, 2022 2:35 am

Levent Suberk wrote:It's round tapered but not straight as I see here:
https://www.modelflying.co.uk/forums/index.php?/topic/28248-rc-vintage-keil-kraft-phantom/

Cut a 2 inches disk then drill axle hole. Bolt it on a drill using bolt and nut and round taper it on a flat piece of coarse sandpaper. Then use finer sandpaper. Reverse is same. Make a second one. Easy.
I had thought of a similar process but the sanding of the Delrin may not produce a smooth finish as cut with a lathe tool.
Do you have any pictures of your wheels you have made in this way please?
Woody.
Woody
Woody
Gold Member
Gold Member

Posts : 133
Join date : 2022-04-20

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Surfer_kris Sat May 21, 2022 2:43 am

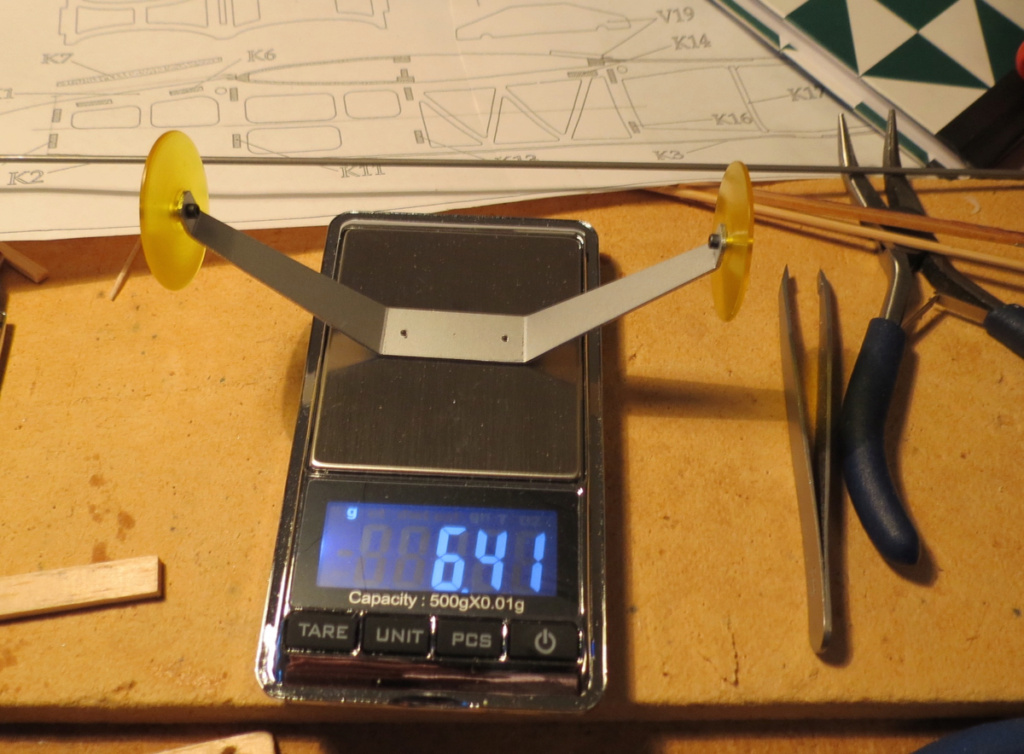

I have made similar wheels in the past and I usually make a simple holder for the wheels (holding it by the axis hole). Cut to size and make the axis hole first, mount it on the holder and make one "outside", flip it over on the holder and make the other side.

It is just plastic so the outside can quite easily be made in a few steps with an angled tool.

Lathe machining Help needed please? Img_0510
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1851
Join date : 2010-11-20
Location : Sweden

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Levent Suberk Sat May 21, 2022 2:50 am

Sand the wheel with a convex hand movement. Then use fine wet dry sand paper and buff.

Lathe machining Help needed please? Smwh0010
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 1757
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Levent Suberk Sat May 21, 2022 2:52 am

If you want make them from hardwood.
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 1757
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  GallopingGhostler Sat May 21, 2022 5:27 am

Many of the kits I bought came with wooden wheels. This includes Scientific half-A kits and Sterling rubber powered, RC and Beginner series CL half-A kits.

Because I wanted more, I would replace these wood wheels with Perfect or other make rubber wheels with metal hubs (later plastic hubs).

I suppose one could make a wood core wheel and glue/press a narrow cross section of rubber hose of the diameter desired, the wood wheel a touch larger so the rubber fits snugly.
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

Posts : 3516
Join date : 2013-07-13
Age : 68
Location : Clovis, NM, USA

Back to top Go down

Lathe machining Help needed please? Empty Taper turning wheels

Post  706jim Sat May 21, 2022 9:49 am

Does your lathe have a compound slide? If it does, just set it to the angle you want and manually feed it in the correct direction.
Or I could make them for you on my lathe.
I might even have enough Black Delrin to machine them in my garage.
706jim
706jim
Gold Member
Gold Member

Posts : 353
Join date : 2013-11-29

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Levent Suberk Sat May 21, 2022 1:22 pm

Keil Kraft Phantom wheels are streamlined as you see:

Lathe machining Help needed please? Screen94
Lathe machining Help needed please? Screen95
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 1757
Join date : 2017-12-24
Location : Turkey

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  aspeed Sat May 21, 2022 10:26 pm

Just grind up a V form tool with the taper on both sides. It will need to be run at the slowest rpm that your lathe probably has, and the lathe would be a fairly solid one. Plunge the groove after drilling the hole first, and it will part off when it gets down to the hole. It may chatter a bit or a lot, but you can go side to side a bit to lessen that effect. Probably a 3/8" HSS toolbit would be a good start for the tool depending on the size of your lathe.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 630
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Woody Mon May 23, 2022 10:39 pm

Thank you all for your help guys.
Thanks Jim for offering to make me some wheels.
That was very kind .
But..then I have not had a go!
I have ordered the delrin, have a lathe and lathe tools on the way so I will give it a shot.
It is supposed to be easy so I will make a sow's ear out of it.
We will see.
Woody
Woody
Gold Member
Gold Member

Posts : 133
Join date : 2022-04-20

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  aspeed Mon May 23, 2022 10:44 pm

What size / brand of lathe are you getting?
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 630
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  davidll1984 Tue May 24, 2022 9:31 am

I will do one side at a time the first side I leave a part to install it back in the lathe Once change side then Drill the hole in the center and cut the other side and finally cut the part of the fixing part The piece should be quite concentric At least good enough for a wheel you could cut out two discs and install them on the lathe with a fixing but the hole would surely be too small to be solid and the wheels too small to be fixed directly in the chuck Inevitably you will waste a little but my method is more sure to succeed I think
davidll1984
davidll1984
Diamond Member
Diamond Member

Posts : 2074
Join date : 2020-02-12
Age : 37
Location : shawinigan

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Woody Tue May 24, 2022 5:26 pm

706jim wrote:Does your lathe have a compound slide? If it does, just set it to the angle you want and manually feed it in the correct direction.
Or I could make them for you on my lathe.
I might even have enough Black Delrin to machine them in my garage.
Jim.
Thanks mate for the offer but I am compelled by the gods of Cox to have a go.
You just sorted my concerns for the taper by asking does it have a compound slide?
What the hell is that asked Woody and then Woody went to his lathe and behold!!! I say unto you...It has a compound slide!!!
BRILLIANT said the God of Cox.
So now I wait for the Postal angels to deliver mine lathe tools and then I can have a go.
Woody.
Woody
Woody
Gold Member
Gold Member

Posts : 133
Join date : 2022-04-20

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Woody Tue May 24, 2022 5:28 pm

aspeed wrote:What size / brand of lathe are you getting?
I already have the lathe but just await a few tools in the post.
Here are a few pics.
Woody.Lathe machining Help needed please? Img_2093
Lathe machining Help needed please? Img_2094
Woody
Woody
Gold Member
Gold Member

Posts : 133
Join date : 2022-04-20

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Woody Tue May 24, 2022 5:39 pm

davidll1984 wrote:I will do one side at a time the first side I leave a part to install it back in the lathe Once change side  then Drill the hole in the center and cut the other side and finally cut the part of the fixing part The piece should be quite concentric At least good enough for a wheel you could cut out two discs and install them on the lathe with a fixing but the hole would surely be too small to be solid and the wheels too small to be fixed directly in the chuck Inevitably you will waste a little but my method is more sure to succeed I think

Ahahh That sounds more like it!
I like the bit about turning a spigot ( Boss) to hold the wheel in the chuck when turning it around to do the other side.
Yes it is wasteful but I have a metre of the stuff and it is a more accurate way of doing it . It is also safer as I feel that to turn a taper on a 3mm axle pin is asking for trouble with the pressure of the cutting tool on the wheel.
I feel confident that your method will work well and thank you for taking the time and your knowledge on the matter.
I will not bother with turning them with a curve on both sides as I feel that making them to the profile I drew will be quite adequate and will portray the essence of a pair of vintage streamlined plastic wheels.
woody.
Woody
Woody
Gold Member
Gold Member

Posts : 133
Join date : 2022-04-20

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Surfer_kris Wed May 25, 2022 10:12 am

Woody wrote:
I already have the lathe but just await a few tools in the post.
Here are a few pics.

It looks like you have a compound slide on there?
Should be very easy to cut the sides of the wheels by simply using that. cheers
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1851
Join date : 2010-11-20
Location : Sweden

Back to top Go down

Lathe machining Help needed please? Empty Re: Lathe machining Help needed please?

Post  Woody Wed May 25, 2022 4:59 pm

Yes. I did not realise it had a compound slide.
All will be very easy.
Woody
