Re: A Wen-Mac SNJ-3 Navy ;Update and need some more help

latole Wed Aug 24, 2022 9:32 am

Thank's

latole Wed Aug 24, 2022 3:30 pm

Hello to all members,
What kind of bellcrank for this plane ?
Mine is missing and I can't find pictures

The end of the bellcranck / elevator rod is right where is the big round hole

Thank's

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 Dsc00321

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 Dsc00322

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 Dsc00323

rsv1cox Wed Aug 24, 2022 3:57 pm

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 Snj_fa10

Far right yellow.

latole Wed Aug 24, 2022 6:25 pm

rsv1cox wrote:

Far right yellow.

Wow ,it is a very big bellcrank !
I have to make one.
Thank's so much

rsv1cox Wed Aug 24, 2022 6:28 pm

Occasionally they show up on ebay.

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 Wen_st10

rsv1cox Wed Aug 24, 2022 6:44 pm

Maybe these pictures will help you out. Sorry, inches.

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 P1013937

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 P1013935

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 P1013936

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 P1013939

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 P1013938

latole Thu Aug 25, 2022 2:49 am

rsv1cox wrote:Maybe these pictures will help you out. Sorry, inches.

That's help me very much, very very strange bellcranck.
I have no issue with inches. We use them in canada and metric too

Thank's

latole Thu Aug 25, 2022 3:41 am

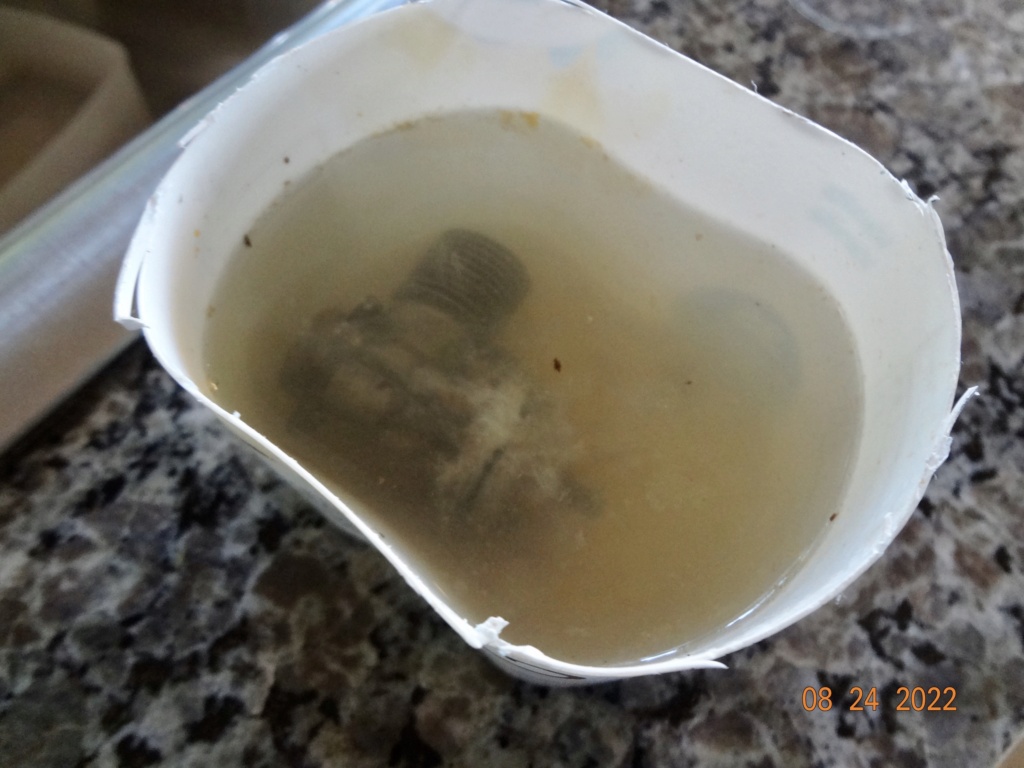

The best rust remover that has been suggested to me and is very effective with completely seized engines and simple vinegar.
I just tried it again on my SNJ-3 engine with success.

3 hours in hot vinegar and the engine runs like new.
If the vinegar is cold, it can take 12 to 24 hours.

The only drawback of vinegar is that it dissolves the black paint on the cylinder. I guess it can be repainted.

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 Dsc00324

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 Dsc00325

getback Thu Aug 25, 2022 6:47 am

That is one Big bellcrank !! LOL Bob that starter assy. looks like an adventure to say the least , reminds me of the starter springs we use to replace in weedeaters . tongue

GallopingGhostler Thu Aug 25, 2022 7:22 am

latole wrote:The only drawback of vinegar is that it dissolves the black paint on the cylinder. I guess it can be repainted.

A special coating called "bluing", used to refinish barrels and steel parts on pistols and rifles can restore the black.

latole Thu Aug 25, 2022 10:18 am

GallopingGhostler wrote:
latole wrote:The only drawback of vinegar is that it dissolves the black paint on the cylinder. I guess it can be repainted.
A special coating called "bluing", used to refinish barrels and steel parts on pistols and rifles can restore the black.

Job done.

A Wen-Mac SNJ-3 Navy ;Update and need some more help - Page 2 Dsc00326

latole Thu Aug 25, 2022 2:04 pm

Now, engine turn by hand with, IMO, a normal compression.
