K&B .09 Torpedo Engine

Go down

K&B .09 Torpedo Engine Empty K&B .09 Torpedo Engine

Post  GallopingGhostler Fri Dec 16, 2022 1:39 pm

It arrived today, E-Bay buy, was the only bidder, although from a top rated seller. $35.28 total, which includes $12.00 shipping and local tax. This engine is extremely clean, lightly used but not abused, needs to be carefully broken loose of the Castor oil that freezes it, just normal TLC for a long time stored engine.

I like these engines that had some light run time on it, because it is less work for me to break them in. Engine screws show no sign of wrenching. The porcelain top glow plug, which resembles a 1/4" spark of the era has had some wrenching from a probably poor fitting wrench (like some of the stamped sheet steel wrenches of the day), but I can carefully file off the burrs and reblue it.

K&B .09 Torpedo Engine 2022-141
K&B .09 Torpedo, left side.
K&B .09 Torpedo Engine 2022-142

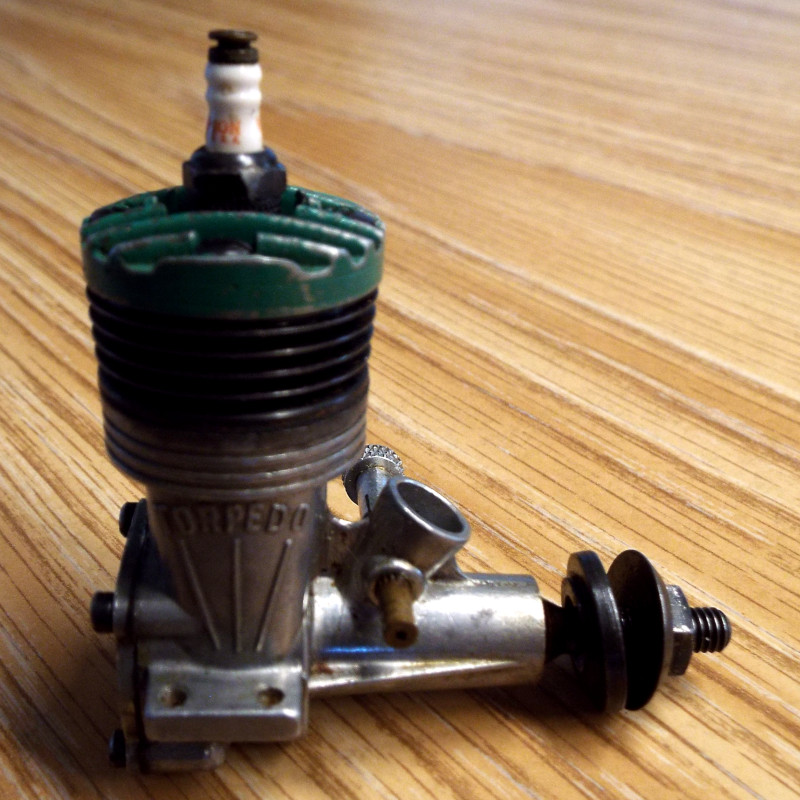

K&B .09 Torpedo, right side.
K&B .09 Torpedo Engine 2022-143
K&B .09 Torpedo, front.
K&B .09 Torpedo Engine 2022-144
K&B .09 Torpedo, back.

I really like it when a deal comes together.  Very Happy  Christmas Tree It is Merry Christmas (to me). Stereo
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5279
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  Ken Cook Sat Dec 17, 2022 6:14 am

George, the VG-3 Champion is what was considered the short plug of that era. I'm guessing in the mid to late 50's. I think K&B produced the .09 somewhere around 1955. I may have mentioned this when you posted this engine earlier on, I would use a newer style plug. The Champion plugs had a very durable element. Even testing it, you might notice it doesn't perk up like most newer plugs today. I would keep it as a neat piece of history. I have several of them myself spark and glow. My .09 isn't quite as attractive as yours, mine has no green paint on the head. It runs well though.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 5442
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  706jim Sat Dec 17, 2022 8:44 am

Interesting how K&B positioned the needle valve so your fingers would get burned by the hot exhaust.....
706jim
706jim
Gold Member
Gold Member

Posts : 458
Join date : 2013-11-29

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  Ken Cook Sat Dec 17, 2022 3:04 pm

Even better is when mounted profile you burn your face off with hot spewing exhaust, it's awesome.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 5442
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  rdw777 Sat Dec 17, 2022 5:06 pm

Nice engine George, Neat glow plug as well…. Have not seen one like that….Enjoy the restore  Very Happy …..Have plans to put it on something?….
rdw777
rdw777
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 1250
Join date : 2021-03-11
Location : West Texas

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  GallopingGhostler Sat Dec 17, 2022 5:44 pm

Thanks, Ken, for the bit of history on the glow plug, guess it was reliable, but others were better runners.

I have a Midwest 33" P-40 Warhawk profile stunt that would make a good plane for it, Robert. Regarding the needle, I believe it is missing the ratchet spring that goes over the needle cover shaft to keep it positioned. Yes, Jim, odd they positioned the needle adjuster on the same side as the exhaust, but the venturi spray bar a press fit, so no swapping sides.

Got an extra Tatone Calumet .09-.19 muffler that I can grind out all the internal baffles, so gets the Castor spray off the fingers. Some time ago I tried it with my Testor .19 Red Head, overheated quickly with very restrictive baffles in place. Hot
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5279
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  Ken Cook Sat Dec 17, 2022 8:57 pm

I also have the Torpedo .35 which is completely smoked. I'm awaiting that day when I can find a donor piston cylinder. It's quite sad actually. I received the engine from a speed flyer with multiple engines. The grinding on the cases, the worn out piston liners and the disregard for care just baffles my mind. I have a Pet .09 in this box which looks brand new practically but it's wiped out. Now, this isn't a speed engine obviously, but it makes me wonder as to why someone would harm such a gem of a small engine.

I also wanted to make mention of this earlier in my posts. The K&B Torpedo as well as earlier version K&B engines used the taper drive washers. These are typically missing on most because without the nut, it quickly disappears. They're also not easy to come by. Take care of that and insure it doesn't find it's way with the rest of the missing ones.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 5442
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  GallopingGhostler Sat Dec 17, 2022 11:11 pm

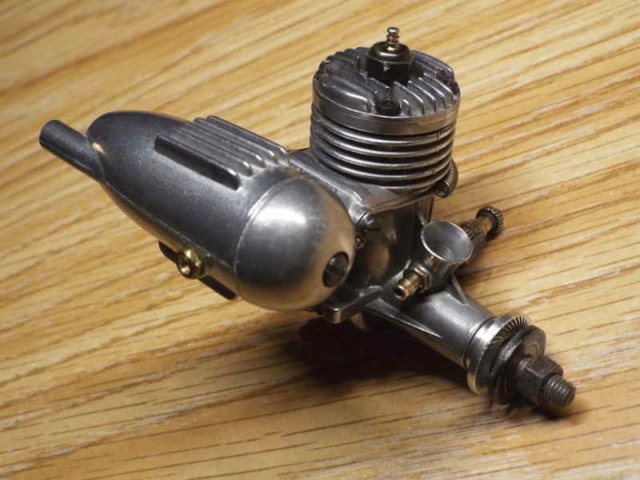

Ken, yeah, similarly, I got a bastardized K&B .35 Torpedo where someone attempted to cut the piston skirt (somewhat sloppily done) to create SPI on this engine. Fortunately I have a new, unused OS Pet .099-III C/L engine in my stash.

K&B .09 Torpedo Engine 2018-110

Thanks for pointing out the tapered prop washer as it is a unique part of the engine. I am glad I have the original part. I made one for my OS .40FP R/C out of a small stack of 4 washers, 2 same diameter as the prop drive washer and another two slightly smaller, but of course, the OEM tapered one would have been nicer.

K&B .09 Torpedo Engine Cub_os10

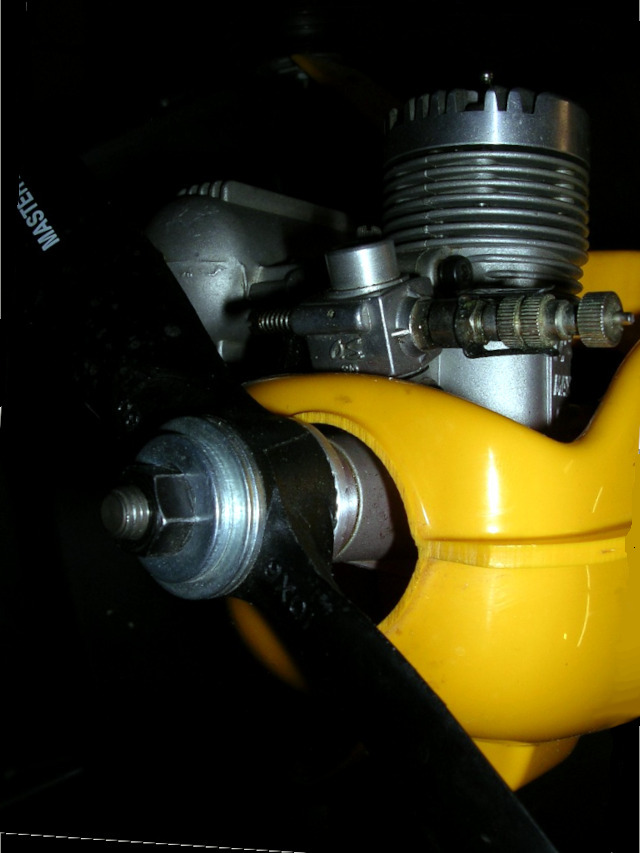

Improvised prop washer stack on an OS .40FP R/C mounted to a Sureflite .40 Cub ARF.
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5279
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  706jim Sun Dec 18, 2022 12:20 am

Send me a sketch and I will make you one
706jim
706jim
Gold Member
Gold Member

Posts : 458
Join date : 2013-11-29

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  GallopingGhostler Sun Dec 18, 2022 6:36 pm

706jim wrote:Send me  a sketch and I will make you one
Appreciate the generous offer, Jim, but in this case I'll have to pass. Although I repaired the Cub, I don't have confidence that my substitution of 3/16" foam board for the tail surfaces will truly work, got some warping to relieve. Original was in sheet foam but was destroyed in a move. I'd probably be better off going to balsa.

So until the plane is ready to fly or I move the engine to another plane, for now, it is just a static display hanging from my garage roof.
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5279
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  NEW222 Sun Dec 18, 2022 9:23 pm

You definately got a very nice original low time run engine there. Looks great!
NEW222
NEW222
Top Poster
Top Poster

Posts : 3892
Join date : 2011-08-13
Age : 45
Location : oakbank, mb

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  GallopingGhostler Mon Dec 19, 2022 12:19 pm

Thanks, @NEW222. I temporarily mounted an electric prop just to see if I could turn it. Lo and behold, the engine has been lightly oiled with sewing machine or tool mineral oil. It does turn over freely, has the strong compression of a Medallion .09 with a high compression Tee Dee head. It makes a noticeable loud pop, so @Ken Cook is correct. When it runs, it will have a louder note similar to twin exhaust port engines.

The engine is clean enough that I do not have to disassemble it, just carefully wash the outside with some volatile solvent. Even the head, although some of the paint has been rubbed off from handling appears to have been  so lightly painted, that this is normal. One thing I do notice is that the mount holes are very small, appears that 2-56 mount bolts will work, even the 3-48's may be too large in diameter.

The needle valve has enough resistance that I think it can hold a setting, doesn't appear to need a ratchet spring. Now, I am really stoked. Very Happy
K&B .09 Torpedo Engine 2022-145

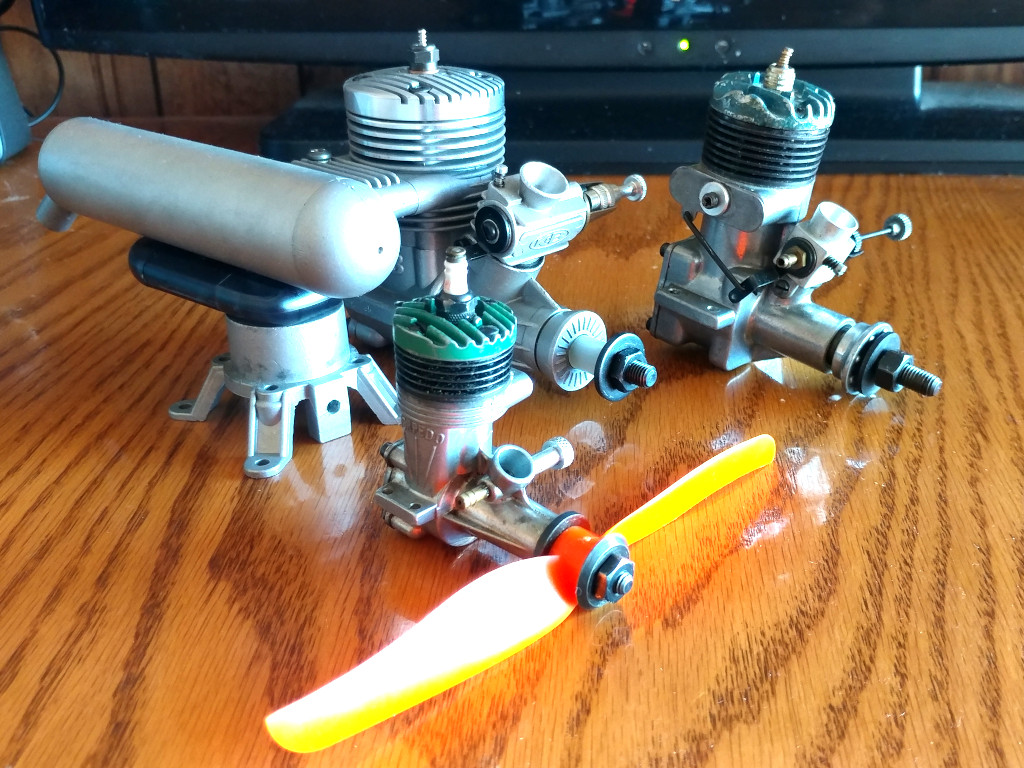

K&B .09 Torpedo next to a Sportster .45 R/C and Testors McCoy .35 Blue Head R/C.
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5279
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  Ken Cook Mon Dec 19, 2022 3:51 pm

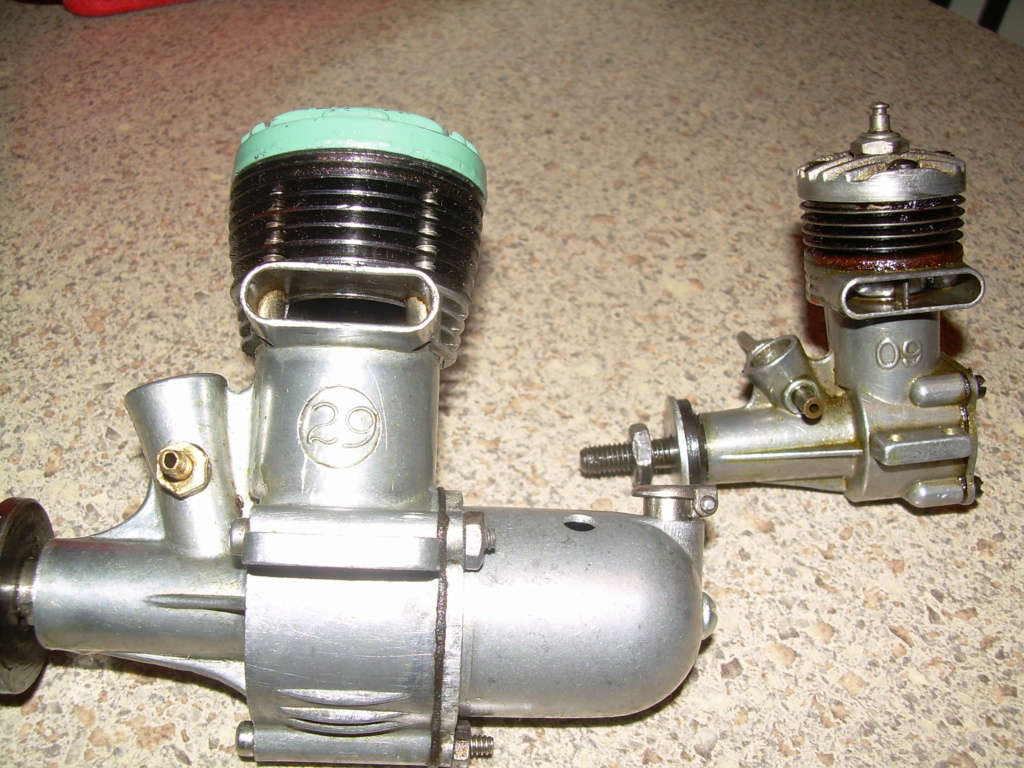

George, I like the blue head Mccoy. That's one engine I don't have. I was looking for my .35 Greenhead yesterday. I came across the .09 and one I forgot. I have a beautiful .29. Sadly, I acquired this engine from a deceased club member. The pictures don't do it justice as it's a very clean nice example which runs terrific. I think Pete the fellow who originally owned this would be proud to know it's in good hands. Pete was a avid freeflighter usually older traditional models. My .09 however as I mentioned prior isn't a pretty example, it just runs well and I have a thing for these smaller engines.


K&B .09 Torpedo Engine Dscn3111

K&B .09 Torpedo Engine Dscn3112
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 5442
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  NEW222 Mon Dec 19, 2022 9:00 pm

Interesting about the mounting holes being that small. I would have thought they would have at least been a 4-40 thread. I never would have thought.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3892
Join date : 2011-08-13
Age : 45
Location : oakbank, mb

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  GallopingGhostler Tue Dec 20, 2022 11:36 am

@Ken Cook, that K&B .29 Torpedo is a beaut, congrats on scoring it.

It is interesting that my .09 has the factory spray bar mounted with needle on the exhaust side, yet yours and the one in Sceptre Flight's Aug. 1958 Model Aircraft review have the needle on the other side. I gather that with the Champion glow plug, mine must be an earlier production version. Also, it seems my suspicions are correct, the engine article shows engine tore down, there is no retention spring for the needle; with threaded collar, it is a friction fit, ingenious. Another interesting fact is the slightly more powerful Fox .15X is almost an ounce heavier than this Torpedo (3.6 vs. 2.8 oz.). It is almost the same weight as the unmuffled, unthrottled Medallion .09 (2.75 oz.).

Also of interest is that this engine (swept volume 0.0999 cu. in.) is a little powerhouse of its own right on 12% nitro, when compared with the later OS Pet .099 engine (swept volume 0.0981 cu. in.) on 15% nitro. Although the OS is tested with muffling in place, performance curves are similar, not bad for an engine that was in production 15 years earlier. It is also lighter at 2.8 oz. whereas the Pet is 3.25 oz. The comparable 1958 OS Pet .099 steel fin of similar weight was definitely weaker on power even on 25% nitro.

K&B .09 Torpedo Engine Kb_all10
Torpedo .09 engine performance curve (12% nitro), author not identified (although appears that Peter Chinn may have written it) in Aug. 1958 Model Aircraft.

K&B .09 Torpedo Engine Os_pet10
OS Pet .099 engine performance curve (15% nitro) by Peter Chinn in Apr. 1972 Aeromodeller.

K&B .09 Torpedo Engine Os_pet11

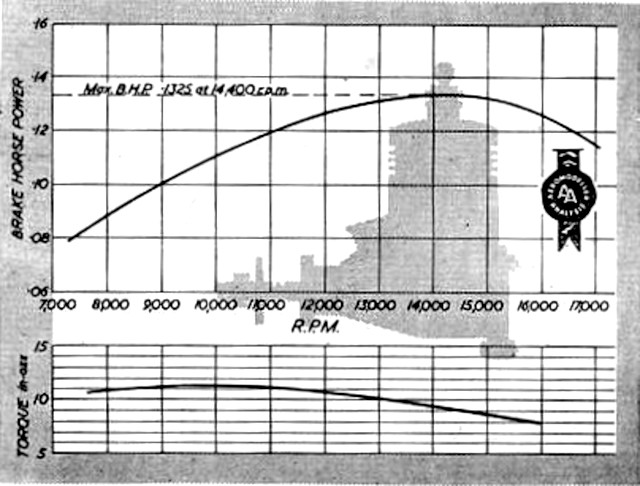

OS Pet .099 steel fin engine performance curve (25% nitro) by H.R. Warring in Aug. 1958 Aeromodeller.

Yes, the screw mount holes are tiny, @NEW222. Here, I am comparing it to my Medallion .09 R/C. The engine mount holes are noticeably smaller than the Medallion's:

K&B .09 Torpedo Engine 2022-146

K&B .09 Torpedo Engine 2022-147
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5279
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  dan vincent Sun Mar 31, 2024 7:00 pm

The K&B Gr@eenhead .09 is a great engine.   There. We're actually two versions.

The early version had a problem with the exhaust port sagging so they added a web in the exhaust port to eliminate sagging.

All three of my K&B 09's have the needle opposite of the exhaust port.

K&B also made ring mounts for the Greenheads.K&B .09 Torpedo Engine Kb_gh_10
K&B .09 Torpedo Engine Kb_09_10
K&B .09 Torpedo Engine Kb_gh-10

The K&B Greenhead .09 and McCoy .09 diesel were my favorite.09 engines back in the 1950's.
dan vincent
dan vincent
Moderate Poster
Moderate Poster

Posts : 14
Join date : 2024-03-28

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  dan vincent Sun Mar 31, 2024 7:11 pm

The K&B Greenhead .09 is a great engine.   There. We're actually two versions.

The early version had a problem with the exhaust port sagging so they added a web in the exhaust port to eliminate sagging.

All three of my K&B 09's have the needle opposite of the exhaust port.

K&B also made ring mounts for the Greenheads.K&B .09 Torpedo Engine Kb_gh_10
K&B .09 Torpedo Engine Kb_09_10
K&B .09 Torpedo Engine Kb_gh-10

The K&B Greenhead .09 and McCoy .09 diesel were my favorite.09 engines back in the 1950's.
dan vincent
dan vincent
Moderate Poster
Moderate Poster

Posts : 14
Join date : 2024-03-28

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  GallopingGhostler Sun Mar 31, 2024 7:12 pm

Interesting little facts on your .09 Green Heads, @Dan Vincent. Then my Green Head with the needle valve mounted on the exhaust side and with open exhaust without support web may mean it possibly to be of earliest manufacture. Receiving it with the Champion porcelain head glow plug sort of confirms that. Being pressed in versus a nut tightened spray bar, has no signs that a previous owner moved it over.

When I use it in a future plane, then I can relive the early experiences of adjusting the engine including pain! lol!

Hot exhaust blasting a bare hand while adjusting the needle is no fun. With it on the other side, one could mount the engine with exhaust down on the left side, then access the needle without burns.
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5279
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  getback Mon Apr 01, 2024 7:27 am

My fav. .09 was the Enya it was the only one I had LOL I don't think I have a McCoy or K&B .09 if so I havent ran it for sure .. Bout time to run something !!!
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10097
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  davidll1984 Mon Apr 01, 2024 7:57 am

K&b torpedo I already had one but it broke easily after a crash the engine casing broke right where the cylinder inserted in the casting stop Just in front of the air inlet below the exhaust outlet It's a shame because the engine was like new is still very good. Compression think I still have a torpedo somewhere Huh... Among the different k&b that I have in my collection
davidll1984
davidll1984
Diamond Member
Diamond Member

Posts : 2283
Join date : 2020-02-12
Age : 39
Location : shawinigan

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  dan vincent Mon Apr 01, 2024 12:03 pm

Ken Cook

K&B .29 & .32 info.....

I was talking to John Brodbeck and I was curious as to why he took so long to make his Greenhead .29 & .35 engines with 4-screw backplate models like the .09, .15, .19, .23 & .45 engines.

John said they made the 3-screw cases because of the backplate.

Their previous Torpedo .29 had a tank that mounted with a single screw and many users applied too much pressure which resulted in pulling the stud out of the backplate.

John said he had thousands of the 3-screw backplates and simply had to use them up before updating to the 4-screw .29 & .35 cases.

I had K&B .29 &.32 Greenheads and found them totally reliable and preferred them over my Fox 35 engines.
dan vincent
dan vincent
Moderate Poster
Moderate Poster

Posts : 14
Join date : 2024-03-28

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  Ken Cook Mon Apr 01, 2024 5:49 pm

I like the greenheads, I'm not crazy about the two screw cylinder retention. I'm also not a fan of the wrist pins as they do wear grooves in the cylinder as well. I always polish and round them real well. If memory serves me , the .35 uses aluminum end pads on the wrist pin. I have a rear rotor .29 which I haven't posted a picture of. I have owned it for quite some time and never ran it. These tend to be rare. I'm a K&B fan especially of the newer 4011 series as they're just a simple design with plenty of power.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 5442
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

K&B .09 Torpedo Engine Empty Re: K&B .09 Torpedo Engine

Post  Sponsored content


Sponsored content


Back to top Go down

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
