McCoy 35/40 Parts lists Empty McCoy 35/40 Parts lists

Post  BillLee Sat Dec 31, 2022 9:49 am

Does anyone have a parts list for the McCoy Redhead engine line? I have 'inherited' a stash of McCoy parts including a lot of gasket kits/etc. I need to figure out what belongs with what.

TIA.

Regards,

Bill Lee
BillLee
BillLee
Moderate Poster
Moderate Poster

Posts : 10
Join date : 2019-12-02

Back to top Go down

McCoy 35/40 Parts lists Empty Re: McCoy 35/40 Parts lists

Post  crankbndr Sat Dec 31, 2022 10:34 am

Reprint of one for the 60

McCoy 35/40 Parts lists D211



McCoy 35/40 Parts lists D2_110
crankbndr
crankbndr
Top Poster
Top Poster

Posts : 3082
Join date : 2011-12-10
Location : Homestead FL

Back to top Go down

McCoy 35/40 Parts lists Empty Testors McCoy .19 Red Head Parts List

Post  GallopingGhostler Sat Dec 31, 2022 10:40 am

Although the .35 and .40 was asked for, including the .19 because a few parts are interchangeable:
McCoy 35/40 Parts lists Mccoy_10


Last edited by GallopingGhostler on Sat Dec 31, 2022 11:42 am; edited 1 time in total (Reason for editing : Clarification.)
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5386
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

McCoy 35/40 Parts lists Empty Re: McCoy 35/40 Parts lists

Post  pman1111 Sat Dec 31, 2022 10:50 am

On the left side of this page there is a section for "Instruction sheets", in that section there is a copy of the instruction sheet for a Mccoy Stunt 35, if you happen to have the item #25 crank throw spacer and are looking to sell, I'd be interested! Very Happy
pman1111
pman1111
Silver Member
Silver Member

Posts : 92
Join date : 2022-01-15

Back to top Go down

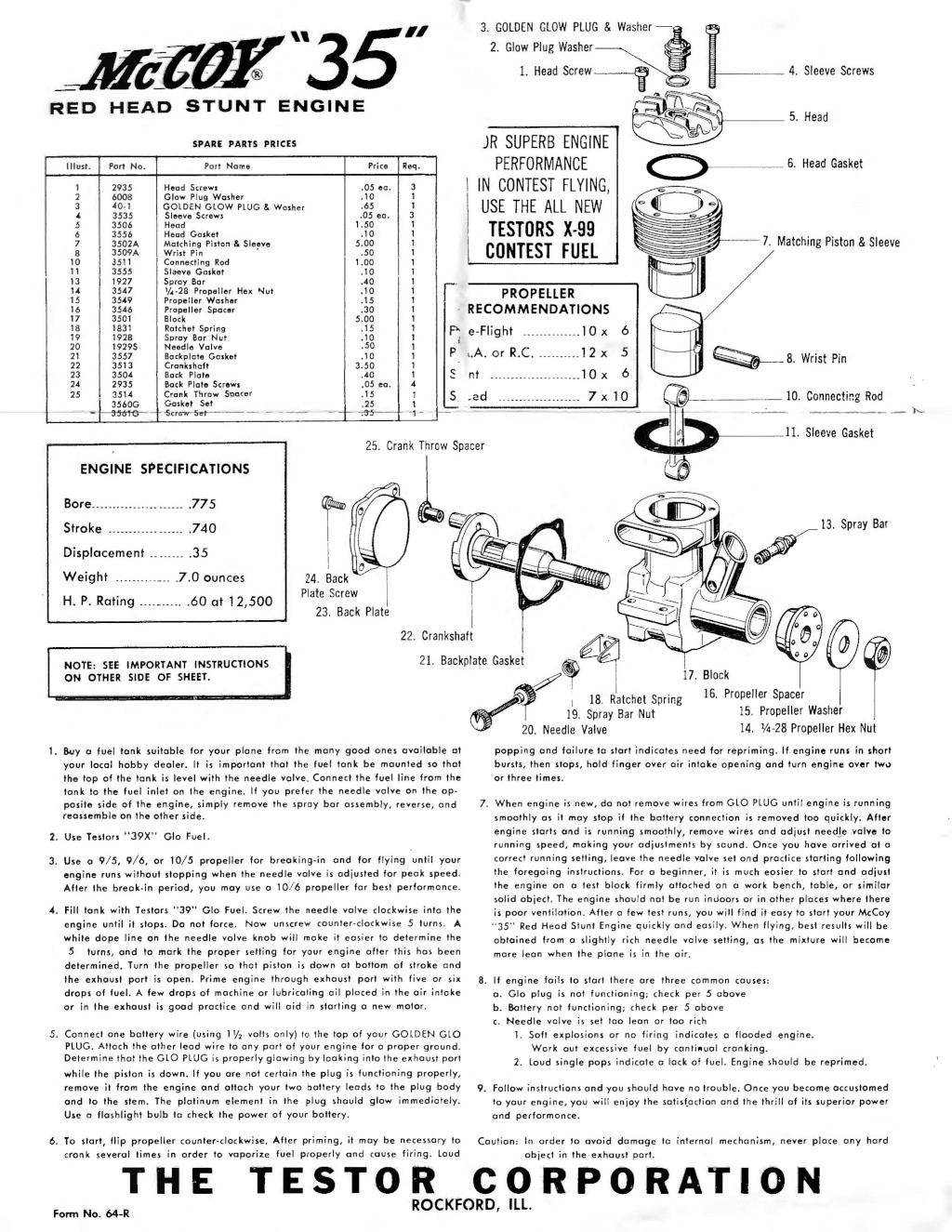

McCoy 35/40 Parts lists Empty Testors McCoy .35 Red Head Instructions w/Parts List

Post  GallopingGhostler Sat Dec 31, 2022 11:11 am

Sorry, @pman1111, missed your post just now because I was working on extracting this from a combined 38 page PDF of McCoy articles and instrucions.
McCoy 35/40 Parts lists Testor10
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5386
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

McCoy 35/40 Parts lists Empty Testor McCoy 049 Series 8000 Parts

Post  GallopingGhostler Sat Dec 31, 2022 11:30 am

McCoy 35/40 Parts lists Testor11
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5386
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

McCoy 35/40 Parts lists Empty Re: McCoy 35/40 Parts lists

Post  pman1111 Sat Dec 31, 2022 11:38 am

[quote="GallopingGhostler"]Sorry, @pman1111, missed your post just now because I was working on extracting this from a combined 38 page PDF of McCoy articles and instrucions.

No problem GG, could have posted the original scan, but I'm a little lazy today, yours is a much cleaner copy Eyebrows
pman1111
pman1111
Silver Member
Silver Member

Posts : 92
Join date : 2022-01-15

Back to top Go down

McCoy 35/40 Parts lists Empty Testor McCoy Series 21 Black Head Parts

Post  GallopingGhostler Sat Dec 31, 2022 11:55 am

Bill, the PDF is 3.0 MB, I forget where I downloaded it from, otherwise I'd steer you to a link. It is a bit hard to include here, but if you PM me your E-mail address, I can E-mail it to you.

Am including this later edition of Testor engines. Some of the parts are interchangeable. One can even swap the prop drive between the .35 Red Head and .35/.40 Series 21 Black Head. It may look a little odd, but they fit both ways (been there done that Very Happy )
McCoy 35/40 Parts lists Testor12

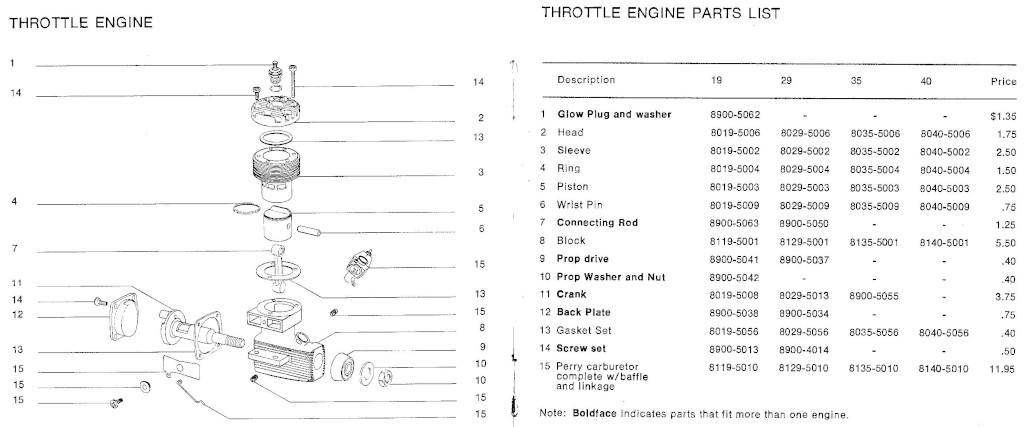

The Series 21 R/C version:
McCoy 35/40 Parts lists Testor13

Please note, some have been retrofitting the Red Head series with parts from the Series 21. There are a few changes required to make this work. Some require the later Red Head with "lightning bolt" crankcase. In one case, it may be with the .40, is the easiest in the conversion. I forget which is what. Except in one case, which I think one just simply retains the lightning bolt steel fin cylinder and replaces the piston, rest require re-machining the crankcase to make the Series 21 sleeve set with dyke ring piston fit. You can't simply reuse the earlier non lightning bolt steel fin cylinders, because they don't have the dyke tines to keep the piston ring inside the cylinder when traversing the exhaust port. It will bind and break the ring, plus damage the engine. Also, you may have to modify the con rod (again I forget what). Best contact someone in Stunt Hangar, who knows somebody who did this. Tired w/ Coffee Read

(Yesterday, getting fuel in Sayre OK near the TX border, I went into the store to get my credit card receipt. The very pleasant white haired senior woman working the cash register asked me what gas pump number. I told her, "It is the one with the white minivan parked next to it." Then I told her, "The older I get, the less I remember." She all of sudden got a glee full look in her eyes with a big wide smile and slight chuckle, greeted me with a parting, "Happy New Years". I'm starting to feel like Dr. Emmett "Doc" Brown in the movie, Back to the Future.)
lol! drunken Happy New Year


Last edited by GallopingGhostler on Sat Dec 31, 2022 12:23 pm; edited 1 time in total
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5386
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

McCoy 35/40 Parts lists Empty Re: McCoy 35/40 Parts lists

Post  BillLee Sat Dec 31, 2022 12:09 pm

GallopingGhostler wrote:Sorry, @pman1111, missed your post just now because I was working on extracting this from a combined 38 page PDF of McCoy articles and instrucions.
McCoy 35/40 Parts lists Testor10

Wow! 38 pages! Possible to share the entire document?

Thanks to all for the responses. Is there a sheet for the 40? Lightning Bolt and similar.

Thanks.

Bill
BillLee
BillLee
Moderate Poster
Moderate Poster

Posts : 10
Join date : 2019-12-02

Back to top Go down

McCoy 35/40 Parts lists Empty Re: McCoy 35/40 Parts lists

Post  BillLee Sat Dec 31, 2022 12:19 pm

pman1111 wrote:On the left side of this page there is a section for "Instruction sheets", in that section there is a copy of the instruction sheet for a Mccoy Stunt 35, if you happen to have the item #25 crank throw spacer and are looking to sell, I'd be interested! Very Happy

I just assembled a Lightning Bolt 40 for a fellow over on SH. I had the spacer in the box along with all the necessary other parts. It is now in the back of the crank.

Looking half-way closely at it, it looks like a simple piece of plastic, maybe nylon, maybe teflon. I made similar pads for the wrist pins on some of my old K&B 40 stuff, so making a suitable copy should be relatively easy. (Or maybe I'm fooling myself! :-) )

Regards,

Bill
BillLee
BillLee
Moderate Poster
Moderate Poster

Posts : 10
Join date : 2019-12-02

Back to top Go down

McCoy 35/40 Parts lists Empty Re: McCoy 35/40 Parts lists

Post  pman1111 Sat Dec 31, 2022 12:41 pm

BillLee wrote:
pman1111 wrote:On the left side of this page there is a section for "Instruction sheets", in that section there is a copy of the instruction sheet for a Mccoy Stunt 35, if you happen to have the item #25 crank throw spacer and are looking to sell, I'd be interested! Very Happy

I just assembled a Lightning Bolt 40 for a fellow over on SH. I had the spacer in the box along with all the necessary other parts. It is now in the back of the crank.

Looking half-way closely at it, it looks like a simple piece of plastic, maybe nylon, maybe teflon. I made similar pads for the wrist pins on some of my old K&B 40 stuff, so making a suitable copy should be relatively easy. (Or maybe I'm fooling myself! :-) )

Regards,

Bill

Yes, I've made them from nylon screws, sanding them to shape, just thought an original one would be nice to have, couldn't hurt to ask!
pman1111
pman1111
Silver Member
Silver Member

Posts : 92
Join date : 2022-01-15

Back to top Go down

McCoy 35/40 Parts lists Empty Re: McCoy 35/40 Parts lists

Post  GallopingGhostler Sat Dec 31, 2022 12:45 pm

Bill, answered your question in my reply above for the PDF file. A belated welcome, to this forum. Didn't know that you know quite a bit about these engines.

I really like the Testor Red Head engines. Have now 7 or 8, even a .35 Blue Head R/C (earlier without lightning bolt crankcase). They are smoother running than the Fox .35 Stunt. Even found the now nearly unobtanium Evolution .40/.46 remote needle valve assembly fits the .35 Red Head perfectly, plus being fine thread, makes adjusting the engine a joy.
McCoy 35/40 Parts lists Mccoy310
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5386
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down
