Shocked Cox model plans

Post  Coxfledgling Mon Jun 26, 2023 2:38 am

A few new Cox model plans on outer zone spotted yesterday.

Google "outer zone" if you do not know of them.
Coxfledgling
Coxfledgling
Gold Member
Gold Member

Posts : 375
Join date : 2021-01-10
Location : Near Caernarfon, Snowdonia, Wales, UK

Back to top Go down

Shocked Re: Cox model plans

Post  GallopingGhostler Mon Jun 26, 2023 4:05 am

Coxfledgling wrote:A few new Cox model plans on outer zone spotted yesterday. Google "outer zone" if you do not know of them.
Shared to Outerzone by DuaneHollinger. If a member of CEF, can you fess up? Very Happy

https://outerzone.co.uk/plan_details.asp?ID=14639 Cox Foam Wing (oz14639)
Cox model plans 1463910

https://outerzone.co.uk/plan_details.asp?ID=14640 Focke-Wulf Fw 190A (oz14640)
Cox model plans 1464010

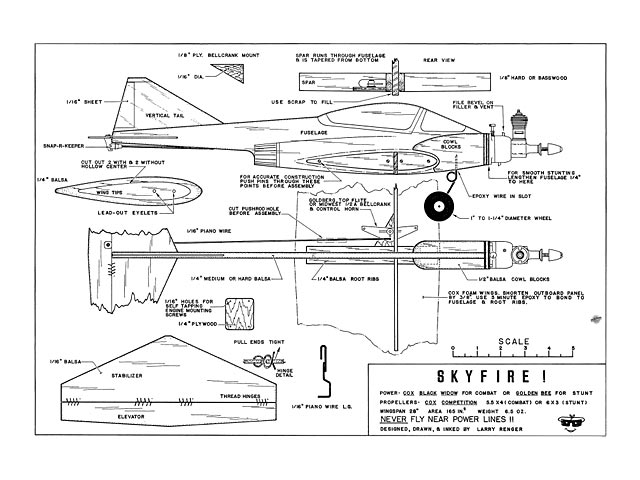

https://outerzone.co.uk/plan_details.asp?ID=14641 Skyfire (oz14641)Cox model plans 1464110

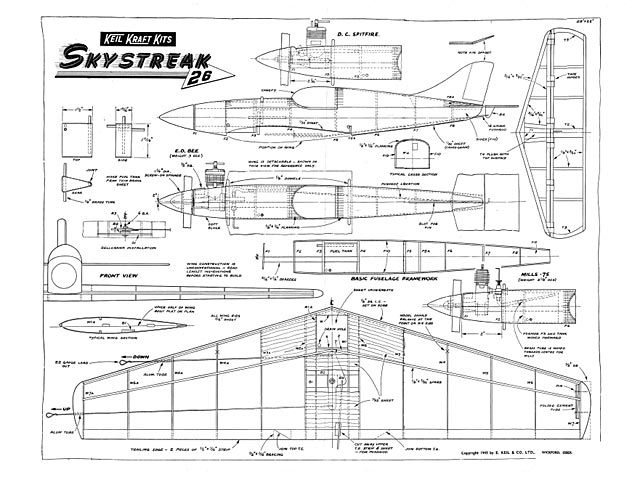

A Keil Kraft 26 inch wingspan IMO good for .049 Tee Dee.

https://outerzone.co.uk/plan_details.asp?ID=1376 Skystreak 26 (oz1376)
Cox model plans 137610

This Site Rocks! lol!
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5400
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down

Shocked OK, OK, I confess. It was me.

Post  duaneh Mon Jun 26, 2023 9:09 am

I built the FW-190, and drew the wing plan to replicate the foam wing. Build thread is here:
https://www.coxengineforum.com/t16555-cox-fw190-balsa-build

I sent it all in to Outerzone just in case anybody else might want to build one. I have not built the Skyfire, but the plan wasn't on Oz, so I sent it along as well.
duaneh
duaneh
Gold Member
Gold Member

Posts : 212
Join date : 2019-04-06

Back to top Go down

Shocked Plans

Post  Coxfledgling Mon Jun 26, 2023 10:05 am

Nice one Duane !

May I ask, sent via email mail ?

I have some Cox powered plans in UK aeromodeler annuals by no computer internet at home. I will get a collection together and spend an afternoon in the public library to send here and outer zone, but that's for the future.

I am after the plan for the mini super 60, may have to print off outer zone full size and reduce it to 3/4 size...for a smallish RC version.

Coxfledgling
Coxfledgling
Gold Member
Gold Member

Posts : 375
Join date : 2021-01-10
Location : Near Caernarfon, Snowdonia, Wales, UK

Back to top Go down

Shocked Re: Cox model plans

Post  duaneh Mon Jun 26, 2023 10:33 am

That's great! Yes, just send the files as email attachments to admin@outerzone.co.uk.

The Super 60 has been done in so many sizes, one wonders how they missed an .049 version. Here is one for a PeeWee at 25", it may be easier to scale up than down. https://outerzone.co.uk/plan_details.asp?ID=3274

If you're so inclined, there is also a biplane version at 33" for 1/2A. https://outerzone.co.uk/plan_details.asp?ID=3310
duaneh
duaneh
Gold Member
Gold Member

Posts : 212
Join date : 2019-04-06

Back to top Go down

Shocked Re: Cox model plans

Post  andrew Mon Jun 26, 2023 10:40 am

Outer Zone has several versions of the "Super".

Micro Super, 25", OZ3274

Mini Super, 3 versions, 48", OZ14119, OZ5107, OZ7900

Super 60, 2 versions, 63", OZ4059, OZ552
andrew
andrew
Diamond Member
Diamond Member

Posts : 1814
Join date : 2011-08-11
Age : 76
Location : Western Kentucky

http://web2.murraystate.edu/andy.batts/ps/POWERSUPPLY.HTM

Back to top Go down

Shocked Plans

Post  Coxfledgling Mon Jun 26, 2023 10:46 am

Thanks guys,
I was in the library today looking at outer zone, in search box trying mini super 60 with no joy.

Thanks again guys, result !
Coxfledgling
Coxfledgling
Gold Member
Gold Member

Posts : 375
Join date : 2021-01-10
Location : Near Caernarfon, Snowdonia, Wales, UK

Back to top Go down

Shocked Re: Cox model plans

Post  batjac Tue Jun 27, 2023 1:44 pm

I saw these on OuterZone.  I check OZ daily to see what goodness had appeared out of the ether.  I saved the plans, but fortunately I will not need to use them for a good while as I have these:


Cox model plans 20230626-143716


Eight sets of wings, both in white and blue.

The Bountiful Mark
batjac
batjac
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

Posts : 2356
Join date : 2013-05-22
Age : 61
Location : Broken Arrow, OK, USA

Back to top Go down

Shocked Re: Cox model plans

Post  GallopingGhostler Tue Jun 27, 2023 1:50 pm

batjac wrote:I saw these on OuterZone.  I check OZ daily to see what goodness had appeared out of the ether.  I saved the plans, but fortunately I will not need to use them for a good while as I have these: Eight sets of wings, both in white and blue.
Hoarder! lol! (I shouldn't talk because I have over six dozen engines and a stash of unbuilt kits.) Doh!

This Site Rocks!
GallopingGhostler
GallopingGhostler
Top Poster
Top Poster

2023 Supporter

Posts : 5400
Join date : 2013-07-13
Age : 70
Location : Clovis NM or NFL KC Chiefs

Back to top Go down
