3D printing an old railway coach

rsv1cox Fri Mar 05, 2021 7:29 am

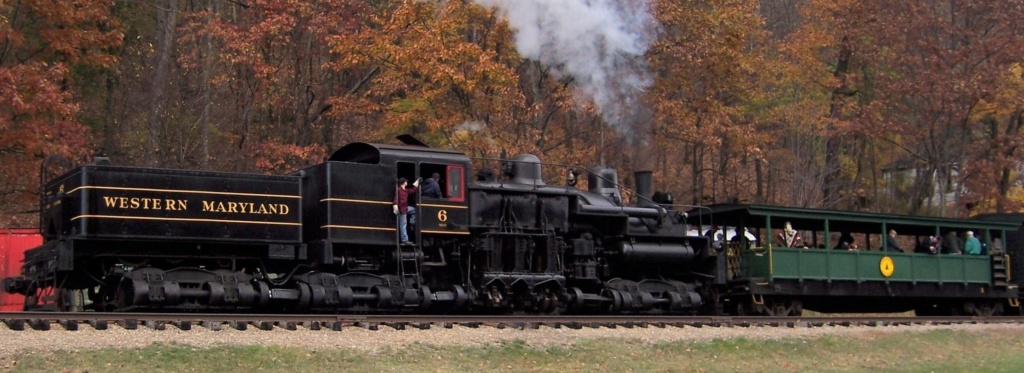

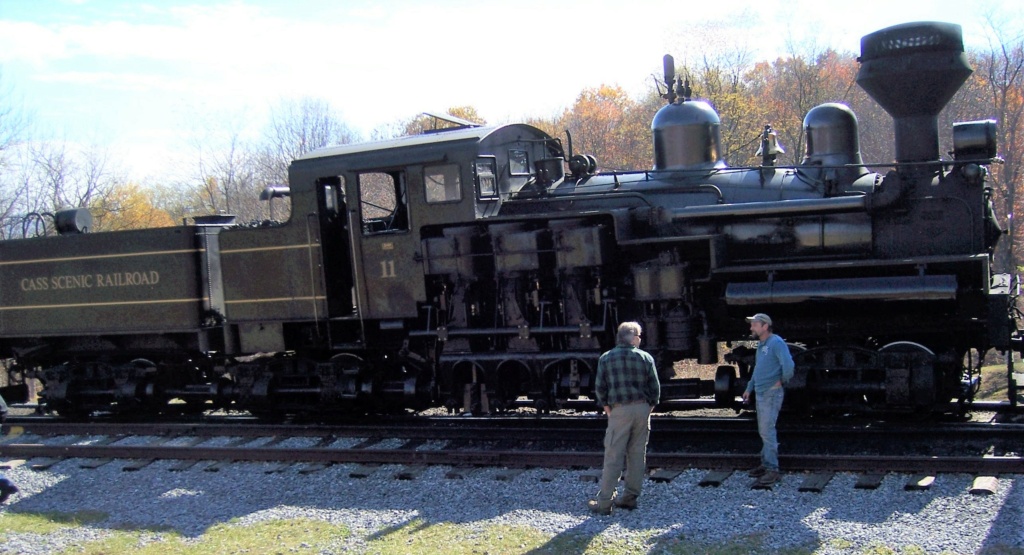

A few years back my son-in-law and I took a trip to Cass West Virginia and rode a old Shay Locomotive pushing a coach up Cass mountain to visit a 1920's era logging operation.

3D printing an old railway coach Cass_g26

3D printing an old railway coach Cass_g27

3D printing an old railway coach Cass_g25

3D printing an old railway coach Cass_g24

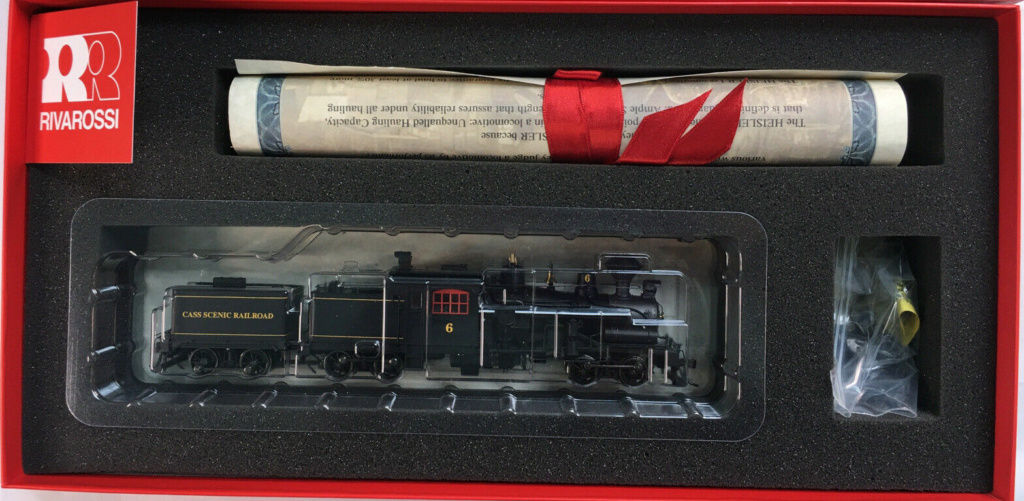

Which stimulated my interest in logging locomotives, a special breed of Climaxes, Shays, and Heislers especially made for the operation, low speeds with lot's of grunt. Kicking around ebay I found this Heisler marked Cass Scenic Railway.

3D printing an old railway coach Cass_h10

and needed a coach to make it complete. Which brought me to this, also on ebay.

3D printing an old railway coach Cass_c10

3D printing an old railway coach 3d_pri10

Sellers description.

This is a custom designed unassembled HO scale excursion/passenger car kit that is modeled after the Cass Scenic Railroad excursion cars. No worries about microscopic parts, all parts are easy to handle and assemble using your favorite CA glue (super glue) and also comes complimentary with 2 of our custom designed Bettendorf trucks. The roof is modeled to be removable or you can permanently glue it into place. This allows ease of access for painting, placement of figures, and lighting if you choose to do so. This is a unique Railcar Kit is 100% our design and cannot be purchased anywhere else, except here! Once purchased, the passenger/excursion car will be 3D printed with our high resolution resin printer using Impact Resistant Engineering Grade Photopolymer Resin. Then Finally, Inspected and shipped Straight to you

getback Fri Mar 05, 2021 7:49 am

Pretty Cool , when will yours bee there ? what is the price ? Roddie

rsv1cox Fri Mar 05, 2021 7:58 am

@getback wrote:Pretty Cool , when will yours bee there ? what is the price ?

Hi Eric, He says it takes about a week to print them up. I made an offer of $32.50 a few bucks off his ebay price and he accepted.

Think I will send it off to Levent to assemble and paint.......... Smile

I'm no good at that sort of stuff.

getback Fri Mar 05, 2021 8:10 am

Good morning Bob , Well that's not a bad price and am sure Lievent will do a good job for you . Popcorn

rsv1cox Fri Mar 05, 2021 10:19 am

@getback wrote:Good morning Bob , Well that's not a bad price and am sure Lievent will do a good job for you .

Thinking like Mark will probably get the job. He customized a previous kit for me and did a good job.

**Cribbs74** Fri Mar 05, 2021 1:57 pm

Cool Bob!

Kim Fri Mar 05, 2021 5:38 pm

Now, THAT is cool!!!!!!!

Ken Cook Fri Mar 05, 2021 6:11 pm

My buddy Dan just finished up some old Ambroid train car kits. He still has some in the box. They were pretty cool. I think he said one of them even had a tube of Ambroid in the box.

rsv1cox Fri Mar 05, 2021 6:13 pm

Yeah, but I hedge my bet. Also picked up an already made one. Bachmann marketed these under various road names. Gives me - err Mark an example to follow.

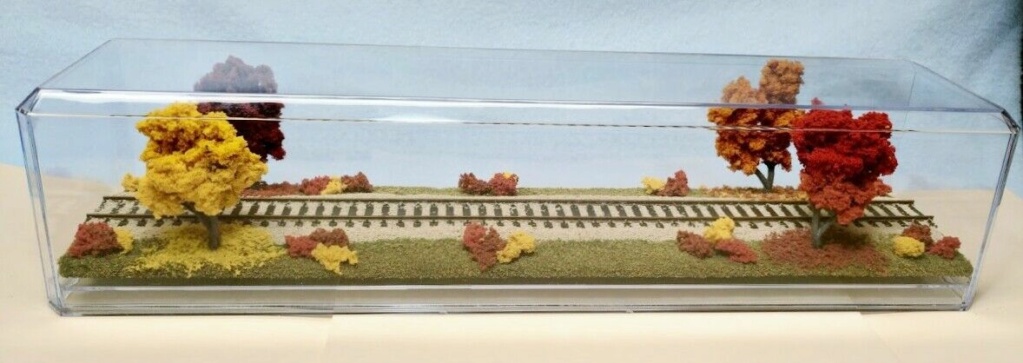

Also bought a display case for it. 16" will hold both the coach and the loco. Going to try to elevate one end.

3D printing an old railway coach Displa21

3D printing an old railway coach Cass_h11

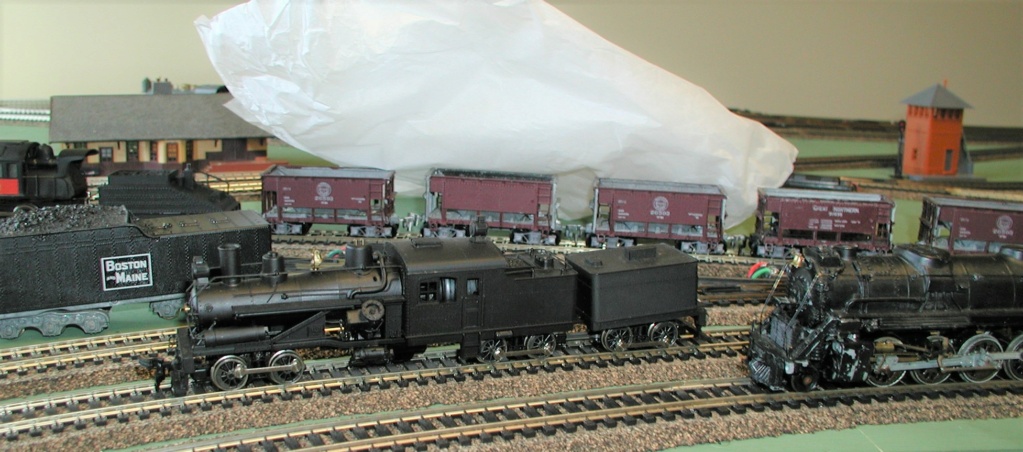

Got an undecorated example today. Advertised as "untested" on ebay. Put it on the track and it wouldn't move. Oh, oh. Gave it a nudge and off it went. Works great, just needed a little incentive. Smile

3D printing an old railway coach P1010780

NEW222 Sat Mar 06, 2021 11:22 pm

Very neat and interesting. Never would have thought of resin printing one of those. Will be neat to see what you get and then the final product.

rsv1cox Thu Mar 11, 2021 3:44 pm

Commercial Bachmann car showed up today, very nicely rendered. Other one still being printed I guess.

3D printing an old railway coach P1010797

3D printing an old railway coach P1010798

3D printing an old railway coach P1010799

Guess I have got to build me mountain.

dckrsn Thu Mar 11, 2021 5:08 pm

"Got to build me mountain" There's a song there somewhere, Bob Huh...

Bob

rsv1cox Thu Mar 25, 2021 12:11 pm

@dckrsn wrote:"Got to build me mountain" There's a song there somewhere, Bob
Bob

Close Bob

https://www.youtube.com/watch?v=W_GgZsUyzHA

True to the sellers word, he prints these up as requested. Took awhile to get here. I would have a few made beforehand.

Nicely done, better detail than I would have guessed.

3D printing an old railway coach P1010905

3D printing an old railway coach P1010904

OVERLORD Thu Mar 25, 2021 2:22 pm

That should look like the Bachmann after assembly and painting. Does this chap make other coaches?

rsv1cox Thu Mar 25, 2021 4:14 pm

@OVERLORD wrote:That should look like the Bachmann after assembly and painting. Does this chap make other coaches?

I don't think so Lieven

https://www.ebay.com/itm/HO-Scale-Excursion-Passenger-Car-Kit-Cass-Scenic-Railroad-Custom-Designed/192920819139?hash=item2ceafa15c3:g:klsAAOSwrptfwE1R

But he has sold 38 of the Cass open coaches.
