.049 modification Design of new heat sinks

Go down

.049 modification  Design of new heat sinks Empty .049 modification Design of new heat sinks

Post  davidll1984 Wed 3 Aug 2022 - 21:42

Design of  new heat sinks  model wit new glow plug adapter inserts As these pieces are rare or even impossible to find, I decided to make new pieces. Here is a start the cooling fins took a considerable amount of time almost 3:00h of work .049 modification  Design of new heat sinks Img_2381
.049 modification  Design of new heat sinks Img_2382
davidll1984
davidll1984
Diamond Member
Diamond Member

Posts : 2122
Join date : 2020-02-12
Age : 39
Location : shawinigan

Back to top Go down

.049 modification  Design of new heat sinks Empty Re: .049 modification Design of new heat sinks

Post  balogh Thu 4 Aug 2022 - 0:02

Great job David..for which engine do you make these head fins? There needs to be a certain fin-to -cylinder surface ratio to provide sufficient cooling, but not too much.
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4685
Join date : 2011-11-06
Age : 65
Location : Budapest Hungary

Back to top Go down

.049 modification  Design of new heat sinks Empty Re: .049 modification Design of new heat sinks

Post  davidll1984 Thu 4 Aug 2022 - 13:58

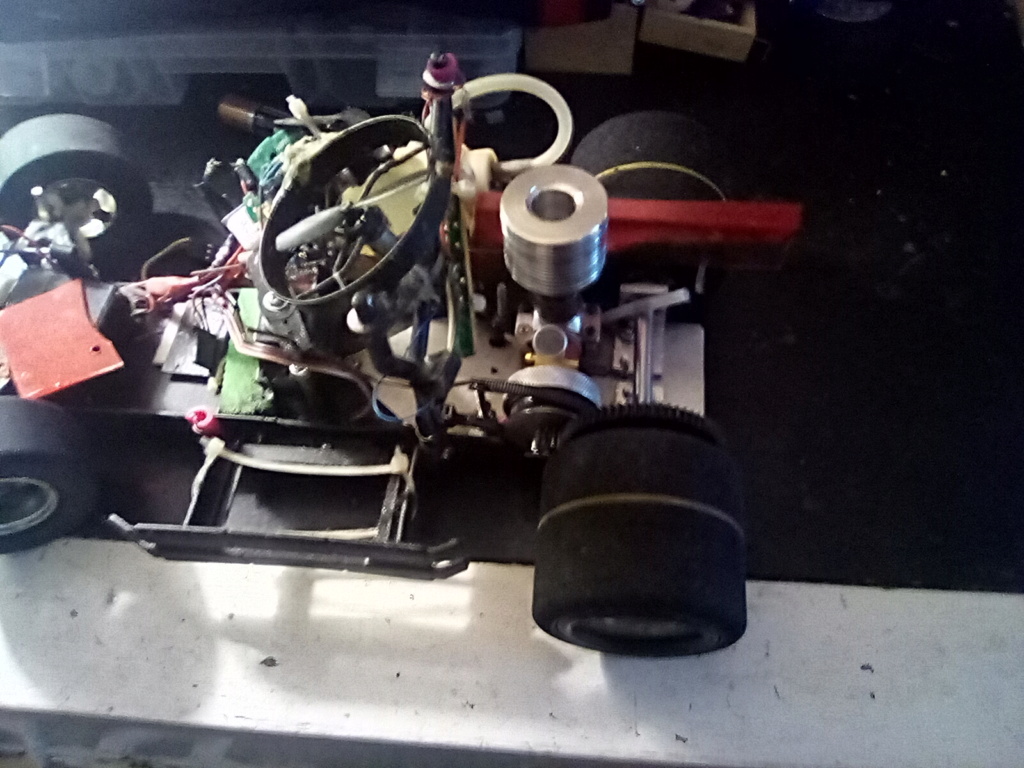

It is for cars or boat Not plane mabe helicopter but I think that would cool a little too much I designed similar to the norvel model but with more surfaces more fin i want maximum Cooling For built-in motors hidden in the body of the car and which do not receive a lot of air This can be used with a standard heat sink which will be placed below I'll post more details when I have more time for it. Very Happy .049 modification  Design of new heat sinks 16596110
.049 modification  Design of new heat sinks 16596111
I dont want To cut m'y Windows for air
davidll1984
davidll1984
Diamond Member
Diamond Member

Posts : 2122
Join date : 2020-02-12
Age : 39
Location : shawinigan

Back to top Go down

.049 modification  Design of new heat sinks Empty Re: .049 modification Design of new heat sinks

Post  Yabby Fri 5 Aug 2022 - 10:48

Thats excellent stuff David!! cheers You have awesome skills to build really great models and to innovate and create components to suit, such that your models are not limited by standard available parts only. Great work and effort and excellent models. Thumbs Up cheers

Yabby
Yabby
Yabby
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

Posts : 662
Join date : 2021-06-08
Location : Yorke Peninsula South Australia

Back to top Go down

.049 modification  Design of new heat sinks Empty Re: .049 modification Design of new heat sinks

Post  davidll1984 Fri 5 Aug 2022 - 19:36

I made another different one capable of using the norvel insert and standard plug it is raised to come out of the engine cowling i wil made more difrent models and test them .049 modification  Design of new heat sinks Img_2386
.049 modification  Design of new heat sinks Img_2387
.049 modification  Design of new heat sinks Img_2385
davidll1984
davidll1984
Diamond Member
Diamond Member

Posts : 2122
Join date : 2020-02-12
Age : 39
Location : shawinigan

Back to top Go down

.049 modification  Design of new heat sinks Empty Re: .049 modification Design of new heat sinks

Post  Levent Suberk Sat 6 Aug 2022 - 17:06

Another innovation from our friend davidll cheers Thumbs Up
avatar
Levent Suberk
Diamond Member
Diamond Member

Posts : 2191
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

.049 modification  Design of new heat sinks Empty Re: .049 modification Design of new heat sinks

Post  getback Sun 7 Aug 2022 - 13:46

Good job on the heat sink , is it doing the the heat displacement you are looking for ? Small Cox Logo
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 9955
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down
